550 °C Max Hot Pellet Press with Si3N4 Die and 5T Digital Pressure & Temp. Control - YLJ-HP2

YLJ-HP2 is an electric press with 12, 20 or 25mm I.D. Silicon Nitride Pellet Pressing Die, Heating Jacket (550°C Max.), and Programmable Temperature Controller. It is a ready-to-go product package for pressing ceramic, polymer, or ceramic-polymer composite materials. Applications include microwave dielectric materials, solid-state electrolytes, and semiconductors. The compact design of the press makes it well-suited for inside glove box operation with an inert gas environment (Argon compatible). Update: Programmable Temperature Controller is standard from 03/09/2021.

SPECIFICATIONS:

Power	Heatable Die Set: AC 220V 50/60Hz, 550 W Max (for 110V version, please order a 750W transformer Pic. 1 ) Electric Press: 24V DC, NRTL & CSA certified 110 - 240V AC to 24V DC 90W power adapter included (Pic. 2) An extension power cable with KF40 Feedthrough is included for using the Electric Press inside the Glovebox.  Pic. 1 Pic. 2  Pic. 3
Working Temperature & Load	Temperature: RT - 550 ºC Max Pressure: 150 MPa ( 1.6 metric ton ) @ RT - 550 ºC

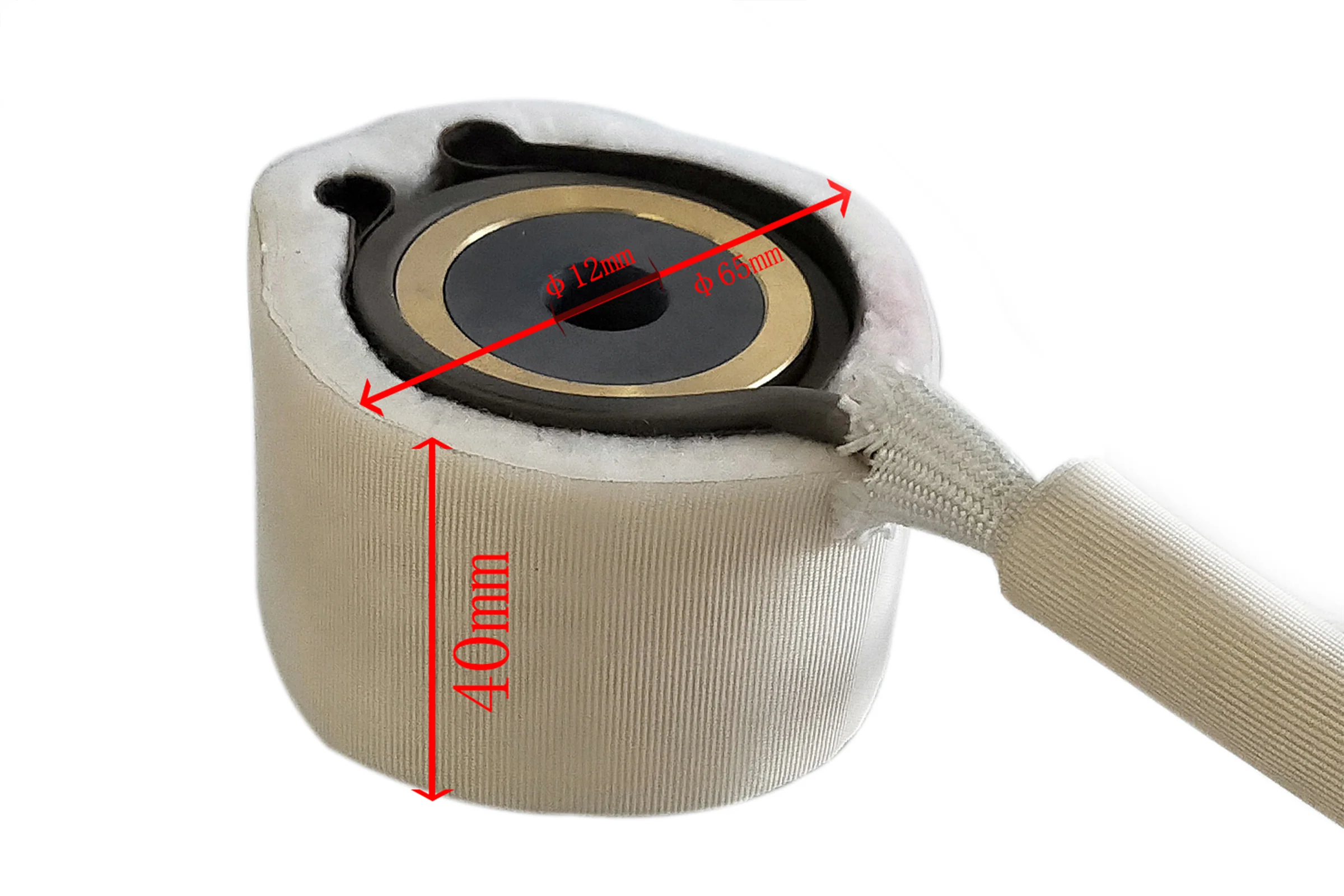

Heatable Die Structure	The Si3N4 Heatable Die Set HC-SiN-12 includes: A set of 12mm I.D. Silicon Nitride Pellet Pressing Die Mold Release Rod Mold Release Sleeve Upper and Lower Supporting Plate Heat Insulation Plate with mica Heating Jacket: 65mm O.D. x 40mm H Copper Adapter: 39mm O.D. x 30mm I.D. x 40mm H Programmable Temperature Controller

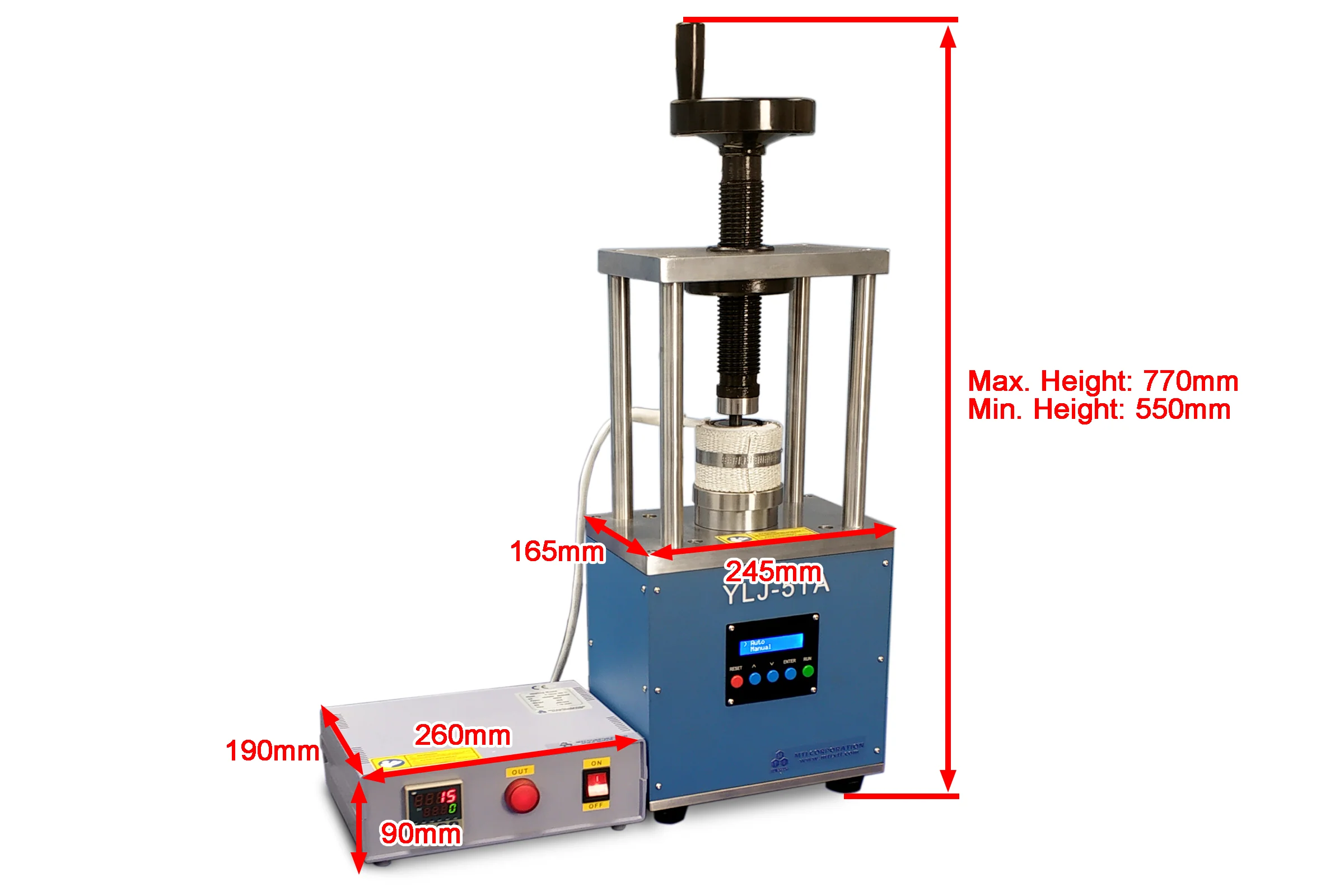

Pressing Control	Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ-5TA A built-in load cell with a digital display for pressure measurement and control Digital control panel for programmable pressure and dwell time Load adjustment range: 0.1-5T (Do NOT overload the Die) Load accuracy: +/- 0.005T Time setting: 1 - 999 minutes 240 mm (L) x 165 mm (W) x 560mm (H) Die holding plate: Ø78 mm
Temperature Control	Programmable PID temperature controller with a built-in type-K thermocouple. Temperature Accuracy: +/- 2°C
Glovebox Feasibility	This entire product can be operated inside an Argon Glovebox. If a feedthrough is needed, please contact MTI for specific solutions.
Application Note	Must wear protective goggles during the operation!!!
