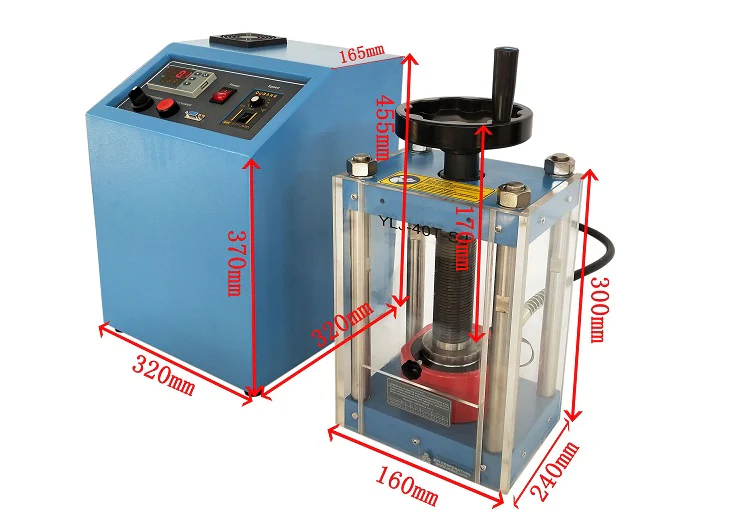

40T Electric Hydraulic Press with Optional Heating Die (250C Max) for Cold Sintering Process - YLJ-CSP-40TA

• 0~40 Metric Tons

• Notes:
• For the actual applied force, please use the 'Force Applied' (Ton) on the above table, which is converted from the Gauge Pressure (MPa) displayed.
• For estimating the applied force:  Gauge Pressure to Applied Force Conversion: 1 MPa ≈ 1 Ton
• The actual force applied to the Hydraulic Cylinder (Ton) equal to the force applied on your sample
• For calculating the actual pressure (MPa) applied on your working piece, please follow the equations in below:
• P = (T x g x 10) / (πr^2)
• P: Pressure (MPa) applied on your working piece
• T: Force (Ton) applied to the Hydraulic Cylinder
• g: Standard gravity. g ≈ 9.8 m/s²
• π: ~3.14
• r: Radius (cm) of the working piece
• *1 Metric Ton = 1000 kg; 1 MPa ≈ 10 kgf/cm²

• ± 0.5MPa in high pumping speed
• ± 0.1MPa in low pumping speed

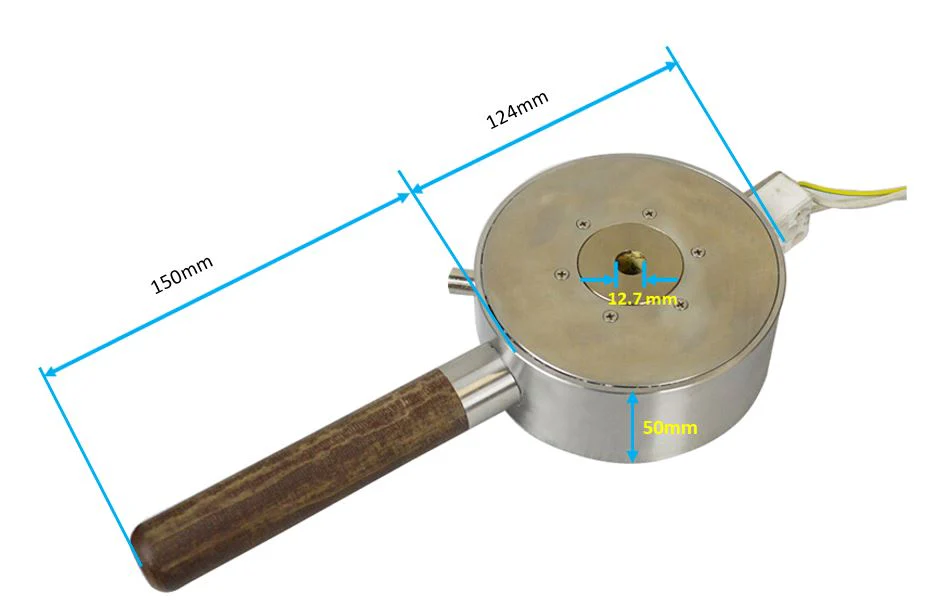

• Please select 0.5", 1.5" or 3" ID heatable dies from the Product Options
• High Strength tool steel with hardness >RC60
• Optional: Die with electric insulating BN liner is available at extra cost for researching sample's conductivity vs pressure
•

• 50 - 200 ºC ( if use the transparent cover )
• 50 - 250 ºC (if removing the transparent cover)

• Single-segment programmable digital temperature controller with overheating protection
• PID auto-tune function with +/- 1 ºC stability

• Standard: 208 VAC (single-phase). 180 W power (electric press)
• Optional: Please order a 1000W 110V-220V transformer for using under 110 V

Electric Hydraulic Pump
& Optional

• Pressure gauge with built-in pre-stable pressure switch (accuracy +/-0.5% FS)
• Pressure load will automatically stop when the pressure reaches the pre-setting point
• Built-in timer for warning
• You may choose a 30T electric hydraulic pump with pressure maintaining function for more precise pressure control at extra cost or a manual 24T or 40T manual press at a lower cost (Please contact MTI for more details)
• For inside glove box operation with an inert gas atmosphere, please choose the compact 15T manual hydraulic CSP press YLJ-CSP-15 (Click left picture to order)

• 0 - 16 mm

• 170 mm

• 80 mm

• CE Certified
• NRTL or CSA certification is available at an extra cost

• Preparation of LAGP Sheets by Cold Sintering Process (CSP) using YLJ-CSP-40TA
• Thoroughly clean the die pieces immediately after use to avoid corrosion from the cold sintering process!
• To avoid pressing die cracking, assemble all the pressing die pieces without the sample before the CSP experiment and pre-heat them without applying pressure.
• The pressing die cannot be used for pressing powder with a particle size < 30 microns. Small particles may slip into the gap between the pushing rod and the steel sleeve and cause damage to the sleeve during the compression. Ball mill and sieve the powder and apply only the 32~75 microns power to the pressing die to avoid damage. Please consider using the 3'' Dia. Sieve Set No.200&450 Mesh to separate the 32~75 microns particles from the powder clumps. Please clean the mold via ethanol after the completion of each experiment.
• Do not raise the bottom cylinder (piston) more than its maximum traveling distance. (25 mm)
• Operating the press inside the glove box is not recommended
