Extrusion Press With Variable Diameter Die up to 100T and 400 oC Max. - VDE-HT1000

Extrusion Press With Variable Diameter Die up to 100T and 400 oC Max. - VDE-HT1000

Extrusion Press With Variable Diameter Die up to 100T and 400 oC Max. - VDE-HT1000

VDE-HT1000 is an extrusion pressing machine with a variable-diameter die from 10 mm to 7 mm, capable of both cold and hot extrusion, with a maximum force of 100 metric tons and a temperature of 400 °C. This machine is designed for thermo-electric material based on a reference article: Development of a solid-state multi-stage thermoelectric cooler

SPECIFICATIONS:

Hydraulic Press driven by an electric motor	Applied force range: 5 - 100 metric Tons adjustable with digital display Hydraulic cylinder diameter: 100 mm diameter Travel distance of cylinder: 108 mm Working space of the press: 300 mm width x 850 mm height Rated power: 1500W Voltage“ 220VAC+/-10% ， 50/60 Hz， single phase
Extraction Mold	Extrusion mold materials: Mold core made of hardened mold steel, outer casing made of stainless steel. Mold dimension: OD 175mm * height 160mm Iner extrusion mold size: OD 50 x height 160 mm Standard extrusion die with variable diameter: from D10 mm to D7 mm x L 25 mm Customized die is available upon request
Heating Option	The extrusion mold is heatable up to 400 °C, either by resistance jacket or induction heating as an option Note: Resistance heating is slow, but lower cost, and induction heating is faster, but higher cost. The digital temperature controller is programmable with +/- 1 °C accuracy A vacuum chamber is optional for air-sensitive material at an extra cost
Control Unit	The control box is separate from the extrusion press A touch screen panel set up diesired extrusion pressure and temperature
Compliance and Warranty	CE certified NRTL certification is available upon request at an extra cost One year limited warranty with lifetime tech support

$17,444.00

Original: $49,840.00

-65%

Extrusion Press With Variable Diameter Die up to 100T and 400 oC Max. - VDE-HT1000—

$49,840.00

$17,444.00

More Images

Extrusion Press With Variable Diameter Die up to 100T and 400 oC Max. - VDE-HT1000 - Image 2

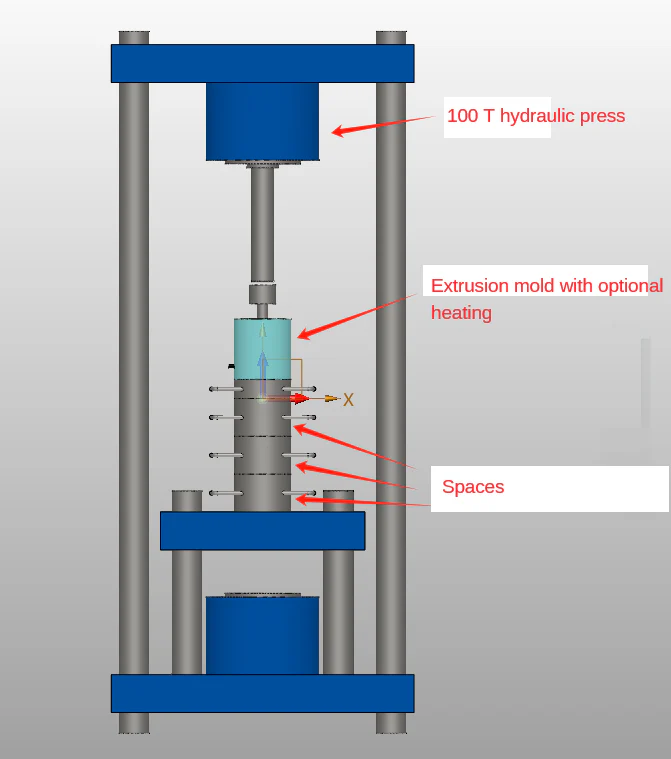

Extrusion Press With Variable Diameter Die up to 100T and 400 oC Max. - VDE-HT1000 - Image 3

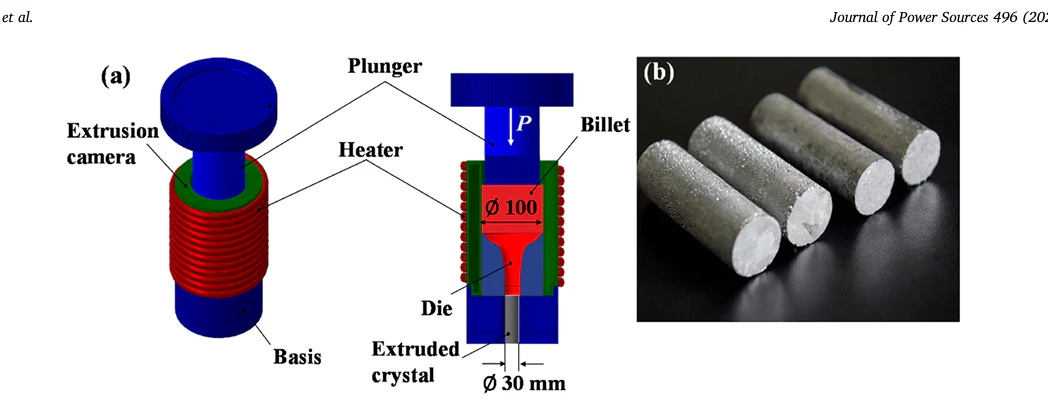

Extrusion Press With Variable Diameter Die up to 100T and 400 oC Max. - VDE-HT1000 - Image 4

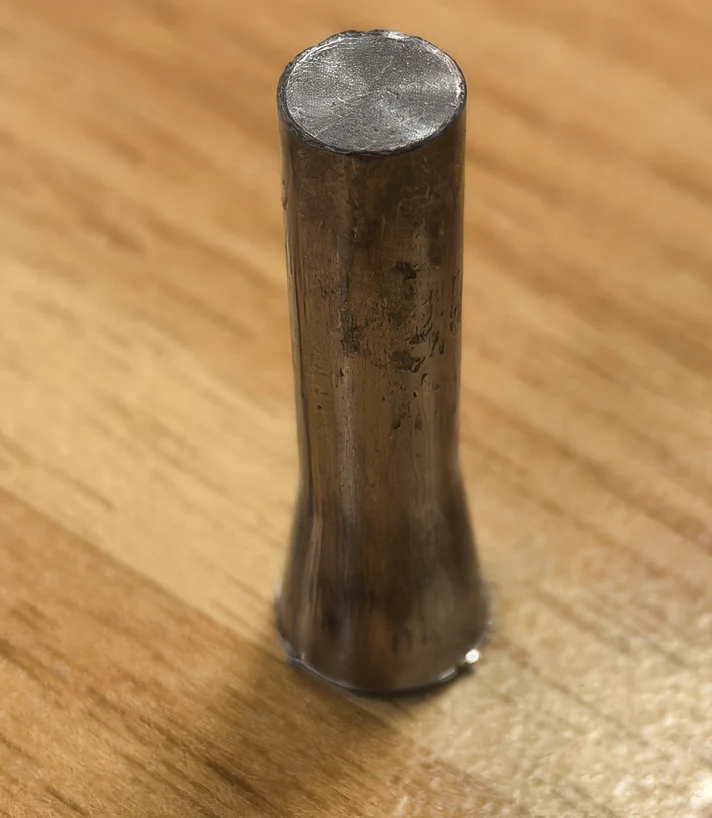

Extrusion Press With Variable Diameter Die up to 100T and 400 oC Max. - VDE-HT1000 - Image 5
