10T Electric Mechanic Press with WC Heating Dies (550ÂșC Max) - YLJ-HP-10T

10T Electric Mechanic Press with WC Heating Dies (550ÂșC Max) - YLJ-HP-10T

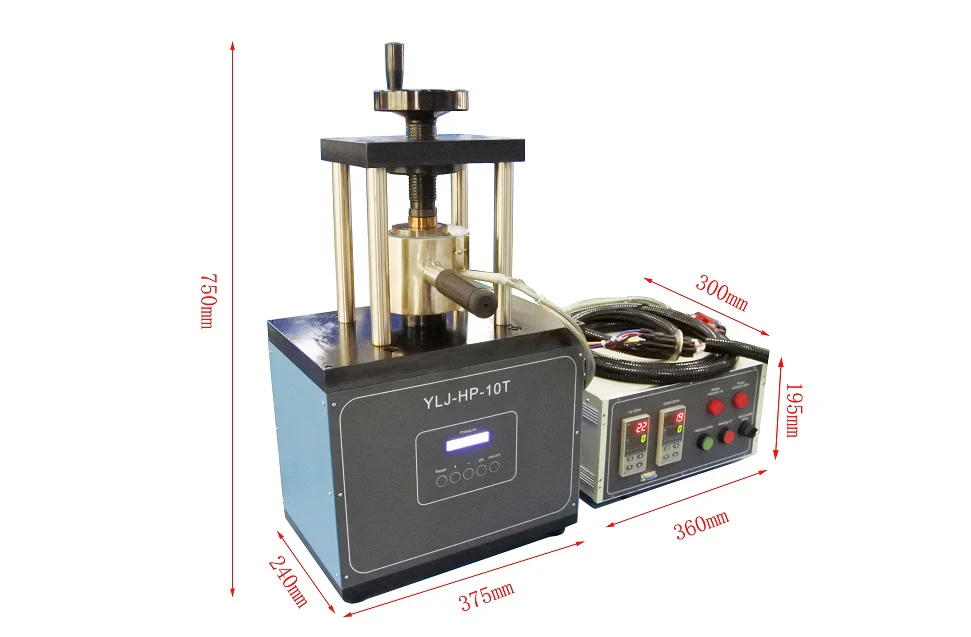

YLJ-HP-10T is a 10 max. electric mechanical press ( oilless) with tungsten carbide dies if 30 mm ID which is heated by dual-zone up to 550 ÂșC max. It is designed for sintering ceramic, ceramic-polymer composite, and air-sensitive materials in the glovebox.

SPECIFICATIONS:

Power
  • Power consubsion 4000W ( including die heating and pressing )
  • Voltage: 208 - 240VAC, 50/60 Hz, single phase
 Pressing Machine
  • Material: Heavy-duty carbon steel
  • Stroke length: 35 mm
  • A built-in load cell with a digital display for pressure measurement and control
  • Digital control panel for programmable pressure and dwell time
    • Pressure adjustment range: 0.1- 10T
    • Pressure accuracy: +/- 0.005T
    • Time setting: 1 - 999 minutes
Heating Die

  • Pellet pressing die is made of tungsten carbide (WC)
    • Standard die included 30 mm ID 20 mm or 10 mm ID die is available upon request )
    • Max. the pressure of die: 200 Mpa
  • Die Heating: The die is wrapped by two heating rings for uniform temperature.
  • Two programable temperature controller which controls two heating rings independently
    • Max. Working temperature: 550ÂșC < 30 minute and 500ÂșC continuously
    • Temperature accuracy: +/- 1ÂșC
Application Note:

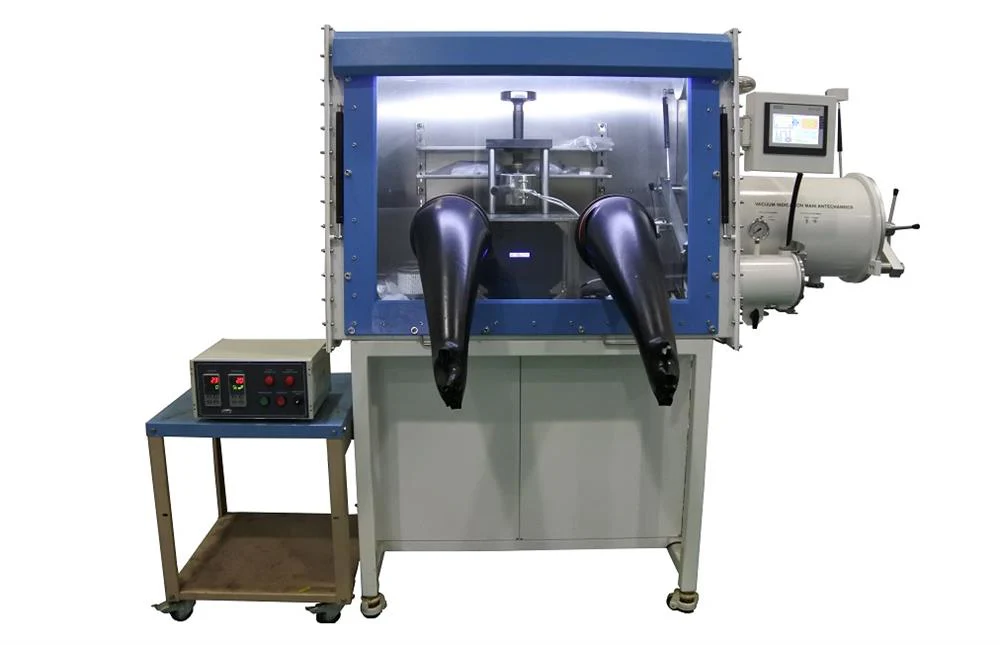

  • This pressure is designed for using insider glovebox with inert gas, including Ar gas
  • If you will use the press inside the glove box, please let us know. One KF 40 feedthrough will be needed if you put the temperature control box outside the glovebox, which is available upon request at the extra cost.
Compliance
  • CE Certified
  • NRTL or CSA certification is available at an extra cost



Select Oil-less Press option
From $22,986.00
