Hi-Speed Spin Coater (10K rpm & 5" max) w/ Optional Heating or UV Cover up to 200°C- VTC-100PA

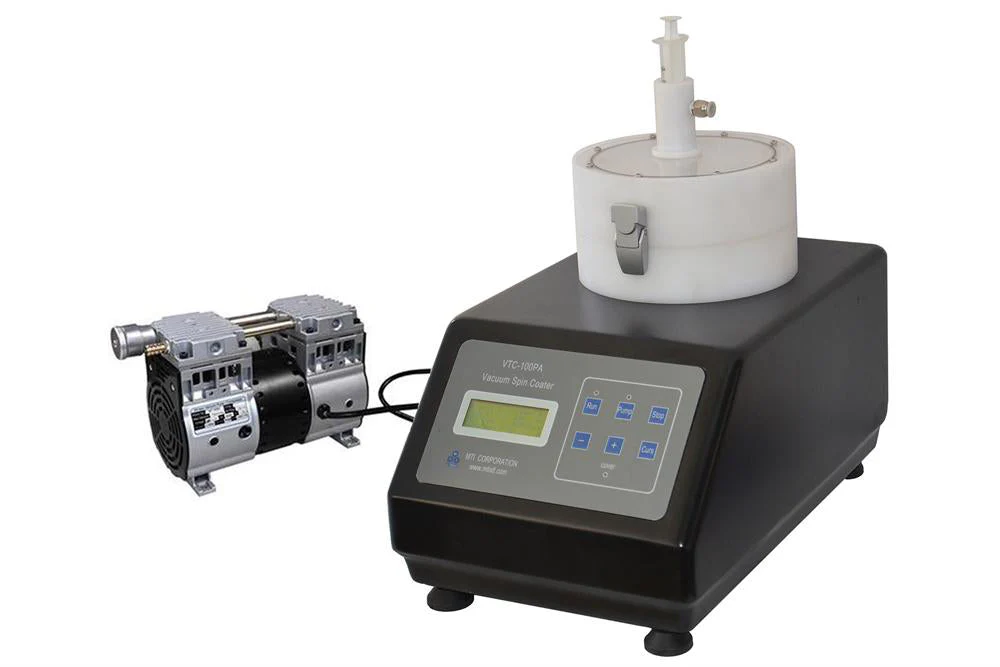

VTC-100PA is a tabletop spin coater up to 5" diameter at Max. 10000 rpm. The spin head actuator is a precision DC servo motor with accurate speed and acceleration control. The substrate can be held by vacuum (for thinner objects). The device has a user-friendly keyboard and LCD display for programming various parameters up to 12 programs, 6 segments. Spin duration, spin speed, and acceleration can be programmed from the front panel. All components in the device are corrosion-protected to make it cleanroom-compatible. This spin coaster can be used inside the glovebox with Ar gas.

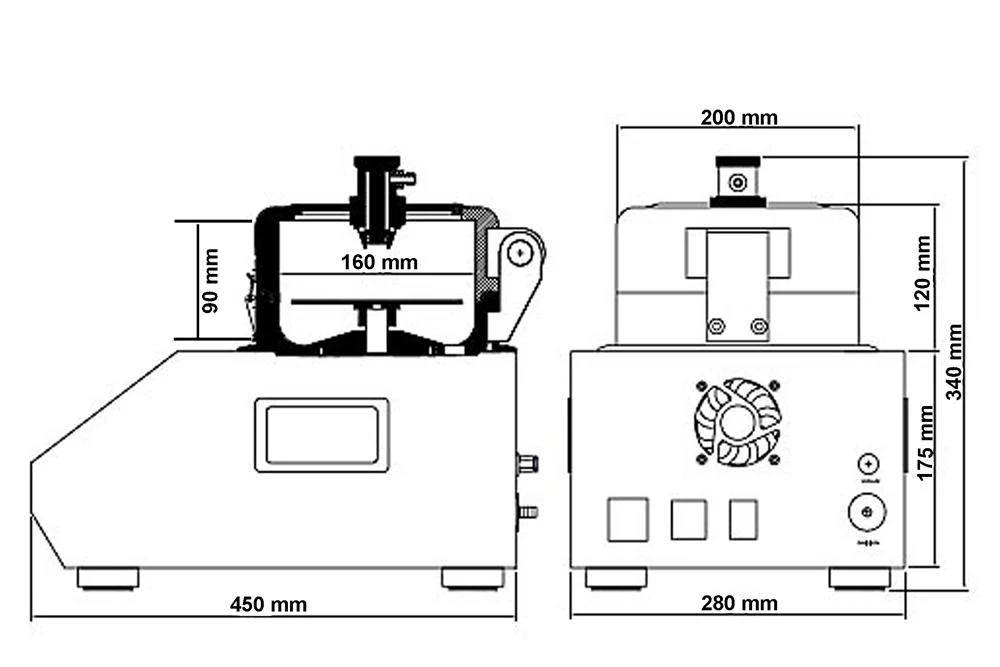

SPECIFICATIONS:

Main Features	500 ~ 10000 RPM spinning speed programmable Accept substrate from 5 mm to 5"  PP chamber for anti-corrosive operation. One gas inlet port on top of the cover can fill inert gas during coating One 20ml Plastic Syringe is included Suitable using Ar gas (vacuum pump must be outside glovebox)
Vacuum Chuck	Chamber size: 150mm diameter  2 sets of polypropylene vacuum chucks with different sizes (O-ring ID Φ44mm, Φ10.2mm), which can hold substrate from 10 mm to 5" Dia. ( see pic below )  Click the picture below right to watch the demo video for how to use a vacuum chuck to hold a 10mm square sample. PTFE vacuum chuck is also available upon request.
Vacuum Pump	One 120L/min Oilless Vacuum Pump is included  Ø8 mm plastic vacuum tube is included To use inside an Ar glovebox, feed-throughs are required to connect the spin coater, the vacuum pump, and the controller. The feedthrough is optional upon request.
Programmable Control	The digital control panel can store 12 programs, and each program has 6 segments programmable for speeds, acceleration, and spin duration (please click the picture left to see typical program settings) Speed: 500 rpm - 10000 rpm programmable Duration up to 60 seconds for each segment Acceleration: 100 - 2000 rpm/ sec adjustable Accuracy: < 5%
Input Power	AC 220V (Please email us for AC 110V Version) 1000 W total for the oilless pump and spin cater 24VDC high-speed motor
Gas Inlet	6mm diameter gas inlet port allows customers to fill the desired gas into the chamber, which can make coating under variable gas flow environment.
Liquid Injection	Standard Package: 20ml plastic syringe with needle Option 1: Precision Electronic Single Channel Pipette: 20 - 200uL Option 2: Heatable glass syringe with temp. controller, up to 200C

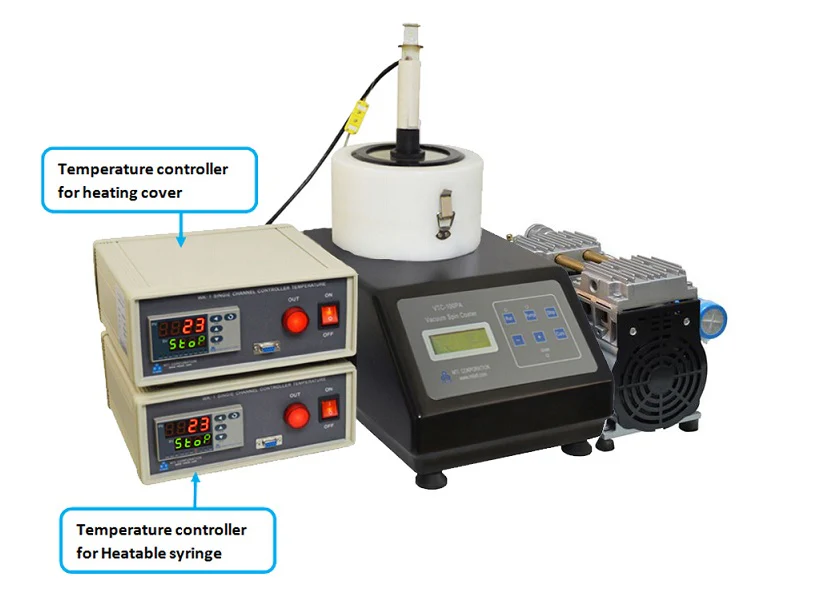

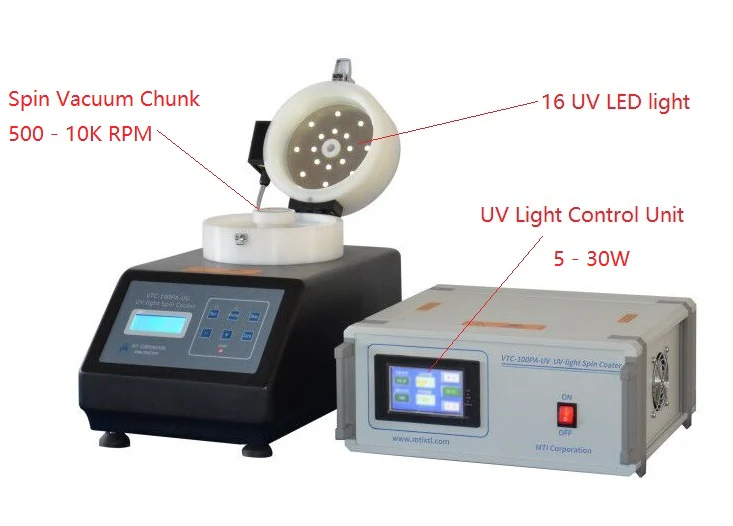

Optional	Option 1: PE heating cover with a digital single-point PID temperature controller up to 120°C(<10 minutes) is available upon request at extra cost. The drying process solidifies the as-coated film in less than a few minutes. Click the demo video & picture below for more details. (Pic.1&2) Option 2: PTFE heating cover + 10mm dia. PTFE vacuum chuck set is capable of high temperatures up to 200°C (<10mins). A30-segment programmable PID temperature controller is used for this option. (44mm dia. vacuum chuck is not included.) Option 3: UV LED lights and a controller for curing and polymerization are available on the options bar. ( 365 nm wavelength ) (Pic.3)            Pic.1                             Pic.2                       Pic.3
Application Notes	Please clicks here to review how to connect and use the heatable syringe. In order to achieve optimal coating quality, please consider cleaning substrates with a plasma cleaner (click the picture below for more details) prior to coating. This will significantly reduce the surface tension on the substrates. The  OFDP-2 is a tiny silent powerful diaphragm pump, which is made in Germany and provides an excellent vacuum performance, Now it's only $1455 for you to have this pump. Cleaning instructions for the spin coaters.
Compliance	CE Certified NRTL or CSA certification is available at an extra cost.
Warnings	Do not overflush the water bowl/base with any kind of liquid. Excess liquid will leak into the motor shaft and cause damage. Please use a fabric cloth to wipe out the residues that remain in the bow/base. Please turn on the water outlet when flushing the water bowl/base to avoid liquid overflowing during the operation. For more details about the cleaning procedure, please review the cleaning instructions for the spin coaters.
