1100°C Max. Molten Salts Reactor integrated with a Glovebox - VEF-1200-GB

1100°C Max. Molten Salts Reactor integrated with a Glovebox - VEF-1200-GB

1100°C Max. Molten Salts Reactor integrated with a Glovebox - VEF-1200-GB

VEF1200GB is a molten salt reactor integrated with a glove box for air-sensitive materials.

Features

1100°C maximum working temperature
Hermetic chamber for atmosphere control
Choices of Ø6 mm three-electrode system
Gas inlet/outlet and in-situ temperature measurement
Dual quartz chamber for safety and glove box integrity.
Effective heating area Ø200×245 mm
Recommending sample size about < 3 liters.

SPECIFICATION:

Power	Molten Salt Reactor 208-240 VAC, 1 phase, 50/60 Hz, 30 A 4 kVA Glovebox 120 VAC, 1 phase, 50/60 Hz, 15 A or 208-240 VAC, 1 phase, 50/60 Hz, 10 A Power cord is included. Power plug may not be included.
Furnace	VBF-1200X top-loading box furnace Working temperature 1100 °C continuous. Heating rate: ≤20℃/min Heating Zone: Ф240 * 245mm ( 11 Litter）
Quartz Chamber	Inner Chamber Ф200 * 425mm made of quartz Nominal capacity： 13.2 L Outer Chamber Ø220×425 mm made of quartz
Flanges	Dual-tube flanges with water cooling
Temperature Controller	PID automatic control and auto-tune function ±1°C accuracy 50 programmable segments for precise process Built-in interlocks for overheating and thermocouple failure
Thermocouple	K type for furnace temperature control K type for in-situ temperature monitor (optional)
Crucible	Ø120 × 114 × 150 mm Quartz Crucible as a reactor A Quartz Positioning Frame for electrode alignment
Electrodes	Three 1/8" copper electrode feedthrough with copper barrel connectors for connections with any types of Ø6 mm electrodes (electrodes are not included) 1/4" compression tube fittings
Thermal Block	Alumina Foam Thermal Block(Ø190 mm x 60 mm H)
Pressure	<3 psig
Glove Box	VGB-6 single chamber glove box to make moisture and oxygen < 1 ppm
Water Chiller (Optional)	Water cooling is required to cool the vacuum flange. MTI recommends getting a KJ5000 recirculating water chiller or equivalent
Compliance	CE Certified NRTL Certification is available upon request; additional charges will apply

$24,139.15

Original: $68,969.00

-65%

1100°C Max. Molten Salts Reactor integrated with a Glovebox - VEF-1200-GB—

$68,969.00

$24,139.15

More Images

1100°C Max. Molten Salts Reactor integrated with a Glovebox - VEF-1200-GB - Image 2

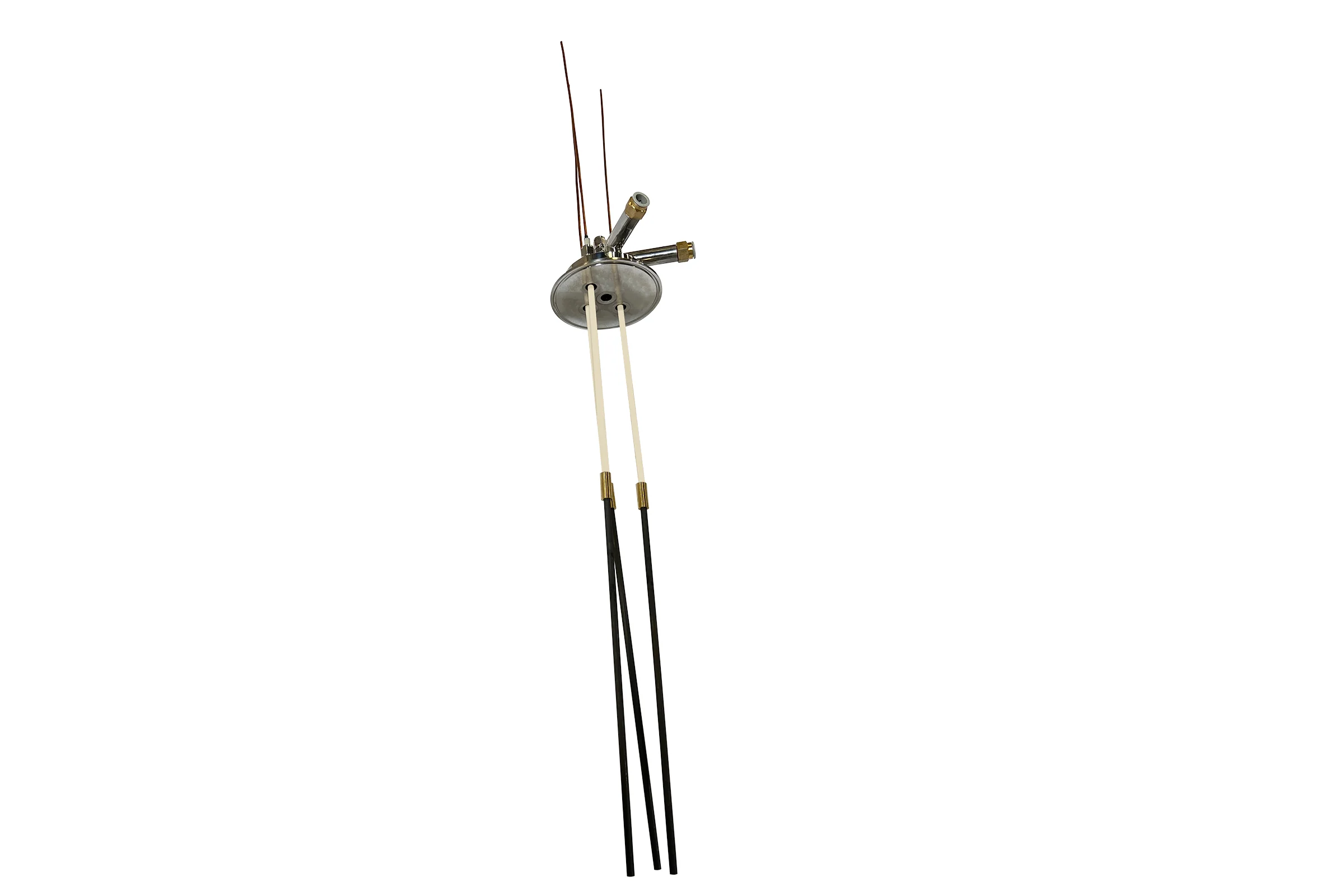

1100°C Max. Molten Salts Reactor integrated with a Glovebox - VEF-1200-GB - Image 3
