Vacuum Station: Two Stage Mechanical Pump in Mobile Cart -VBS-M1-LD
HomeStore

Vacuum Station: Two Stage Mechanical Pump in Mobile Cart -VBS-M1-LD

Vacuum Station: Two Stage Mechanical Pump in Mobile Cart -VBS-M1-LD

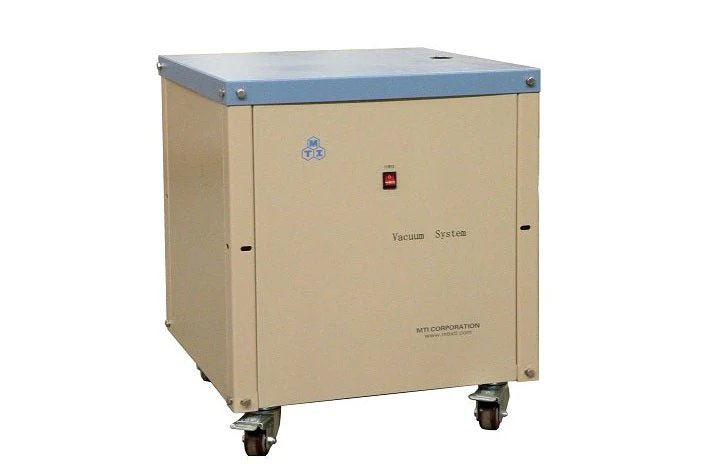

VBS-M1-LD is a vacuum pump station to achieve vacuum pressure up to 10-3 torr. The heavy-duty  Double Step Rotary Vane Vacuum Pump with Exhaust Filter & KF-D25 Inlet  is installed inside a heavy duty mobile cart, which is  ideal as a  support table for most of MTI's vacuum tube furnace and can be used continuously overnight without over-heating
Specifications
Mobile Cart
  • Cart Dimension:  600 mm (L) x 600 mm  (W) x 600 mm ( H)
  • 4 wheels mobile with brake
  • Four side panel is included and removable
  • Max. loading weight:  1000 lb
 Voltage / Frequency 220 V / 50-60 Hz   ( 110V version is available upon request )
 Rate (m3/h)
  • 220 liters / M or 7.8 CFM
  •   Please click here to convert metric to English unit )
 Maximum Pressure  5.0E-4Torr (0.067Pa)   ( click to see conversion of pressure unit)
 Power (HP)  3/4HP  550W
 Volume of Oil (ml)  1000 ( included )
Vacuum  Pump Oil 32 Oz high-quality oil is included for immediate use ( click picture below to order spare)

 Working Temperature  -5 ~ 60ºC

Heavy Duty Rotary Vane Vacuum Pump (7.8 CFM -240 L/m) with Two Stage Exhaust System with KF-D25 Adaptor & Quick Clamp (Included for immediate use)
  • Stage 1 - Oil Mist Eliminator
    • Eliminates Pump Oil Fumes
    • Returns Used Oil to Vacuum Pump
    • Traps Particles to 0.3 microns
    • Replaceable Coalescing Element
  • Stage 2 - Charcoal Filter
    • Traps Organic Chemicals
    • Replaceable Charcoal Element
     vacuum pump filter    (Please click the picture above to see product details)
Vacuum port fitting (Default)
  • KF25D vacuum pipe adapter, click the picture to enlarge:

                       MTI vacuum pump

  • KF25D vacuum pipe adapter, click the picture above to enlarge
  • Optional: ( click underlined to order separately)
    • Stainless Steel Vacuum Pipe with KF-D25 Adaptor - 1 Meter
    • Quick Clamp with Rubber O-Ring for KF-D25 Vacuum adaptor
    • Please choose a vacuum gauge by click picture below right
    •
Assimilation Trap (Optional)
  • To achieve the best vacuum without oil contamination,  please use Rechargeable In-Line Trap to Prevent Back streaming in Vacuum Pump  ( click link to order )
  • To protect the environment & human health, please use Traps & Filters to minimize exhaust.
  • To protect vacuum pump from damage by condensed vapors or small particles, please connect a cold trap or particle trap to the pump foreline ( click on the pictures below for details ).
 Weight & Dimension
  150 lbs; 48"x40"x40"
 Warning

Attention: Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed to be all use for purposes deviating from those mentioned in below, especially:

  • Pumping of corrosive or explosive media.
  • Pumping of condensing vapors.
  • Pumping of liquids.
  • Pumping of dust.
  • Operation with improper high levels of insulated heat input.
  • Operation in potentially explosive areas.
 Certificated  CE approval
 Drawing



$1,746.15

Original: $4,989.00

-65%
Vacuum Station: Two Stage Mechanical Pump in Mobile Cart -VBS-M1-LD—

$4,989.00

$1,746.15

Vacuum Station: Two Stage Mechanical Pump in Mobile Cart -VBS-M1-LD

VBS-M1-LD is a vacuum pump station to achieve vacuum pressure up to 10-3 torr. The heavy-duty  Double Step Rotary Vane Vacuum Pump with Exhaust Filter & KF-D25 Inlet  is installed inside a heavy duty mobile cart, which is  ideal as a  support table for most of MTI's vacuum tube furnace and can be used continuously overnight without over-heating
Specifications
Mobile Cart
  • Cart Dimension:  600 mm (L) x 600 mm  (W) x 600 mm ( H)
  • 4 wheels mobile with brake
  • Four side panel is included and removable
  • Max. loading weight:  1000 lb
 Voltage / Frequency 220 V / 50-60 Hz   ( 110V version is available upon request )
 Rate (m3/h)
  • 220 liters / M or 7.8 CFM
  •   Please click here to convert metric to English unit )
 Maximum Pressure  5.0E-4Torr (0.067Pa)   ( click to see conversion of pressure unit)
 Power (HP)  3/4HP  550W
 Volume of Oil (ml)  1000 ( included )
Vacuum  Pump Oil 32 Oz high-quality oil is included for immediate use ( click picture below to order spare)

 Working Temperature  -5 ~ 60ºC

Heavy Duty Rotary Vane Vacuum Pump (7.8 CFM -240 L/m) with Two Stage Exhaust System with KF-D25 Adaptor & Quick Clamp (Included for immediate use)
  • Stage 1 - Oil Mist Eliminator
    • Eliminates Pump Oil Fumes
    • Returns Used Oil to Vacuum Pump
    • Traps Particles to 0.3 microns
    • Replaceable Coalescing Element
  • Stage 2 - Charcoal Filter
    • Traps Organic Chemicals
    • Replaceable Charcoal Element
     vacuum pump filter    (Please click the picture above to see product details)
Vacuum port fitting (Default)
  • KF25D vacuum pipe adapter, click the picture to enlarge:

                       MTI vacuum pump

  • KF25D vacuum pipe adapter, click the picture above to enlarge
  • Optional: ( click underlined to order separately)
    • Stainless Steel Vacuum Pipe with KF-D25 Adaptor - 1 Meter
    • Quick Clamp with Rubber O-Ring for KF-D25 Vacuum adaptor
    • Please choose a vacuum gauge by click picture below right
    •
Assimilation Trap (Optional)
  • To achieve the best vacuum without oil contamination,  please use Rechargeable In-Line Trap to Prevent Back streaming in Vacuum Pump  ( click link to order )
  • To protect the environment & human health, please use Traps & Filters to minimize exhaust.
  • To protect vacuum pump from damage by condensed vapors or small particles, please connect a cold trap or particle trap to the pump foreline ( click on the pictures below for details ).
 Weight & Dimension
  150 lbs; 48"x40"x40"
 Warning

Attention: Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed to be all use for purposes deviating from those mentioned in below, especially:

  • Pumping of corrosive or explosive media.
  • Pumping of condensing vapors.
  • Pumping of liquids.
  • Pumping of dust.
  • Operation with improper high levels of insulated heat input.
  • Operation in potentially explosive areas.
 Certificated  CE approval
 Drawing
