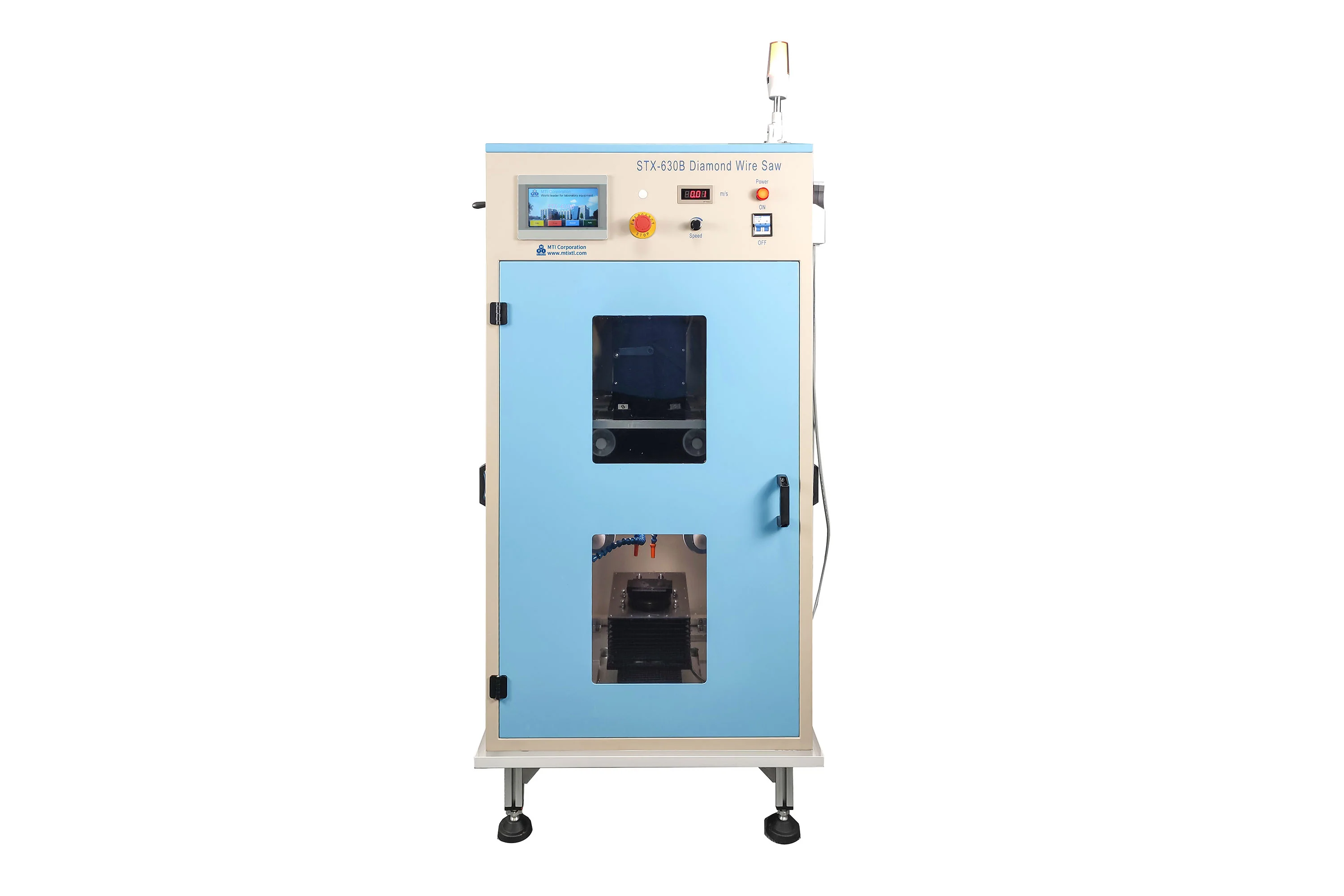

Precision Wire Saw with Sample Stage of 6"x 6"x 6" and Protective Case - STX-630B
HomeStore

Precision Wire Saw with Sample Stage of 6"x 6"x 6" and Protective Case - STX-630B

Precision Wire Saw with Sample Stage of 6"x 6"x 6" and Protective Case - STX-630B

STX-630B is a precision diamond wire saw designed to provide smooth cutting or slicing for all kinds of materials, such as Si, Ge, and GaAs, etc., up to 6" (150 mm) diameter. While cutting a sample on STX-630B, the diamond wire moves downward, while the sample sit there.  It cuts the crystal with a diamond-impregnated wire (0.28 mm diameter), which moves repeatedly backward and forwards with the help of a digital controller. STX-630B is equipped with an adjustable sample holder with three angles. The saw is inside protective box to avoid contamination to environmental.

SPECIFICATION

Power Input

Single phase AC 220V, 50/60 Hz,

620 W
Spindle drive motor

AC220V 370W
Structure

Heavy-duty Aluminum alloy
Wire Moving Speed 0 ~16 m/s adjustable
Controller PLC controller + Digital 7" color touchscreen
Diamond wire  Ø 0.25~0.45 mm x 150 m Length
Z and Y-Axis Max. Traveling distance

Precision step motors

Y: 180 mm (±0.01mm accuracy)

Z: 160mm (±0.01mm accuracy)
Sample Stage

Rotation:  0-360°motorized

Tilt:    +/- 10°Motorized
Max distance between two guide wheels

 ≤180 mm
Sample size

Max. 150mm W x 150 mm L x 150 mm H

Max sample weight: ≤5Kg
Remote alignment handler

Wired remote control handler
Wire Tension System
  • Built-in pneumatic valves can easily adjust the tension of the cutting wire. (Air compressor is required, but not included. Feel free to click the picture below to order.)
  • Adjustable tension: 0.1~0.4 MPa
Meteorite Sample
  • Please click the picture below to view the meteorite samples that were cut by our wire saws.
Fig. 1 Fig. 2  Fig. 3 Fig. 4
Certification CE Certified. With additional certification fees, MTI can arrange NRTL to perform UL/CSA inspection and label the machine per customer's request.
Dimension & Weight

780mm L×830mm W×1680mm H

Net Weight: ≈275Kg
Application Notes
  • The flow rate of the coolant is adjustable by the valve in the blue feeding tubing. Please adjust it properly to improve cutting performance.
  • Please use the correct cutting fluid. Don't use tap water or any other fluid that would cause corrosion of machine parts.
  • Must clean the machine after each use.
  • Wire saws applications
Warnings
  • It is required to use proper cutting fluid with the saw to prevent corrosion of the machine components. We strongly recommend you use oil-based coolant or lube cool lubricant with the water. Do not use tap water directly, rusted component is not part of the warranty.
  • Never cut any materials without the use of proper cutting fluid. If you do so, serious damages can be caused
  • For cutting sticky materials such as non-ferrous alloy, epoxy, and plastic, you must sharpen diamond wire frequently. We suggest cutting the sample along with the included dressing stone (Glue sample and the dressing stone side by side and cutting them together, this process will help keep the wire sharp enough for efficient cutting.
  • Please clean the machine after the completion of each use.



STANDARD PACKAGE

Item  Description Qty  Picture
1 STX-630B diamond wire saw the main machine 1 pcs
2 Tension wheels 2 pcs
3 Guide wheels 2 pcs
4 Diamond wire 2 rolls
5 Water pump 1 ct
6 Wax stick bar 4 pcs
7 Resin ceramic block 2 pcs



OPTIONAL COMPONENTS

Item   Description Categories Picture
1 Diamond wire (Ø0.25mm、Ø0.35mm、Ø0.42mm) Optional
2 Dedicate cutting oil Optional
3 Oil-free silent air compressor Optional
4 Desktop X-Ray Orientation Machine Optional



$45,999.00
Precision Wire Saw with Sample Stage of 6"x 6"x 6" and Protective Case - STX-630B—
$45,999.00

More Images

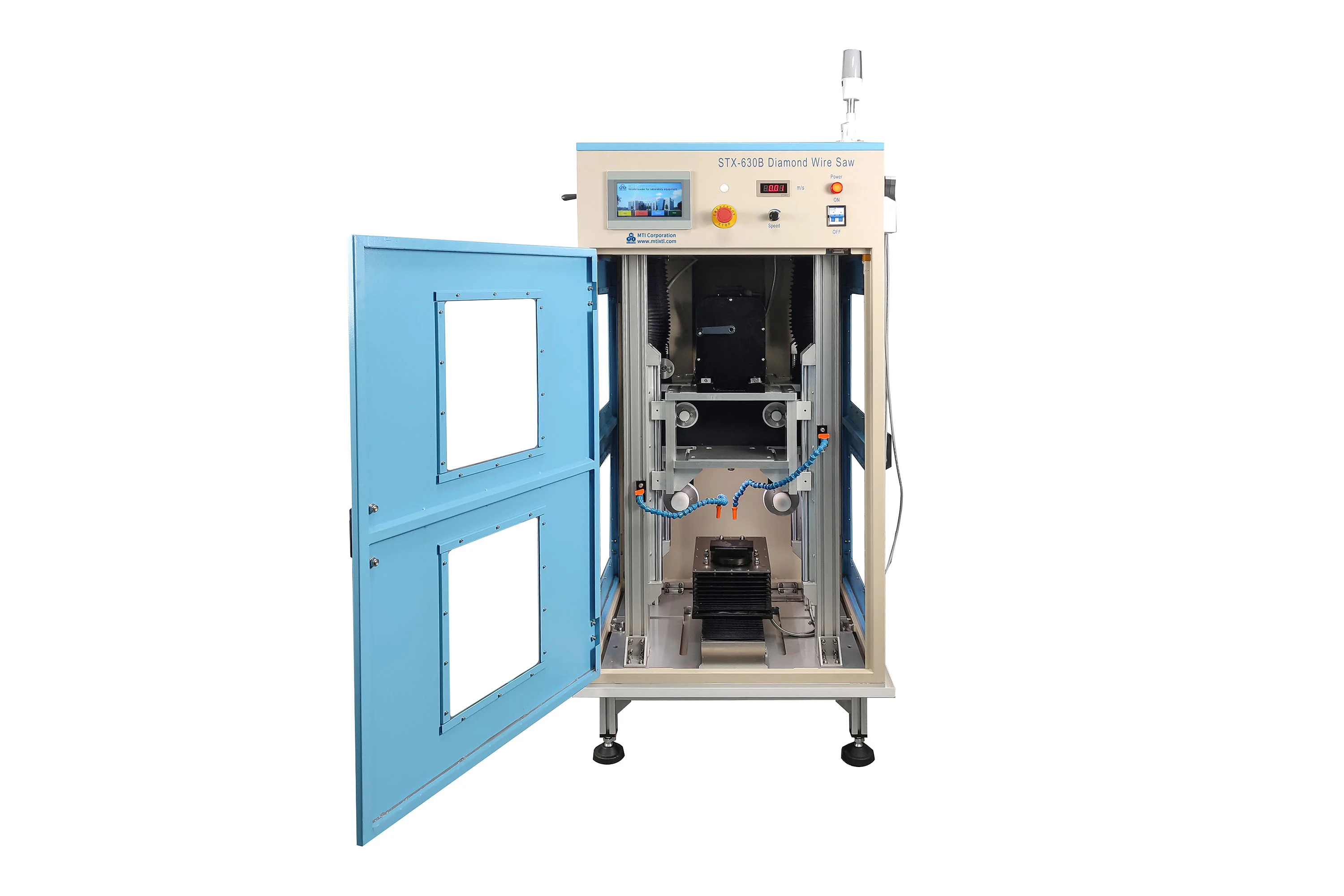

Precision Wire Saw with Sample Stage of 6"x 6"x 6" and Protective Case - STX-630B - Image 2

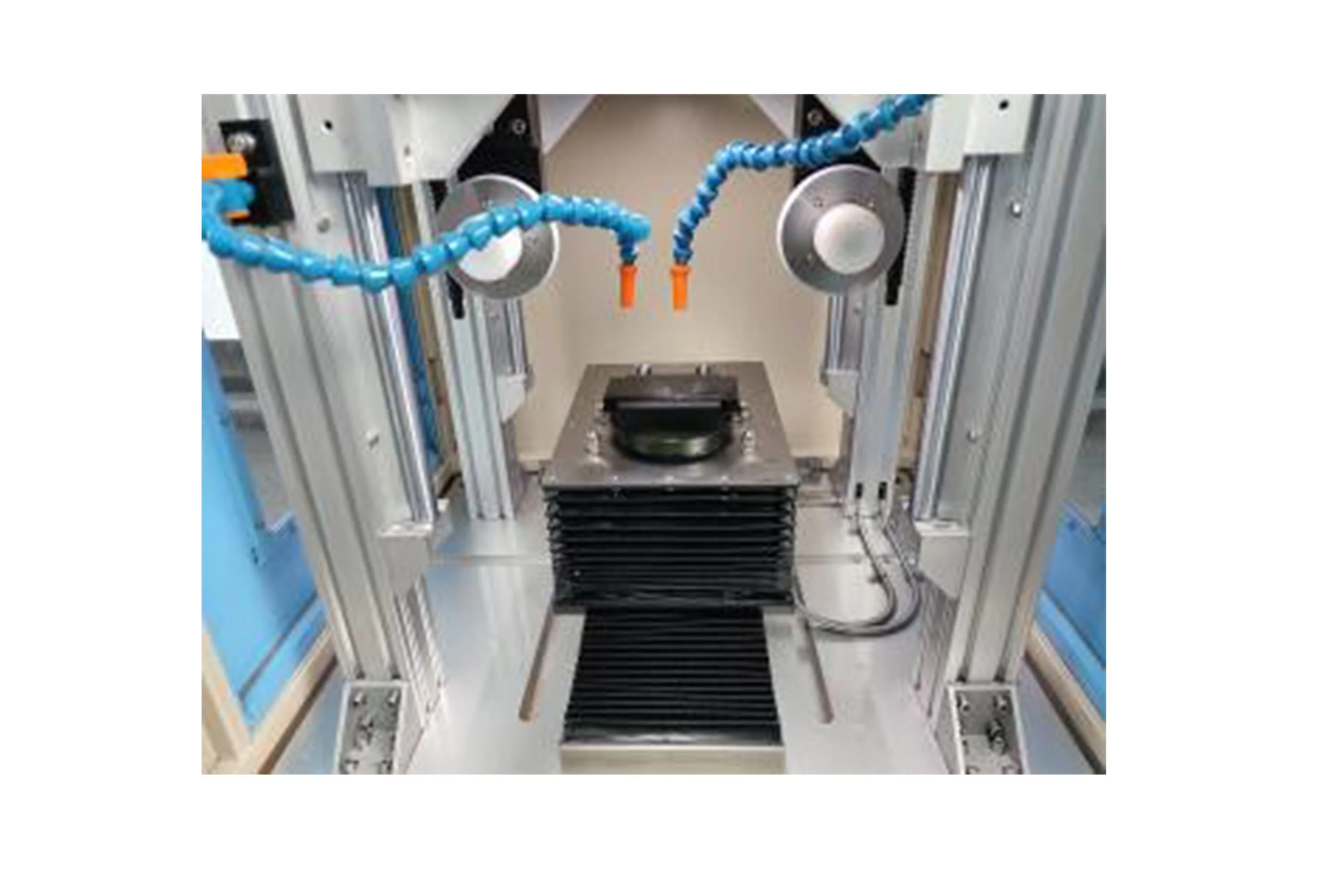

Precision Wire Saw with Sample Stage of 6"x 6"x 6" and Protective Case - STX-630B - Image 3
