Small High Speed Wire Cut EDM with PC Control for Metallic Materials- SYJ7720S

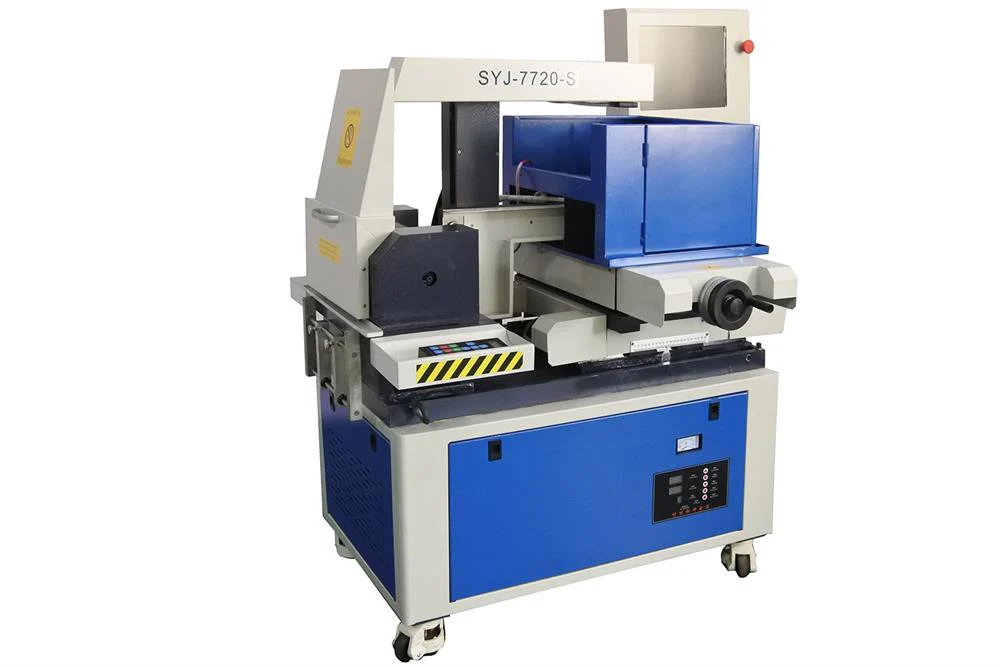

SYJ-7720-S is a small EDM wire-cutting machine, specifically designed for laboratory use.

• High cutting precision
• Programmable cutting procedures, enabling the creation of intricate shapes
• Capable of cutting any conductive material, regardless of its hardness

SPECIFICATIONS:

Working Table Size	270×420mm
Stroke (X/Y) (L × W)	250×200mm
Max. Z-Axis Stroke	300mm
Control Panel	Built-in via PC included
Max. Cutting Speed	100mm²/min
Optimum Roughness	Ra ≤2.5
Dia. of Molybdenum Wire	0.12-0.22 dia. mm Molybdenum Wire (0.18 is recommended) One roll of 0.18 mm Dia. moly wire is included
Wire Moving Speed	11.5 m/s
Dielectric Fluid	One container of dielectric slurry with a water pump is included. Please dilute it per the instructions.
Process Accuracy	0.02 mm
Feeding Pulse Equivalent	0.001mm
Power Supply	208 - 240VAC, single phase, 50/60Hz Power consumption: < 2 kW. The AC110V version is available via a 3000W transformer
Dimension	1200 D x 1250 W x 1380 H  ( mm)
Safety Note	This EDM contains moving parts (sample stage and wire spooler) and live parts under high-frequency low voltage (wire holder) exposed to the outside during normal operation. MTI provides limited protection to ensure that the machine will work properly. However, the end-user must be responsible for performing the risk assessment and selecting suitable guards for the workplace to prevent any person or object from accessing the working area improperly. Here is an example of a machine guard.
