Precision Thickness Checker with 0.001 mm Dial / Digital Indicator - SKCH
HomeStore

Precision Thickness Checker with 0.001 mm Dial / Digital Indicator - SKCH

Precision Thickness Checker with 0.001 mm Dial / Digital Indicator - SKCH

EQ-SKCH is a simple, cost-effective, and precision device for measuring the thickness of crystal wafer and any sample during lapping and polishing, also can be used for measuring thermal expansion of the solid-state battery. The fixture consists of a precision granite flat plate and precision dial or digital micrometer with a resolution of 0.001 mm.

Base Plate
  • Polished granite flat plate: 155 mm W x 210 mm L
Micrometer Head
  • Please select the micrometer in the optional bar: Mechanical dial or Mitutoyo Digital micrometer.

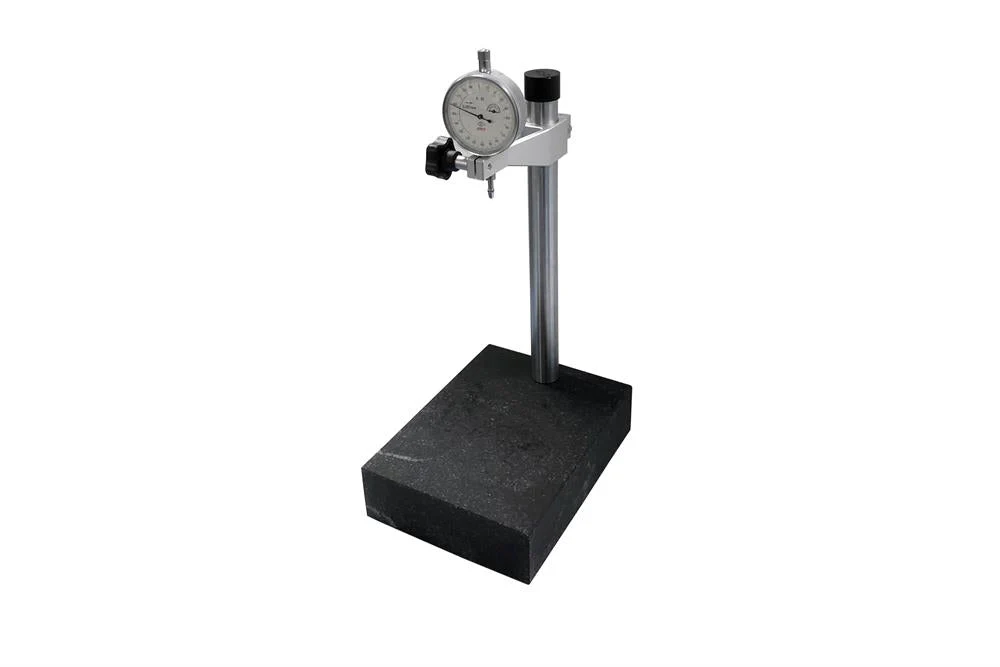

  • Mechanical dial micrometer: 1-micron resolution (0.001 mm). (Pic.1)

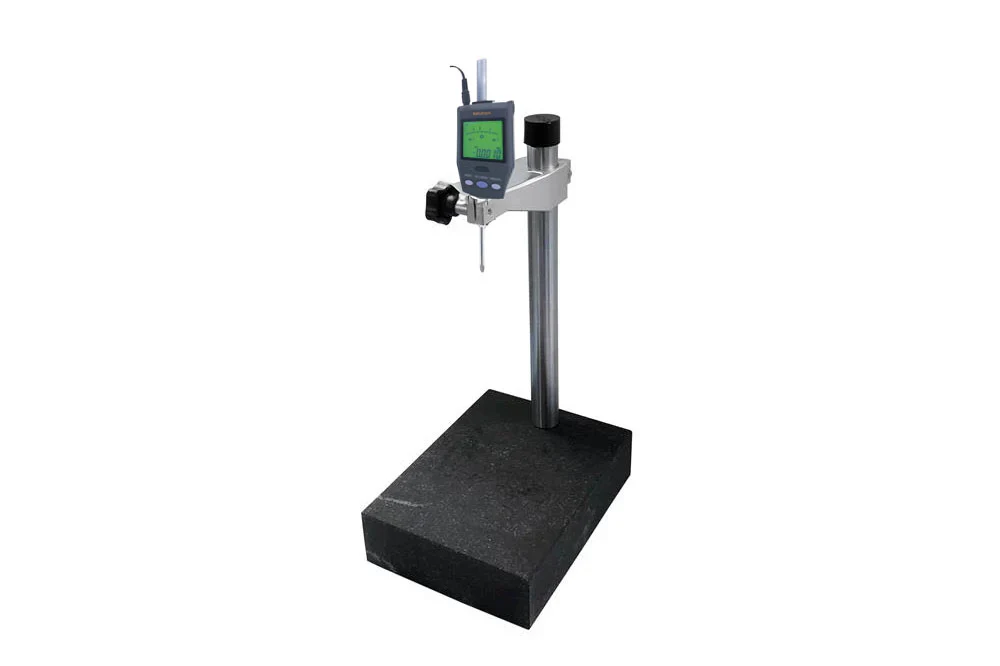

  • Digital micrometer: 0.5 micron resolution (0.0005 mm); Range: 1.2"(30.5 mm); Accuracy: 0.0015 mm. (Pic.2)
  • Operating temperature: 0 - 40 °C
  • Head adjustable height: 250 mm
Pic.1 Pic.2
Shipping Weight
  • 18 lbs
Dimension
  • 155 x 205 x 310 (mm L x W x H)
  • Max distance between the base and micrometer head tip varies.
Application Note



Select Thickness Measurement
From $122.15

Original: $349.00

-65%
Precision Thickness Checker with 0.001 mm Dial / Digital Indicator - SKCH—

$349.00

$122.15
