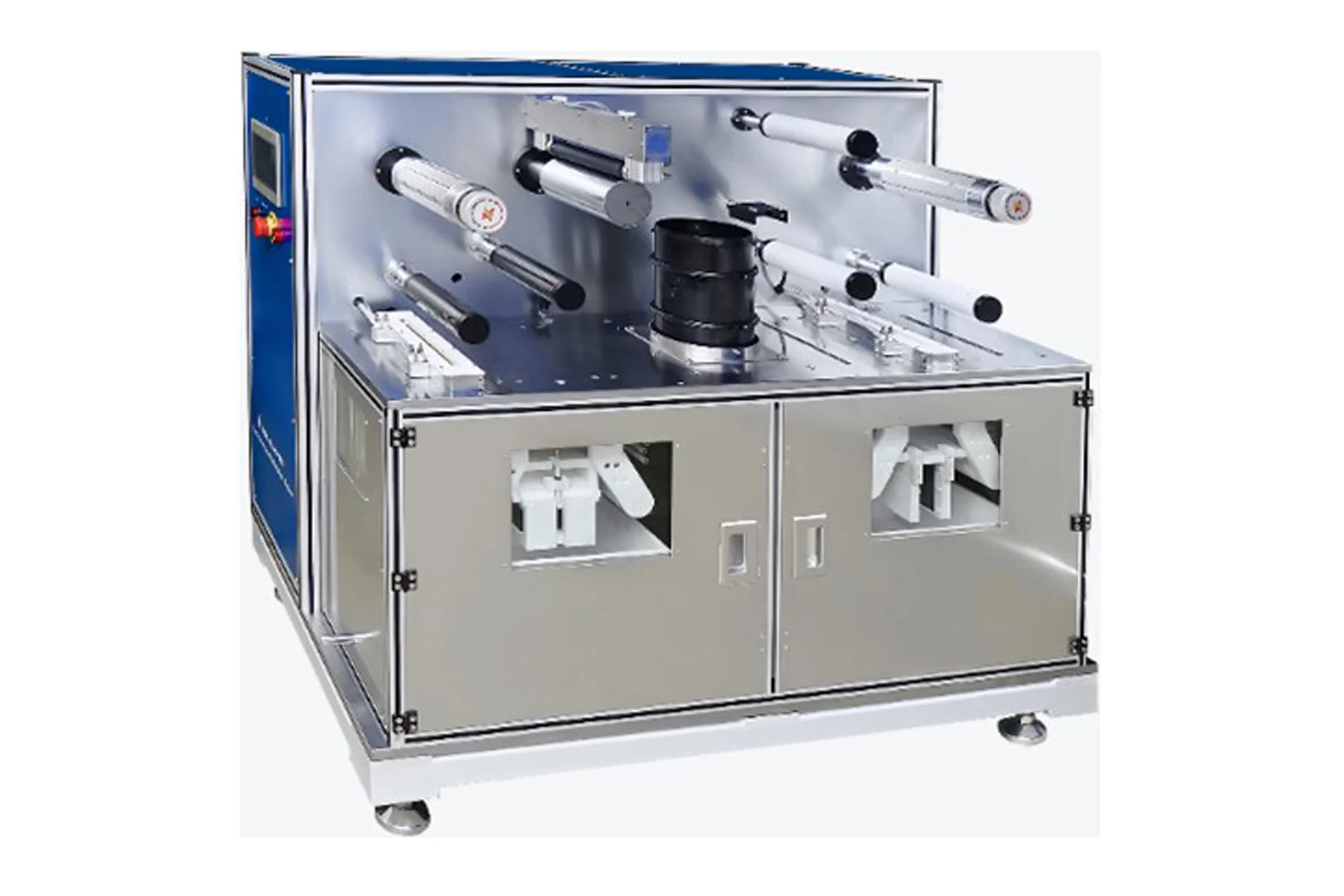

R2R Electrochemical Intercalation and Exfoliation System For Continuous Fabrication of Two-Dimensional Flakes-MSK-AFA-EP200

R2R Electrochemical Intercalation and Exfoliation System For Continuous Fabrication of Two-Dimensional Flakes-MSK-AFA-EP200

The MSK-AFA-EP200 is designed to continuously fabricate two-dimensional flakes through a two-step electrochemical methods. The two-dimensional bulk film is released from the unwinding roller and go through the first bath to complete the electrochemical intercalation under a high voltage in 10-1000V. Then the intercalated film was further sent to the second batch to complete the electrochemical exfoliation process and obtain the 2D flakes solution.

SPECIFICATIONS:

Power & Voltage
  • Voltage: AC220V±10% (AC110V is available upon request), 50/60 Hz, Single Phase
  • Power: 5 kW
  • The power cable without plug is included

Roller Width
  • 200 mm (Max width for substrate is 180 mm)

Mechanical Speed
  • 2-5 m/min

Diameter of Winding/Unwinding Rollers



  • Max O.D. is 300 mm
  • Core diameter is 3"

Tension Control
  • Max. tension: 50N

First Bath
  • The solution in the first bath is strong acid or base with intercalator for electrochemical intercalation
  • Voltage range: 10-1000 V

Second Bath
  • The solution in the second batch is strong acid or base for electrochemical exfoliation

Dimension
  • L1260mm*W750mm*H1220mm (for reference)

Weight
  • ~ 500 kg
