Nanometer Range Programmable Dip Coater with Drying Oven (1-500 nm/sec, 100C Max. ) - PTL-NMB
HomeStore

Nanometer Range Programmable Dip Coater with Drying Oven (1-500 nm/sec, 100C Max. ) - PTL-NMB

Nanometer Range Programmable Dip Coater with Drying Oven (1-500 nm/sec, 100C Max. ) - PTL-NMB

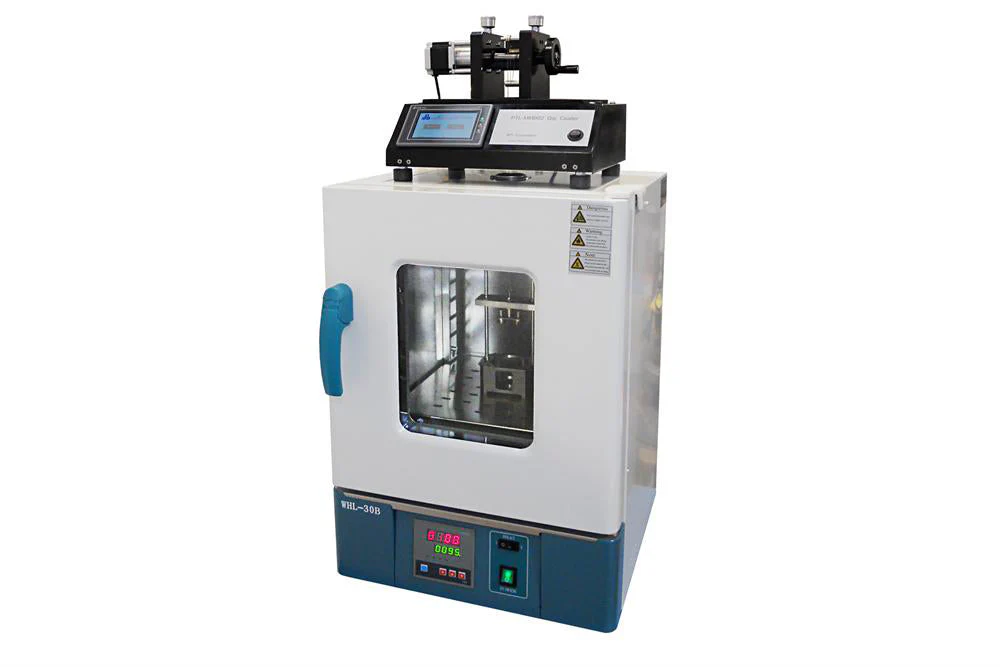

PTL-NMB is a Nanometer Grade Desktop Programmable Dip Coater (1-500 nm/sec) with "touch-screen" digital control. Dipping rate, pulling rate, dwell time, and cycle life can be set up by touch screen controller and run dip-coating automatically in the temperature controllable oven. It is designed for R&D Lab to prepare various optical or epitaxial films from liquid solutions.

SPECIFICATIONS:

Working Voltage
  • 110/220V AC selectable
  • 700W Max.
Control Panel
  • 6" LCD color touch screen controller
    • Dipping/ pulling speed: 10-500 nm/sec Programmable with accuracy within +/- 0.05%
    • Dipping/ pulling distance: 0-60 mm adjustable
    • Dwell time: ( 999 seconds max)
    • Cycle time: 20 times max.
Sample Holder Two screw sample clips are installed in the sample holder in order to carry the samples sliding up and down through two guide rods
Solution Container One 150mL beaker is included
Beaker Holder The beaker which contains the coating material (coating solution) will be placed into the slot of the beaker holder.
Max. Sample Size 3"(L) x 2"(W)
Sample Weight Less than 250g
Dipping/Pulling Motor Stepping Motor
Oven
  • Working Voltage: 110/220V AC selectable in Personalization
  • Max. Temperature: 100oC
  • Max. Power Consumption: 600W
  • Chamber Dimensions: 280mm(L) x 280mm(W) x 280mm(H)
  • Inner Material: Stainless Steel
  • Product Dimensions: 406mm(L) x 406mm(W) x 610mm(H)
Compliance CE Certified
NRTL or CSA certification is available upon request at the extra cost
Application Notes
  • In order to get better film coating, the substrate shall be treated by plasma cleaner (Please click on the first picture below for more information)
  • Use an ultrasonic processor to disperse nano powder or homogenize solution to get better coating (Please click on the second picture below for more information)
