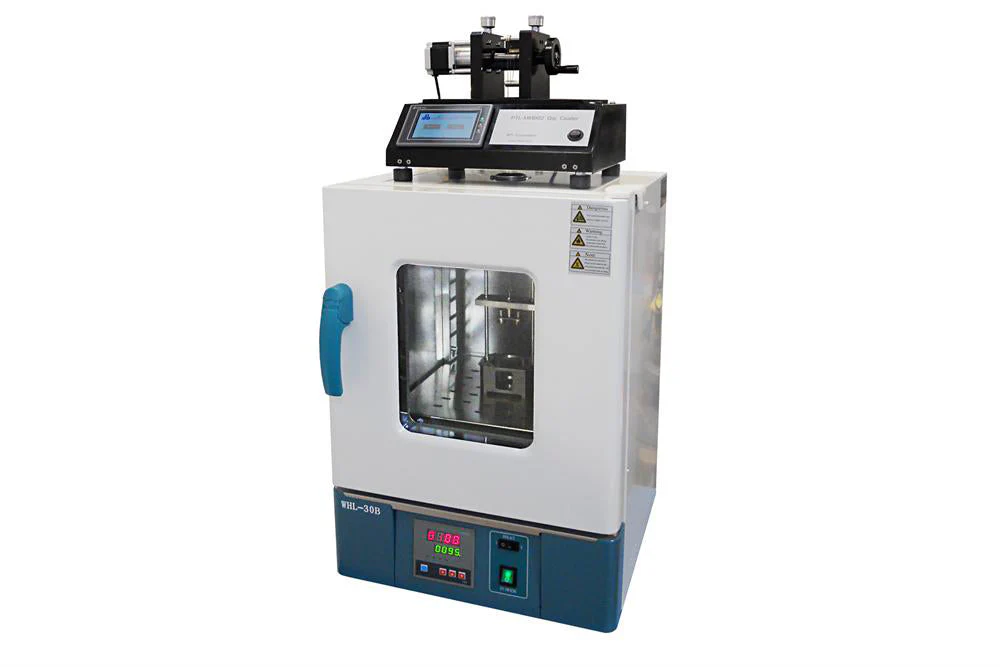

Touch Screen Programmable (1-200 mm/min) Dip Coater with Drying Oven up to 100C - PTL-MMB02
HomeStore

Touch Screen Programmable (1-200 mm/min) Dip Coater with Drying Oven up to 100C - PTL-MMB02

Touch Screen Programmable (1-200 mm/min) Dip Coater with Drying Oven up to 100C - PTL-MMB02

PTL-MMB02is a Millimeter Grade Desktop Programmable Dip Coater (1-200 mm/min) with "touch-screen" digital control. Dipping rate, pulling rate, dwell time, and cycle life can be set up by touch screen controller and run dip-coating automatically in the temperature controllable oven. It is designed for R&D Lab to prepare various optical or epitaxial films from liquid solutions.

SPECIFICATIONS:

Working Voltage 110/220V AC selectable
Travelling Distance 0-60 mm Adjustable
Dipping/Pulling Speed 1-200 mm/min Programmable with accuracy within +/- 0.05%
Control Panel
  • 6" LCD color touch screen controller can program:
    • Dipping/ pulling speed: 1-200 mm/min with accuracy within +/- 0.05%
    • Dipping/ pulling distance: 0-60 mm adjustable
    • Dwell time: ( 999 seconds max)
    • Cycle time: 20 times max.
Sample Holder Two screw sample clips are installed in the sample holder in order to carry the samples sliding up and down through two guide rods
Solution Container One 150mL beaker is included
Beaker Holder The beaker which contains the coating material (coating solution) will be placed into the slot of the beaker holder.
Max. Sample Size 3"(L) x 2"(W)
Sample Weight Less than 250g
Dipping/Pulling Motor Stepping Motor
Oven
  • Working Voltage: 110/220V AC selectable in Personalization
  • Max. Power Consumption: 600W
  • Temperature: 50-100°C controlled by a digital controller with +/- 1°C accuracy.
  • Chamber Dimensions: 280mm(L) x 280mm(W) x 280mm(H)
  • Inner Material: Stainless Steel
  • Product Dimensions: 406mm(L) x 406mm(W) x 610mm(H)
Compliance CE Certified
NRTL or CSA certification is available upon request at the extra cost
Application Notes
  • In order to get better film coating, the substrate shall be treated by plasma cleaner (Please click on the first picture below for more information)
  • Use an ultrasonic processor to disperse nano powder or homogenize solution to get better coating (Please click on the second picture below for more information)
