1200°C Max Four-zone Split Tube Furnace with Optional 8", 10", or 14" ID Tube - OTF-1200X-IV

1200°C Max Four-zone Split Tube Furnace with Optional 8", 10", or 14" ID Tube - OTF-1200X-IV

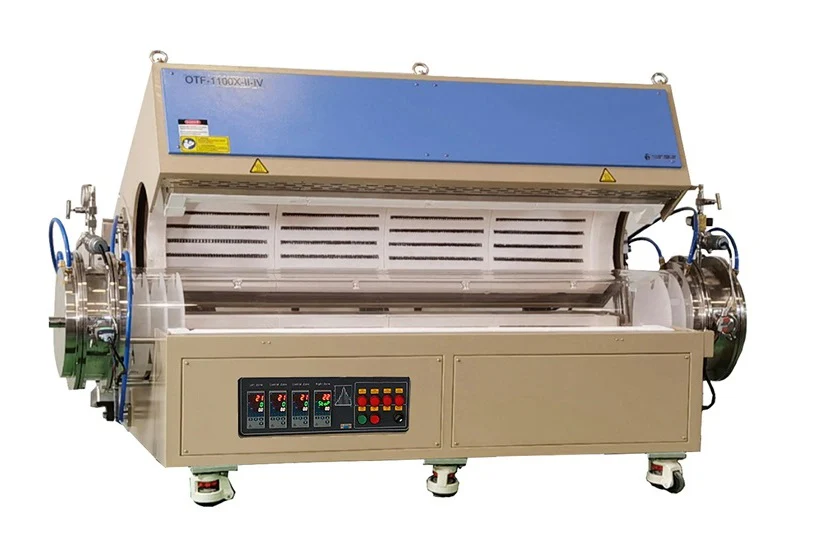

OTF-1200X-IV is a large, split-able four-zone tube furnace with a 47" L heating zone and optional 8", 10", and 145 ID quartz tubes up to 1200°C. The multiple zones tube furnace is enabled to create an up to 36 "L uniform temperature zone within +/- 5ºC. The quartz tube and vacuum sealing flanges with a pressure gauge & a ball valve are included for immediate use. Three programmable digital temperature controllers are installed with a K-type thermal couple with an accuracy of +/- 1 °C. It is an excellent furnace for annealing, diffusing, and sintering samples under various gas atmospheres.

SPECIFICATIONS:
Furnace Structure
  • Double-layer steel case with two cooling fans, which ensure low surface temperature;
  • Energy-saving high-purity fibrous alumina insulation;
  • Buffer types of thermal blocks made of quartz discs are included for better cleanness.
  • Two pneumatic cylinders drive the top split cover to make operation easy.
  • You may click the pictures below to choose a crucible or wafer boat
  •                Click here to choose a crucible
Power
  • AC 208-240V Three Phase, 50/60 Hz (50A breaker required)
  • Power consumption: 24 KW Max.
    The power cord is included without a plug
Heating Zone Length

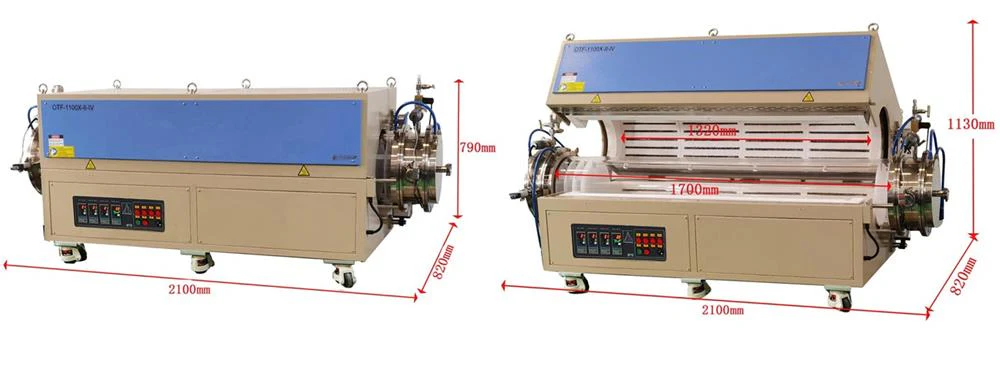

  • 4 heating zones: 1200mm (47") in total
  • 300mm (11.8") for each zone
Quartz Tube & Sealed flange

  • Quartz Tube is optional from 8" ID to 14,5" as below
    1. 8.5"OD x 8.1" x 60"L (216 OD x 206 IDx 1524L mm)
    2. 11"OD x 10.6"ID x 51"L （279 OD x 269 IDx 1295Lmm)
    3. 15"OD x 14.6" x 73"L (381 OD x 371 IDx 1860L mm)
  • One pair of SS 304 vacuum flange with double high-temperature silicone O-ring and water cooling jacket is Included
  • 2 needle valves are installed with a flange
  • One Vacuum/ pressure gauge is installed on one side flange
  • The vacuum level is 10-2 torr by the mechanical vacuum pump and 10-5 torr by the turbopump.
  • Optional: Please click the picture below to order: a vacuum pump (Pic. 1 -2 ), and a digital vacuum gauge (pic. 3) as well as a mass flow controller or gas mixing and delivery system (Pic.5)
Pic. 1  Pic.2 Pic.3 Pic.4 Pic.5

Heating Temperature
  • Max. Heating Temperature: 1200°C
  • Continuous Heating Temperature: 1100°C
  • < 1000°C under vacuum
  • Max. Heating Rate: 10°C/min

Temperature Controllers
  • 4 digital temperature controllers certified by MET and CE Certified
  • PID automatic control with 30 programmable segments for control of heating & cooling rate and dwell time.
  • Built-in overheating & broken thermocouple protection.
  • Over-temperature protection and alarm allow for operation without attendants.
  • +/- 1 ºC temperature accuracy.
  • RS485 Communications Port and software are inclued to operate witha laptop

Eurotherm Temperature Controllers (optional upgrade)
The
  • Eurotherm 3000 controller is available upon request
  • Temperature Accuracy: ± 0.1ºC
  • Recipes: Using a PC tool, recipes can be created to change the operating parameters of the 3000 simply by selecting a new recipe via the HMI. This is very useful where multiple products are processed using the same controller but require different parameters to be set.
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available at extra cost.



Select Tube Sizes
From $19,250.00

Original: $55,000.00

-65%
1200°C Max Four-zone Split Tube Furnace with Optional 8", 10", or 14" ID Tube - OTF-1200X-IV—

$55,000.00

$19,250.00

More Images

1200°C Max Four-zone Split Tube Furnace with Optional 8", 10", or 14" ID Tube - OTF-1200X-IV - Image 2
1200°C Max Four-zone Split Tube Furnace with Optional 8", 10", or 14" ID Tube - OTF-1200X-IV - Image 3
1200°C Max Four-zone Split Tube Furnace with Optional 8", 10", or 14" ID Tube - OTF-1200X-IV - Image 4

1200°C Max Four-zone Split Tube Furnace with Optional 8", 10", or 14" ID Tube - OTF-1200X-IV

OTF-1200X-IV is a large, split-able four-zone tube furnace with a 47" L heating zone and optional 8", 10", and 145 ID quartz tubes up to 1200°C. The multiple zones tube furnace is enabled to create an up to 36 "L uniform temperature zone within +/- 5ºC. The quartz tube and vacuum sealing flanges with a pressure gauge & a ball valve are included for immediate use. Three programmable digital temperature controllers are installed with a K-type thermal couple with an accuracy of +/- 1 °C. It is an excellent furnace for annealing, diffusing, and sintering samples under various gas atmospheres.

SPECIFICATIONS:
Furnace Structure
  • Double-layer steel case with two cooling fans, which ensure low surface temperature;
  • Energy-saving high-purity fibrous alumina insulation;
  • Buffer types of thermal blocks made of quartz discs are included for better cleanness.
  • Two pneumatic cylinders drive the top split cover to make operation easy.
  • You may click the pictures below to choose a crucible or wafer boat
  •                Click here to choose a crucible
Power
  • AC 208-240V Three Phase, 50/60 Hz (50A breaker required)
  • Power consumption: 24 KW Max.
    The power cord is included without a plug
Heating Zone Length
  • 4 heating zones: 1200mm (47") in total
  • 300mm (11.8") for each zone
Quartz Tube & Sealed flange

  • Quartz Tube is optional from 8" ID to 14,5" as below
    1. 8.5"OD x 8.1" x 60"L (216 OD x 206 IDx 1524L mm)
    2. 11"OD x 10.6"ID x 51"L （279 OD x 269 IDx 1295Lmm)
    3. 15"OD x 14.6" x 73"L (381 OD x 371 IDx 1860L mm)
  • One pair of SS 304 vacuum flange with double high-temperature silicone O-ring and water cooling jacket is Included
  • 2 needle valves are installed with a flange
  • One Vacuum/ pressure gauge is installed on one side flange
  • The vacuum level is 10-2 torr by the mechanical vacuum pump and 10-5 torr by the turbopump.
  • Optional: Please click the picture below to order: a vacuum pump (Pic. 1 -2 ), and a digital vacuum gauge (pic. 3) as well as a mass flow controller or gas mixing and delivery system (Pic.5)
Pic. 1  Pic.2 Pic.3 Pic.4 Pic.5

Heating Temperature
  • Max. Heating Temperature: 1200°C
  • Continuous Heating Temperature: 1100°C
  • < 1000°C under vacuum
  • Max. Heating Rate: 10°C/min

Temperature Controllers
  • 4 digital temperature controllers certified by MET and CE Certified
  • PID automatic control with 30 programmable segments for control of heating & cooling rate and dwell time.
  • Built-in overheating & broken thermocouple protection.
  • Over-temperature protection and alarm allow for operation without attendants.
  • +/- 1 ºC temperature accuracy.
  • RS485 Communications Port and software are inclued to operate witha laptop

Eurotherm Temperature Controllers (optional upgrade)
The
  • Eurotherm 3000 controller is available upon request
  • Temperature Accuracy: ± 0.1ºC
  • Recipes: Using a PC tool, recipes can be created to change the operating parameters of the 3000 simply by selecting a new recipe via the HMI. This is very useful where multiple products are processed using the same controller but require different parameters to be set.
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available at extra cost.



Product Information

Shipping & Returns

Description

OTF-1200X-IV is a large, split-able four-zone tube furnace with a 47" L heating zone and optional 8", 10", and 145 ID quartz tubes up to 1200°C. The multiple zones tube furnace is enabled to create an up to 36 "L uniform temperature zone within +/- 5ºC. The quartz tube and vacuum sealing flanges with a pressure gauge & a ball valve are included for immediate use. Three programmable digital temperature controllers are installed with a K-type thermal couple with an accuracy of +/- 1 °C. It is an excellent furnace for annealing, diffusing, and sintering samples under various gas atmospheres.

SPECIFICATIONS:
Furnace Structure
  • Double-layer steel case with two cooling fans, which ensure low surface temperature;
  • Energy-saving high-purity fibrous alumina insulation;
  • Buffer types of thermal blocks made of quartz discs are included for better cleanness.
  • Two pneumatic cylinders drive the top split cover to make operation easy.
  • You may click the pictures below to choose a crucible or wafer boat
  •                Click here to choose a crucible
Power
  • AC 208-240V Three Phase, 50/60 Hz (50A breaker required)
  • Power consumption: 24 KW Max.
    The power cord is included without a plug
Heating Zone Length
  • 4 heating zones: 1200mm (47") in total
  • 300mm (11.8") for each zone
Quartz Tube & Sealed flange

  • Quartz Tube is optional from 8" ID to 14,5" as below
    1. 8.5"OD x 8.1" x 60"L (216 OD x 206 IDx 1524L mm)
    2. 11"OD x 10.6"ID x 51"L （279 OD x 269 IDx 1295Lmm)
    3. 15"OD x 14.6" x 73"L (381 OD x 371 IDx 1860L mm)
  • One pair of SS 304 vacuum flange with double high-temperature silicone O-ring and water cooling jacket is Included
  • 2 needle valves are installed with a flange
  • One Vacuum/ pressure gauge is installed on one side flange
  • The vacuum level is 10-2 torr by the mechanical vacuum pump and 10-5 torr by the turbopump.
  • Optional: Please click the picture below to order: a vacuum pump (Pic. 1 -2 ), and a digital vacuum gauge (pic. 3) as well as a mass flow controller or gas mixing and delivery system (Pic.5)
Pic. 1  Pic.2 Pic.3 Pic.4 Pic.5

Heating Temperature
  • Max. Heating Temperature: 1200°C
  • Continuous Heating Temperature: 1100°C
  • < 1000°C under vacuum
  • Max. Heating Rate: 10°C/min

Temperature Controllers
  • 4 digital temperature controllers certified by MET and CE Certified
  • PID automatic control with 30 programmable segments for control of heating & cooling rate and dwell time.
  • Built-in overheating & broken thermocouple protection.
  • Over-temperature protection and alarm allow for operation without attendants.
  • +/- 1 ºC temperature accuracy.
  • RS485 Communications Port and software are inclued to operate witha laptop

Eurotherm Temperature Controllers (optional upgrade)
The
  • Eurotherm 3000 controller is available upon request
  • Temperature Accuracy: ± 0.1ºC
  • Recipes: Using a PC tool, recipes can be created to change the operating parameters of the 3000 simply by selecting a new recipe via the HMI. This is very useful where multiple products are processed using the same controller but require different parameters to be set.
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available at extra cost.
