NRTL Certified Compact Oil-Free Diaphragm Pump Made in Germany - OFDP2-LD

NRTL Certified Compact Oil-Free Diaphragm Pump Made in Germany - OFDP2-LD

NRTL Certified Compact Oil-Free Diaphragm Pump Made in Germany - OFDP2-LD

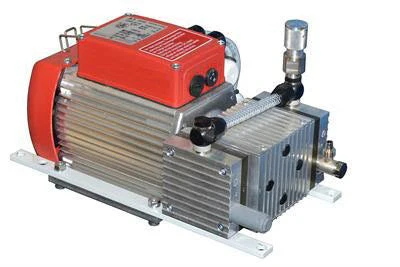

The EQ-OFDP-2 is a two-stage, dry compressor vacuum pump. The pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow caused the valves to open and close automatically. The pump units are directly connected to the drive motor. It is an ideal tool for applications where a dry and oil-free vacuum is required. The vacuum pump is suitable to be used in glovebox with Ar gas

SPECIFICATIONS:

	Old Version	New Version
Working Voltage Range	AC 100-115V or AC 208-236V, 50/60Hz	DC 24V, 50/60 Hz
Power consumption	120W
Ultimate pressure with gas ballast	≤ 4.5 hPa; ≤ 3.38 Torr; ≤ 4.5 mbar; ≤450 Pa
Ultimate pressure without gas ballast	≤ 3.5 hPa; ≤ 2.62 Torr; ≤ 3.5 mbar; ≤350 Pa
Features & Structure	Compact design and low noise and vibration Efficient cooling system and Maintenance-free Longer running life and Ideal for small gas circulating system
Ambient temperature	12-40 °C; 53.6-104 °F; 285-313 K
The cooling method, standard	Air
Current consumption	1.1 A	2.9A
Emission sound pressure level without gas ballast	≤ 52 dB (A)
Exhaust pressure, max.	1,100 hPa; 825 Torr; 1,100 mbar; 110,000 Pa
Flange (in)	G 1/8" elbow union + enclosed hose DN 6 x 1000 mm with a straight union in G 1/4" at the end
Flange (out)	G 1/8" + silencer
Leak rate	5E-4 Pa m3/s; 3.75E-3 Torr l/s; 5E-3 mbar l/s; 0.5 Pa l/s
Pumping speed at 50 Hz	0.50 m3/h
Pumping speed at 60 Hz	0.70 m3/h
The rotation speed at 50 Hz	1500 RPM
The rotation speed at 60 Hz	1800 RPM
Switch	Yes
Performance
Compliance	CE Certified TUV Certified
Warranty	One year limited with lifetime support *(Attention:* Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed below, especially: Pumping of corrosive or explosive media. Pumping of condensing vapors. Pumping of liquids. Pumping of dust. Operation with improper high levels of insulated heat input. Operation in potentially explosive areas.)
Dimensions	287 × 170 × 175 (mm)
Weight	6.5 kg \| 14.33 lb	2.7 kg

Select Voltage

From $699.30

Original: $1,998.00

-65%

NRTL Certified Compact Oil-Free Diaphragm Pump Made in Germany - OFDP2-LD—

$1,998.00

$699.30

More Images

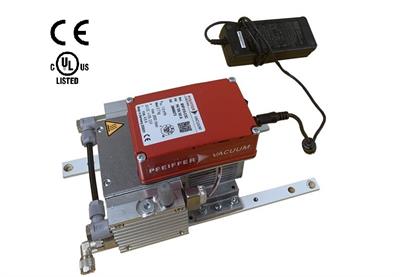

NRTL Certified Compact Oil-Free Diaphragm Pump Made in Germany - OFDP2-LD - Image 2

NRTL Certified Compact Oil-Free Diaphragm Pump Made in Germany - OFDP2-LD

The EQ-OFDP-2 is a two-stage, dry compressor vacuum pump. The pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow caused the valves to open and close automatically. The pump units are directly connected to the drive motor. It is an ideal tool for applications where a dry and oil-free vacuum is required. The vacuum pump is suitable to be used in glovebox with Ar gas

SPECIFICATIONS:

	Old Version	New Version
Working Voltage Range	AC 100-115V or AC 208-236V, 50/60Hz	DC 24V, 50/60 Hz
Power consumption	120W
Ultimate pressure with gas ballast	≤ 4.5 hPa; ≤ 3.38 Torr; ≤ 4.5 mbar; ≤450 Pa
Ultimate pressure without gas ballast	≤ 3.5 hPa; ≤ 2.62 Torr; ≤ 3.5 mbar; ≤350 Pa
Features & Structure	Compact design and low noise and vibration Efficient cooling system and Maintenance-free Longer running life and Ideal for small gas circulating system
Ambient temperature	12-40 °C; 53.6-104 °F; 285-313 K
The cooling method, standard	Air
Current consumption	1.1 A	2.9A
Emission sound pressure level without gas ballast	≤ 52 dB (A)
Exhaust pressure, max.	1,100 hPa; 825 Torr; 1,100 mbar; 110,000 Pa
Flange (in)	G 1/8" elbow union + enclosed hose DN 6 x 1000 mm with a straight union in G 1/4" at the end
Flange (out)	G 1/8" + silencer
Leak rate	5E-4 Pa m3/s; 3.75E-3 Torr l/s; 5E-3 mbar l/s; 0.5 Pa l/s
Pumping speed at 50 Hz	0.50 m3/h
Pumping speed at 60 Hz	0.70 m3/h
The rotation speed at 50 Hz	1500 RPM
The rotation speed at 60 Hz	1800 RPM
Switch	Yes
Performance
Compliance	CE Certified TUV Certified
Warranty	One year limited with lifetime support *(Attention:* Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed below, especially: Pumping of corrosive or explosive media. Pumping of condensing vapors. Pumping of liquids. Pumping of dust. Operation with improper high levels of insulated heat input. Operation in potentially explosive areas.)
Dimensions	287 × 170 × 175 (mm)
Weight	6.5 kg \| 14.33 lb	2.7 kg

Product Information

Shipping & Returns

Description

The EQ-OFDP-2 is a two-stage, dry compressor vacuum pump. The pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow caused the valves to open and close automatically. The pump units are directly connected to the drive motor. It is an ideal tool for applications where a dry and oil-free vacuum is required. The vacuum pump is suitable to be used in glovebox with Ar gas

SPECIFICATIONS:

	Old Version	New Version
Working Voltage Range	AC 100-115V or AC 208-236V, 50/60Hz	DC 24V, 50/60 Hz
Power consumption	120W
Ultimate pressure with gas ballast	≤ 4.5 hPa; ≤ 3.38 Torr; ≤ 4.5 mbar; ≤450 Pa
Ultimate pressure without gas ballast	≤ 3.5 hPa; ≤ 2.62 Torr; ≤ 3.5 mbar; ≤350 Pa
Features & Structure	Compact design and low noise and vibration Efficient cooling system and Maintenance-free Longer running life and Ideal for small gas circulating system
Ambient temperature	12-40 °C; 53.6-104 °F; 285-313 K
The cooling method, standard	Air
Current consumption	1.1 A	2.9A
Emission sound pressure level without gas ballast	≤ 52 dB (A)
Exhaust pressure, max.	1,100 hPa; 825 Torr; 1,100 mbar; 110,000 Pa
Flange (in)	G 1/8" elbow union + enclosed hose DN 6 x 1000 mm with a straight union in G 1/4" at the end
Flange (out)	G 1/8" + silencer
Leak rate	5E-4 Pa m3/s; 3.75E-3 Torr l/s; 5E-3 mbar l/s; 0.5 Pa l/s
Pumping speed at 50 Hz	0.50 m3/h
Pumping speed at 60 Hz	0.70 m3/h
The rotation speed at 50 Hz	1500 RPM
The rotation speed at 60 Hz	1800 RPM
Switch	Yes
Performance
Compliance	CE Certified TUV Certified
Warranty	One year limited with lifetime support *(Attention:* Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed below, especially: Pumping of corrosive or explosive media. Pumping of condensing vapors. Pumping of liquids. Pumping of dust. Operation with improper high levels of insulated heat input. Operation in potentially explosive areas.)
Dimensions	287 × 170 × 175 (mm)
Weight	6.5 kg \| 14.33 lb	2.7 kg
