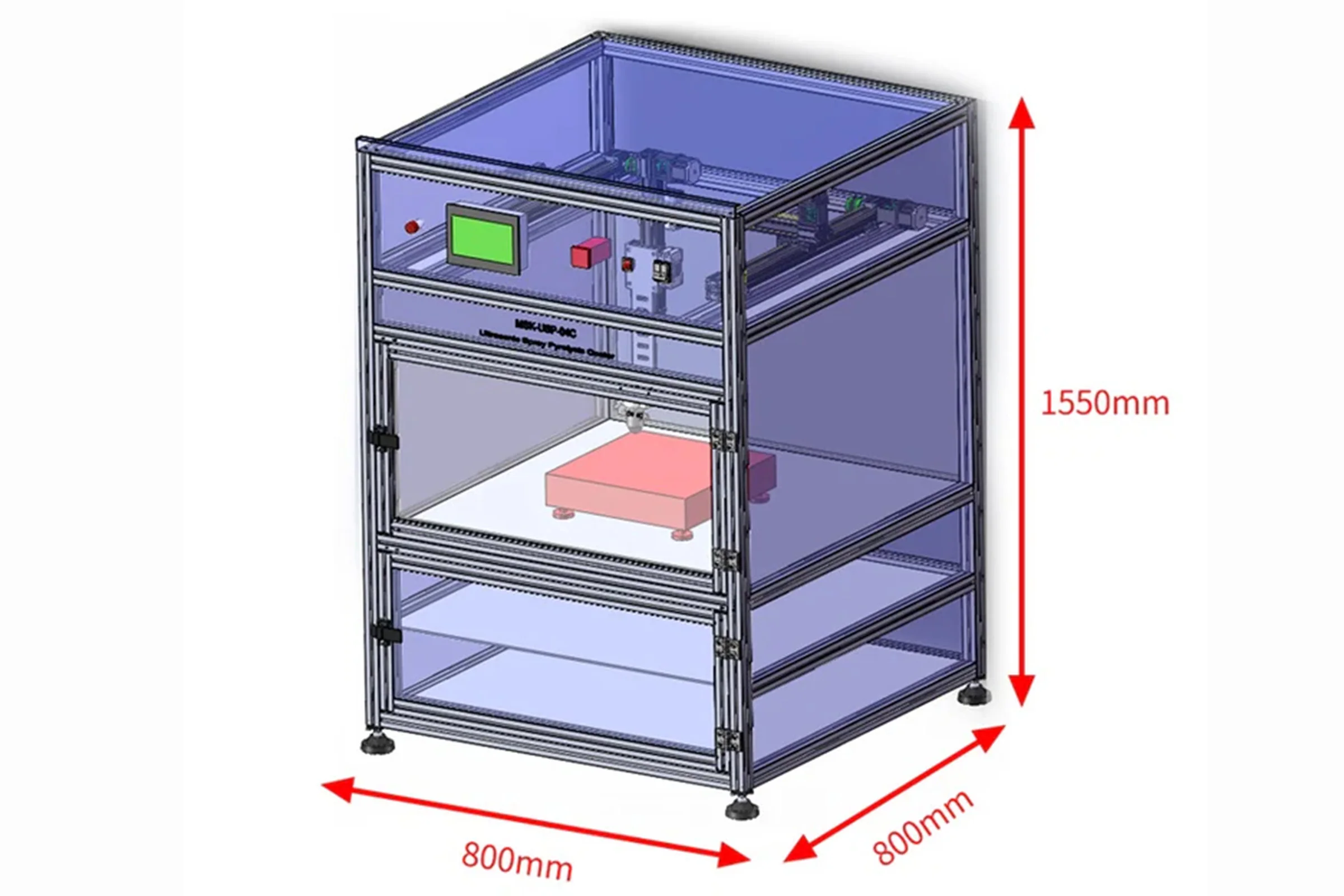

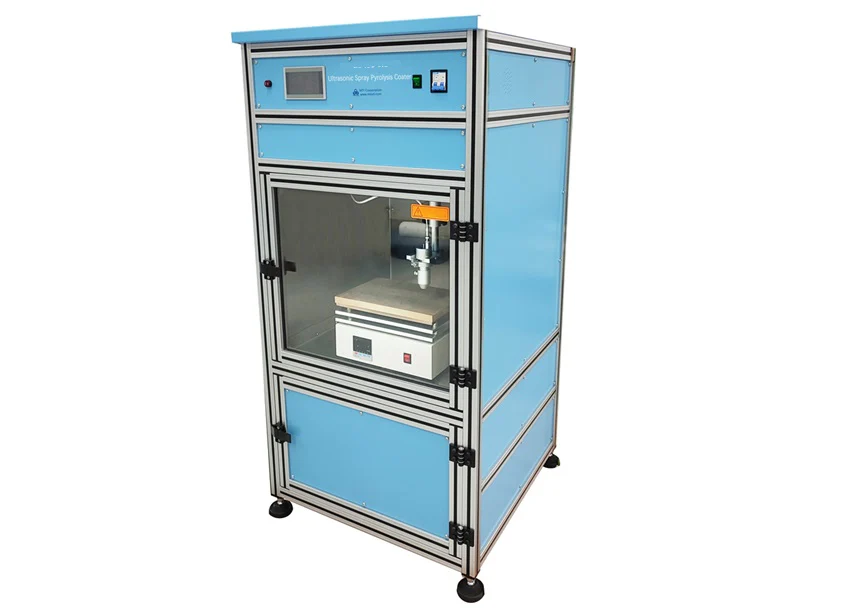

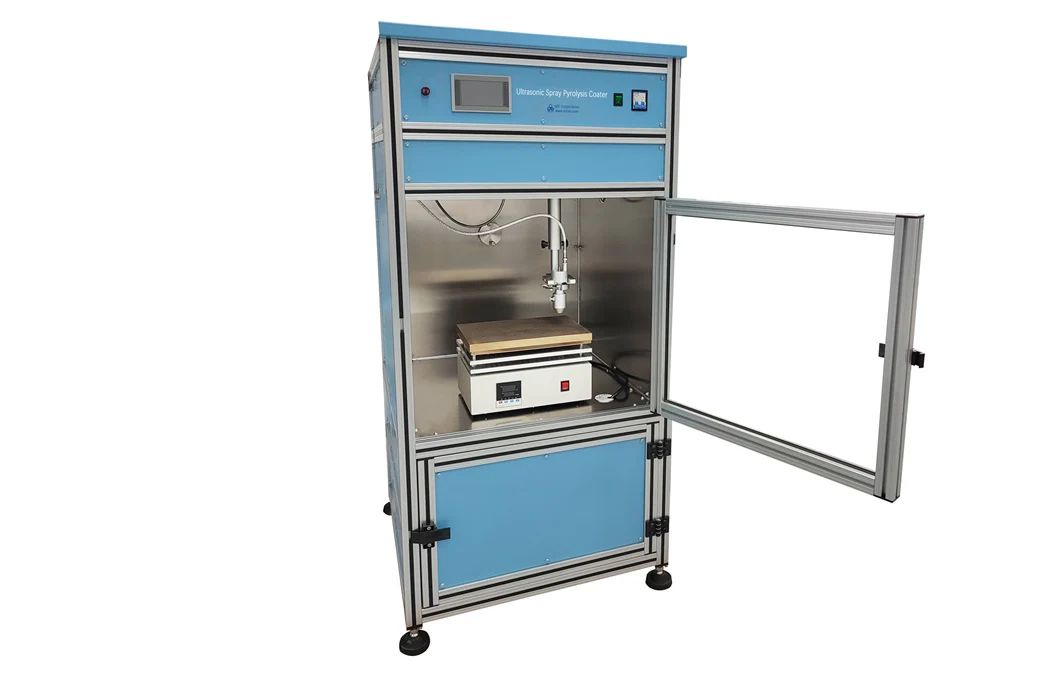

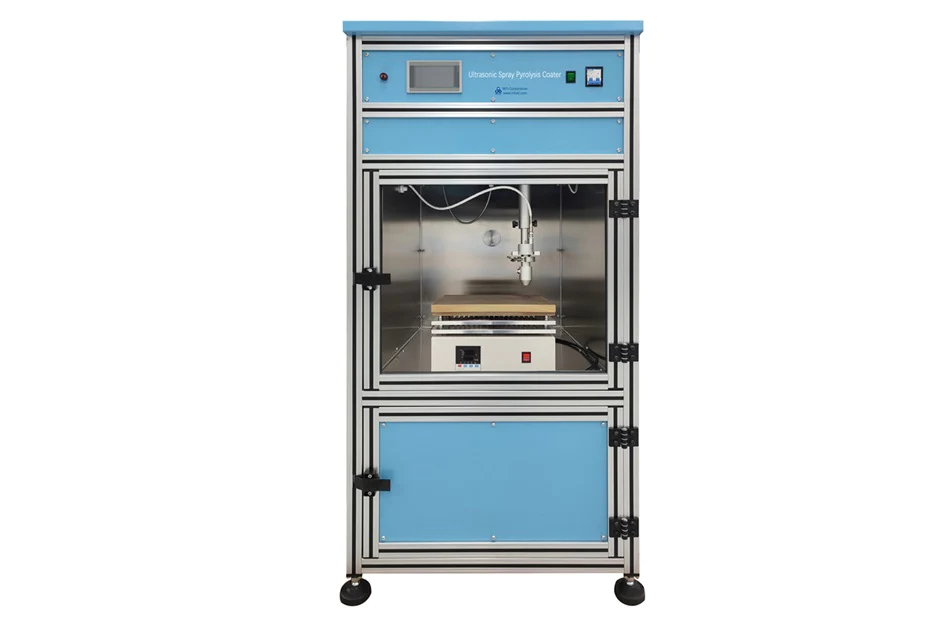

Floor-Stand Ultrasonic Spray Pyrolysis Coater with a 16"x16" 500°C Heating Plate - MSK-USP-12

• 208 - 240VAC, single phase, 50/60Hz
• 3000 W

• Two ultrasonic sprayers heads are included:
  • One cylindrical type - provides a narrower spray pattern with ~2 cm diameter
  • One cone type - provides a wider spray pattern ~ 4 cm diameter
  • Ultrasonic nozzle frequency: 40KHz±10%：
• Produces a fine spray of droplets of 10- 20  microns average size
• One digital dispensing unit  is included with a capacity of 250ml
• Dispensing rate:  1-10ml / sec. Adjustable via touch screen control panel

Sprayer

• Fluid viscosity range: 1 - 50 mPa·s (cP)
• Sprayer traverse area:   X - Y   400mm max.

• A pressure regulator with a gauge is installed on the machine for precise air pressure control.

• Compressed air with a pressure of ~ 4 bar is required for normal operation of the unit

• Attention: If a gas cylinder is used instead of air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
             pic1                pic2

• Dimension:  400 × 400mm  （16“ × 16”）
• Max. temperature:  500°C
• Digital temperature controller with +/-1 °C control accuracy





Touch Screen control  panel to control processing parameters:

• X-direction moving distance and speed: 10-800 mm/s
• Y-direction moving distance and speed: 10-800 mm/s
• Dispensing rate:  1-10ml / sec

• CE certified
• NRTL filed service certification is available upon request.

• Efficient inorganic-organic hybrid heterojunction solar cells containing perovskite compound and polymeric hole conductors
• UCLA researchers improve the process for manufacturing highly efficient solar cells
• Sub-150 ° C Processed Meso-superstructure Perovskite Solar Cells with Enhanced Efficiency
• Properties of TiO2 Films Prepared by the Spray Pyrolysis Method

• Be cautious of using hazardous materials. The working chamber of this unit is not flame-proof, explosive proof or vacuum-sealed. Contact your health and safety department manager for detailed material handling instructions and prevention/protection practices and recommendations. If you need a vacuum-sealed safety chamber, please consider the MSK-USP-06.
