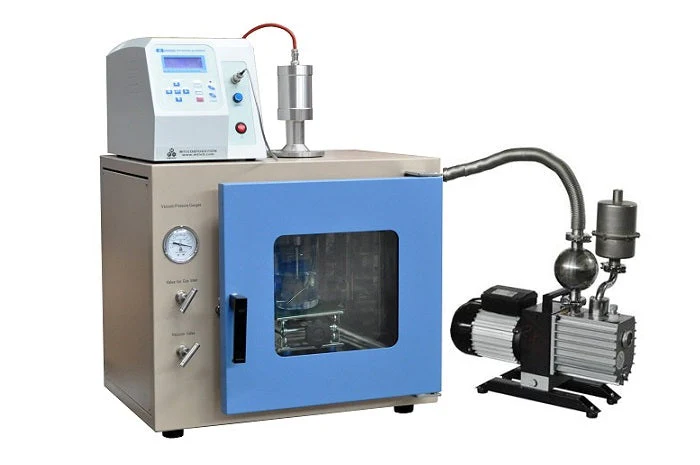

Ultrasonic Processor (300W, 20kHz) with Vacuum Chamber and Pump - MSK-VUSP-3

MSK-VUSP-3 is a high power ultrasonic processor with built-in a vacuum chamber. It is designed for dispersing air-sensitive nano-powder, homogenizing liquid phase from precipitation during storage, and mixing multi-chemical in one solution efficiently. The ultrasonic processing rod is made of high purity alumina to avoid metallic contamination. It is an ideal tool for preparing the new generation of LED phosphor, Li-ion battery slurry, Nanostructure Growth, and quality thin film by sol-gel method.

SPECIFICATIONS

Working Voltage	Ultrasonic Head: Single Phase 220V AC, 50-60Hz, 300 W Max. Vacuum pump: Single Phase 220V AC, 50-60Hz, 550W
Ultrasonic Mixer	Output Power: 300 W Max, 20kHz Processor Head:  Made of Alumina ceramic 8 mm diameter (standard) Weight: 400g Liquid handling: 5 mL - 200 mL Timer:: Digital Timer is displayed by LC panel Adjustable from 1 second to 99 hour Temperature control built-in
Vacuum Chamber and Pump	The ultrasonic head is built in 53L Stainless Steel Vacuum Chamber (16x13x14") ( Pic. left) One stainless steel lift platform is included to support the liquid container at a suitable height (Pic. 1) One temperature sensor is installed inside the vacuum chamber to protect the sample from overheated One Double Step Rotary Vane Vacuum Pump is included for connecting to the vacuum chamber (Pic. 2) Max. vacuum level: <0.1 torr Optional:  500oC Stirring Hot Plate can be placed inside chamber via feedthrough at the extra cost (pic. 3) Pic. 1 Pic. 2 Pic. 3
Product Dimensions	Chamber: 270mm(L) x 240mm(W) x 400mm(H) Control Box: 365mm(L) x 235mm(W) x 215mm(H) Ultrasonic Head: 425mm(L)
Warranty	One year limited warranty with lifetime technical support
Compliance	CE Certified
Application Notice	Processor Head should be dip into sample liquid around 10mm The Maximum dip in depth is 30mm Sample Liquid handling volume: 5 mL - 200 mL Continuous working time should limit to less than 5-10 mins, for using in high Power Mode of Ultrasonic Proces(Over 50% power). Can build Up to 400C Ultrasonic Liquid Mixing System inside the vacuum chamber in extra cost.
