Bench-top V-Shape Ball Mill w/ Optional SS Tank 50, 250 , 2500ml (Ar Gas Compatible) - MSK-SFM-11-LD

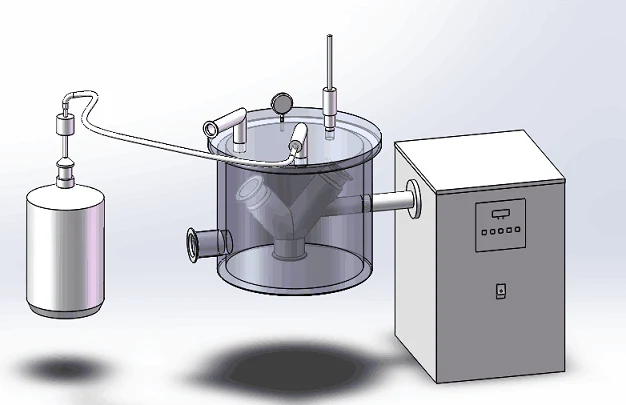

MSK-SFM-11-LD features a special V-shaped mixing tank designed for grinding and mixing dry powders in short periods of time. A digital control panel enables the rotary speed and time duration of the mixing session to be programmed easily. The V-shaped mixing tank provides the ability to separate and rotate the granules in two SS tanks. The granules are transferred from one tank to another for dispersion and get combined at where the tanks join in a continuous fashion. This type of mixing is ideal for dry mixing of materials that require good fluidity or are fragile or fine in nature. The mixer can be used inside a glove box under Ar gas because of 24VD Motor Driven.

SPECIFICATIONS

Features	V-shaped mixing tank for separating and combining powder grinding jar (made of SS 304) On-axis rotational mixing with variable speed The stainless steel tank can be opened on all ends for easy feeding, discharging and cleaning Digital display and simple control interface provide easy programming of mixing operations 110- 240V AC to 24V DC power adapter is included for universal using The mixer can be used inside glovebox under Ar or N2 gas
Input Voltage	AC 110 - 240V, 50/60Hz input  Current: 3A Max. Power: 250 W The power adaptor to 24VDC is UL, TUV, CSA and CE approval for worldwide use
Timer Setting Range	1~900 min
Rotary Speed	20~90 rpm

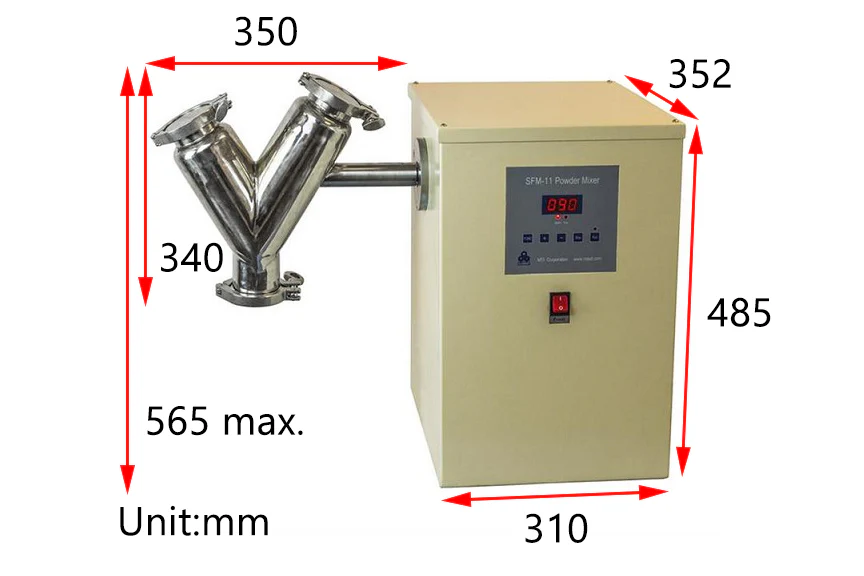

Dimensions and Capacity	Variable-sized containers are available in the options bar, or click on the links below to order the containers separately: 2.5L Capacity (usually for 1000g powder mixing max) 250ml Capacity (usually for 100g powder mixing max) 50ml Capacity (usually for 20g powder mixing max) Click the pictures below for the dimensions The material feeding port is with sanitary quick clamps  50ml  250ml 2.5L
Optional grinding balls	Please click the picture below to choose a grinding ball made of stainless steel, alumina YSZ and Agate For grinding: please choose a larger ball For milling: please choose a small and larger ball combination
Compliance	CE, TUV, UL, CSA certified in power supply  The machine is safe 24VDC input, which can be used without any safety certification
Application Notes	Please consider our SYU-3 Ultrasonic Filtration System for filtering the product A high-temperature ball mill can be modified     500°C & 3 Bar Max. Rotary Ball Milling (500ml) with Gas Flow Function - MSK-SFM-11-H500
