R2R Membrane Coating System For Hydrogen Electrolysis or Desalination -MSK-FPI-R200
HomeStore

R2R Membrane Coating System For Hydrogen Electrolysis or Desalination -MSK-FPI-R200

R2R Membrane Coating System For Hydrogen Electrolysis or Desalination -MSK-FPI-R200

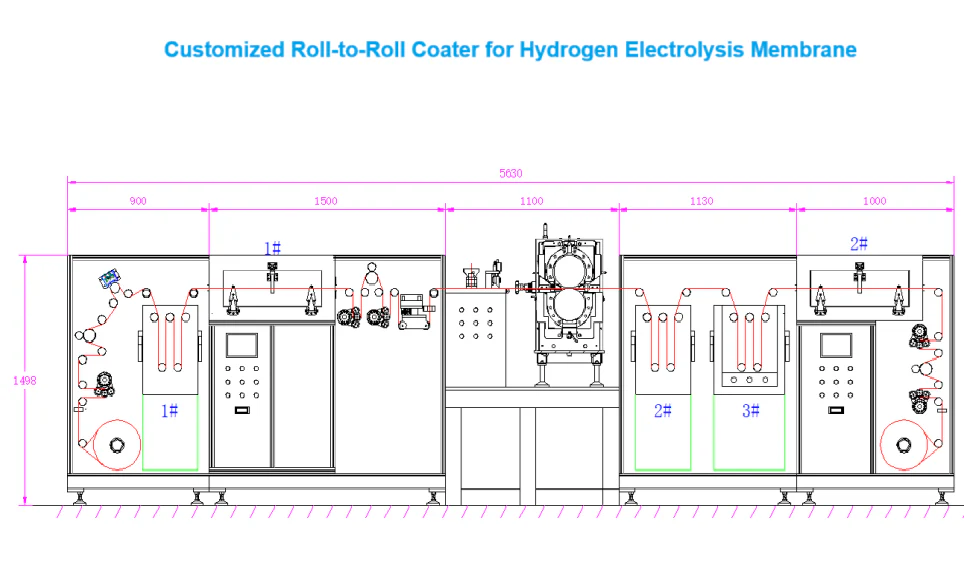

MTI designs and manufactures the customized roll-to-roll membrane coating system for hydrogen electrolysis or seawater desalination

Technical Processes, including, but not limited, to below:

(1) The substrate will be released from the unwinding roller and processed by a corona treatment after unwinding to obtain a hydrophilic surface ;
(2) The substrate will be sent to a bath for dip coating with hydrophobic repellents (room temperature) and then dried in an IR heating chamber (Max.80ā„ƒ);
(3) The powders were vibrantly dispersed on the coated substrate, flattened by a blade, and rolled pressed by a hot calender;
(4) Enter into the washing bath at room temperature;
(5) Enter into the slurry bath for dip coating under 60-80ā„ƒ; (6) Enter into the IR heating chamber for drying (80-120ā„ƒ); (7) Winding.Ā

SPECIFICATIONS:

Power & Voltage
  • Voltage: AC380V, 50/60 Hz, Three PhaseĀ
  • Power: 30 kW
  • The power cable without plug is included

Roller Width
  • 200 mm (Max width for substrate is 180 mm)

Mechanical Speed
  • 0.1-1.0 m/min

Diameter of Winding/Unwinding Rollers

Ā

  • Max O.D. is 300 mm
  • Core diameter is 3"
  • Routine alignment: Ā±20mm

Tension Control
  • Swing rollers driven by gas cylinders
  • Max. tension: 80N, open-loop control

Corona Treatment
  • Power: 2 kW
  • Effective width: 180 mm

Functional Bath #1/#2
  • Dipping length: Max. 1.2 m
  • No heating
  • SUS304, automatically move up and down

Functional Bath #3
  • Dipping length: Max. 1.2 m
  • Electrical heating, 60-80ā„ƒ
  • SUS304, automatically move up and down

Drying Oven #1/#2
  • Outer length: 0.8 m
  • Max. temperature:120ā„ƒ
  • Centrifugal fan, 5" aluminum tubing

Powder Sample Loading/Flattening
  • Vibration-type for loading
  • Mechanical blade for powder flattening on substrate roll

Hot Calendering
  • Roller Size: Ī¦196 x W300mm
  • IR heating, Max. temperature is 150ā„ƒ
  • Max. pressure: 10T

Guiding Roller
  • Aluminum alloy, Š¤50mm

Dimension
  • L5650 x W1000 x H1700mm (for reference)

Weight
  • ~ 2.5 T

Ā

$349,980.00
