4K CMH Air Flow Dehumidification System with & Water Chiller for Movable Dry Room up to 27 SM - MSK-ADS-4000
HomeStore

4K CMH Air Flow Dehumidification System with & Water Chiller for Movable Dry Room up to 27 SM - MSK-ADS-4000

4K CMH Air Flow Dehumidification System with & Water Chiller for Movable Dry Room up to 27 SM - MSK-ADS-4000

The dehumidification system MSK-ADS-4000 and the water chiller SDA-3025 are designed for a customized dry room system up to a 27 square meters maximum (3m* 9m) area and a dew point < -40ºC ( Max. Two persons with protective cloth). The entire pouch/cylinder battery cell line would be launched in the dry room.

SPECIFICATIONS

Features
  • The dry room system consists of a dehumidifier, a recirculating chiller, and a sealed room modified by a greenhouse(ordered separately)
  • Can be installed without a construction contractor, and moveable by yourselves
  • Dew Point: -40ºC （ ~ 79 ppm) under the condition that has no de-gas or de-vapor equipment inside and measures in the center of the dry room with one operator.
  • 16 kW for dehumidifier / 13 kW for water chiller
  • The dry room shall be placed in an air-conditioned room with a temperature < 23 °C, and humidity < 60%
  • Flexible to choose a dehumidifier and a water chill to DIY your own dry room

 Dry Room

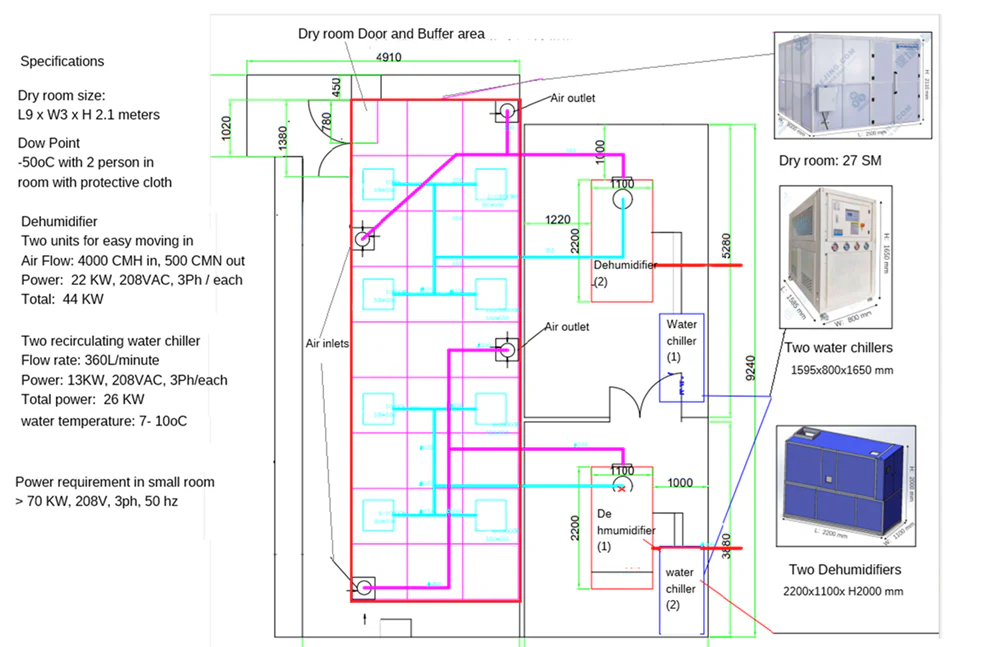

  • 27 square meter or smaller dry room is available upon request ( Pic. 1)
  • Dimension: W 3 metr x L 9 meter x H 2,100mm
  • Three gas inlet ports ( 8" diameter ) and outlet ports ( 6") are included
Dehumidifier
MSK-ADS-6000EP40S



Air flow volume:   4,000 cmh
Fresh dry die flow:  500 cmh
Dew point:  < -65 oC in empty room, < -40 °C with two persons (protective cloths) within 15 minutes
Recirculating cooling water:  《 7oC required
Power consumption:

22 kW. 208-240VAC, 3 phase
Dimension:    L2500mm*W1100mm*H2000mm
Weight： 1800 kg
Water Chiller
SDA- 1015

One recirculating water chiller is included

Refrigerating capacity： 38786 Kcal/h（45kw）
Water flow rate:     200 liters/minute
Temperature range:     5 - 35 oC  adjustable
Water pipe： 2” diameter
Dimension： L1585mm*W800mm*H1650mm
Weight:  ~ 800Kg
Power Consumption: 13 kW Max
Power requirement
  • Dehumidifier MSK-ADS-6000EP40S: AC 220 V +/- 10%, 50/60Hz, Three phases(4 wires)
  • Water Chiller SDA-1015F : AC 220V, 50/60 Hz, Three phases(4 wires)
  • 16 kW for dehumidifier / 13 kW for water chiller
Noise level
  • < 55 dB
Note and Warning
  • Must wear Clean room clothes to enter the dry room as shown in the picture left, for quick recovery of dew point
  • Please keep the cloth inside the dry room to keep it dry.
  • Please allow 20 - 30 minutes to recover the dew point to -40 C when one person enters the dry room



Select Equipment
