Economic Small Dry Room (60 SF) Up to - 40oC Dew Point - MSK-ADS800EP40S-231
HomeStore

Economic Small Dry Room (60 SF) Up to - 40oC Dew Point - MSK-ADS800EP40S-231

Economic Small Dry Room (60 SF) Up to - 40oC Dew Point - MSK-ADS800EP40S-231

MSK-ADS800EP40S-231 is a low-cost small dry room system with a 6 square meters ( 60 SF) area and a dew point < -40ÂșC. ( one person with protective cloth). The area of the small dry room is equal to 6 standard gloveboxes, but the cost is about 3 gloveboxes. You can put a whole set of coin cell battery equipment or a small pouch cell line inside, and work more efficiently.

The working mechanism of the wheel roller with gel inside the dehumidifier is shown below:


SPECIFICATIONS
Features
  • The small dry room system consists of a dehumidifier, a recirculating chiller, and a sealed room modified by a greenhouse.
  •  Can be installed without a construction contractor, and moveable by yourselves
  • Dew Point: -40ÂșC (~ 79 ppm) under the condition that has no de-gas or de-vapor equipment inside and measures in the center of the dry room with one operator.
  •  8KW total power: (50/60Hz) for energy saving
  • The dry room shall be placed in an air-conditioned room with a temperature < 26oC, and humidity < 60%
  • Flexible to choose dehumidifier and water chill for DIY your own dry room
 Dry Room
  • The small dry room is modified by a greenhouse. You can buy it from Amazon and modify it into a sealed room DIY
  • Dimension: L3180mm x 1900mm* x 1930mm
  • The gas inlet port ( 8" diameter ) and outlet out ( 6") are included

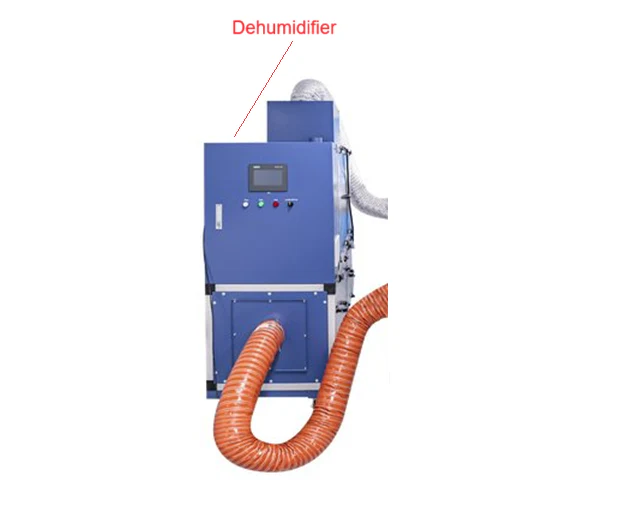

 Dehumidifier
 Air flow volume: 800 cmh
Fresh dry die flow: 500 cmh
Dew point: < 60 oC in empty room , < 40oC with one person within 20 minutes
Recirculating cooling water:  《 7oC required
Power consumption: 5 KW
 Water Chiller

One recirculating water chiller is included

 Refrigerating capacity 7826Kcal/h9.1kw)
Water flow rate: 60 liter/minute
Water tank capacity 50L
Temperature range: 5 - 35oC  adjustable
Water pipe 1” diameter
Power Consumption: 2.2KW
Power requirement
  • AC 220 V +/- 10%, 50 / 60Hz, Three phases
  • (The 380VAC version is available upon request)
  • 8KW total power consumption:
  • 30A air-breaker for power panel of dehumidifier and water chiller {I = P/ (1.73 * U * 0.85)}.
Noise level
  • < 55 dB
Note and Warning
  • Must wear Clean room clothes to enter the dry room as shown in the picture left for quick recovery of dew point
  • Please keep the cloth inside the dry room to keep it dry.
  • Please allow 20 - 30 minutes to recover the dew point to -40 C when one person enters the dry room



Select Equipment Choice
From $2,544.85

Original: $7,271.00

-65%
Economic Small Dry Room (60 SF) Up to - 40oC Dew Point - MSK-ADS800EP40S-231—

$7,271.00

$2,544.85

More Images

Economic Small Dry Room (60 SF) Up to - 40oC Dew Point - MSK-ADS800EP40S-231 - Image 2
Economic Small Dry Room (60 SF) Up to - 40oC Dew Point - MSK-ADS800EP40S-231 - Image 3
Economic Small Dry Room (60 SF) Up to - 40oC Dew Point - MSK-ADS800EP40S-231 - Image 4

Economic Small Dry Room (60 SF) Up to - 40oC Dew Point - MSK-ADS800EP40S-231

MSK-ADS800EP40S-231 is a low-cost small dry room system with a 6 square meters ( 60 SF) area and a dew point < -40ÂșC. ( one person with protective cloth). The area of the small dry room is equal to 6 standard gloveboxes, but the cost is about 3 gloveboxes. You can put a whole set of coin cell battery equipment or a small pouch cell line inside, and work more efficiently.

The working mechanism of the wheel roller with gel inside the dehumidifier is shown below:


SPECIFICATIONS
Features
  • The small dry room system consists of a dehumidifier, a recirculating chiller, and a sealed room modified by a greenhouse.
  •  Can be installed without a construction contractor, and moveable by yourselves
  • Dew Point: -40ÂșC (~ 79 ppm) under the condition that has no de-gas or de-vapor equipment inside and measures in the center of the dry room with one operator.
  •  8KW total power: (50/60Hz) for energy saving
  • The dry room shall be placed in an air-conditioned room with a temperature < 26oC, and humidity < 60%
  • Flexible to choose dehumidifier and water chill for DIY your own dry room
 Dry Room
  • The small dry room is modified by a greenhouse. You can buy it from Amazon and modify it into a sealed room DIY
  • Dimension: L3180mm x 1900mm* x 1930mm
  • The gas inlet port ( 8" diameter ) and outlet out ( 6") are included
 Dehumidifier
 Air flow volume: 800 cmh
Fresh dry die flow: 500 cmh
Dew point: < 60 oC in empty room , < 40oC with one person within 20 minutes
Recirculating cooling water:  《 7oC required
Power consumption: 5 KW
 Water Chiller

One recirculating water chiller is included

 Refrigerating capacity 7826Kcal/h9.1kw)
Water flow rate: 60 liter/minute
Water tank capacity 50L
Temperature range: 5 - 35oC  adjustable
Water pipe 1” diameter
Power Consumption: 2.2KW
Power requirement
  • AC 220 V +/- 10%, 50 / 60Hz, Three phases
  • (The 380VAC version is available upon request)
  • 8KW total power consumption:
  • 30A air-breaker for power panel of dehumidifier and water chiller {I = P/ (1.73 * U * 0.85)}.
Noise level
  • < 55 dB
Note and Warning
  • Must wear Clean room clothes to enter the dry room as shown in the picture left for quick recovery of dew point
  • Please keep the cloth inside the dry room to keep it dry.
  • Please allow 20 - 30 minutes to recover the dew point to -40 C when one person enters the dry room
