Movable Small Dry Room (100 SF/ 200SF) With Dehumidifier and Water Chiller For -40ºC DP - MSK-ADR-EP40S-LD

Features and principle

• Modular design for easy installation without professionals
• Made of stainless steel plate with 3 mm thickness
• Uniformly remove moisture without "dead corner " and "channel effect"
• Dew Point: -40ºC ~ 79 ppm) under the condition that has no de-gas or de-vapor equipment inside and measures in the center of the dry room with one operator.
• Power saving with quiet operation
• Only allow one or two person to operate inside the dry room

• Internal Area: ~ 9 square meters ( 96.8 square feet )
• Operation Area: 2,920 mm L x 2,920 mm W x 2,100 mm H (Including buffering room 780 mm L x 650 mm W x 2,100 mm H)

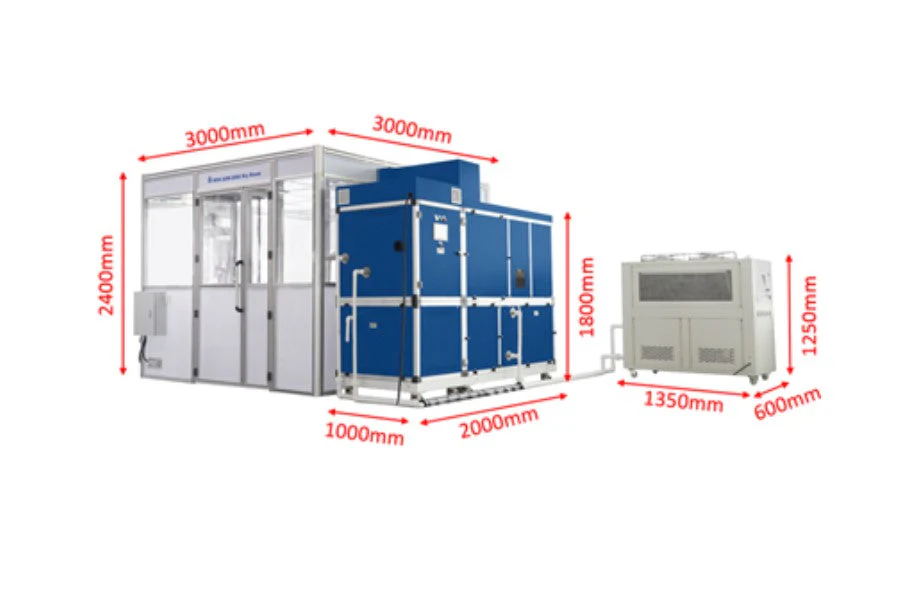

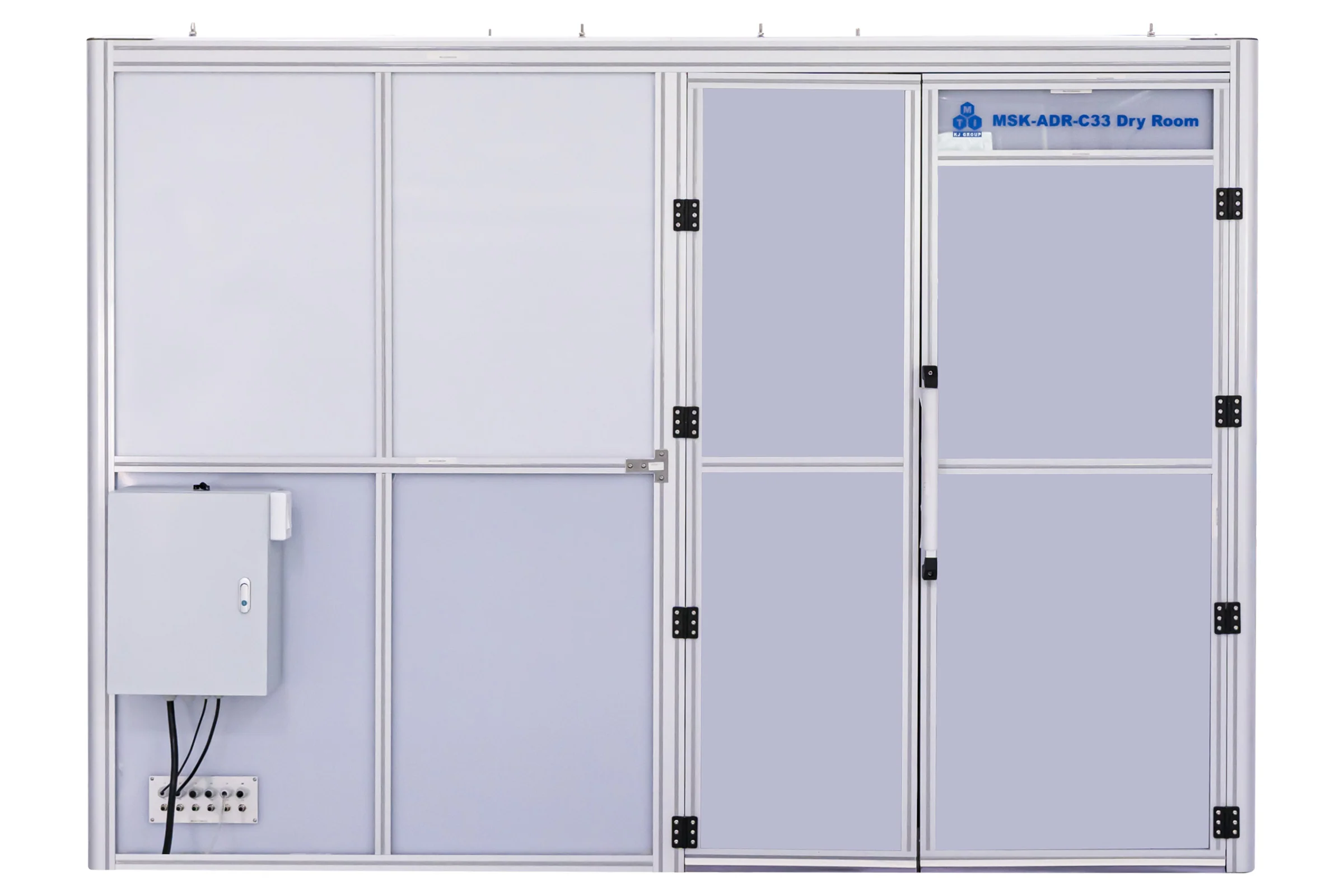

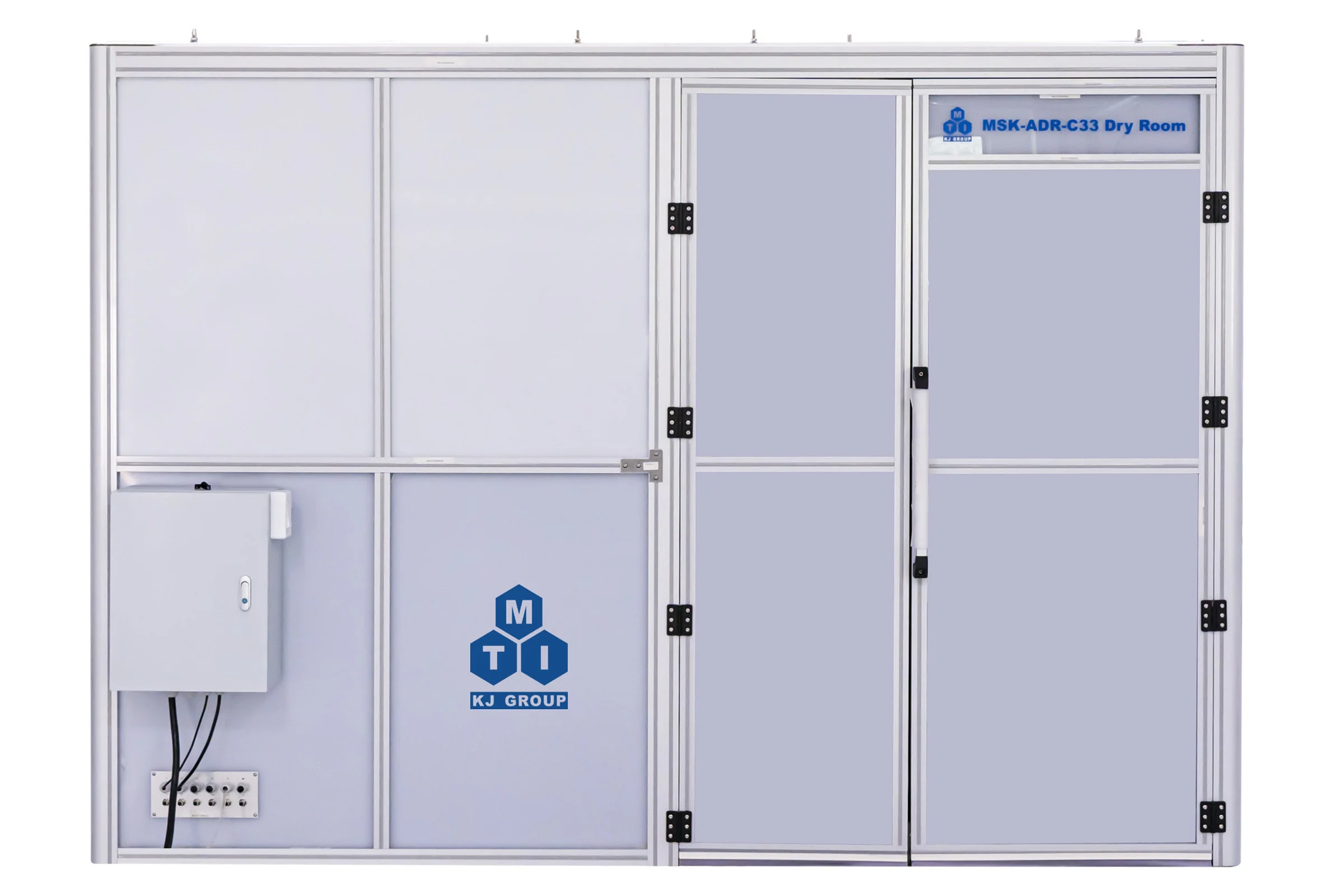

• Dry room size: 3,000 mm L x 3,000 mm W x 2,400 mm H (maximum customized size of 3*6 m is available upon request)
• Dehumidification system size: 2,000 mm L x 1,000 mm W x 1,800 mm H
• Lighting and power cords are built inside the dry room
• Noise level: < 55 dB
• You need an air-conditional room with PVC or rubber floor carpet to place all devices above
• The temperature inside the dry room: It is dependent on the outside temperature. The temperature may reach 20oC if the outside temperature is 25oC
• If you need a noise level < 30 dB, the water cold recirculating water chiller can be used at an extra cost.

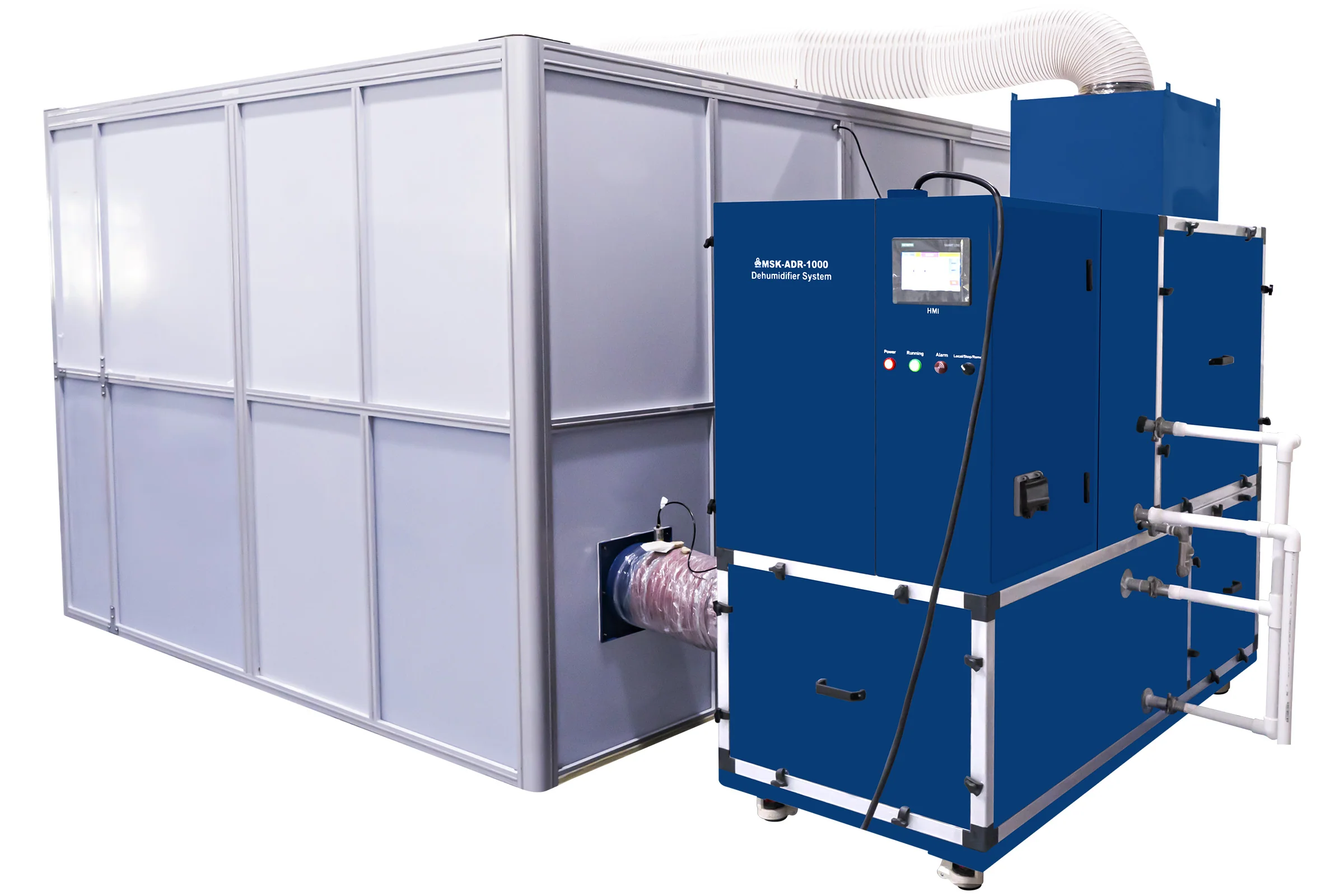

Dehumidifier

and Power requited

• AC 220 V +/- 10%, 50 / 60Hz, Three phases
• Installed Power: 23 KW Max. (Dehumidifier: 10 kW, Water Chiller: 4.5 kW, Reserved for Dry Room: 8 kW). In fact, the operation power for the dehumidifier and water chiller is 8 kW and 4 kW, respectively.
• 40A air-breaker for power panel of dehumidifier and water chiller {I = P/ (1.73 * U * 0.85)}.
• We highly recommend two separate circuit breakers for the dehumidifier (25A) and water chiller (15A) on the wall power source.

• <= 7 °C cooling water
• Cooling capacity: >12 KW
• Water flow: : > 3 m³/h
• Coolant circulation port for inlet and outlet: 25 mm ( DN25 ) ( PVC tube: 25 mm ID x 32 mm OD)
• We may supply the recirculating water chiller for you at an extra cost if there is no cooling water system in your lab.
• Water Cooling System size: 1,350 mm L x 600 mm W x 1,250 mm H



• Purification limitation: Water concentration -40ºC Dew Point with the empty room

• 1,000 CMH (cubic meter per hour)
• 588 CFM (cubic feet per minute)

• 20 times per hour

• < 55 dB

• Dry room + Glovebox combination scheme is also available upon request to process air-sensitive materials:

• Must wear Clean room cloth to enter the dry room as picture left for quick recovery of dew point
• Please keep the cloth in the dry room inside to keep dry ( baffle room )
• Please allow 20 - 30 minutes recovering the dew point to-40ºC when one person enters the dry room
• -50ºC dew point is available upon request at an extra cost
