Advanced Metallurgical Microscope with Polarizing Darkfield & Dual Lights + 5.0 MP Digital Camera 40X-1600X - MM500T
HomeStore

Advanced Metallurgical Microscope with Polarizing Darkfield & Dual Lights + 5.0 MP Digital Camera 40X-1600X - MM500T

Advanced Metallurgical Microscope with Polarizing Darkfield & Dual Lights + 5.0 MP Digital Camera 40X-1600X - MM500T

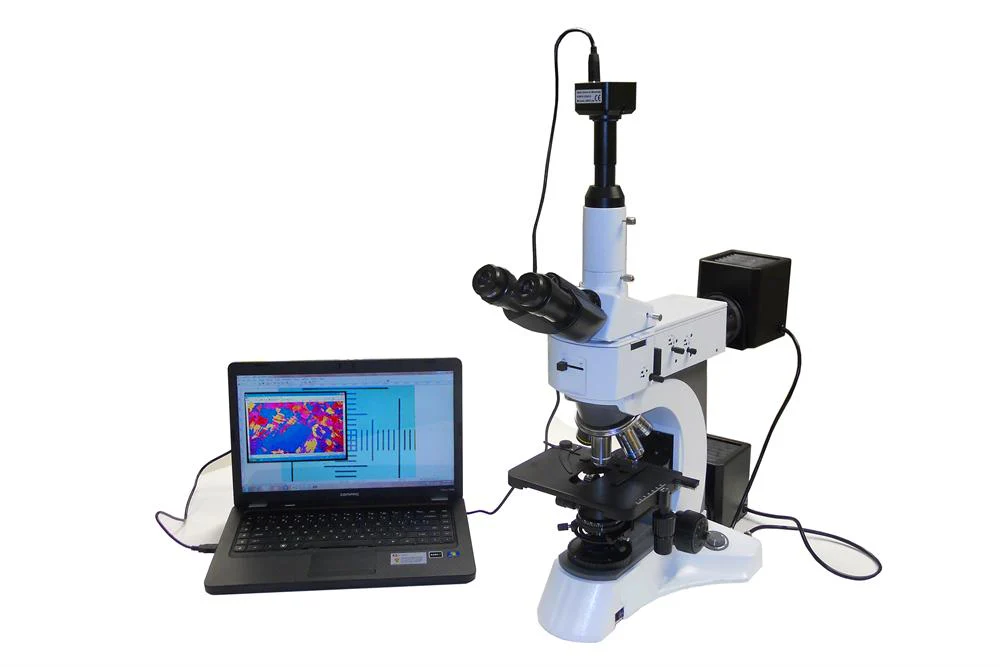

The microscope is an up-right reflected and transmitted metallurgical microscopy system with a USB digital image camera and comes with a quintuple nosepiece, seven levels of infinitive Plan objectives 5X/0.12, 10X/0.25, 20X/0.4, 50X/0.75, 100X/0.9, 40X/0.65, 100X/1.25. A built-in polarizer & analyzer, dark field-viewing device, and both reflected (EPI) & transmitted illuminations. The high-resolution color USB digital camera captures microscope images and displays live video on your PC screen. It offers 5.0 M pixel resolution and is compatible with Windows 8. Its built-in reduction lens gives the same field of view images on your PC screen as that seen through eyepieces. Using the user-friendly software, you can edit microscope images on your computer or email them to your friends or colleagues. You can make a real-time video or save microscope images. You can also measure length, angle, area and etc. across the images. This microscopy system is perfect for metallurgical labs and foundries for silicon wafer inspection, integrated circuit examination, and quality control and R&D applications. It is an ideal instrument for metallurgical, mineral, and crystal identification. It is also a great microscopy system for transmitted illumination applications including those in biological areas. (Update Microscope camera to 5.0 MP from 10/26/2015)

Features

  • An advanced metallurgical microscopy system with reflected illuminations and a USB digital camera.
  • Built-in bright/dark viewing field system with conversion slide.
  • Clear images with 5.0MP resolution.
  • Compatible with Windows 7 and up.
  • User-friendly software is included for editing microscope images on your computer, recording video, emailing the images, or displaying real-time live video.
  • Measuring length, angle, area, etc. across microscope images.
  • Built-in reduction lens providing the same view on your PC screen as that seen through eyepieces.
  • Easy USB PC connection.
  • Quintuple nosepiece with 3 holes for bright field objectives and 2 for the dark field.
  • Seven infinitive Plan Achromatic objectives included.
  • 24V 100W Watt halogen reflected EPI-illumination system.
  • Photo/video capability with 23mm universal/standard photo port.
  • Fully coated optical system with high resolution.
  • 30o inclined 360o rotate-able compensation free trinocular head.
  • Ten levels of metallurgical magnification, 40X - 1600X ( objective x eye )
  • Co-axial coarse & fine focusing system with tension control
  • Large mechanical stage with a stain-resistant finish.
  • Low position stage traveling controls.
  • Full optical glass elements.
  • Precise ground glass lens.
  • All metal mechanical parts.
  • 30o inclined 360o rotatable trinocular head.
  • Adjustable interpupillary distance.
  • Adjustable diopters on both eye tubes.
  • Solid metal frame construction with stain-resistant enamel finish.
  • Spare bulb, fuse, and dust cover included.
  • One-year limited manufacturer warranty (Consumable parts such as lamp bulb was not included).
  • Lifetime unlimited phone and email support at no additional charge.
  • Specification

Head

30o inclined trinocular

Eyepieces

One pair of WF10X/22 eyepieces(one has 0.1mm crosshair)

One pair of WF16X
$3,495.10

Original: $9,986.00

-65%
Advanced Metallurgical Microscope with Polarizing Darkfield & Dual Lights + 5.0 MP Digital Camera 40X-1600X - MM500T—

$9,986.00

$3,495.10

Advanced Metallurgical Microscope with Polarizing Darkfield & Dual Lights + 5.0 MP Digital Camera 40X-1600X - MM500T

The microscope is an up-right reflected and transmitted metallurgical microscopy system with a USB digital image camera and comes with a quintuple nosepiece, seven levels of infinitive Plan objectives 5X/0.12, 10X/0.25, 20X/0.4, 50X/0.75, 100X/0.9, 40X/0.65, 100X/1.25. A built-in polarizer & analyzer, dark field-viewing device, and both reflected (EPI) & transmitted illuminations. The high-resolution color USB digital camera captures microscope images and displays live video on your PC screen. It offers 5.0 M pixel resolution and is compatible with Windows 8. Its built-in reduction lens gives the same field of view images on your PC screen as that seen through eyepieces. Using the user-friendly software, you can edit microscope images on your computer or email them to your friends or colleagues. You can make a real-time video or save microscope images. You can also measure length, angle, area and etc. across the images. This microscopy system is perfect for metallurgical labs and foundries for silicon wafer inspection, integrated circuit examination, and quality control and R&D applications. It is an ideal instrument for metallurgical, mineral, and crystal identification. It is also a great microscopy system for transmitted illumination applications including those in biological areas. (Update Microscope camera to 5.0 MP from 10/26/2015)

Features

  • An advanced metallurgical microscopy system with reflected illuminations and a USB digital camera.
  • Built-in bright/dark viewing field system with conversion slide.
  • Clear images with 5.0MP resolution.
  • Compatible with Windows 7 and up.
  • User-friendly software is included for editing microscope images on your computer, recording video, emailing the images, or displaying real-time live video.
  • Measuring length, angle, area, etc. across microscope images.
  • Built-in reduction lens providing the same view on your PC screen as that seen through eyepieces.
  • Easy USB PC connection.
  • Quintuple nosepiece with 3 holes for bright field objectives and 2 for the dark field.
  • Seven infinitive Plan Achromatic objectives included.
  • 24V 100W Watt halogen reflected EPI-illumination system.
  • Photo/video capability with 23mm universal/standard photo port.
  • Fully coated optical system with high resolution.
  • 30o inclined 360o rotate-able compensation free trinocular head.
  • Ten levels of metallurgical magnification, 40X - 1600X ( objective x eye )
  • Co-axial coarse & fine focusing system with tension control
  • Large mechanical stage with a stain-resistant finish.
  • Low position stage traveling controls.
  • Full optical glass elements.
  • Precise ground glass lens.
  • All metal mechanical parts.
  • 30o inclined 360o rotatable trinocular head.
  • Adjustable interpupillary distance.
  • Adjustable diopters on both eye tubes.
  • Solid metal frame construction with stain-resistant enamel finish.
  • Spare bulb, fuse, and dust cover included.
  • One-year limited manufacturer warranty (Consumable parts such as lamp bulb was not included).
  • Lifetime unlimited phone and email support at no additional charge.
  • Specification

Head

30o inclined trinocular

Eyepieces

One pair of WF10X/22 eyepieces(one has 0.1mm crosshair)

One pair of WF16X
