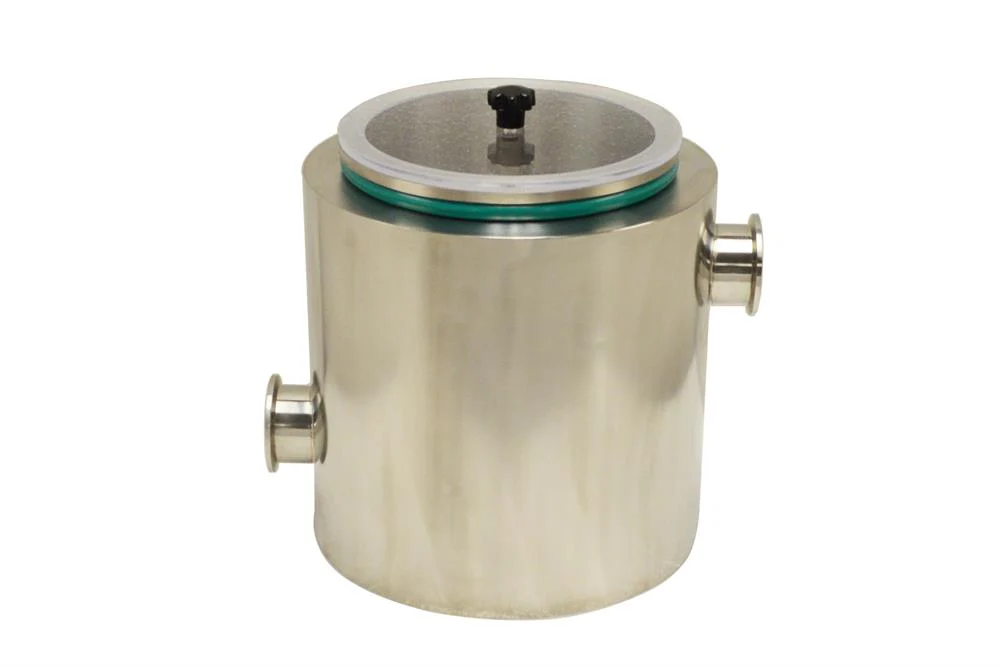

Cold Trap for Recovering Condensable of CVD with KF25 connection- KF25CCT
HomeStore

Cold Trap for Recovering Condensable of CVD with KF25 connection- KF25CCT

Cold Trap for Recovering Condensable of CVD with KF25 connection- KF25CCT

Cold Trap for Recovering Condensables with KF25 connection - EQ-CCT-KF25-LD

SPECIFICATIONS
Features:
  • Dry-ice and alcohol are all that are needed to cool this cold trap to -75°C, thus trapping most volatile materials. Holds 3 quarts of dry ice slurry (dry ice and alcohol).
  • Holding time is approximately 20 hours depending on vacuum throughput.
  • The cold well is visible during operation to monitor condensation. Defrost and clean-up is easily accomplished.
  • For durability and ease of cleaning, the outer body and the cold well are electro-polished ID/OD 304 stainless steel. Viewing ring and lid are clear acrylic plastic.
Vacuum compatibility
  • 5x10^-4 torr
Dimension
  • Inner Cooling Agent Tank: 160mm I.D. x 195 mm depth (6 1/4" x 7 1/2")
  • Outer Gas Chamber Tank: 215mm I.D x 210 mm depth (8 1/2" x 8 1/4")
  • See image for more measurements.
  • Max. Effective Volume: 3.9 L
Replacement Parts
  • The replacement O-ring can be ordered at an extra cost.


Option Accessory Please order as recommended to build small system like in the picture

S/N

Descriptions

To build small system like in the piture

Qty
EQ-KF-Clamp-D25 KF-25 Quick Clamp with Rubber O-ring - EQ-KF-Clamp-D25 Recommended buy 4 Option
EQ-KF-Pipe-D25 KF-D25 Flexible Stainless Steel Vacuum Hose ( Bellows ), 1 Meter Recommended buy 2 Option



$349.30

Original: $998.00

-65%
Cold Trap for Recovering Condensable of CVD with KF25 connection- KF25CCT—

$998.00

$349.30

Cold Trap for Recovering Condensable of CVD with KF25 connection- KF25CCT

Cold Trap for Recovering Condensables with KF25 connection - EQ-CCT-KF25-LD

SPECIFICATIONS
Features:
  • Dry-ice and alcohol are all that are needed to cool this cold trap to -75°C, thus trapping most volatile materials. Holds 3 quarts of dry ice slurry (dry ice and alcohol).
  • Holding time is approximately 20 hours depending on vacuum throughput.
  • The cold well is visible during operation to monitor condensation. Defrost and clean-up is easily accomplished.
  • For durability and ease of cleaning, the outer body and the cold well are electro-polished ID/OD 304 stainless steel. Viewing ring and lid are clear acrylic plastic.
Vacuum compatibility
  • 5x10^-4 torr
Dimension
  • Inner Cooling Agent Tank: 160mm I.D. x 195 mm depth (6 1/4" x 7 1/2")
  • Outer Gas Chamber Tank: 215mm I.D x 210 mm depth (8 1/2" x 8 1/4")
  • See image for more measurements.
  • Max. Effective Volume: 3.9 L
Replacement Parts
  • The replacement O-ring can be ordered at an extra cost.


Option Accessory Please order as recommended to build small system like in the picture

S/N

Descriptions

To build small system like in the piture

Qty
EQ-KF-Clamp-D25 KF-25 Quick Clamp with Rubber O-ring - EQ-KF-Clamp-D25 Recommended buy 4 Option
EQ-KF-Pipe-D25 KF-D25 Flexible Stainless Steel Vacuum Hose ( Bellows ), 1 Meter Recommended buy 2 Option
