Single-side Quick Disconnect Flange for 50mm O.D. tube with Optional Accessories - FL50KF50

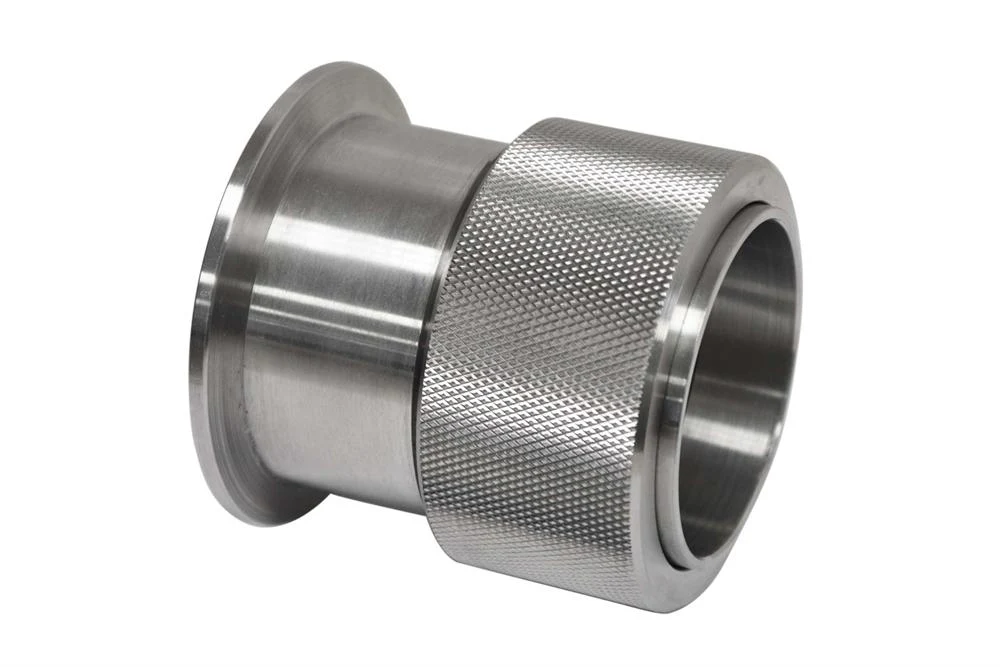

This is a one-side quick disconnect flange set for rapid access into 2" O.D vacuum chamber through flanged port. Quick-Disconnect flanges are a fast and convenient method for coupling and uncoupling metal and glass tubing.

SPECIFICATIONS

Type (Please select in options bar)	QuickDisconnect Flange	QuickDisconnect Flange with KF50-40 Adaptor	QuickDisconnect Flange with right-angle valve
Item Number	FL-50KF50-QD	FL-50KF50-QD40A	FL-50KF50-QD40V
Package included	One KF50 quick-disconnect flange set	One KF50 quick disconnect flange set  One KF50 clamp set One KF50 to KF40 adaptor	One KF50 quick-disconnect flange set  One KF50 clamp set One KF40 clamp set  One KF50 to KF40 adaptor  One KF40 to KF40 right-angle valve

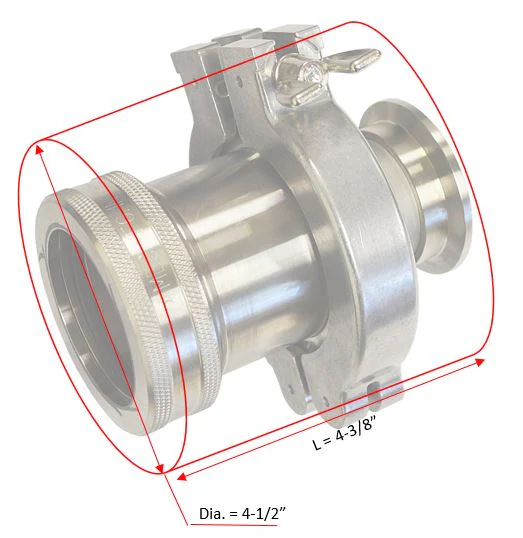

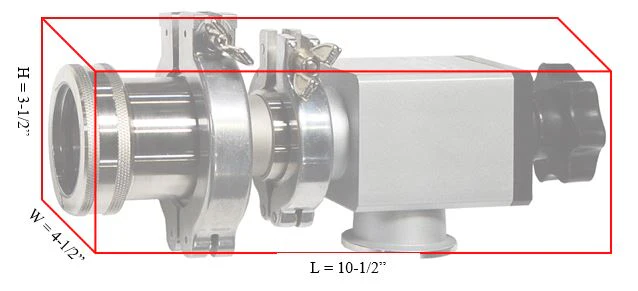

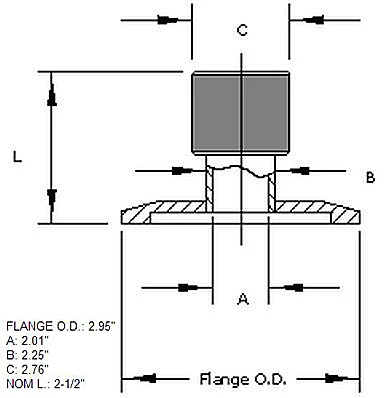

Structure	Click to enlarge	Click to enlarge	Click to enlarge
Features	Vacuum level: 10E-5 torr by molecular pump and 10E-2 torr by a mechanical pump Temperature Range: -20ºC to 150ºC Made of 304ss Fittings Leak Test: 2x10-10 cc/sec He
Optional	You may order a single end flange with the gas inlet port and thermal couple insert ( click picture below left to order ) Due to the weight of the QuickDisconnect flange with the Right-Angle valve, we recommend the following support: Adjustable Tube Support (320 - 510mm H) for KF25 Flanges - FLS-KF25 You may need to order a KF-50 - KF-40 adaptor to connect to the vacuum pump MTI supplied Warning: Must put thermal block inside the tube during heating to avoid o ring on the flange damaged, which not be covered by the warranty                        ( click pic to order )
Related Product	Click here to choose flange for tube from 42mm to 11"                             Vacuum Pump & High Vacuum Station
