10 mm ID Multi-Well Pellet Pressing Die Max 90 MPa For HTP Material Research- Die10-SxxHT
HomeStore

10 mm ID Multi-Well Pellet Pressing Die Max 90 MPa For HTP Material Research- Die10-SxxHT

10 mm ID Multi-Well Pellet Pressing Die Max 90 MPa For HTP Material Research- Die10-SxxHT

 Die10-SxxHT is a High Throughput HTP) multi-well pressing dies with 10 mm ID with the standard option, 9, 16, 25, and 36 wells. It is made of high-quality aluminum alloy with Max. 90 MPa pressure for each hole, and it is designed for high throughput research of ceramic materials.

SPECIFICATIONS:

Material
  • 7075 Aluminium alloy
  • Tensile Strength: 524Mpa
  • 0.2% Yield strength: 455Mpa
  • Hardness: 150HB
  • Max. working temperature 150oC
Well Options
  • 9 wells and 25 wells are standard products,
  • Please choose from the product option bar
  • The customized well number is available upon request at the extra cost
Related High throughput Device
  • May choose MSK-SFM-50 plate shaker as HTP mixer ( Click Pic 1 to order )
  • May use YLJ-HP300 the flat hot press to press multi-well die ( Pic. 2)
  • Please use XRF-32-LD for automatic composition analysis by the XRF scanning system ( Click Pic. 3
Pic. 1 Pic. 2 Pic. 3

Cautions
  • WARNING:
  • DO NOT press flammable, corrosive, or explosive materials
  • Attention:
    • To achieve the best result, please ensure the volume of sample powder in all 32 pressing dies are the same.
    • Use ethanol to clean the pressing die before and after use every time
    • Use anti-rust oil after the operation and store it in a dry place to avoid rusting.
    •  3'' Dia. Sieve Set No.200&450 Mesh can be used to separate the 32~75 microns particles from the powder clumps
    • .

Steps to make a sample pellet
  • Mixing and grinding chemical powder by agate mortar or Ball Mill
  • Calcine mixed the powder in a high temp furnace under a suitable temperature
  • Crushing and Grinding calcined powder again by mortar or ball mill
  • Put calcined powder into the die
  • Pressing sample by a pressing machine under suitable pressure
  • Take out the pellet sample from die
  • Sintering the pellet under a suitable temperature in Oven
  • Then, a new material sample is formed!


Related Products

Pressing Die 1/8" - 3"
Laboratory Mill & Mixer
Powder grinding & Mixing
Gravity Convection Ovens, Max. 300C

Drying Ovens

Calcining & Sintering

Hydraulic Press
CIP - Cold Isostatic Press



Select Number of Wells
From $313.25

Original: $895.00

-65%
10 mm ID Multi-Well Pellet Pressing Die Max 90 MPa For HTP Material Research- Die10-SxxHT—

$895.00

$313.25

More Images

10 mm ID Multi-Well Pellet Pressing Die Max 90 MPa For HTP Material Research- Die10-SxxHT - Image 2

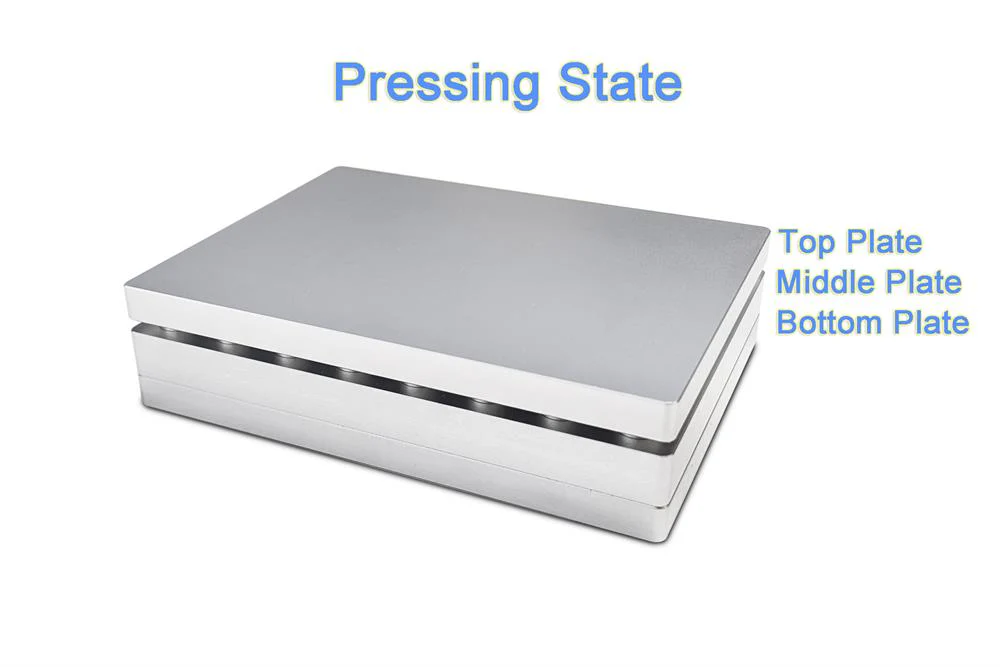

10 mm ID Multi-Well Pellet Pressing Die Max 90 MPa For HTP Material Research- Die10-SxxHT - Image 3

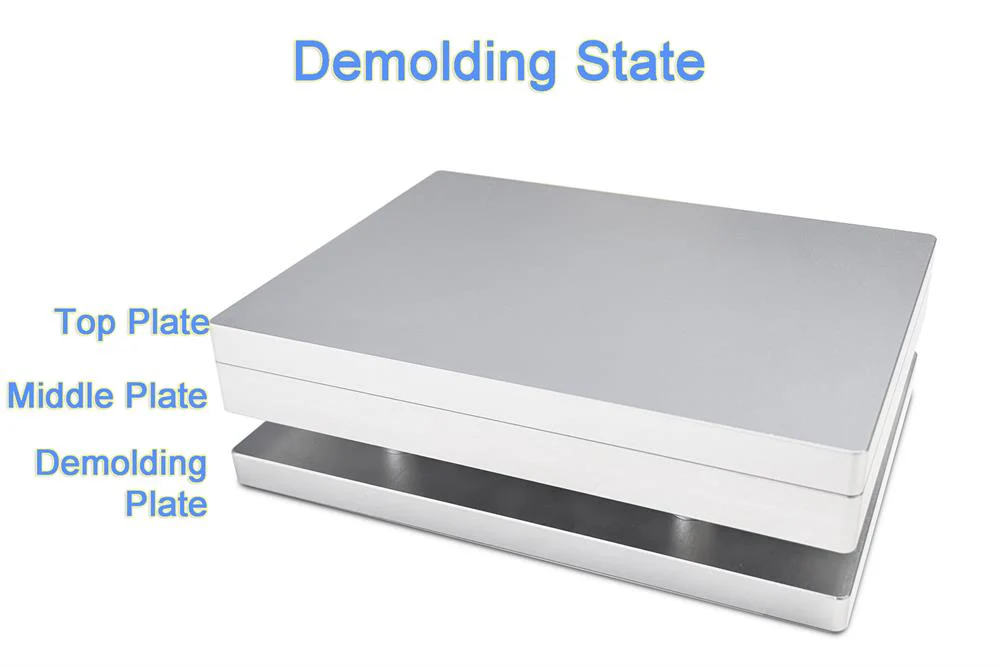

10 mm ID Multi-Well Pellet Pressing Die Max 90 MPa For HTP Material Research- Die10-SxxHT - Image 4
