32-Position Hi-Throughput 10 mm I.D. Dry Pellet Pressing Set - Die10-S32

Die10-S32 is a High Throughput 32-position pressing set. It includes 32 pieces of 10mm ID pressing die, adapter plate, and demolding plate, which allows the making of 32 dry pallets with different compositions in one single pressing within 30 minutes.
The adapter is compatible with YLJ-100M, YLJ-100E, and YLJ-200EHydraulic Press.

SPECIFICATIONS:

Pressing die installation schematic	To avoid the risk of accidents and damage to the Pressing Die, please read these instructions carefully before installation and before using it for the first time. Must Read the manual especially the die installation schematic before the operation. The operator must wear protective goggles. Must have Hydraulic Pellet Press equipped with the Protection Cover,

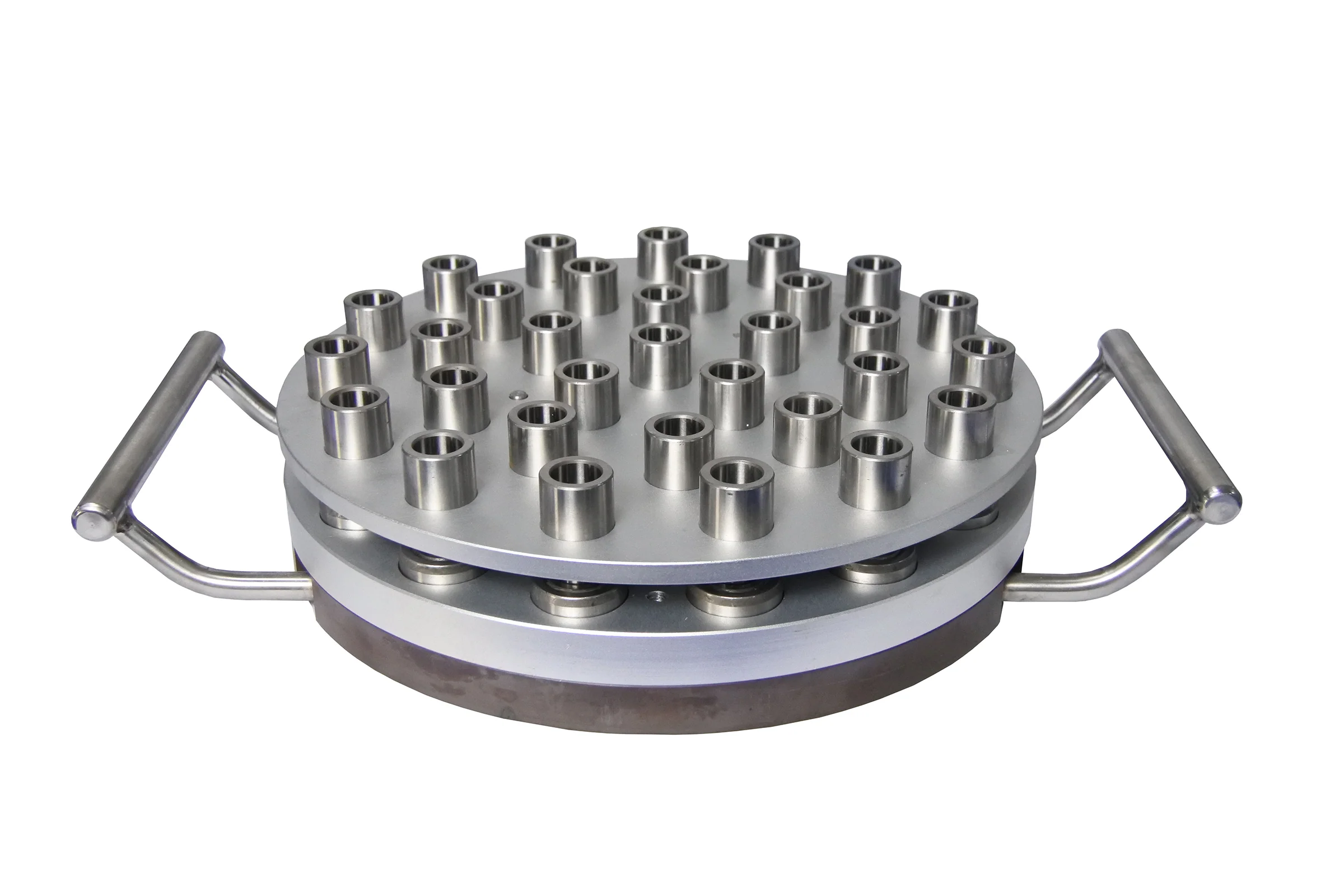

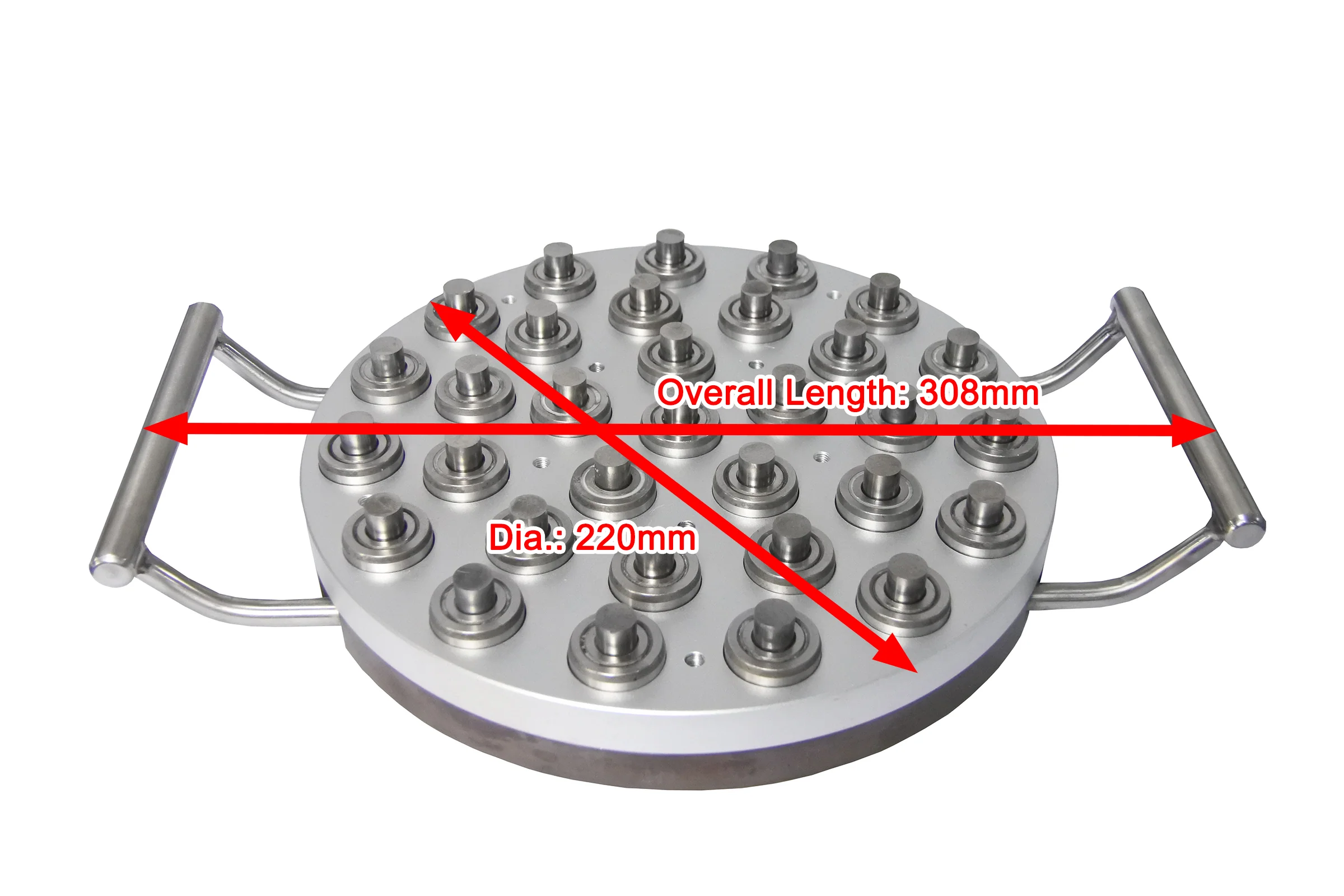

32-Position Adapter	Handle on both sides for easy carry Holds a maximum of 32 pieces 10mm ID pressing dies Use the provided pins to position the demolding for easy lining up.
Demolder	The specially designed demolding is used to de-mold 32 samples at the same time Use the provided pins to position the de-molder for easy lining up.
Pressing die	Use for making 10mm dry pallets Please click here for more details of the pressing die.
Maximum Load of a single die	5 metric Ton (at room temperature)  630 MPa
The Hi-Throughput Pressing Die Set includes	32 pieces 10mm ID pressing die: One 10mm I.D. core die  Two pushing rods are highly polished and perfectly fitted into the die. One 32-position adapter One demolding plate 3 pieces of the positioning pin
Compatible Hydraulic Press (optional)	100T Manual 100T Electric  200T Electric
Cautions	WARNING: DO NOT press flammable, corrosive, or explosive materials The operator must wear a protection goggle. Attention: To achieve the best result, please ensure the volume of sample powder in all 32 pressing dies are the same. Use ethanol to clean the pressing die before and after use every time Use anti-rust oil after the operation and store it in a dry place to avoid rusting. NO pressing powder with particle size LESS THAN 30 micron should be used. Small particles may slip into the gap between the pushing rod and steel sleeve and cause damages to the sleeve during the compression. Ball mill or ground the powder to the size of32~75 microns powder before pressing.  3'' Dia. Sieve Set No.200&450 Mesh can be used to separate the 32~75 microns particles from the powder clumps .
Steps to make a sample pellet	Mixing and grinding chemical powder by agate mortar or Ball Mill Calcine mixed the powder in a high temp furnace under a suitable temperature Crushing and Grinding calcined powder again by mortar or ball mill Put calcined powder into the die Pressing sample by a pressing machine under suitable pressure Take out the pellet sample from die Sintering the pellet under a suitable temperature in Oven Then, a new material sample is formed!
