Automated Pellet Pressing System up to 6 set 10 mm ID Dies up to 8T) - AM-YLJ-8T
HomeStore

Automated Pellet Pressing System up to 6 set 10 mm ID Dies up to 8T) - AM-YLJ-8T

Automated Pellet Pressing System up to 6 set 10 mm ID Dies up to 8T) - AM-YLJ-8T

AM-YLJ-8T is an automated pellet press that automates pressing die assembling, pellet press, die dissembling, and pellet retrieval. This compact, glovebox-friendly unit is programmable via an LCD touchscreen and compatible with various types of powder in a fast and accurate manner for powder palletization. The modular design can be used solely for 6 samples per batch or pairs with automated MTI materials preparation system for autonomous experiments. The free software advances instrumental communication and data acquisition.


SPECIFICATIONS:
Operation procedures
  • Program operation procedure in PC or touchscreen - including pressing pressure and holding time
  • Manually load powders into 6 pressing dies. and start the program.
  • The system
    • Place the top plunger
    • Move the pressing die for pressing and dwelling at the setting pressure
    • Take out the sample via a demolding process
    • Place the bottom core into a holding tray
    • Place the sample inside a clean plastic cup.
  • Throughput: 60 minutes per 6 samples.
Power
  • Input Voltage: 120 or 208-240 VAC, single phase, 50/60 Hz.
  • Output Power: 500W

Pellet Press
  • Motorized lab press, YLJ-8TA
  • Material: Tool Steel (HRC60-62)
  • Standard: 6 sets of 10-mm ID dies are included.
  • Max pressure: 1000 MPa, 78.6 KN
  • Please contact MTI for more information. Different diameters of pressing dies are also available.
Compliance
  • CE Certified
  • NRTL certification is available upon request at the extra cost.



$15,750.00

Original: $45,000.00

-65%
Automated Pellet Pressing System up to 6 set 10 mm ID Dies up to 8T) - AM-YLJ-8T—

$45,000.00

$15,750.00

More Images

Automated Pellet Pressing System up to 6 set 10 mm ID Dies up to 8T) - AM-YLJ-8T - Image 2

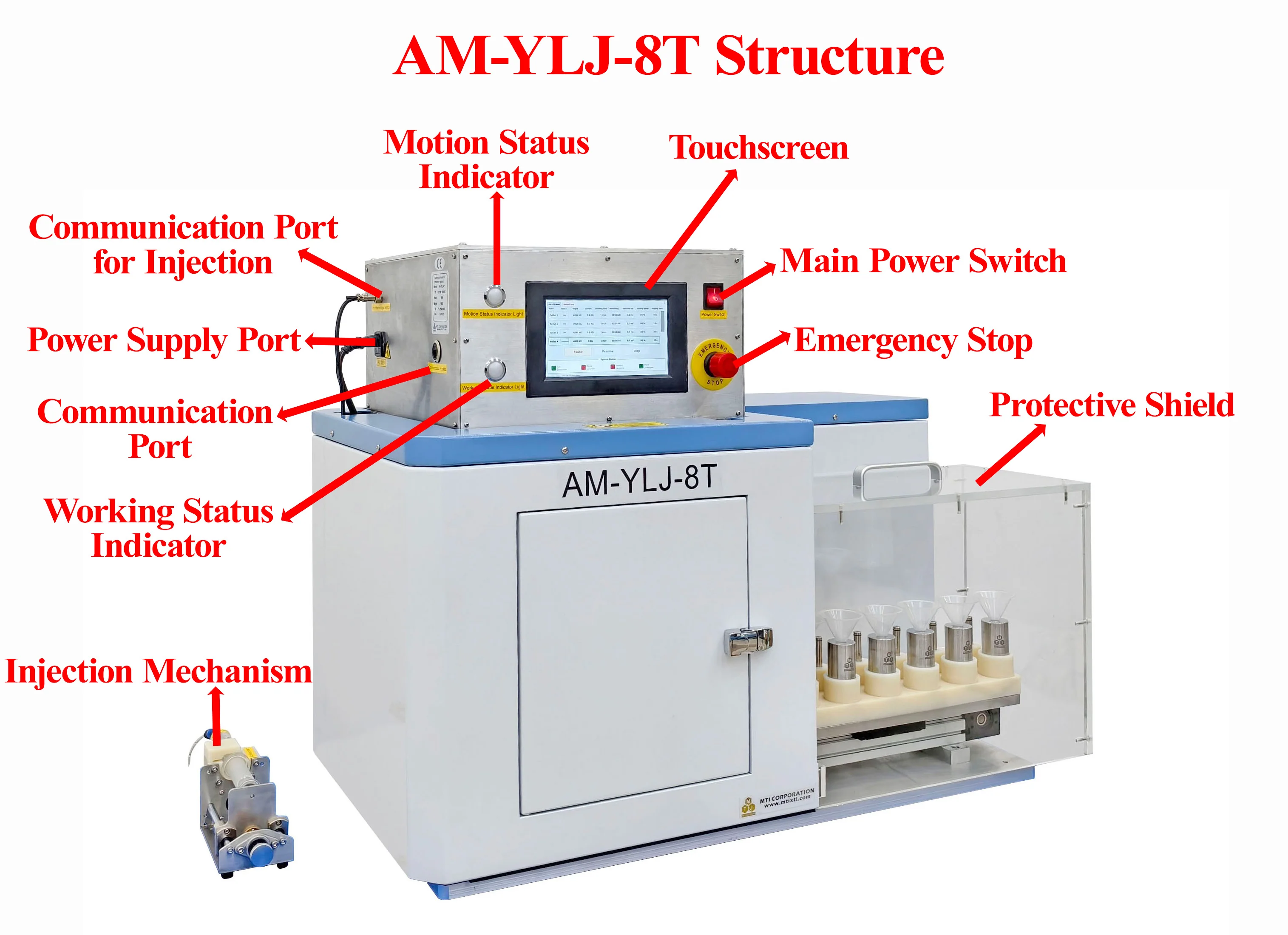

Automated Pellet Pressing System up to 6 set 10 mm ID Dies up to 8T) - AM-YLJ-8T - Image 3

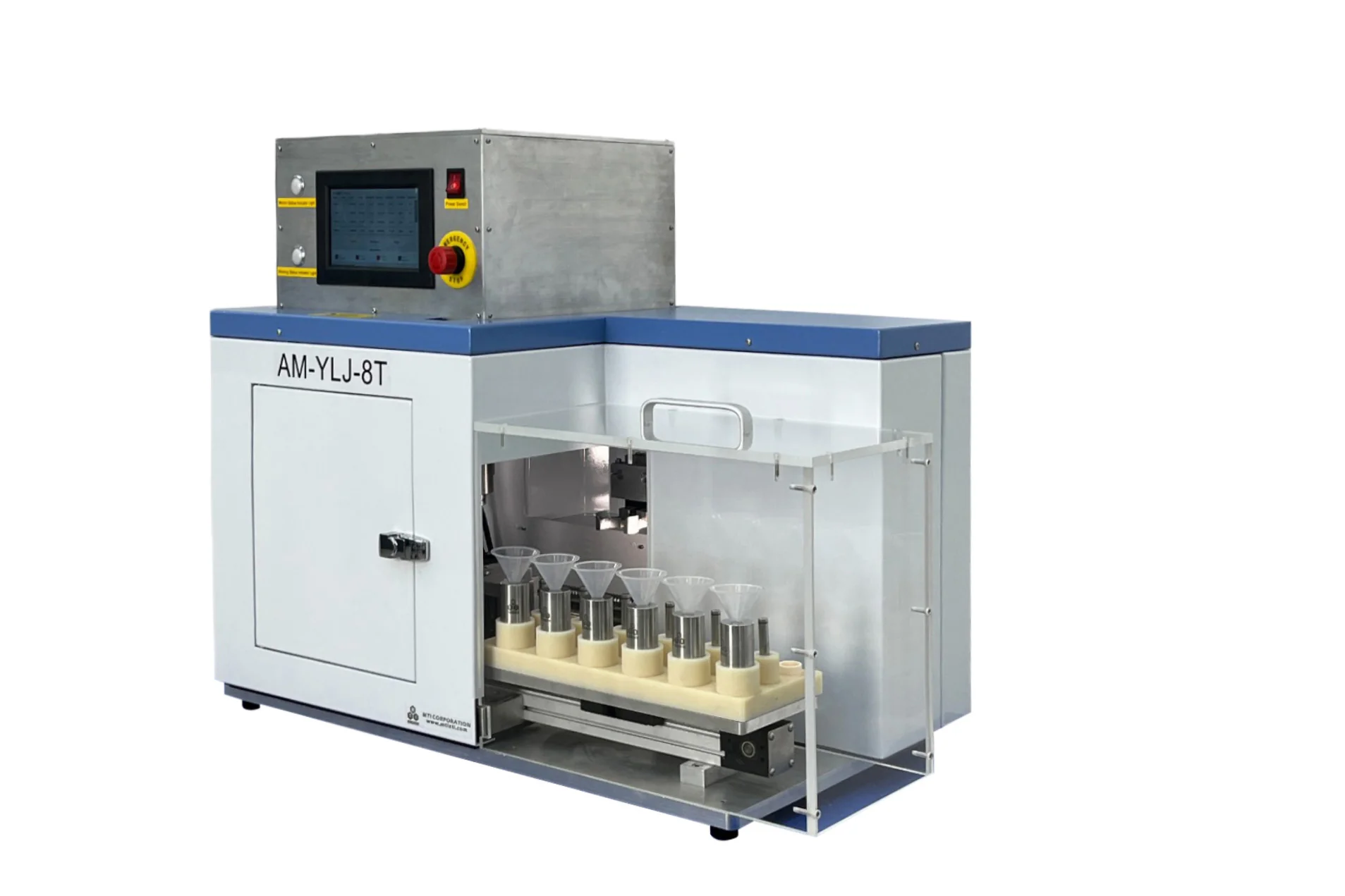

Automated Pellet Pressing System up to 6 set 10 mm ID Dies up to 8T) - AM-YLJ-8T - Image 4

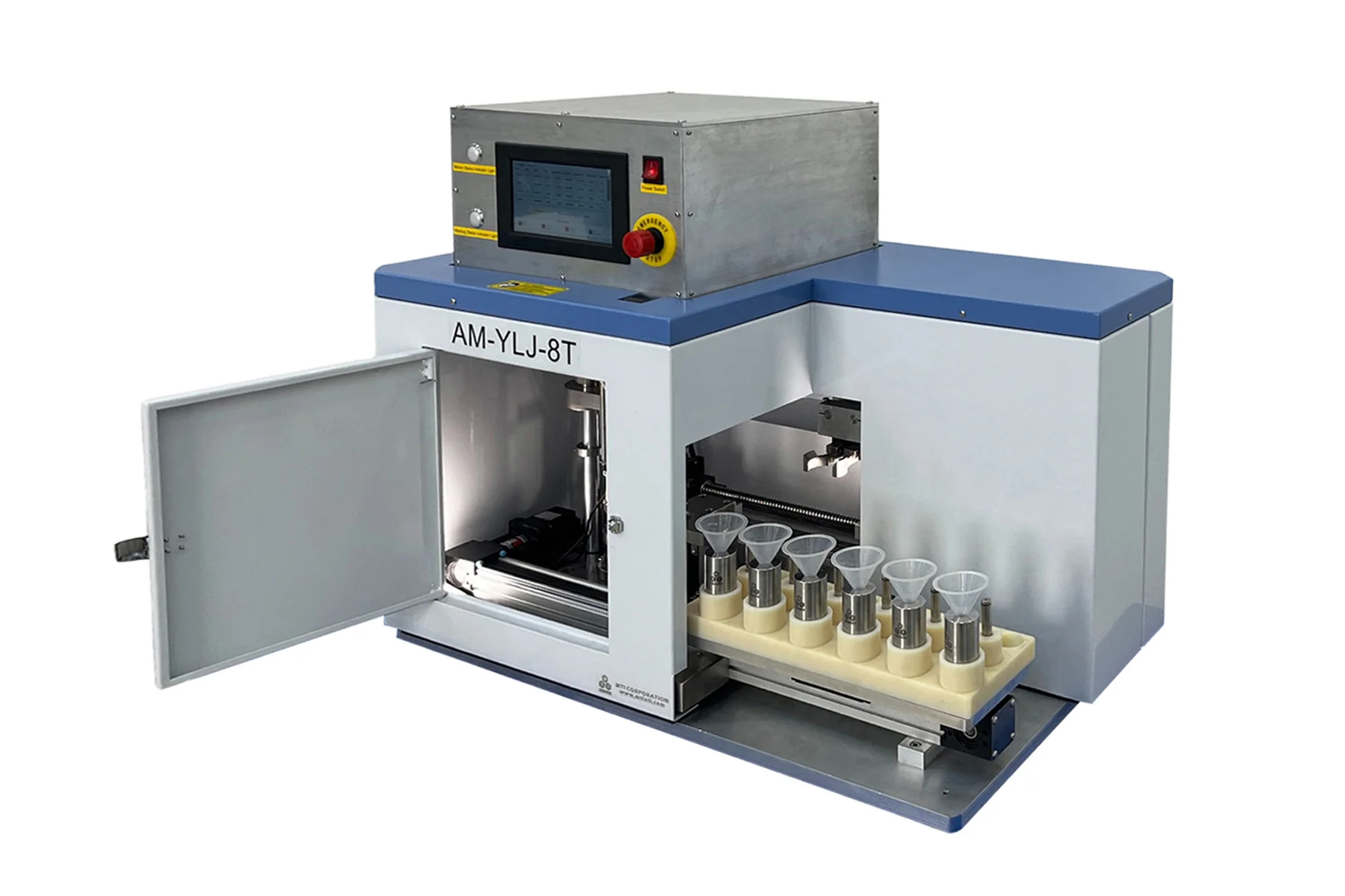

Automated Pellet Pressing System up to 6 set 10 mm ID Dies up to 8T) - AM-YLJ-8T - Image 5

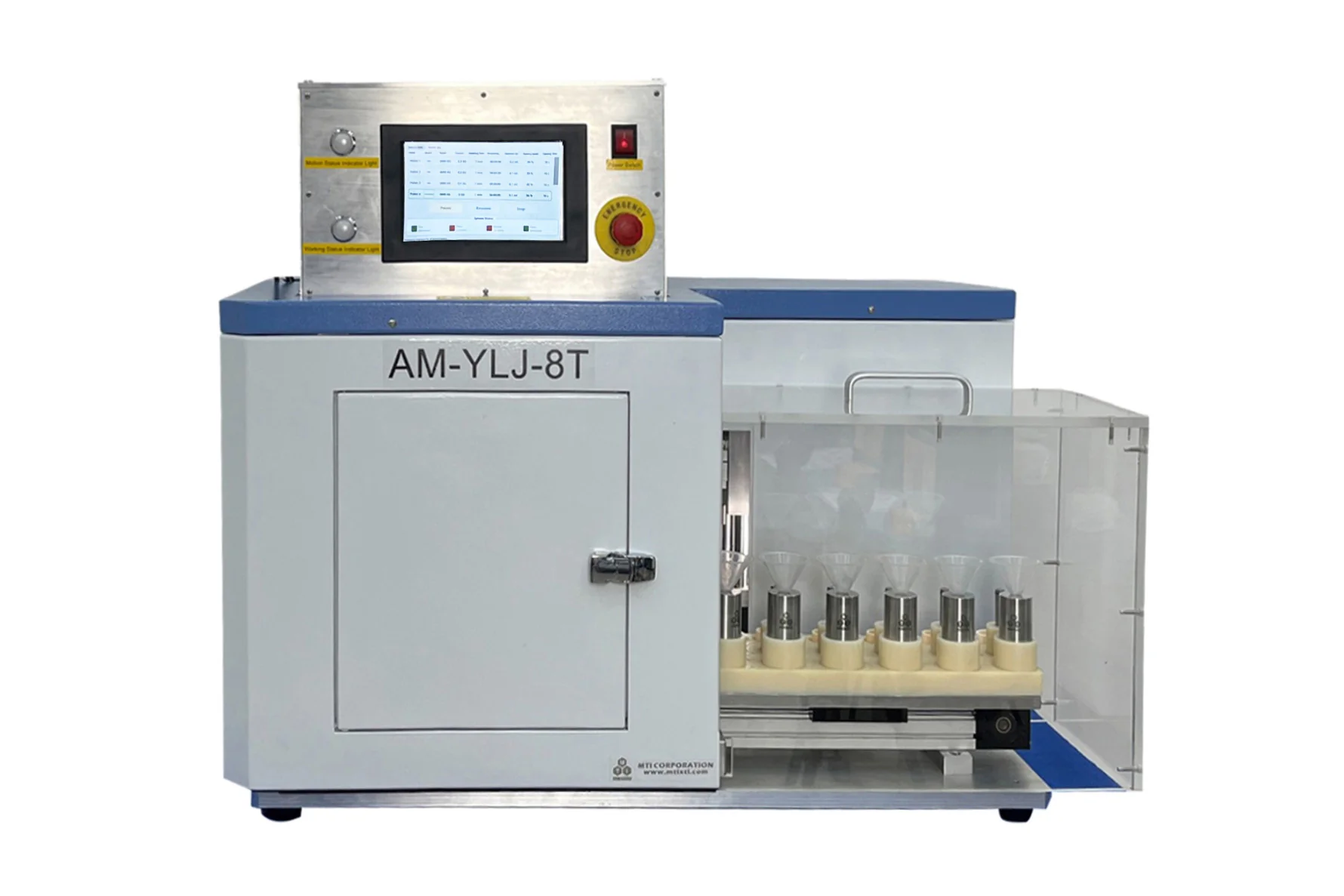

Automated Pellet Pressing System up to 6 set 10 mm ID Dies up to 8T) - AM-YLJ-8T - Image 6

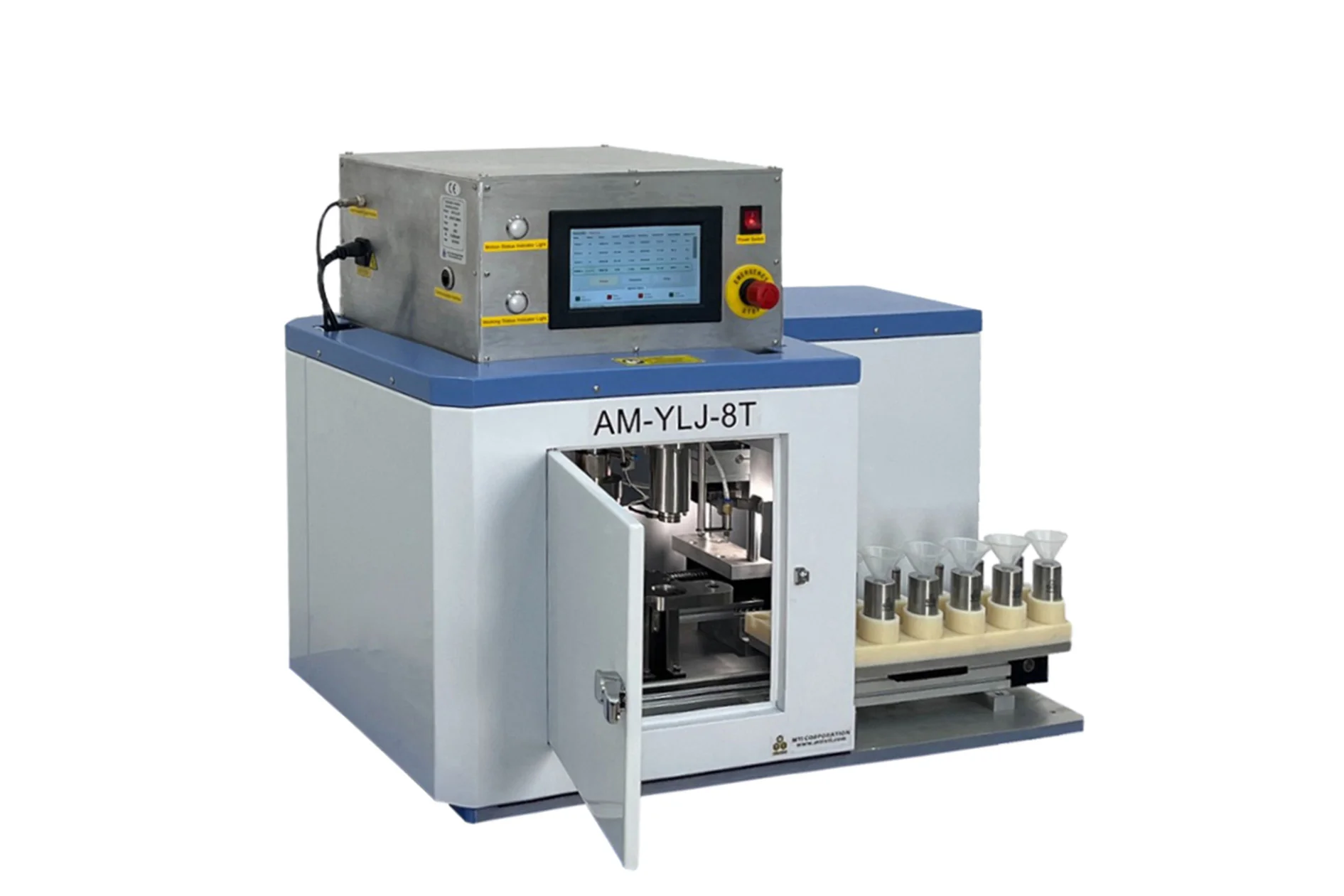

Automated Pellet Pressing System up to 6 set 10 mm ID Dies up to 8T) - AM-YLJ-8T - Image 7

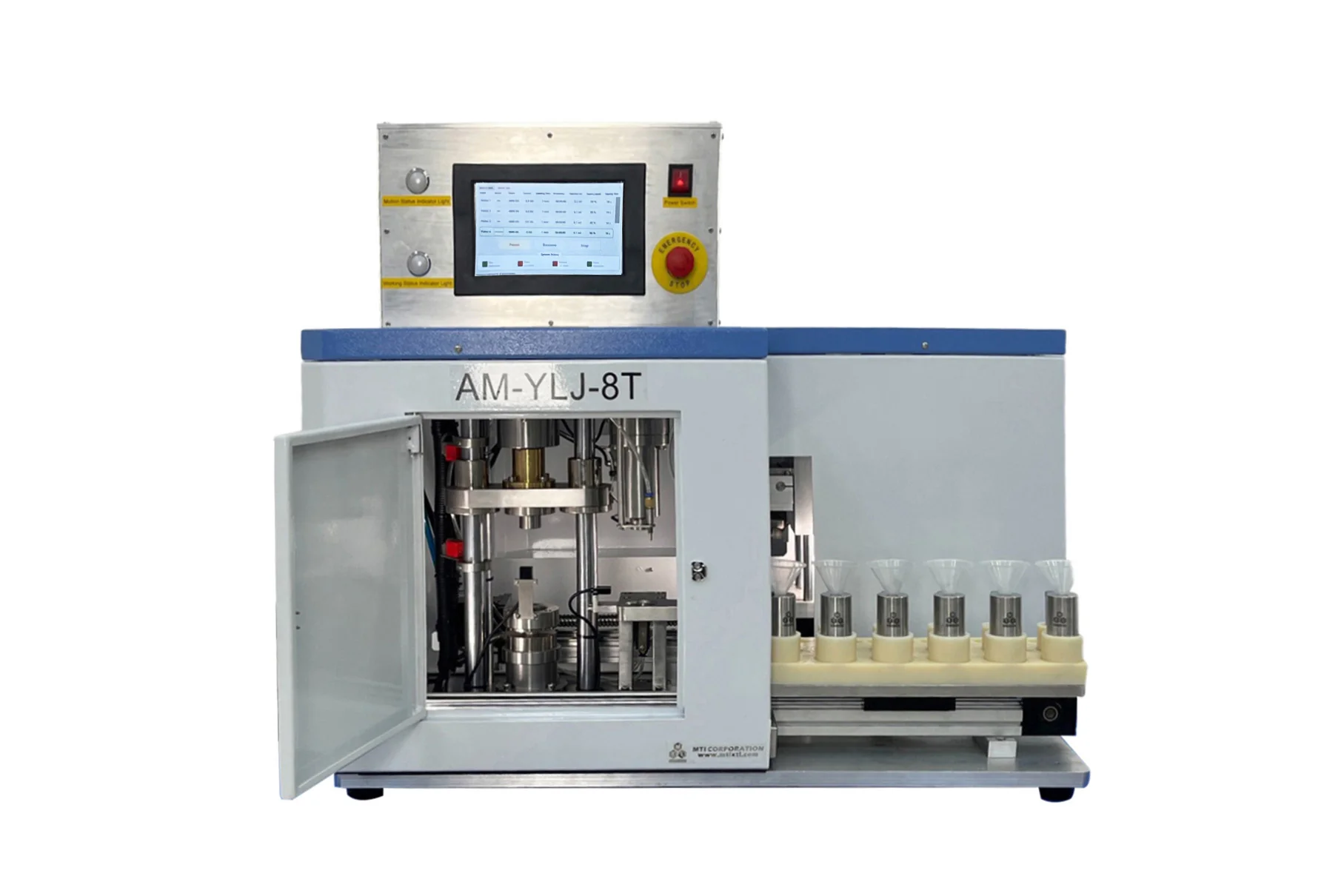

Automated Pellet Pressing System up to 6 set 10 mm ID Dies up to 8T) - AM-YLJ-8T - Image 8

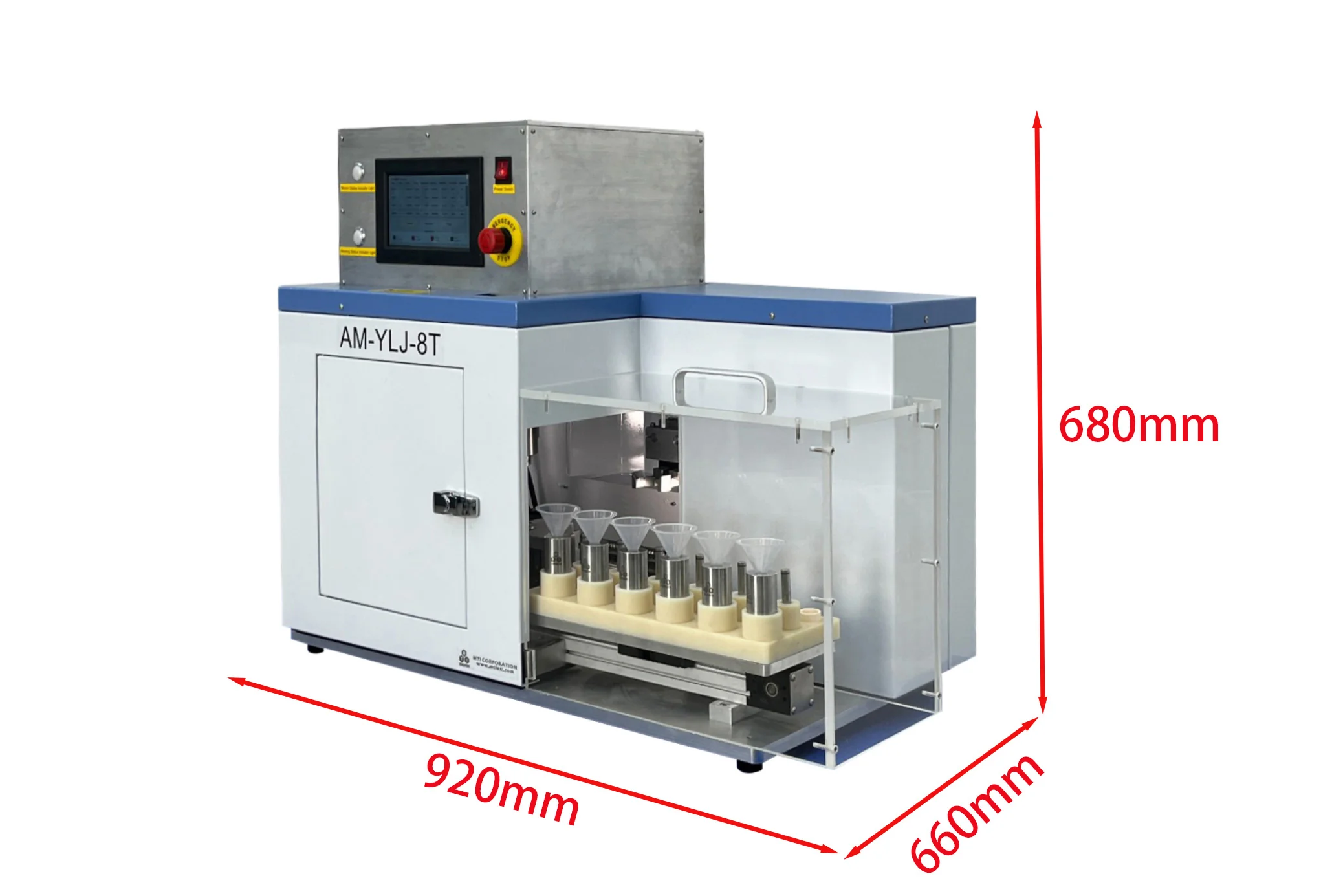

Automated Pellet Pressing System up to 6 set 10 mm ID Dies up to 8T) - AM-YLJ-8T - Image 9
