Automatically Pellet Pressing System (12 set 10 mm ID Dies up to 24T) - AM-24T-12

Automatically Pellet Pressing System (12 set 10 mm ID Dies up to 24T) - AM-24T-12

Automatically Pellet Pressing System (12 set 10 mm ID Dies up to 24T) - AM-24T-12

AM-YLJ-24T-12 is an automatic pellet pressing system operated by a remote PC and a robotic arm. It can press 12 pellets of 0.5" diameter autonomously within 2 hours.

SPECIFICATIONS:

Dry pressing die	Material: Die Steel (HRC60-62) Standard: 12 sets of 10 mm diameter dies are included Max pressure: 3000 MPa Optional at extra cost: 8 mm, 12 mm, or 12.75 mm die
Electric Hydraulic Press	Max. load 24 metric tones Click the picture left to see details of the specification 40 Tone press machine is available upon request
Robotic Arm	One robotic arm is built in Click the picture left to see details of the specification
Programmable & Remote Control	One brand new laptop with operation software preinstalled is included
Extended Warranty	Extended warranty is available up to 5 years at extra cost)
Compliance	CE Certified NRTL certification is available upon request at the extra cost
Operation Procedures	Program operation procedure in PC - including pressing pressure, holding time, and die cleaning time. Place 12 kinds of pre-mixed and calcined powders in a tray on the table Place 12 pre-cleaned dry-pressing dies into the holder on the table Push the button of " start " on the PC, then The robotic arm will finish the operation, including Feeding power into the die, Pressing powder into the pellet via the electric hydraulic press Push the densified pellet out from the die Put the densified pellet into a crucible Repeat the above procedure one by one until 12 pellets finish for future sintering Time-consuming: 120 - 130 minutes to finish 12 pellets

$17,499.30

Original: $49,998.00

-65%

Automatically Pellet Pressing System (12 set 10 mm ID Dies up to 24T) - AM-24T-12—

$49,998.00

$17,499.30

More Images

Automatically Pellet Pressing System (12 set 10 mm ID Dies up to 24T) - AM-24T-12 - Image 2

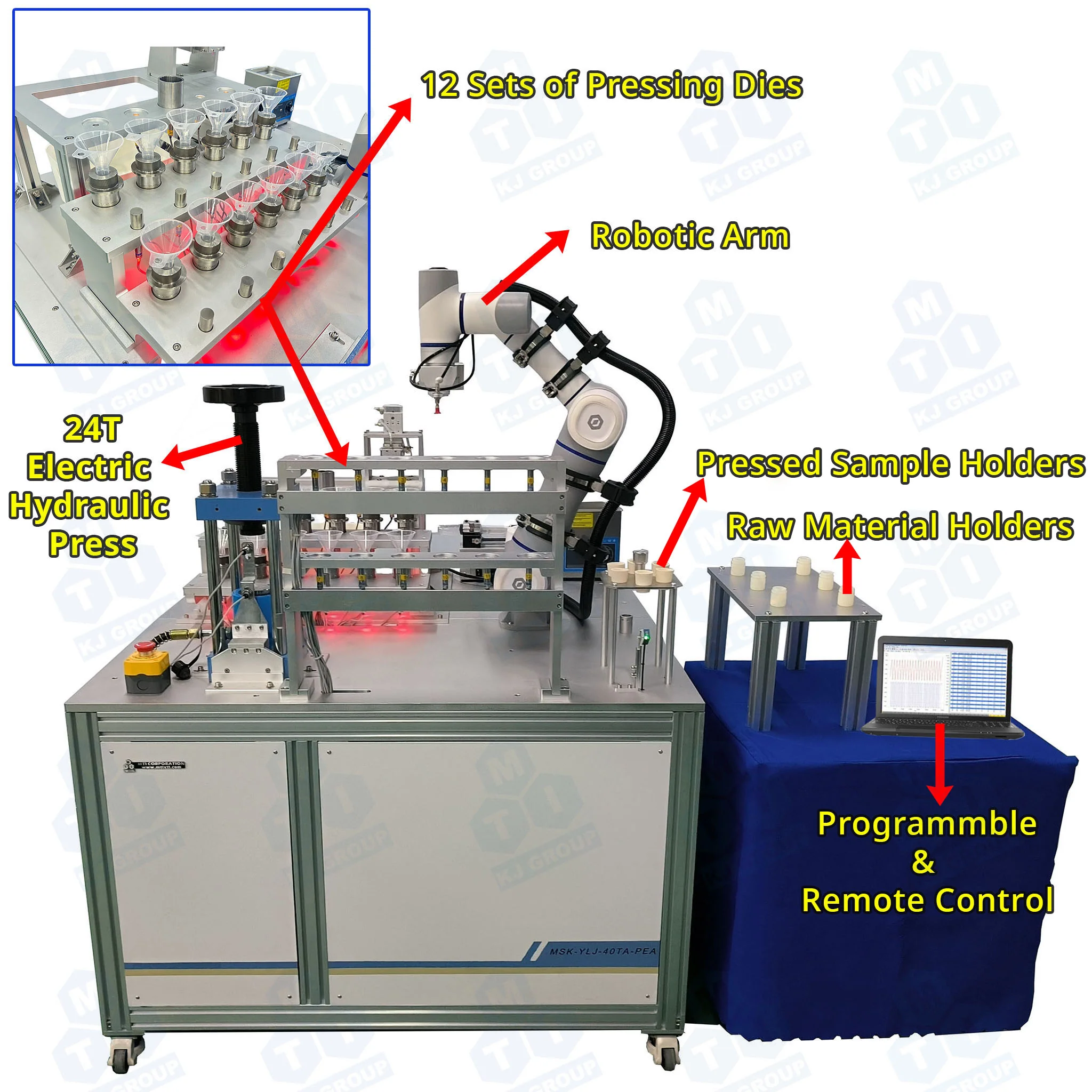

Automatically Pellet Pressing System (12 set 10 mm ID Dies up to 24T) - AM-24T-12 - Image 3
