10KW 3 Phase Step Up & Down Transformer, 380VAC - 220VAC - EQ-TF-380220-10KW-LD

10KW 3 Phase Step Up & Down Transformer, 380VAC - 220VAC - EQ-TF-380220-10KW-LD

10KW 3 Phase Step Up & Down Transformer, 380VAC - 220VAC - EQ-TF-380220-10KW-LD

This transformer steps down 3-phase 380V to grounded 3-phase 220V/200V or steps up 3-phase 220V/200V to grounded 3-phase 380V. It can be used with MTI's battery safety tester MSK-TE905-UL-R.
Specification

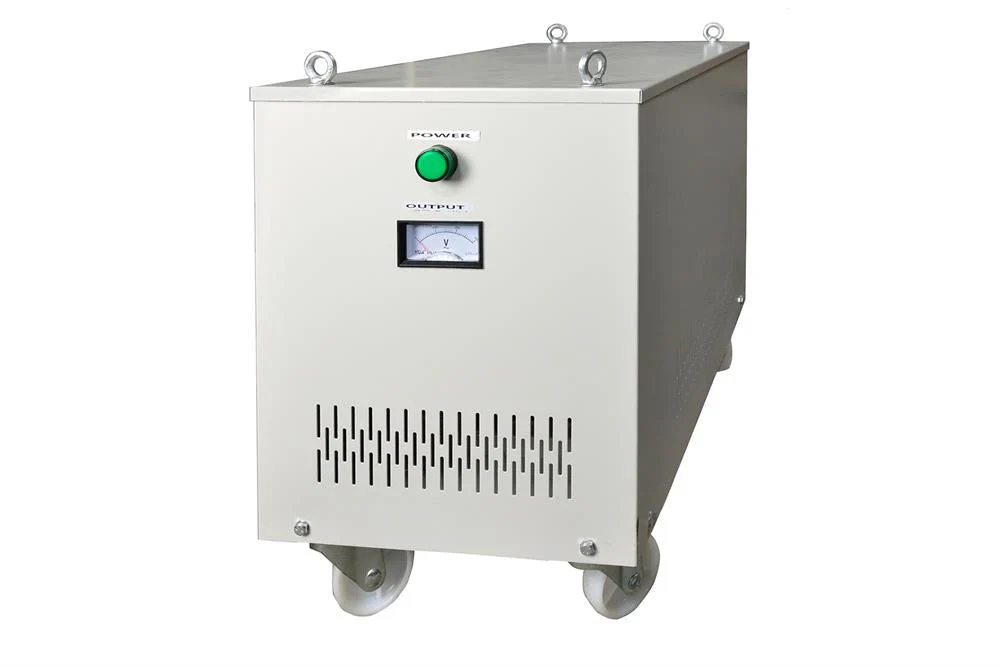

Structure	Power indicator and analog voltmeter on the front panel Castered case for mobility Four rings on the top for simple lifting Cooling fan and two rubber cable grommets on the back panel Power connection panel is located on the left side
Capacity	10KVA or 25KVA selectable from the options bar
Phase	Three Phase to Three Phase
Inputs & Outputs	1. Input: 380V (4 wires: 380V, 380V, 380V, Ground) - Output: 220V/200V (5 wires: 220V, 220V, 220V, Neutral, Ground) 2. Input: 220V/200V (5 wires: 220V, 220V, 220V, Neutral, Ground) - Output: 380V (4 wires: 380V, 380V, 380V, Ground)
Frequency	50/60Hz
Wiring Layout	Click the picture to enlarge for detail
Dimension	LxWxH: 330mm x 570mm x 600mm Click the picture to enlarge for detail
Operational Manual
Warrenty	One-year limited warranty with lifetime support
Application Note	This transformer is for MTI's battery safety tester MSK-TE905-UL-R. If there is any humming sound or vibration, please disconnect the power cord immediately from the wall outlet. Please disconnect the power when the transformer is not in use.

Select Capacity

From $559.30

Original: $1,598.00

-65%

10KW 3 Phase Step Up & Down Transformer, 380VAC - 220VAC - EQ-TF-380220-10KW-LD—

$1,598.00

$559.30

10KW 3 Phase Step Up & Down Transformer, 380VAC - 220VAC - EQ-TF-380220-10KW-LD

This transformer steps down 3-phase 380V to grounded 3-phase 220V/200V or steps up 3-phase 220V/200V to grounded 3-phase 380V. It can be used with MTI's battery safety tester MSK-TE905-UL-R.
Specification

Structure	Power indicator and analog voltmeter on the front panel Castered case for mobility Four rings on the top for simple lifting Cooling fan and two rubber cable grommets on the back panel Power connection panel is located on the left side
Capacity	10KVA or 25KVA selectable from the options bar
Phase	Three Phase to Three Phase
Inputs & Outputs	1. Input: 380V (4 wires: 380V, 380V, 380V, Ground) - Output: 220V/200V (5 wires: 220V, 220V, 220V, Neutral, Ground) 2. Input: 220V/200V (5 wires: 220V, 220V, 220V, Neutral, Ground) - Output: 380V (4 wires: 380V, 380V, 380V, Ground)
Frequency	50/60Hz
Wiring Layout	Click the picture to enlarge for detail
Dimension	LxWxH: 330mm x 570mm x 600mm Click the picture to enlarge for detail
Operational Manual
Warrenty	One-year limited warranty with lifetime support
Application Note	This transformer is for MTI's battery safety tester MSK-TE905-UL-R. If there is any humming sound or vibration, please disconnect the power cord immediately from the wall outlet. Please disconnect the power when the transformer is not in use.

Product Information

Shipping & Returns

Description

This transformer steps down 3-phase 380V to grounded 3-phase 220V/200V or steps up 3-phase 220V/200V to grounded 3-phase 380V. It can be used with MTI's battery safety tester MSK-TE905-UL-R.
Specification

Structure	Power indicator and analog voltmeter on the front panel Castered case for mobility Four rings on the top for simple lifting Cooling fan and two rubber cable grommets on the back panel Power connection panel is located on the left side
Capacity	10KVA or 25KVA selectable from the options bar
Phase	Three Phase to Three Phase
Inputs & Outputs	1. Input: 380V (4 wires: 380V, 380V, 380V, Ground) - Output: 220V/200V (5 wires: 220V, 220V, 220V, Neutral, Ground) 2. Input: 220V/200V (5 wires: 220V, 220V, 220V, Neutral, Ground) - Output: 380V (4 wires: 380V, 380V, 380V, Ground)
Frequency	50/60Hz
Wiring Layout	Click the picture to enlarge for detail
Dimension	LxWxH: 330mm x 570mm x 600mm Click the picture to enlarge for detail
Operational Manual
Warrenty	One-year limited warranty with lifetime support
Application Note	This transformer is for MTI's battery safety tester MSK-TE905-UL-R. If there is any humming sound or vibration, please disconnect the power cord immediately from the wall outlet. Please disconnect the power when the transformer is not in use.
