1200C Max Seven-Zone Split Tube Furnace: 82.6 "L Heating zones & 8"ID Quartz Tube- OTF-1200X-7Z-8

1200C Max Seven-Zone Split Tube Furnace: 82.6 "L Heating zones & 8"ID Quartz Tube- OTF-1200X-7Z-8

OTF-1200X-7Z-8 is a split-able seven-zone 8" ID tube furnace with an 82" ( 2100 mm) L heating zone up to 1200°C. The multiple zones tube furnace is enabled to create a1500 "L uniform temperature zone within +/- 2ºC. The quartz tube and vacuum sealing flanges with a pressure gauge & a ball valve are included for immediate use.  Seven programmable digital temperature controllers are installed with seven K-type thermal couples with an accuracy of +/- 1 °C. Software is used to operate the furnace by a laptop computer

SPECIFICATIONS:
Furnace Structure
  • Double-layer steel case with two cooling fans, which ensures low surface temperature < 70 °C
  • Energy-saving high-purity fibrous alumina insulation;
  • Buffer types of thermal blocks made of fibrous alumina are included.  For better cleanness, you may order quartz theral blocks
  • Two electric cylinders drive the top split cover to open and clode
  • You may click the pictures below to choose a crucible or wafer boat
  •                Click here to choose a crucible
Power
  • AC 460VAC Three Phase, 50/60 Hz
  • Power consumption: 50  kW max.  ( 70 A breaker required)
    The power cord is included without a plug
Heating Zone Length
  • 7 heating zones: 2100mm   (82.6") in total
  • 300mm (11.8") for each zone
  • 1350 mm L  uniform zone ( +/- 2 oC )
Quartz Tube & Sealed flange

  • Quartz Tube is 8.5"OD x 8.1" x 60"L (216 OD x 206 IDx 2500 L mm)
  • One pair of SS 304 vacuum flanges with double high-temperature silicone O-rings and a water cooling jacket is included
  • 2 needle valves are installed with a flange for gasinlet and outlet
  • One Vacuum/ pressure gauge is installed on one side flange
  • The vacuum level is 10-2 torr by the mechanical vacuum pump and 10-5 torr by the turbopump.
  • Optional: Please click the picture below to order:  a large vacuum pump (Pic. 1 -2 ), a digital vacuum gauge (Pic. 3), a gas mixing and delivery system (Pic.4), and vaper generating system (Pic. 5)
Pic. 1  Pic.2 PicPic.4Pic.5

Heating Temperature
  • Max. Heating Temperature: 1200°C
  • Continuous Heating Temperature: 1100°C
  • < 1000°C under vacuum
  • Max. Heating Rate: 10°C/min

Temperature Controller
  • Seven digital temperature controllers are certified by MET and CE Certified
  • PID automatic control with 30 programmable segments for control of heating & cooling rate and dwell time.
  • Built-in overheating & broken thermocouple protection.
  • Over-temperature protection and alarm allow for operation without attendants.
  • +/- 1 ºC temperature accuracy.
  • RS485 Communications Port with software to connect to Laptop witch is optional
Eurotherm Temperature Controllers (optional upgrade)
The
  • Eurotherm 3000 controller is available upon request
  • Temperature Accuracy: ± 0.1ºC
  • Recipes: Using a PC tool, recipes can be created to change the operating parameters of the E3000 simply by selecting a new recipe via a PC. This is very useful where multiple products are processed using the same controller but require different parameters to be set.
Dimension
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available at extra cost.



$89,998.00
1200C Max Seven-Zone Split Tube Furnace: 82.6 "L Heating zones & 8"ID Quartz Tube- OTF-1200X-7Z-8—
$89,998.00

More Images

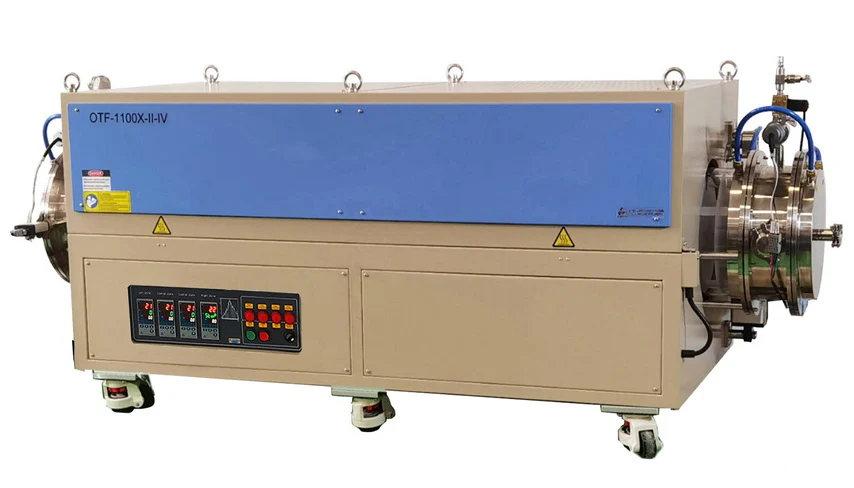

1200C Max Seven-Zone Split Tube Furnace: 82.6 "L Heating zones & 8"ID Quartz Tube- OTF-1200X-7Z-8 - Image 2

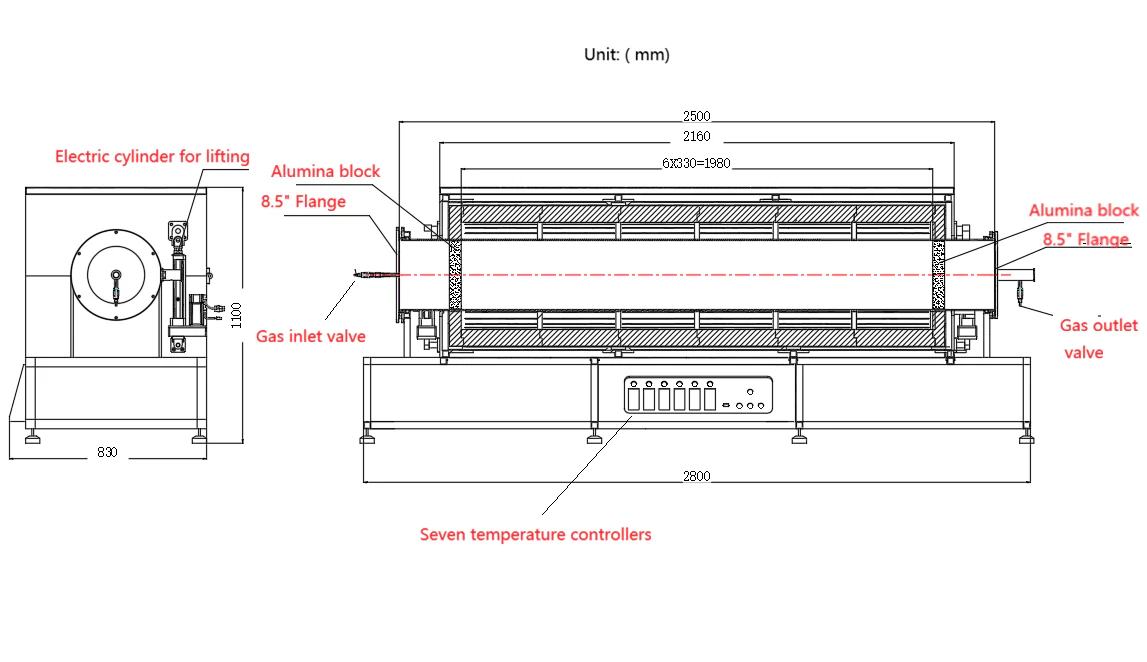

1200C Max Seven-Zone Split Tube Furnace: 82.6 "L Heating zones & 8"ID Quartz Tube- OTF-1200X-7Z-8 - Image 3

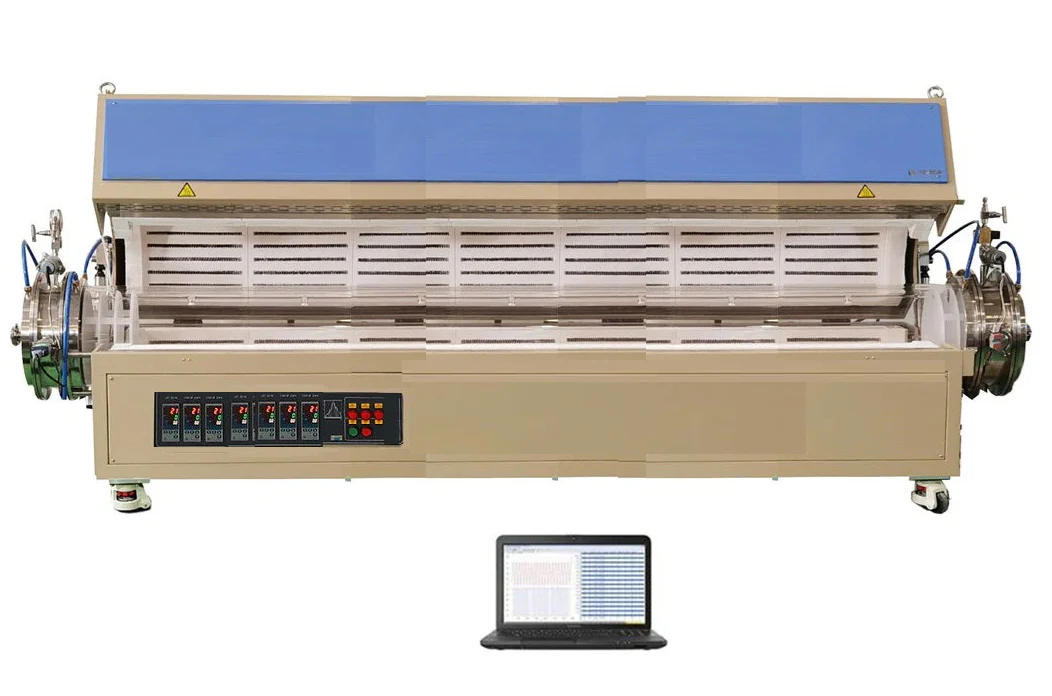

1200C Max Seven-Zone Split Tube Furnace: 82.6 "L Heating zones & 8"ID Quartz Tube- OTF-1200X-7Z-8 - Image 4
