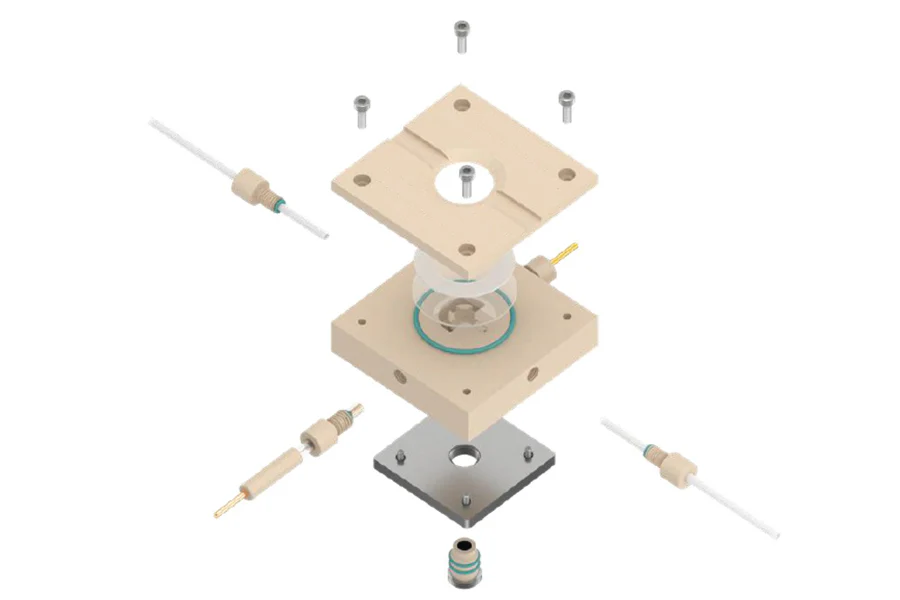

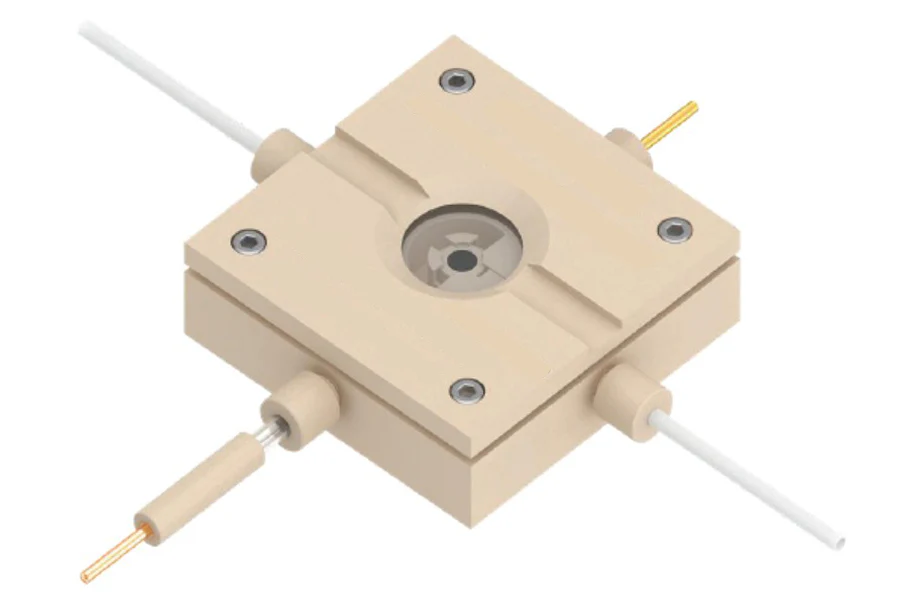

Split Electrochemical Flow Cell with Three-Electrode Configuration for In-situ XRD Research - SEFC-TEC-XRD

Cell Features

•  Cell body is made of PEEK and Ti material
• Working electrode: 5 mm glassy carbon (other options of gold, platinum, or silver disk are also available upon request)
• Reference electrode of Ag/AgCl and counter electrode Pt are included.
• Inlet/outlet ports are used for electrolyte flow
• O-rings with excellent corrosion resistance are used for sealing

• Distance between working electrode and window is <6 mm
• Observation window material: polyimide (PI)
