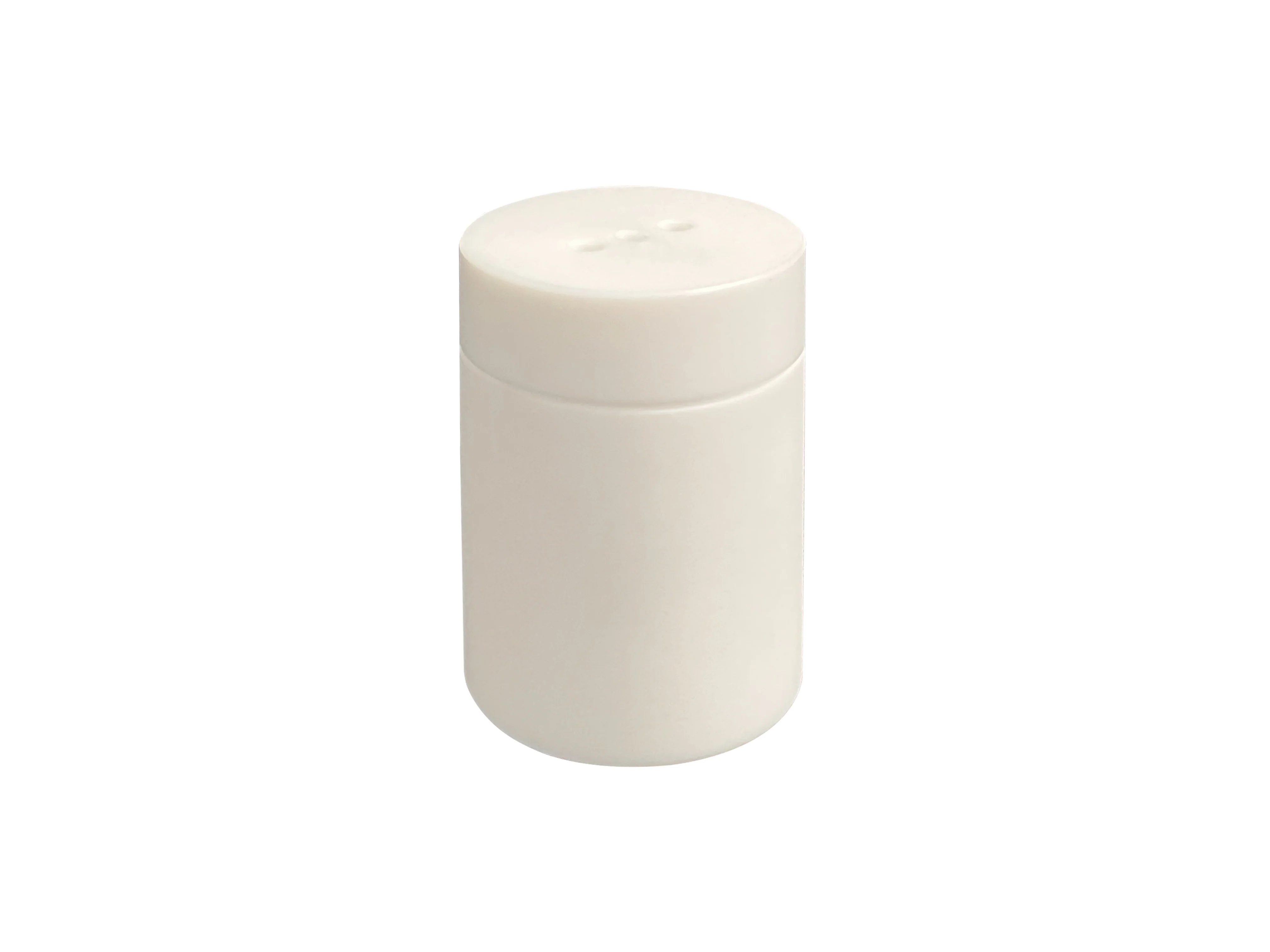

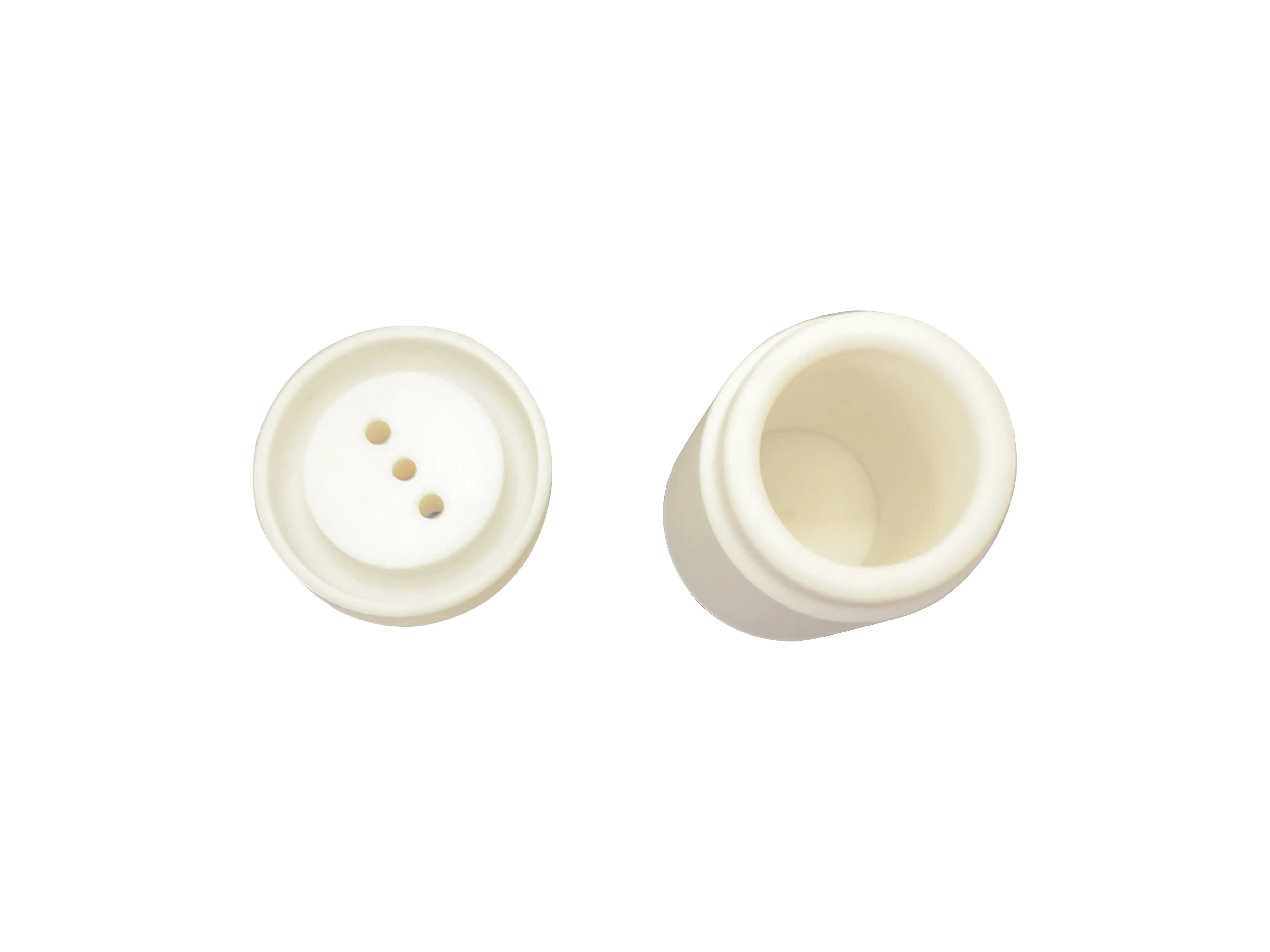

PTFE Cylindrical Liner with Lid for Hydrothermal Reactor - PTFE45D65H

PTFE45D65H is a PTFE liner with a lid to offer excellent chemical resistance under specified pressure and temperature conditions. There are holes with Dia. 0.35mm for insertion of thermocouple . This PTFE liner is compatible for the Hydrothermal Reactor

Specifications:

Material	PTFE (Polytetrafluoroethylene)
Working Temperature	-200 °C to 260 °C
Thermal Conductivity	0.25 W/m K
Compressive Strength	5 ~ 25 MPa

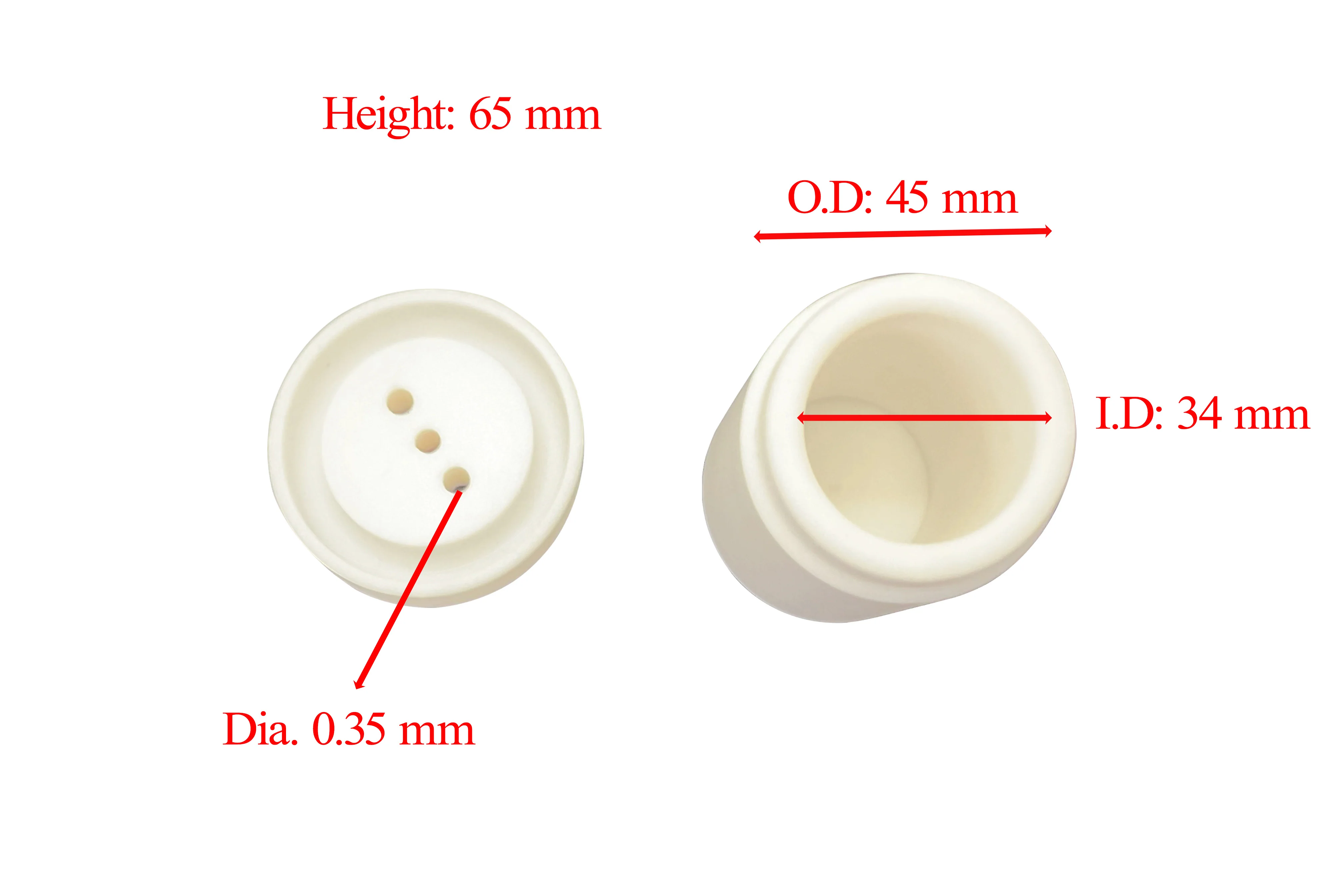

Dimensions	O.D: 45mm I.D: 34mm Height: 65 mm Diameter of the Hole on the Lid: 0.35 mm
Application	This PEFE works perfectly with MTI's 100mL Hydrothermal Reactor up to 4MPa - GSL-500X-XX





Inspect your delivery:

• Please check the package for any damage before accepting the delivery. If damages are detected, retain all packing materials, document the conditions with photos, and report issue immediately to the carrier and MTI.

No Warranty:

Kindly notice that this item is a consumable part and is not covered under warranty. Please conduct a thorough inspection for any defect before use.
