Photoelectrochemical (PEC) Flow Cell with Single Chamber and Bottom Illumination - PEC-FC-SCBI

The PEC-FC-SCBI is special designed photoelectrochemical cell with three-electrode configuration and bottom illumination. The inlet and outlet ports enable electrolyte flow during testing.

SPECIFICATIONS:

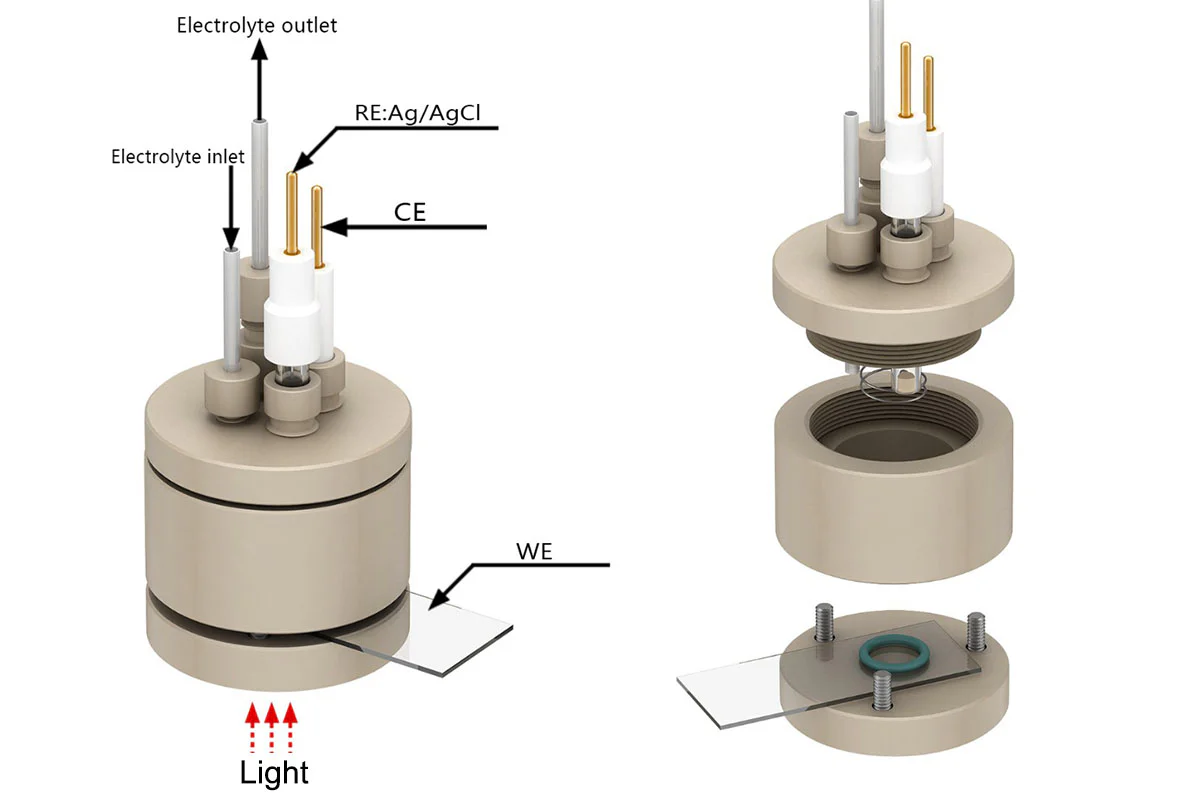

Structural Features	The whole photoelectrochemical cell was constructed with a photoelectrode flow chamber with bottom optical window. The bottom electrode is a self-prepared working electrode (ITO/FTO coated photo-active materials); counter and reference electrode is Pt and Ag/AgCl.    O-rings were presented to provide high sealing quality.
Light Illumination Area	3.15 cm2 (the light illumination area can be customized)
Valves & Fittings	1/4" O.D Tube Fittings for inlet and outlet ports
