300°C or 500°C Convection Oven (2.6 W × 1.3 D× 1.4 H m, 4732 L) - KSL500X4700

KSL500X4700 / KSL300X4700 is a large-capacity thermal cycling convection oven (4732 L) rated for 500 °C / 300 °C operation, it features air convection and programmable temperature control to ensure uniform heating performance. This cost-effective unit is well-suited for material drying, debinding, heat treatment, and storage applications.


SPECIFICATIONS:

Power	480 or 400 VAC, 3 phases, 50/60 Hz, 50 kW
Working Temperature	RT - 300  °C (optional 1) RT - 500  °C (optional 2)
Heating Rate	<7°C/min (0~300°C); <4°C/min (300~400°C); <0.5°C/min ( 400 - 500°C)
Temperature Uniformity	± 4°C
Temperature Controller	30-segment PID programmable digital temperature controller +/- 1°C accuracy PID auto-tune function Over heating and broken thermocouple interlocks RS485 PC communication is available at an extra cost.

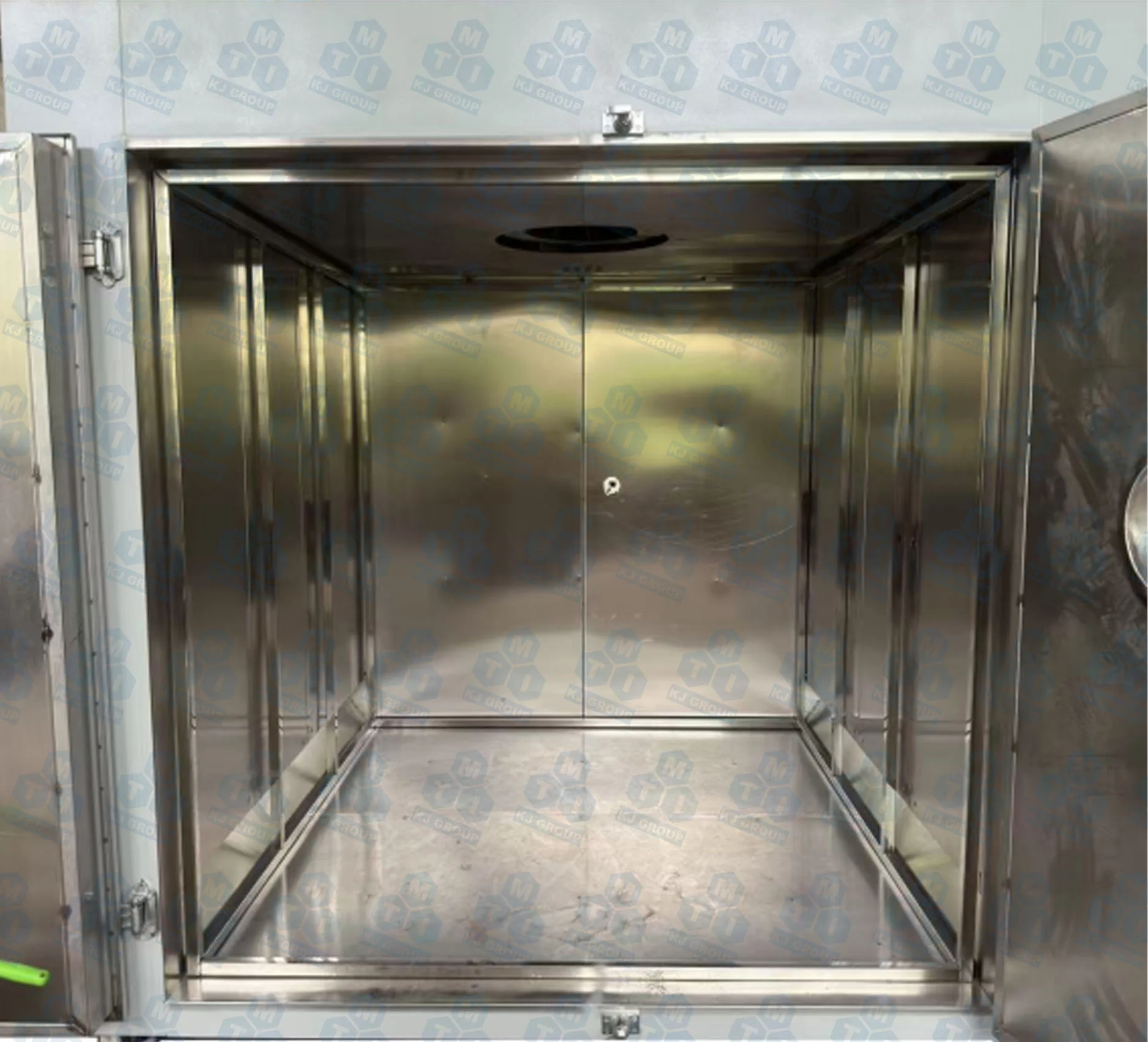

Chamber	Stainless steel interior chamber Fiber alumina packing for door seals  Refractory thermal insulation for the heating chamber Two thermal convection fans at the ceiling Chamber Dimensions: 2,600 mm (L) × 1,300 mm (W) × 1,400 mm (H) Chamber Volume: 4,732 L Maximum Load Capacity: 1 T
Thermocouple	K type
Compliance	CE Certificate, NRTL ready NRTL or CSA Field Certificate is available upon request at extra cost.
