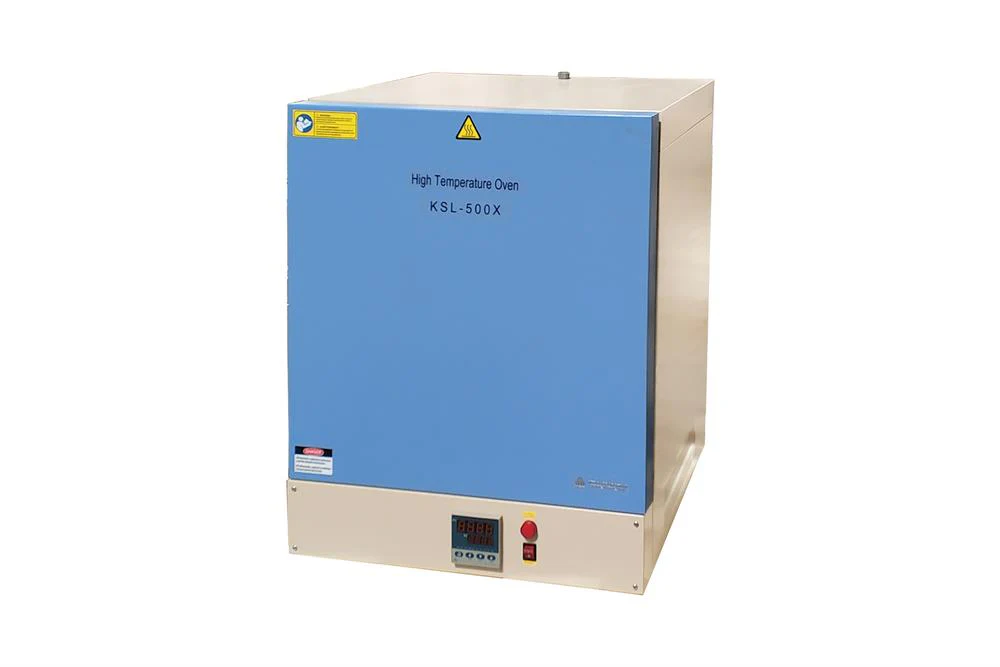

500°C Convection Oven (13"x18"x18", 67 Liter ) with Programmable Temperature Controller - KSL-500X-71
HomeStore

500°C Convection Oven (13"x18"x18", 67 Liter ) with Programmable Temperature Controller - KSL-500X-71

500°C Convection Oven (13"x18"x18", 67 Liter ) with Programmable Temperature Controller - KSL-500X-71

KSL-500X-71 is a 500°C Oven that combines forced-air circulation and programmable temperature controller to achieve a uniform furnace for a variety of laboratory applications like drying, storing, annealing.It is cost-effective for heating equipment of material R&D laboratories.
Note: MTI performs test runs prior to shipment to ensure the quality of the oven, as a result, the oven chamber will come with a slight brown tint indicating the furnace has been heated up to a high temperature once.

SPECIFICATIONS:

Working Voltage 208-240V AC, Single Phase, 50/60Hz
6 ft L Power cable is included, but no plug. Please install the plug by yourselves or order a plug at the link below based on your lab power panel
Max. Power Consumption 2200W ( 15A break required )
Max. Operating Temperature 500°C for < 30 minutes
Continuous Working Temperature 0~400°C
Max. Heating Rate
  • 7°C/min (0~300°C);
  • 4°C/min (300~400°C);
  • 0.5°C/min ( 400 - 500°C)
Temperature Uniformity ± 2°C
Temperature Controller
  • 30 segments programmable digital temperature controller with +/- 1°C accuracy
  • PID auto-tune function
  • Over-temperature and thermal couple break protection
  • PC control software and module are available at extra cost
Chamber
  • Interior Material: Stainless Steel and Fibrous Refractory Shell
  • Dimensions: 335mm (L) x 450mm (W) x 450mm (H)
  • Volume: 67L
  • Exhaust port: 1 " diameter on top of the oven
  • Note: chamber color is yellow because testing in the air before shipping
Thermocouple Type K type included
Sensor The overheat protection sensor automatically cuts power if over-heated
Shelves 2 stainless steel shelves were included , and and max loading of 8 Kg per shelf
Compliance

 CE Certificate
NRTL or CSA Certificate is available upon request at extra cost.



$2,308.60

Original: $6,596.00

-65%
500°C Convection Oven (13"x18"x18", 67 Liter ) with Programmable Temperature Controller - KSL-500X-71—

$6,596.00

$2,308.60

500°C Convection Oven (13"x18"x18", 67 Liter ) with Programmable Temperature Controller - KSL-500X-71

KSL-500X-71 is a 500°C Oven that combines forced-air circulation and programmable temperature controller to achieve a uniform furnace for a variety of laboratory applications like drying, storing, annealing.It is cost-effective for heating equipment of material R&D laboratories.
Note: MTI performs test runs prior to shipment to ensure the quality of the oven, as a result, the oven chamber will come with a slight brown tint indicating the furnace has been heated up to a high temperature once.

SPECIFICATIONS:

Working Voltage 208-240V AC, Single Phase, 50/60Hz
6 ft L Power cable is included, but no plug. Please install the plug by yourselves or order a plug at the link below based on your lab power panel
Max. Power Consumption 2200W ( 15A break required )
Max. Operating Temperature 500°C for < 30 minutes
Continuous Working Temperature 0~400°C
Max. Heating Rate
  • 7°C/min (0~300°C);
  • 4°C/min (300~400°C);
  • 0.5°C/min ( 400 - 500°C)
Temperature Uniformity ± 2°C
Temperature Controller
  • 30 segments programmable digital temperature controller with +/- 1°C accuracy
  • PID auto-tune function
  • Over-temperature and thermal couple break protection
  • PC control software and module are available at extra cost
Chamber
  • Interior Material: Stainless Steel and Fibrous Refractory Shell
  • Dimensions: 335mm (L) x 450mm (W) x 450mm (H)
  • Volume: 67L
  • Exhaust port: 1 " diameter on top of the oven
  • Note: chamber color is yellow because testing in the air before shipping
Thermocouple Type K type included
Sensor The overheat protection sensor automatically cuts power if over-heated
Shelves 2 stainless steel shelves were included , and and max loading of 8 Kg per shelf
Compliance

 CE Certificate
NRTL or CSA Certificate is available upon request at extra cost.



Product Information

Shipping & Returns

Description

KSL-500X-71 is a 500°C Oven that combines forced-air circulation and programmable temperature controller to achieve a uniform furnace for a variety of laboratory applications like drying, storing, annealing.It is cost-effective for heating equipment of material R&D laboratories.
Note: MTI performs test runs prior to shipment to ensure the quality of the oven, as a result, the oven chamber will come with a slight brown tint indicating the furnace has been heated up to a high temperature once.

SPECIFICATIONS:

Working Voltage 208-240V AC, Single Phase, 50/60Hz
6 ft L Power cable is included, but no plug. Please install the plug by yourselves or order a plug at the link below based on your lab power panel
Max. Power Consumption 2200W ( 15A break required )
Max. Operating Temperature 500°C for < 30 minutes
Continuous Working Temperature 0~400°C
Max. Heating Rate
  • 7°C/min (0~300°C);
  • 4°C/min (300~400°C);
  • 0.5°C/min ( 400 - 500°C)
Temperature Uniformity ± 2°C
Temperature Controller
  • 30 segments programmable digital temperature controller with +/- 1°C accuracy
  • PID auto-tune function
  • Over-temperature and thermal couple break protection
  • PC control software and module are available at extra cost
Chamber
  • Interior Material: Stainless Steel and Fibrous Refractory Shell
  • Dimensions: 335mm (L) x 450mm (W) x 450mm (H)
  • Volume: 67L
  • Exhaust port: 1 " diameter on top of the oven
  • Note: chamber color is yellow because testing in the air before shipping
Thermocouple Type K type included
Sensor The overheat protection sensor automatically cuts power if over-heated
Shelves 2 stainless steel shelves were included , and and max loading of 8 Kg per shelf
Compliance

 CE Certificate
NRTL or CSA Certificate is available upon request at extra cost.



You may also like

-65%NEW
Thumbnail 1Thumbnail 2

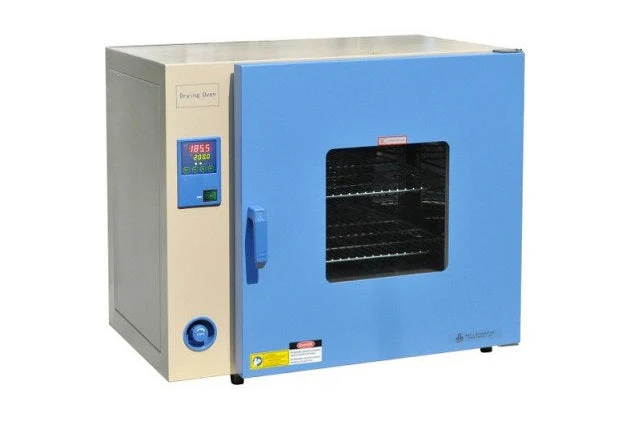

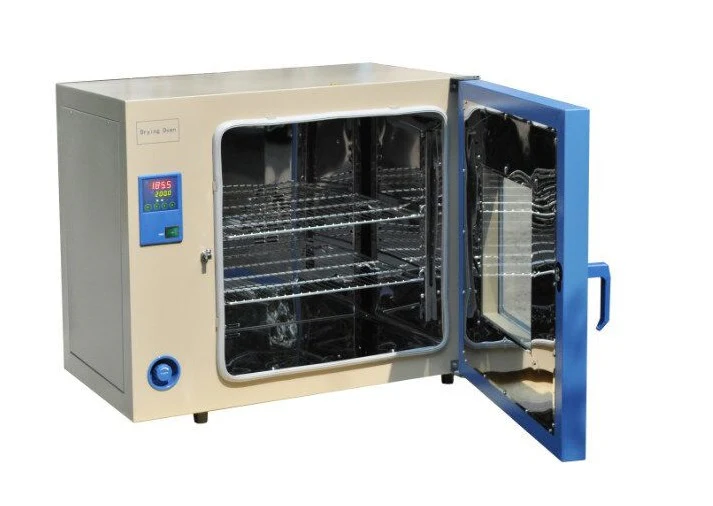

136L Convection Drying Oven with Digital Temperature Controller (22"x22"x18", 250°C Max) - DHG-9140A

$2,995.00

$1,048.25

NEW
Thumbnail 1Thumbnail 2

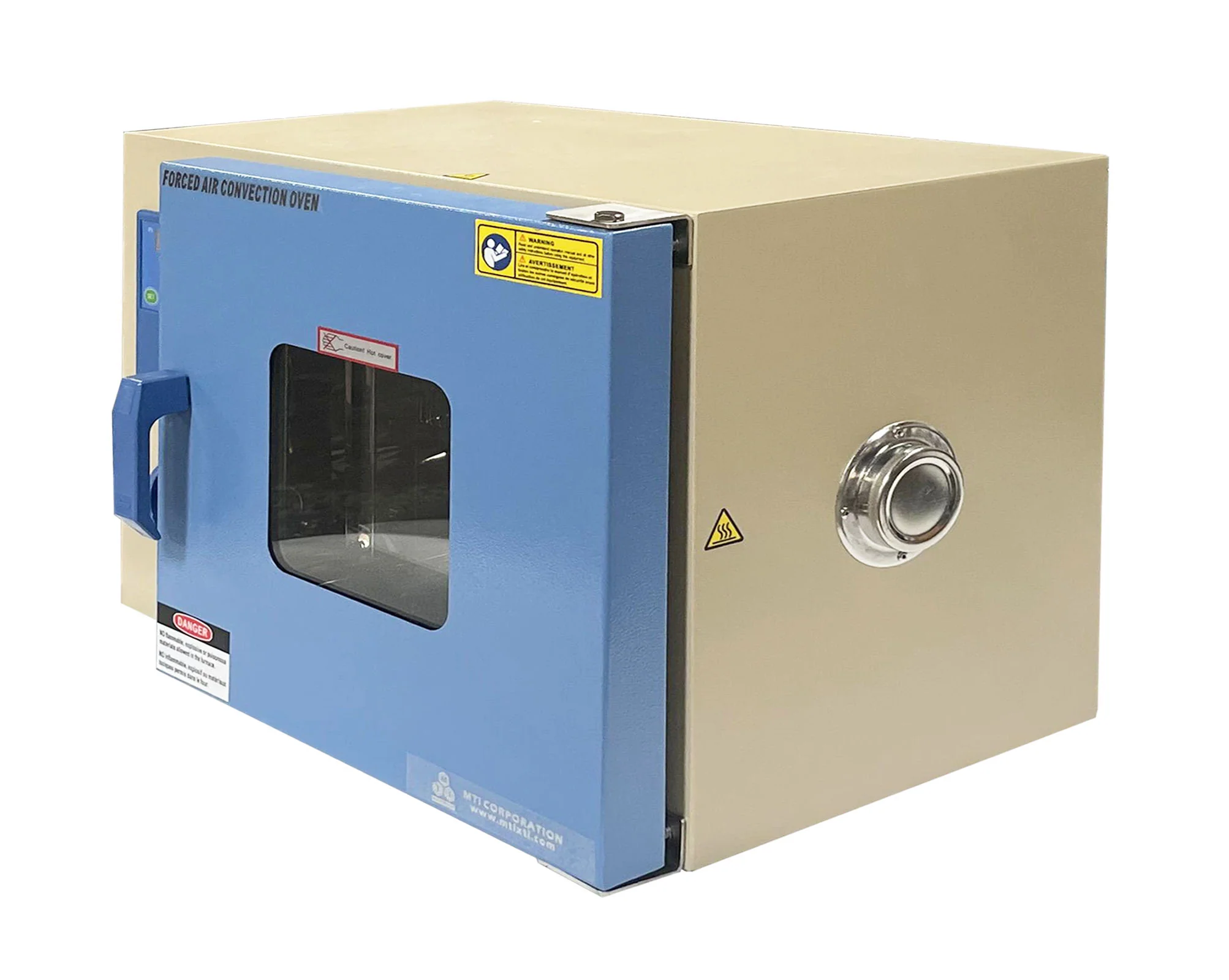

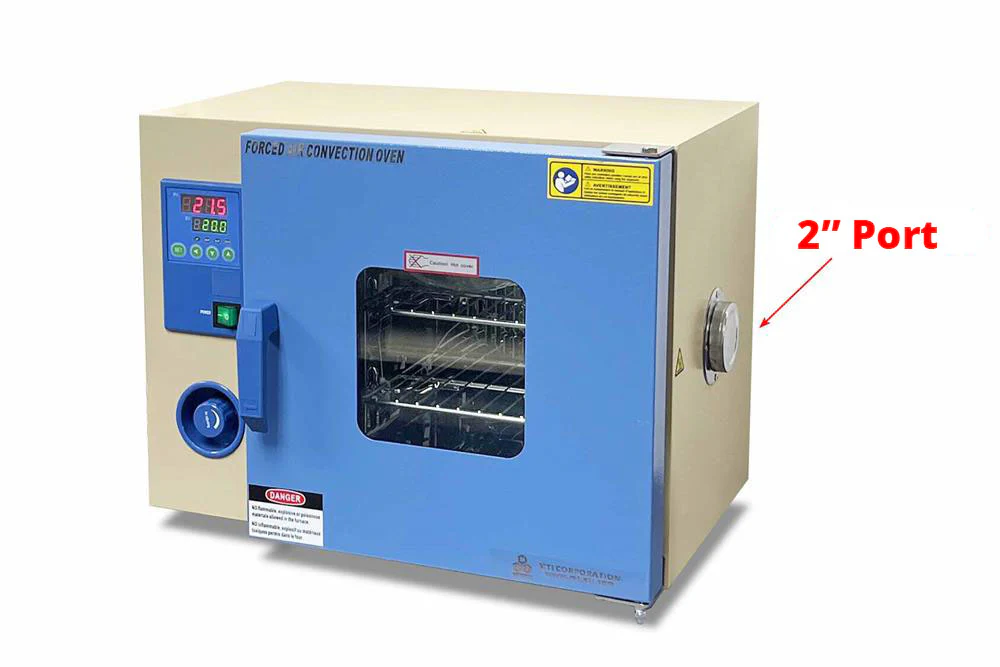

12L Convection Drying Oven with Digital Temperature Controller (10"x10"x8", 250°C, 110V) with 2" Feedthrough - DHG-9015

$998.86

-65%NEW
Thumbnail 1Thumbnail 2

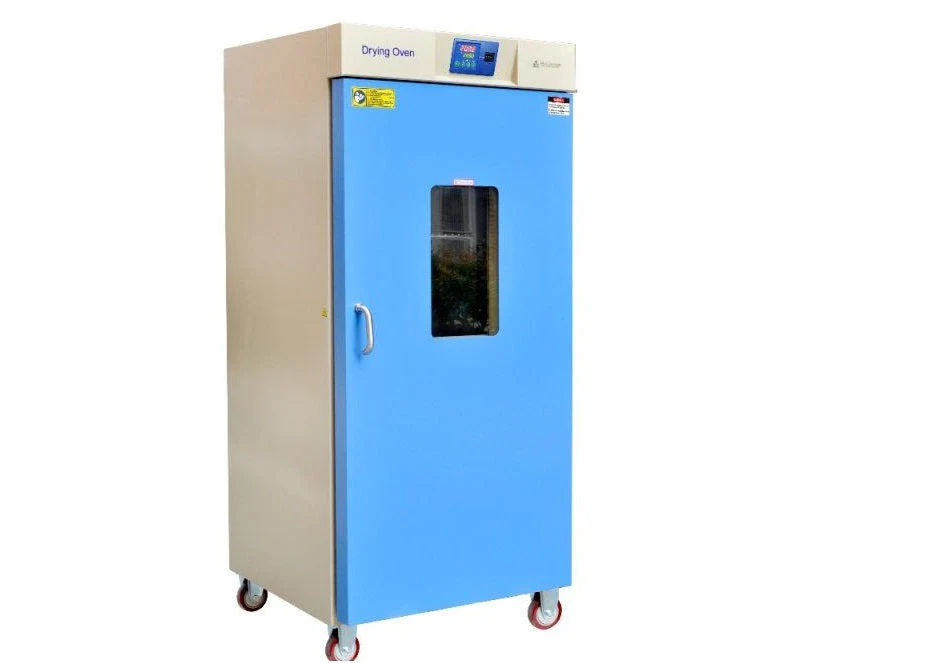

420L Convection Dry Oven with Digital Temperature Controller (25"x23"x53", 250C Max) - DHG-9425

$7,898.00

$2,764.30

-65%NEW
Thumbnail 1Thumbnail 2

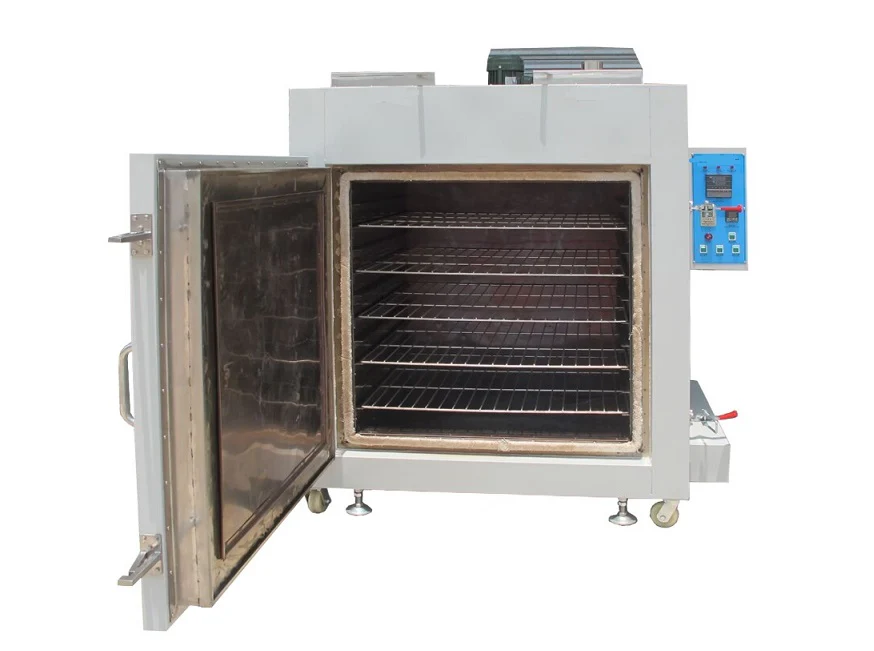

500°C Convection Oven (1x1x1.2 meter 1200L) w/ Programmable Temperature Controller - KSL-500X-1200

$39,980.00

$13,993.00

-65%NEW
Thumbnail 1Thumbnail 2

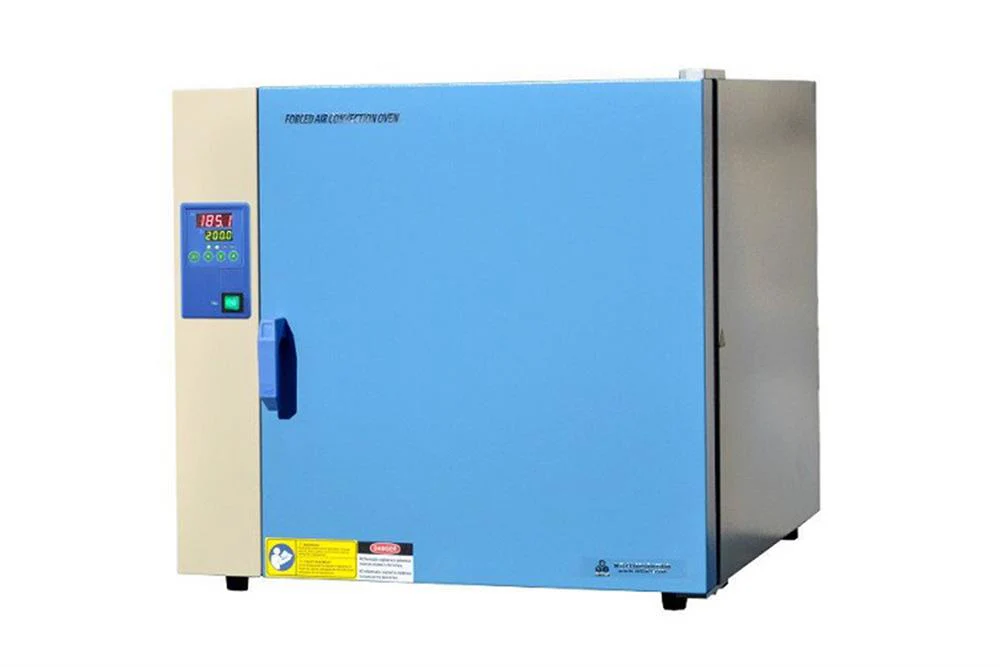

80L NRTL/CSA Certified Convection Oven (18x16x18", 250°C) w/ Digital Temp. Controller - BPG-7082

$1,998.00

$699.30

-65%NEW
Thumbnail 1Thumbnail 2

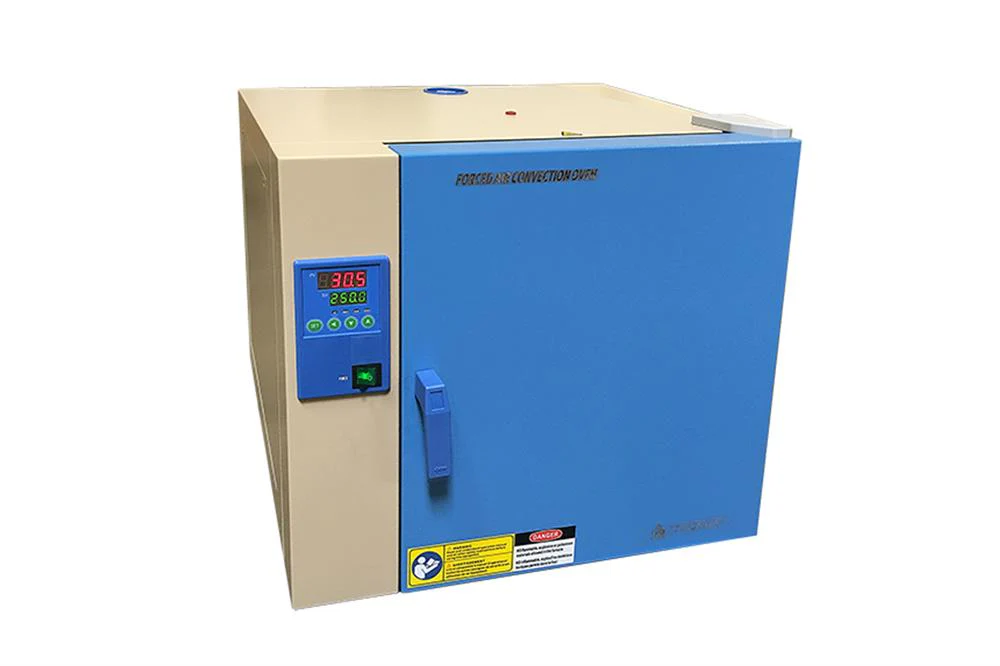

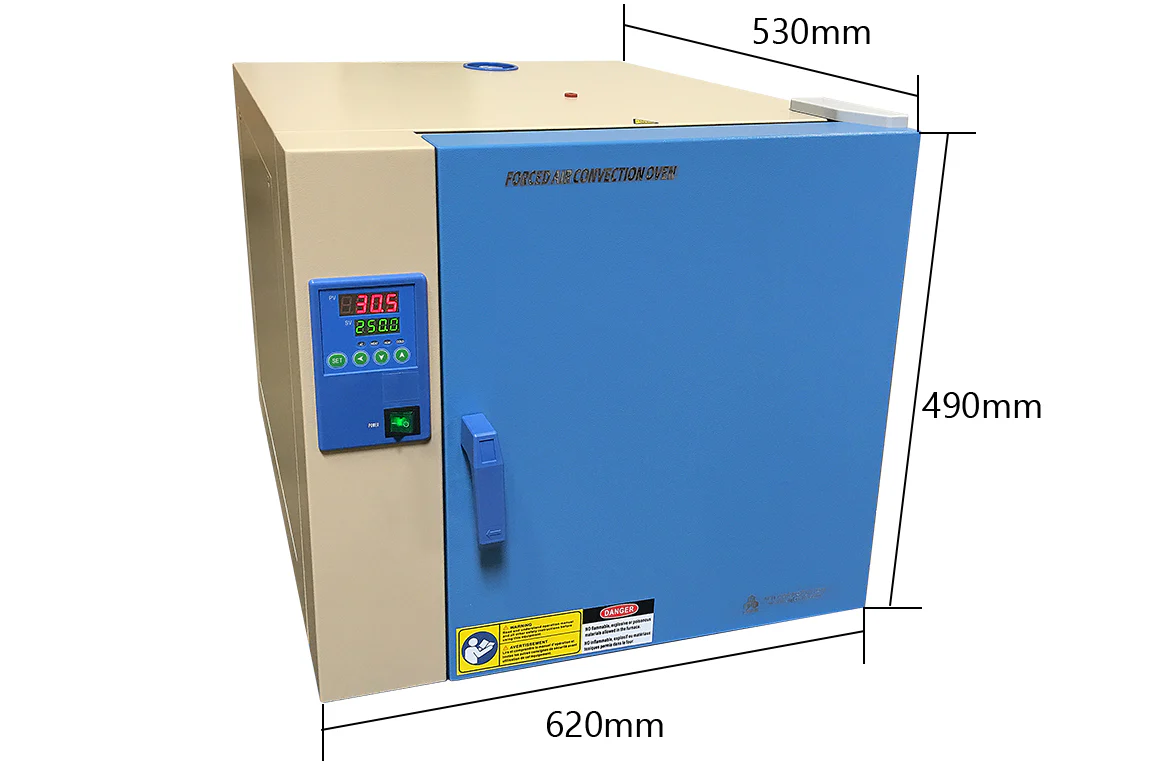

30L NTRL/CSA Certified Convection Oven (13x12x12, 250C) w/ Digital Temperature Controller - BPG-7032
