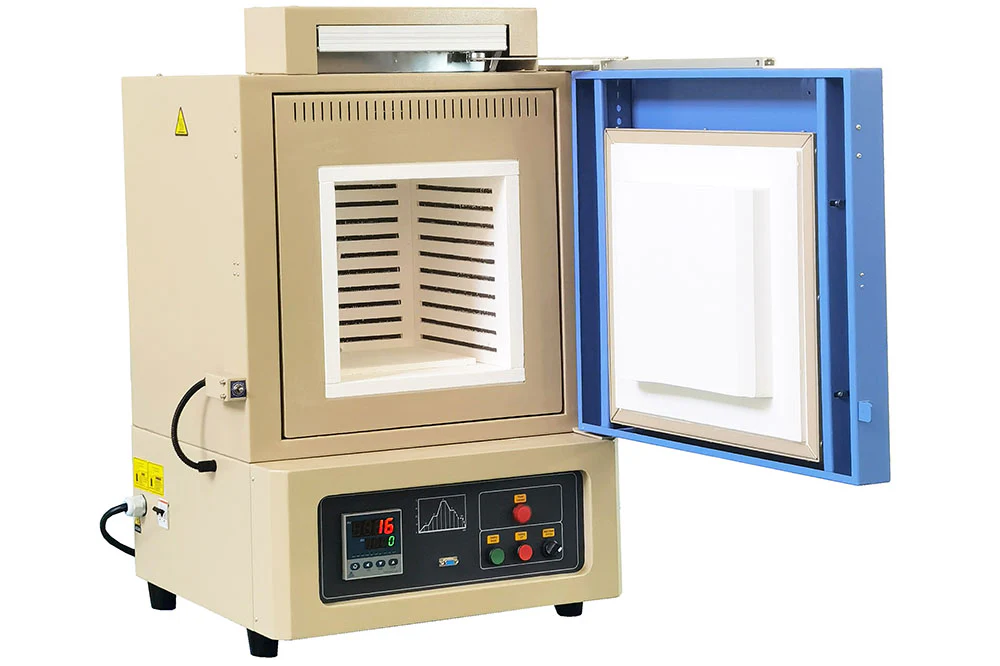

1200°C Muffle Furnace with Motorized Door (30x30x30 cm, 27 L) - KSL-1200X-M-AD

1200°C Muffle Furnace with Motorized Door (30x30x30 cm, 27 L) - KSL-1200X-M-AD

1200°C Muffle Furnace with Motorized Door (30x30x30 cm, 27 L) - KSL-1200X-M-AD

The KSL-1200X-M-AD is an automated box furnace with a maximum temperature of 1200, The furnace is operated by a PC and enables one-key automated execution of sintering processes via computer control, including closing the door, raising the temperature, dwelling, and cooling, and opening the door. It can be integrated with a robotic system to facilitate automatic sample loading, unloading, and retrieval. A single PC can control multiple units at the same time.

SPECIFICATIONS:

Furnace Structure	Dual-layer shell structure High-purity alumina fiber material furnace chamber One laptop computer is included for automatic operation
Power	Voltage: AC220V+/- 10% , 50/60 HZ Power: 7.5KW 3-meter power cable is included without a plug
Heating Chamber	300 x300 x300 ( mm), ( ~ 12x12x12") 27 Liter Capacity Heating rate: ≤10/min Thermal couple: K type Uniform zone: 150x150x150 mm in center within +/- 5oC
Working Temp.	Max. 1200oC < 60 minutes Continuous Working Temperature 1100°C
Temperature Control	PID automatic temperature control system Intelligent 30-stage programmable control Temperature control accuracy: ±1. (optional European temperature control accuracy up to ±0.1)

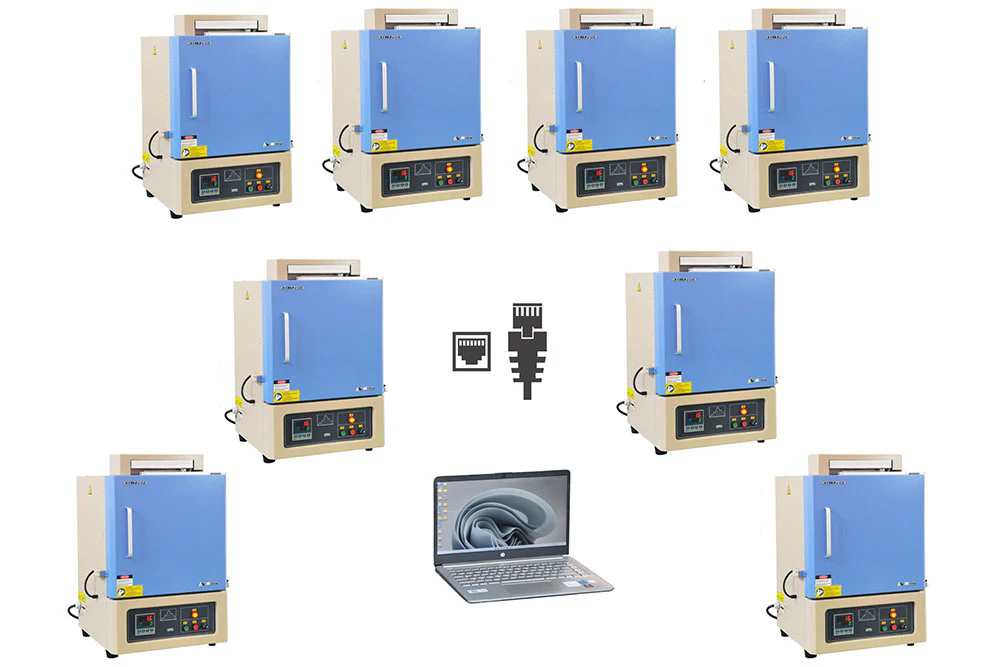

PC operation	One PC and pre-installed software are included to achieve automatic operation, including closing the door, raising the temperature, dwelling, and cooling, and opening the door. RJ45 communication interface on the side panel, providing MODBUS RTU communication protocol for instrument control and door switch One computer can control multiple furnaces simultaneously up to 8 units Equipped with φ6.35mm gas inlet (rear) and φ30mm outlet(top) ports which allow the introduction of inert gas into the chamber
Automation Collaborative Robot for sample loading (optional)	Full automation with sample loading is optional via the integration with a robot arm.
Compliance	CE certified NRTL or CSA certification is available upon request

$3,463.60

Original: $9,896.00

-65%

1200°C Muffle Furnace with Motorized Door (30x30x30 cm, 27 L) - KSL-1200X-M-AD—

$9,896.00

$3,463.60

More Images

1200°C Muffle Furnace with Motorized Door (30x30x30 cm, 27 L) - KSL-1200X-M-AD - Image 2

1200°C Muffle Furnace with Motorized Door (30x30x30 cm, 27 L) - KSL-1200X-M-AD - Image 3

1200°C Muffle Furnace with Motorized Door (30x30x30 cm, 27 L) - KSL-1200X-M-AD - Image 4

1200°C Muffle Furnace with Motorized Door (30x30x30 cm, 27 L) - KSL-1200X-M-AD

The KSL-1200X-M-AD is an automated box furnace with a maximum temperature of 1200, The furnace is operated by a PC and enables one-key automated execution of sintering processes via computer control, including closing the door, raising the temperature, dwelling, and cooling, and opening the door. It can be integrated with a robotic system to facilitate automatic sample loading, unloading, and retrieval. A single PC can control multiple units at the same time.

SPECIFICATIONS:

Furnace Structure	Dual-layer shell structure High-purity alumina fiber material furnace chamber One laptop computer is included for automatic operation
Power	Voltage: AC220V+/- 10% , 50/60 HZ Power: 7.5KW 3-meter power cable is included without a plug
Heating Chamber	300 x300 x300 ( mm), ( ~ 12x12x12") 27 Liter Capacity Heating rate: ≤10/min Thermal couple: K type Uniform zone: 150x150x150 mm in center within +/- 5oC
Working Temp.	Max. 1200oC < 60 minutes Continuous Working Temperature 1100°C
Temperature Control	PID automatic temperature control system Intelligent 30-stage programmable control Temperature control accuracy: ±1. (optional European temperature control accuracy up to ±0.1)
PC operation	One PC and pre-installed software are included to achieve automatic operation, including closing the door, raising the temperature, dwelling, and cooling, and opening the door. RJ45 communication interface on the side panel, providing MODBUS RTU communication protocol for instrument control and door switch One computer can control multiple furnaces simultaneously up to 8 units Equipped with φ6.35mm gas inlet (rear) and φ30mm outlet(top) ports which allow the introduction of inert gas into the chamber
Automation Collaborative Robot for sample loading (optional)	Full automation with sample loading is optional via the integration with a robot arm.
Compliance	CE certified NRTL or CSA certification is available upon request

Product Information

Shipping & Returns

Description

The KSL-1200X-M-AD is an automated box furnace with a maximum temperature of 1200, The furnace is operated by a PC and enables one-key automated execution of sintering processes via computer control, including closing the door, raising the temperature, dwelling, and cooling, and opening the door. It can be integrated with a robotic system to facilitate automatic sample loading, unloading, and retrieval. A single PC can control multiple units at the same time.

SPECIFICATIONS:

Furnace Structure	Dual-layer shell structure High-purity alumina fiber material furnace chamber One laptop computer is included for automatic operation
Power	Voltage: AC220V+/- 10% , 50/60 HZ Power: 7.5KW 3-meter power cable is included without a plug
Heating Chamber	300 x300 x300 ( mm), ( ~ 12x12x12") 27 Liter Capacity Heating rate: ≤10/min Thermal couple: K type Uniform zone: 150x150x150 mm in center within +/- 5oC
Working Temp.	Max. 1200oC < 60 minutes Continuous Working Temperature 1100°C
Temperature Control	PID automatic temperature control system Intelligent 30-stage programmable control Temperature control accuracy: ±1. (optional European temperature control accuracy up to ±0.1)
PC operation	One PC and pre-installed software are included to achieve automatic operation, including closing the door, raising the temperature, dwelling, and cooling, and opening the door. RJ45 communication interface on the side panel, providing MODBUS RTU communication protocol for instrument control and door switch One computer can control multiple furnaces simultaneously up to 8 units Equipped with φ6.35mm gas inlet (rear) and φ30mm outlet(top) ports which allow the introduction of inert gas into the chamber
Automation Collaborative Robot for sample loading (optional)	Full automation with sample loading is optional via the integration with a robot arm.
Compliance	CE certified NRTL or CSA certification is available upon request
