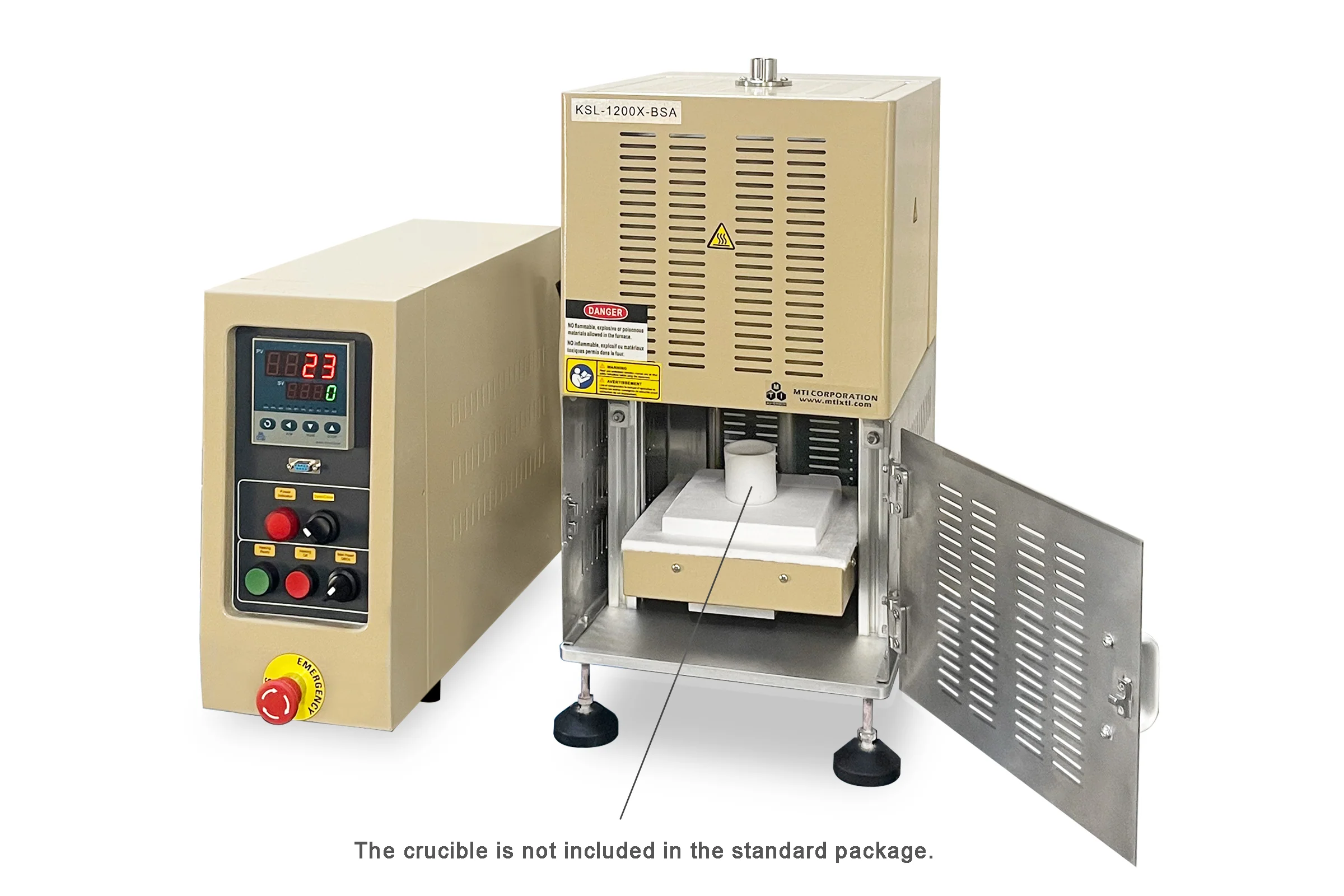

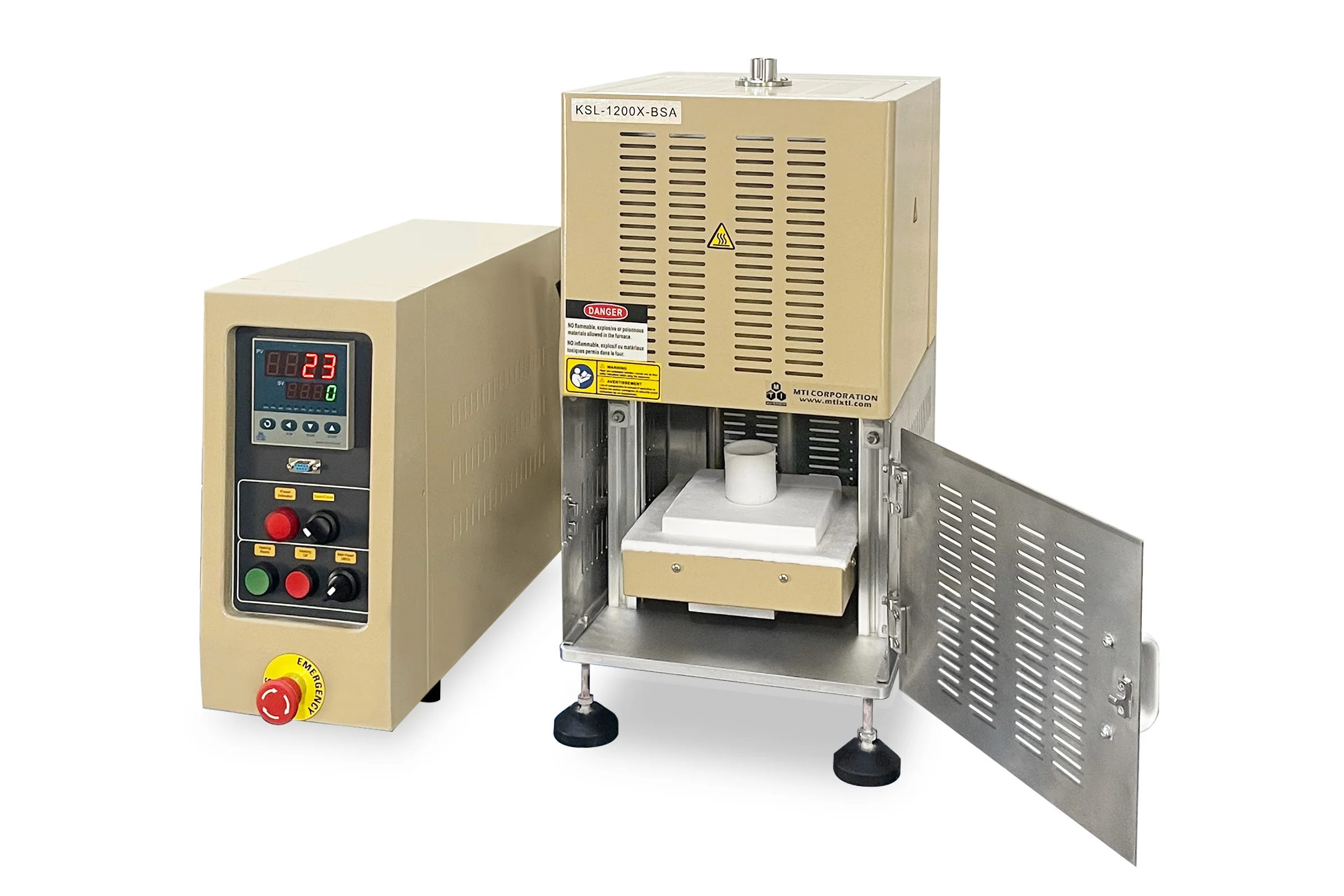

1200℃ Compact Automatic Bottom Loading Furnace ( L6 x W6 x H7 ") with Precision Controller - KSL-1200X-BSA

• 208 - 240 VAC, 50/60 Hz, single phase
• Max. Power: 2.5 kW
• Note： Power cable included but without a plug. Please install a plug on your own or click the link below to choose a plug according to your country or your lab requirement. (Pic.1）
• The KF 40 feedthrough of a power cord （Pic. 2） for the glovebox (Pic.3) is available upon request at extra cost.

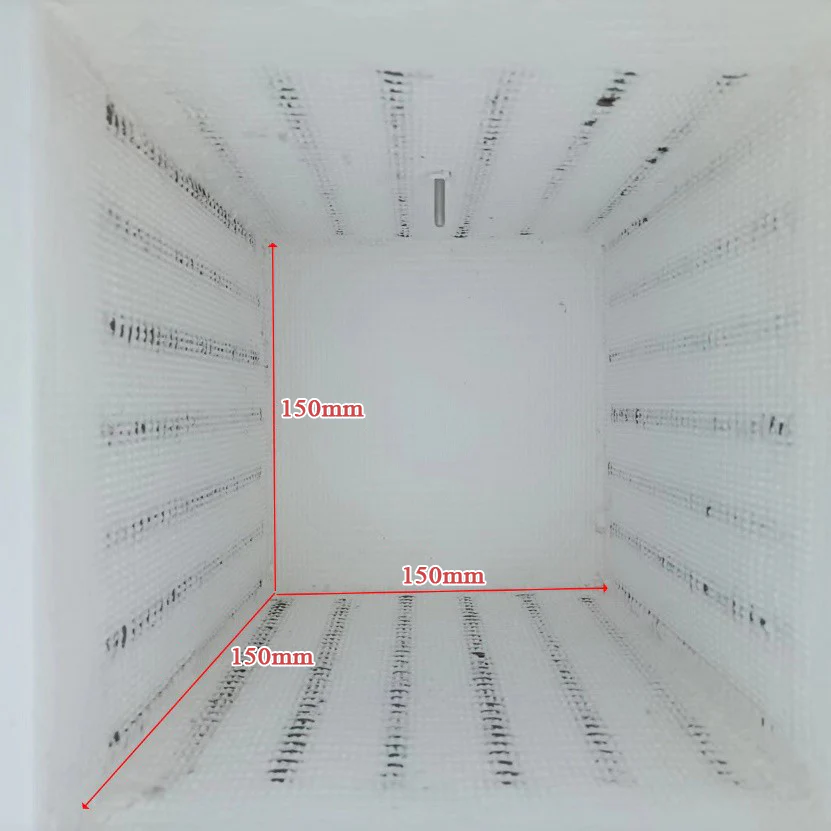

Heating chamber

• 150mm(W) x 155mm(L) x 180mm(H), ( 6"x6"x7")
• 1300°C grade resistance heating coil
• Capacity： 4.2 Liter or 0.44 cubic ft
• Thermocouple: K-type

• 140mm Maximum

• 1100 °C, continuously
• 1200 °C, < 30 minutes
• Heating Rate: 10°C / minute

Touch Screen Control Panel

• Automatic data recording (up to 1 month)
• Temperature profile: heating, dwell time, and cooling up to 50 segments with accuracy +/- 1oC
• The bottom door will be closed after sample loading and be opened after finishing the heating program.
• RJ45 communication interface, can be connected to a PC or a wireless router
• Communication protocol is open to existing customers, allowing the connection of equipment with robots for unmanned operation.

Remote Computer Control
(Optional at Extra Cost)

• Computer operation software is ONLY sold with pre-installed and tested computer as a kit
• One computer can control multiple furnace up to 16 units

Fast Cooling

• Rapid cooling is available to blow inert gas automatically  on the bottom of the furnace when the sample is down from the heated chamber
• Cooling rate may reach 20oC/S   ( 1200oC/minute)

Compliance

• NRTL or CSA certification is available upon request at extra cost.
