1600°C Cold Wall High Vacuum Chamber Furnace (400×400×400 mm) - HVF-1600X-64
HomeStore

1600°C Cold Wall High Vacuum Chamber Furnace (400×400×400 mm) - HVF-1600X-64

1600°C Cold Wall High Vacuum Chamber Furnace (400×400×400 mm) - HVF-1600X-64

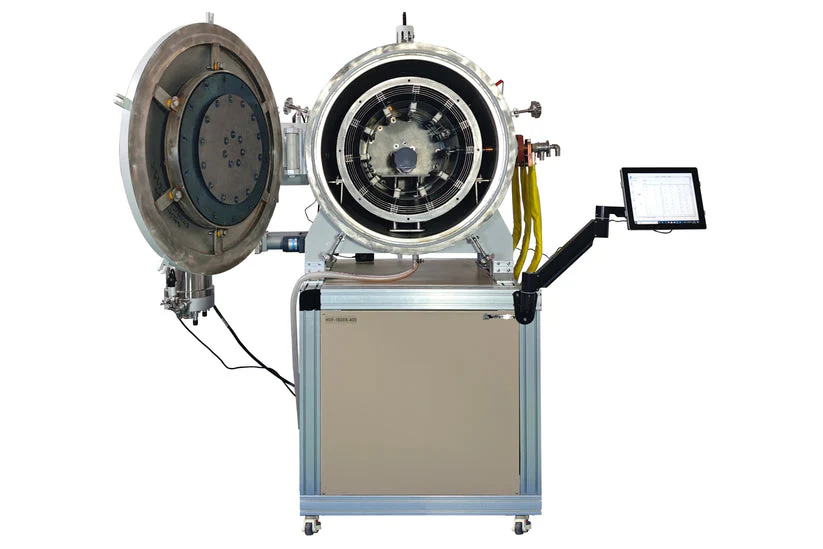

HVF-1600X-64 is a high-vacuum chamber furnace with a water-cooled wall and an effective heating chamber of 400x400x400mm ( 64 L) . Maximum working temperature of 1600°C. It is designed for high-vacuum heating treatment of small samples in a well-defined, clean environment.
It features:
  • Water-cooled 304 SS chamber
  • All metal thermal insulation and heating elements are designed for high vacuum conditions
  • L400 x W400x Depth 400 mm effective heating  zone  ( ~64L)
  • Ultimate vacuum <1e-6 torr
  • Compatible gas: Ar, N2, H2, etc.
SPECIFICATIONS:
Power
  • 460 VAC, 3-phase, 50/60Hz
  • 100kW
Vacuum Chamber
  • Electropolished water-cooled stainless steel 304 vacuum chamber.
  • Water-cooled load-lock door
  • Two water-cooled electric feedthroughs
  • 6-layer all-metal thermal reflection sheaths
  • Molybdenum sample stage
  • DN160CF port for vacuum generation
  • DN100CF manual gate valve
  • DN40KF port for ionization gauge
  • DN16KF port for convection vacuum gauge
  • Two 1/4" bellow-sealed needle valves (VCR) for gas inlet and outlet
  • Ultimate vacuum <1e-5 torr by 700L/s turbopump
  • Max working pressure <1.5 bar
Heating Unit
  • Molybdenum heating coils
  • Effective eating area:  L 400 x W400 x Depth 400 ， mm
  • ±8°C temperature uniformity
  • Type B thermocouple
  • Maximum working temperature <1600°C
  • Maximum heating rate <10°C
    Temperature Control

    • Eurotherm EPC 3000 series
    • PID automatic temperature control loop
    • 28-segment programmable temperature profile
    • Temperature accuracy: ±1°C
    • RS485, MODBUS RTU for remote communication
    Vacuum Gauge (Optional)
    • InstruTech IGM402 hot cathode ion gauge (1.00E-09 Torr to 1,000 Torr)
    • InstruTech convection pressure gauge
    Water Chiller (Optional)

    • Power Supply: 380-415 VAC or 460-480 VAC 3-phase, 50/60 Hz

    • Power: 7.5-8.25 KW

    • Working Current: 3.4~18.1A

    • Cooling Capacity: 15 kW

    • Water Tank Capacity: 70L

    • Inlet and Outlet: G1"

    • Maximum Pump Water Flow Rate: 75L/min
    Vacuum Pump (optional)
    • 260L/s Pfeiffer Vacuum Turbomolecular pump
    • 240L/min rotary vane backing pump
    • 200L/min Pfeiffer Vacuum dry scroll pump

    Compliance
    • CE certified
    • NRTL or CSA certification is available upon request at an extra cost



    $689,998.00
    1600°C Cold Wall High Vacuum Chamber Furnace (400×400×400 mm) - HVF-1600X-64—
    $689,998.00

    More Images

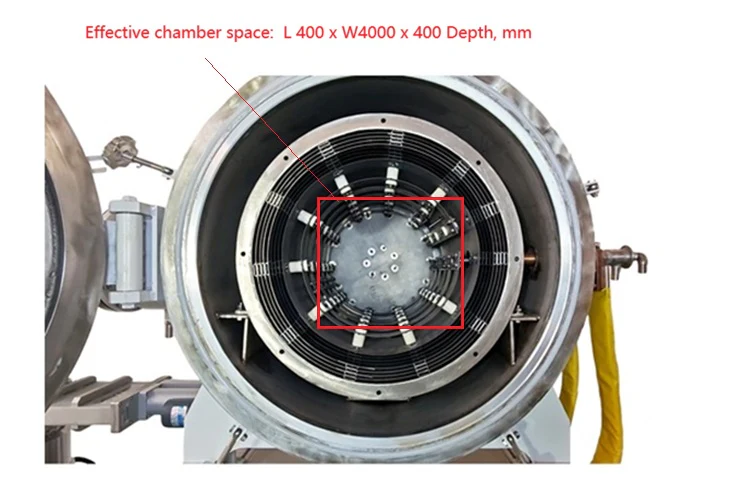

    1600°C Cold Wall High Vacuum Chamber Furnace (400×400×400 mm) - HVF-1600X-64 - Image 2

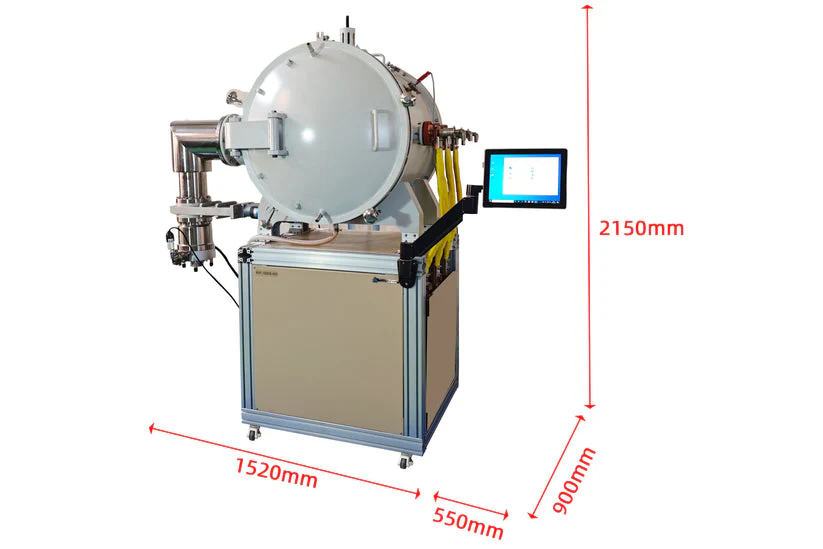

    1600°C Cold Wall High Vacuum Chamber Furnace (400×400×400 mm) - HVF-1600X-64 - Image 3

    1600°C Cold Wall High Vacuum Chamber Furnace (400×400×400 mm) - HVF-1600X-64

    HVF-1600X-64 is a high-vacuum chamber furnace with a water-cooled wall and an effective heating chamber of 400x400x400mm ( 64 L) . Maximum working temperature of 1600°C. It is designed for high-vacuum heating treatment of small samples in a well-defined, clean environment.
    It features:
    • Water-cooled 304 SS chamber
    • All metal thermal insulation and heating elements are designed for high vacuum conditions
    • L400 x W400x Depth 400 mm effective heating  zone  ( ~64L)
    • Ultimate vacuum <1e-6 torr
    • Compatible gas: Ar, N2, H2, etc.
    SPECIFICATIONS:
    Power
    • 460 VAC, 3-phase, 50/60Hz
    • 100kW
    Vacuum Chamber
    • Electropolished water-cooled stainless steel 304 vacuum chamber.
    • Water-cooled load-lock door
    • Two water-cooled electric feedthroughs
    • 6-layer all-metal thermal reflection sheaths
    • Molybdenum sample stage
    • DN160CF port for vacuum generation
    • DN100CF manual gate valve
    • DN40KF port for ionization gauge
    • DN16KF port for convection vacuum gauge
    • Two 1/4" bellow-sealed needle valves (VCR) for gas inlet and outlet
    • Ultimate vacuum <1e-5 torr by 700L/s turbopump
    • Max working pressure <1.5 bar
    Heating Unit
    • Molybdenum heating coils
    • Effective eating area:  L 400 x W400 x Depth 400 ， mm
    • ±8°C temperature uniformity
    • Type B thermocouple
    • Maximum working temperature <1600°C
    • Maximum heating rate <10°C
      Temperature Control

      • Eurotherm EPC 3000 series
      • PID automatic temperature control loop
      • 28-segment programmable temperature profile
      • Temperature accuracy: ±1°C
      • RS485, MODBUS RTU for remote communication
      Vacuum Gauge (Optional)
      • InstruTech IGM402 hot cathode ion gauge (1.00E-09 Torr to 1,000 Torr)
      • InstruTech convection pressure gauge
      Water Chiller (Optional)

      • Power Supply: 380-415 VAC or 460-480 VAC 3-phase, 50/60 Hz

      • Power: 7.5-8.25 KW

      • Working Current: 3.4~18.1A

      • Cooling Capacity: 15 kW

      • Water Tank Capacity: 70L

      • Inlet and Outlet: G1"

      • Maximum Pump Water Flow Rate: 75L/min
      Vacuum Pump (optional)
      • 260L/s Pfeiffer Vacuum Turbomolecular pump
      • 240L/min rotary vane backing pump
      • 200L/min Pfeiffer Vacuum dry scroll pump

      Compliance
      • CE certified
      • NRTL or CSA certification is available upon request at an extra cost



      Product Information

      Shipping & Returns

      Description

      HVF-1600X-64 is a high-vacuum chamber furnace with a water-cooled wall and an effective heating chamber of 400x400x400mm ( 64 L) . Maximum working temperature of 1600°C. It is designed for high-vacuum heating treatment of small samples in a well-defined, clean environment.
      It features:
      • Water-cooled 304 SS chamber
      • All metal thermal insulation and heating elements are designed for high vacuum conditions
      • L400 x W400x Depth 400 mm effective heating  zone  ( ~64L)
      • Ultimate vacuum <1e-6 torr
      • Compatible gas: Ar, N2, H2, etc.
      SPECIFICATIONS:
      Power
      • 460 VAC, 3-phase, 50/60Hz
      • 100kW
      Vacuum Chamber
      • Electropolished water-cooled stainless steel 304 vacuum chamber.
      • Water-cooled load-lock door
      • Two water-cooled electric feedthroughs
      • 6-layer all-metal thermal reflection sheaths
      • Molybdenum sample stage
      • DN160CF port for vacuum generation
      • DN100CF manual gate valve
      • DN40KF port for ionization gauge
      • DN16KF port for convection vacuum gauge
      • Two 1/4" bellow-sealed needle valves (VCR) for gas inlet and outlet
      • Ultimate vacuum <1e-5 torr by 700L/s turbopump
      • Max working pressure <1.5 bar
      Heating Unit
      • Molybdenum heating coils
      • Effective eating area:  L 400 x W400 x Depth 400 ， mm
      • ±8°C temperature uniformity
      • Type B thermocouple
      • Maximum working temperature <1600°C
      • Maximum heating rate <10°C
        Temperature Control

        • Eurotherm EPC 3000 series
        • PID automatic temperature control loop
        • 28-segment programmable temperature profile
        • Temperature accuracy: ±1°C
        • RS485, MODBUS RTU for remote communication
        Vacuum Gauge (Optional)
        • InstruTech IGM402 hot cathode ion gauge (1.00E-09 Torr to 1,000 Torr)
        • InstruTech convection pressure gauge
        Water Chiller (Optional)

        • Power Supply: 380-415 VAC or 460-480 VAC 3-phase, 50/60 Hz

        • Power: 7.5-8.25 KW

        • Working Current: 3.4~18.1A

        • Cooling Capacity: 15 kW

        • Water Tank Capacity: 70L

        • Inlet and Outlet: G1"

        • Maximum Pump Water Flow Rate: 75L/min
        Vacuum Pump (optional)
        • 260L/s Pfeiffer Vacuum Turbomolecular pump
        • 240L/min rotary vane backing pump
        • 200L/min Pfeiffer Vacuum dry scroll pump

        Compliance
        • CE certified
        • NRTL or CSA certification is available upon request at an extra cost



        You may also like

        -65%NEW
        Thumbnail 1

        1500°C Roller Table Atmosphere Furnace (ACRHF) with 112L Capacity - RHF-1500L

        $99,998.00

        $34,999.30

        -65%NEW
        Thumbnail 1Thumbnail 2

        1500°C Atmosphere Controlled Rapid Heating Furnace (ACRHF) - RHF-1500S

        $41,998.00

        $14,699.30

        -65%NEW
        Thumbnail 1Thumbnail 2

        1400°C Cold Wall High Vacuum Chamber Furnace (Ø100×120 mm) - HVF-1400X-CW

        $85,000.00

        $29,750.00

        -65%NEW
        Thumbnail 1Thumbnail 2

        1600°C Cold-wall High Vacuum Furnace (Heating Area 200×200×300mm) - HVF1600X12L

        $259,985.00

        $90,994.75

        -65%NEW
        Thumbnail 1Thumbnail 2

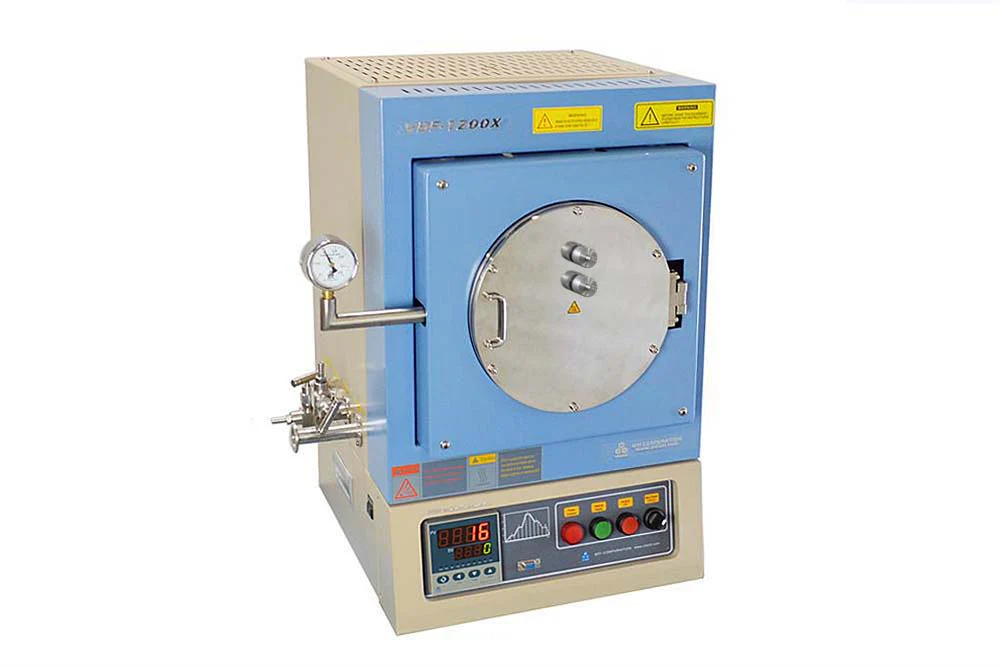

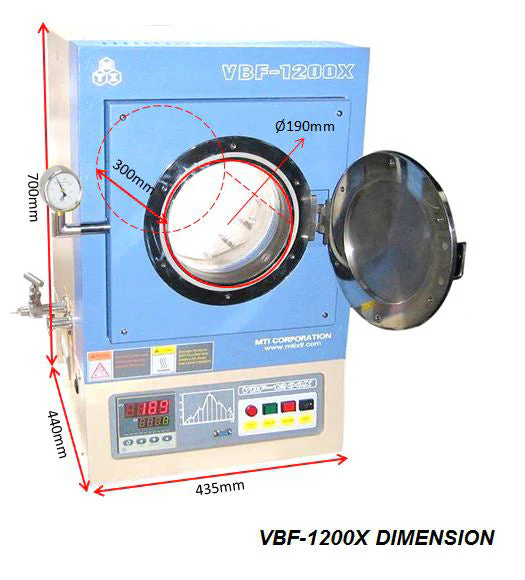

        1100°C Max 8" OD 7.6 L Quartz Chamber Furnace - VBF1200XH8

        $12,500.00

        $4,375.00

        -65%NEW
        Thumbnail 1Thumbnail 2

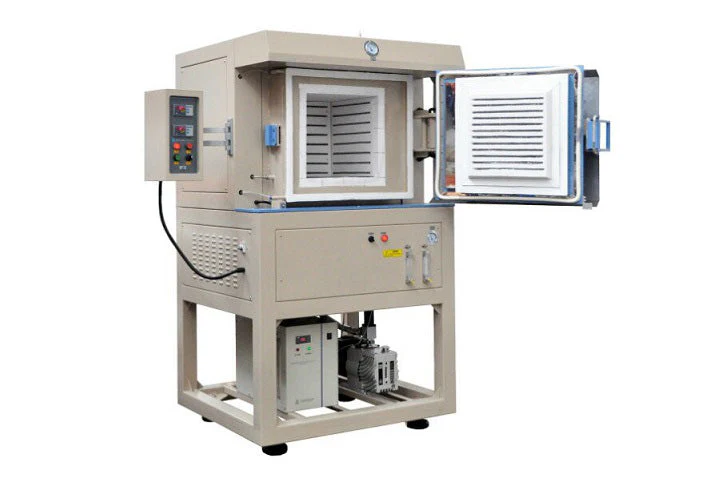

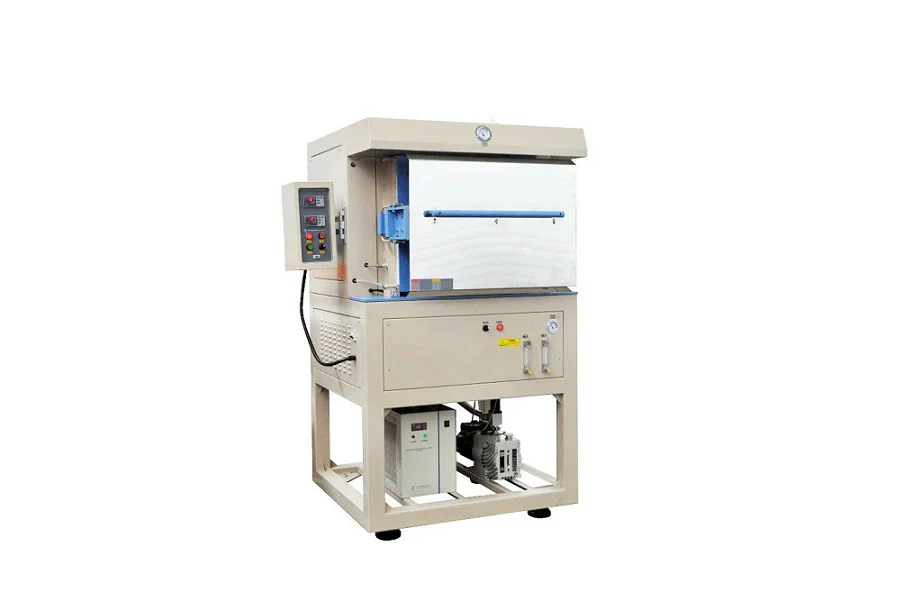

        1200°C Max. 5-side Heating Atmosphere Controlled Muffle Furnace ( 16"x16"x 16" 64 L) - KSL-1200X-AC-5S

        $49,985.00

        $17,494.75

        -65%NEW
        Thumbnail 1

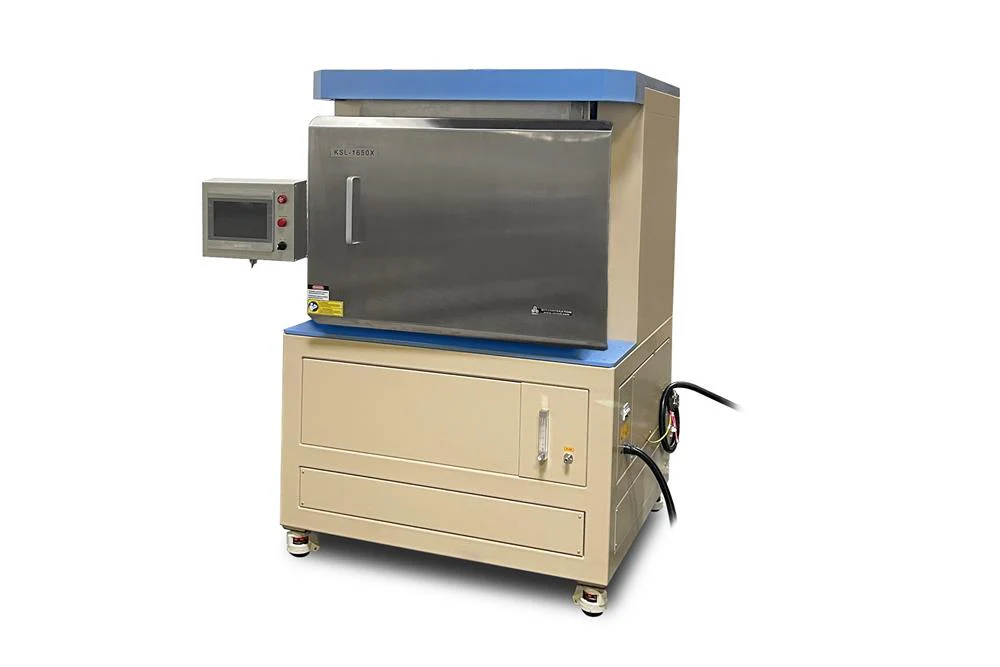

        1650°C Max. Atmosphere Controlled Box Furnace 16"x16"x16" (65 L) - KSL-1650X-GS65

        $88,989.00

        $31,146.15

        NEW
        Thumbnail 1Thumbnail 2

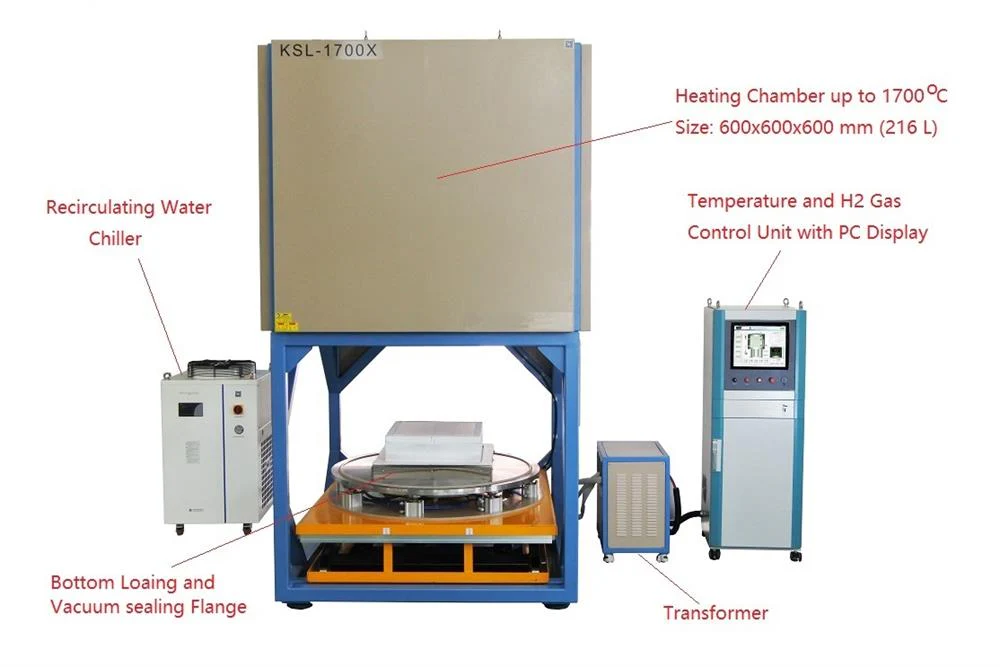

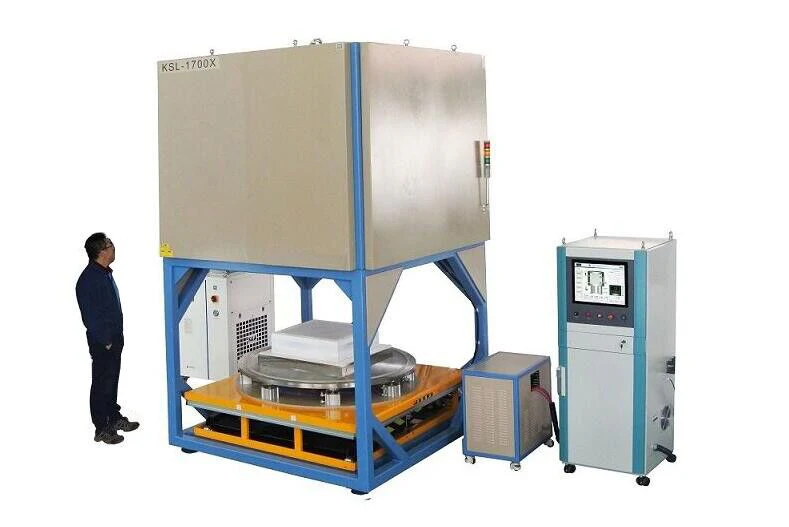

        1300 or 1700ºC Max. Bottom Loaded Inert Gas Atmosphere Box Furnace, (24x24x24", 216L) - KSL-GS216

        $219,998.00

        -65%NEW
        Thumbnail 1

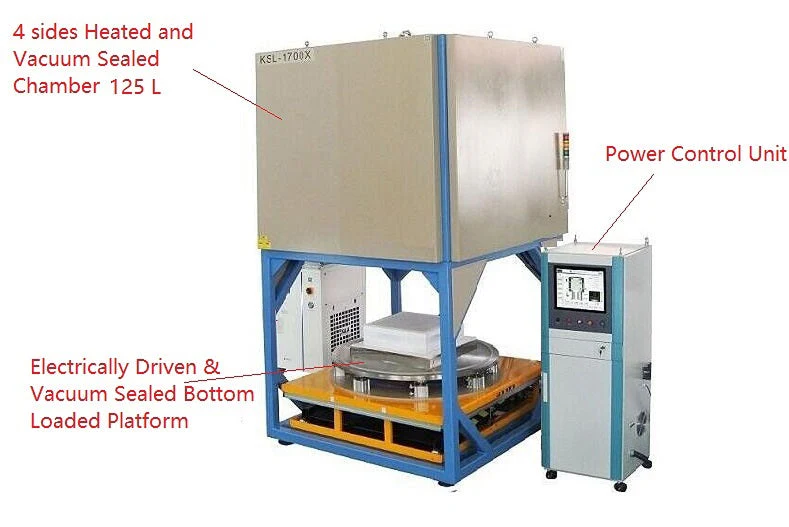

        1400C Max. Bottom Loaded Inert Gas Atmosphere Box Furnace, (20x20x20", 125L) - KSL-1500X-GS125

        $269,985.00

        $94,494.75

        NEW
        Thumbnail 1Thumbnail 2

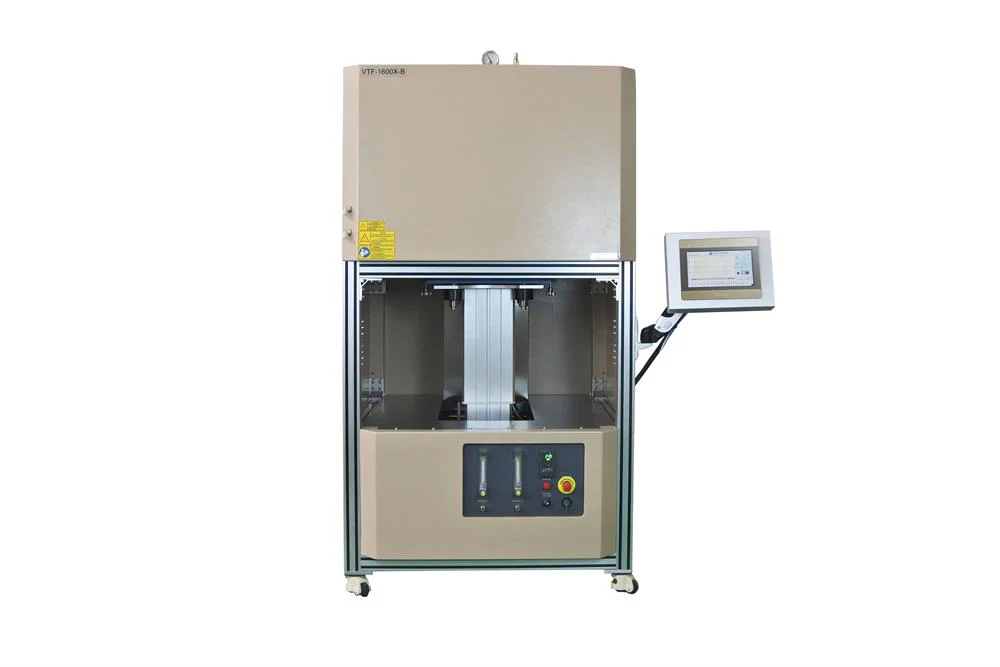

        1700°C Vertical Atmosphere Controlled Furnace (11" I.D., 13 Liter) with Automatic Bottom Loading - VBF-1600X-B

        $72,996.00

        -65%NEW
        Thumbnail 1Thumbnail 2

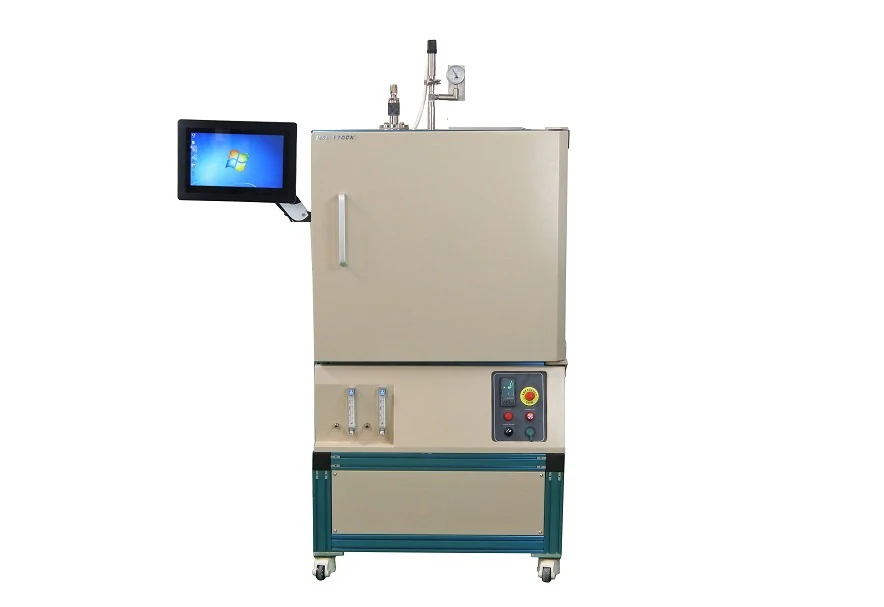

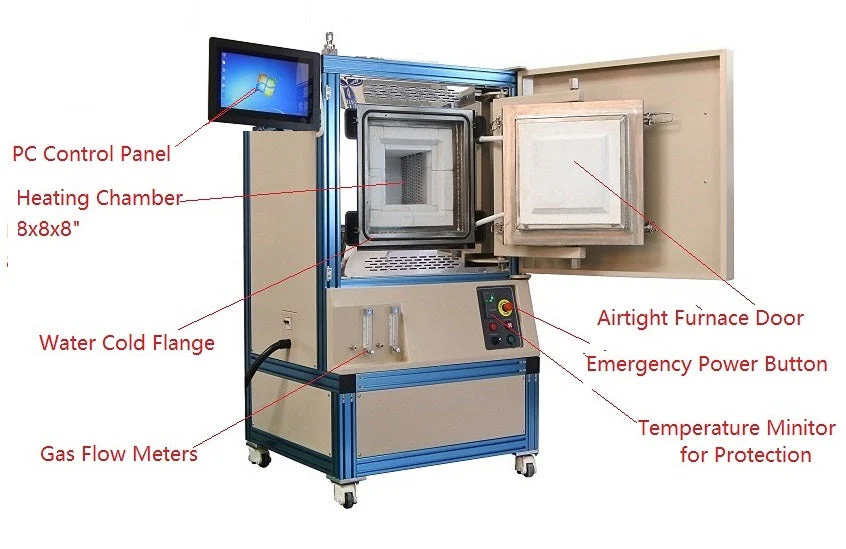

        1700°C Oxygen & Inert Atmosphere-controlled Furnace (8x8x8" , 8 Liter ) - KSL-1700X-O2

        $65,985.00

        $23,094.75

        -65%NEW
        Thumbnail 1Thumbnail 2

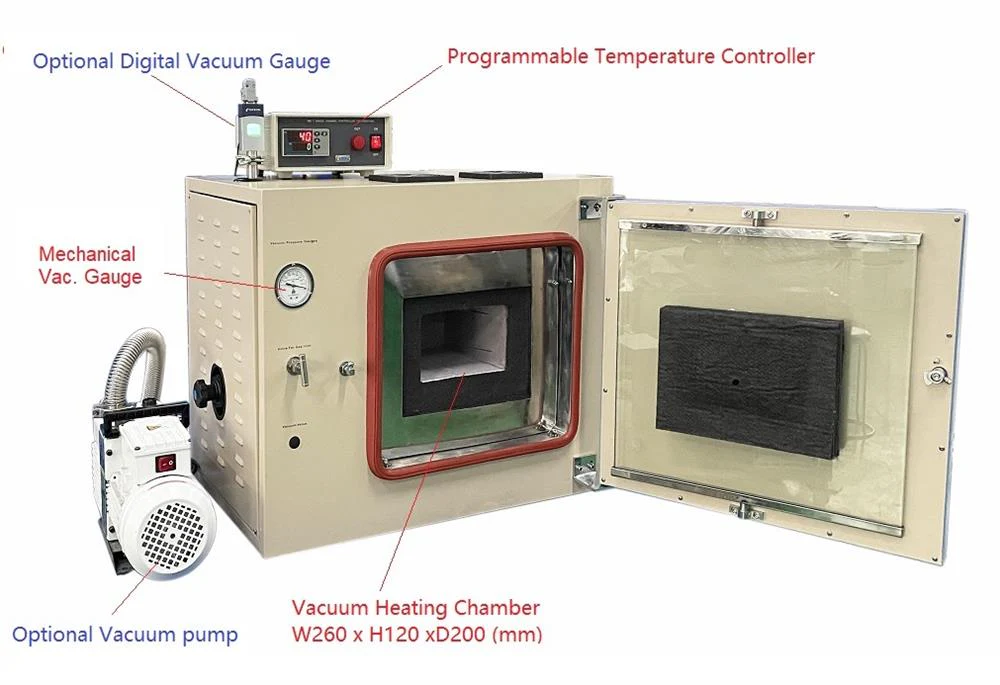

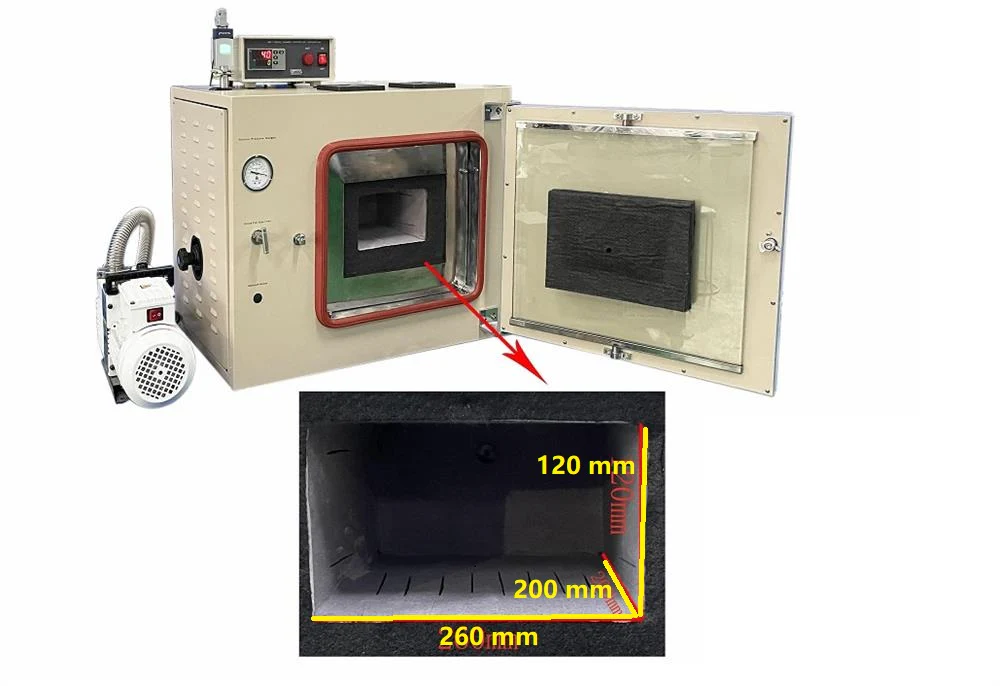

        Vacuum Box Furnace (10x8x5", 6L, 1050°C Max, 10-4 torr ) w/ Temp Controller - VBF-1050X-H6
