1100°C Max 8" OD 7.6 L Quartz Chamber Furnace - VBF1200XH8

1100°C Max 8" OD 7.6 L Quartz Chamber Furnace - VBF1200XH8

1100°C Max 8" OD 7.6 L Quartz Chamber Furnace - VBF1200XH8

VBF-1200X-H8 is a chamber furnace with a Ø7.5" ID x 13.4"L horizontal quartz chamber. The hermetic chamber allows heat treatment under a controlled atmosphere and vacuum conditions, up to 1100°C.

SPECIFICATIONS

Power	208 - 240 VAC, single phase, 50/60Hz, 20 A 4.0 kVA One power cable is included without a plug.
Working Temperature	< 1100 °C, up to 30 minutes @ ambient pressure < 1000 °C continuously @ ambient pressure or vacuum
Heating Rate	< 20 °C/min <10 °C/min, recommended.
Heating Module	⌀240 * 260 mm Fe-Cr-Al wires
Processing Tube	Quartz tube: Ø203×Ø192×340 mm GE214 grade quartz tube is available for operation at 1150°C
Flanges	Multifunctional stainless steel water-cooled flange assembly two 1/4" quick-connect ports with silicone o-rings
Thermal Block	One Al2O3 foam refractory block (Ø190 * 50mm)
Gas Inlet and Outlet	One gas inlet and outlet ( 8 mm barbed fitting) One KF25 port for vacuum connection
Water Chiller (Optional)	Water chiller is required but not included at T > 500 °C MTI recommend using KJ5000 water chiller Two Ø12 mm push-to-connect for water connection
Temperature Controller	Proportional–integral–derivative (PID) temperature controller Auto-tune for PID parameters 30 segments programmed with ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy The Default DB9 PC communication port is included for connecting to a PC Eurotherm Temperature Controller is available at an extra cost with +/-0.1°C accuracy.
Options	Digital Pressure Gauge with a range from 3.8x10^-5 to 1125 Torr. Quartz sample platform Quartz wafer boat Quartz Thermal Block Front Door Seals
	Sample Holder	Quartz boat for wafer	Quartz Thermal Block
Pressure	< 3 psig
Vacuum Level	<5e-2 torr with a mechanical vacuum pump
Compliance	CE Certified NRTL or CSA certification is available upon request at extra cost. Patten Number: ZL-2011-2-0102249.4 SINCE 2011-5-19
Application Note	Furnaces are designed for use under vacuum and at low-pressure < 0.2 bars

Select Vacuum Gauge

From $4,375.00

Original: $12,500.00

-65%

1100°C Max 8" OD 7.6 L Quartz Chamber Furnace - VBF1200XH8—

$12,500.00

$4,375.00

More Images

1100°C Max 8" OD 7.6 L Quartz Chamber Furnace - VBF1200XH8 - Image 2

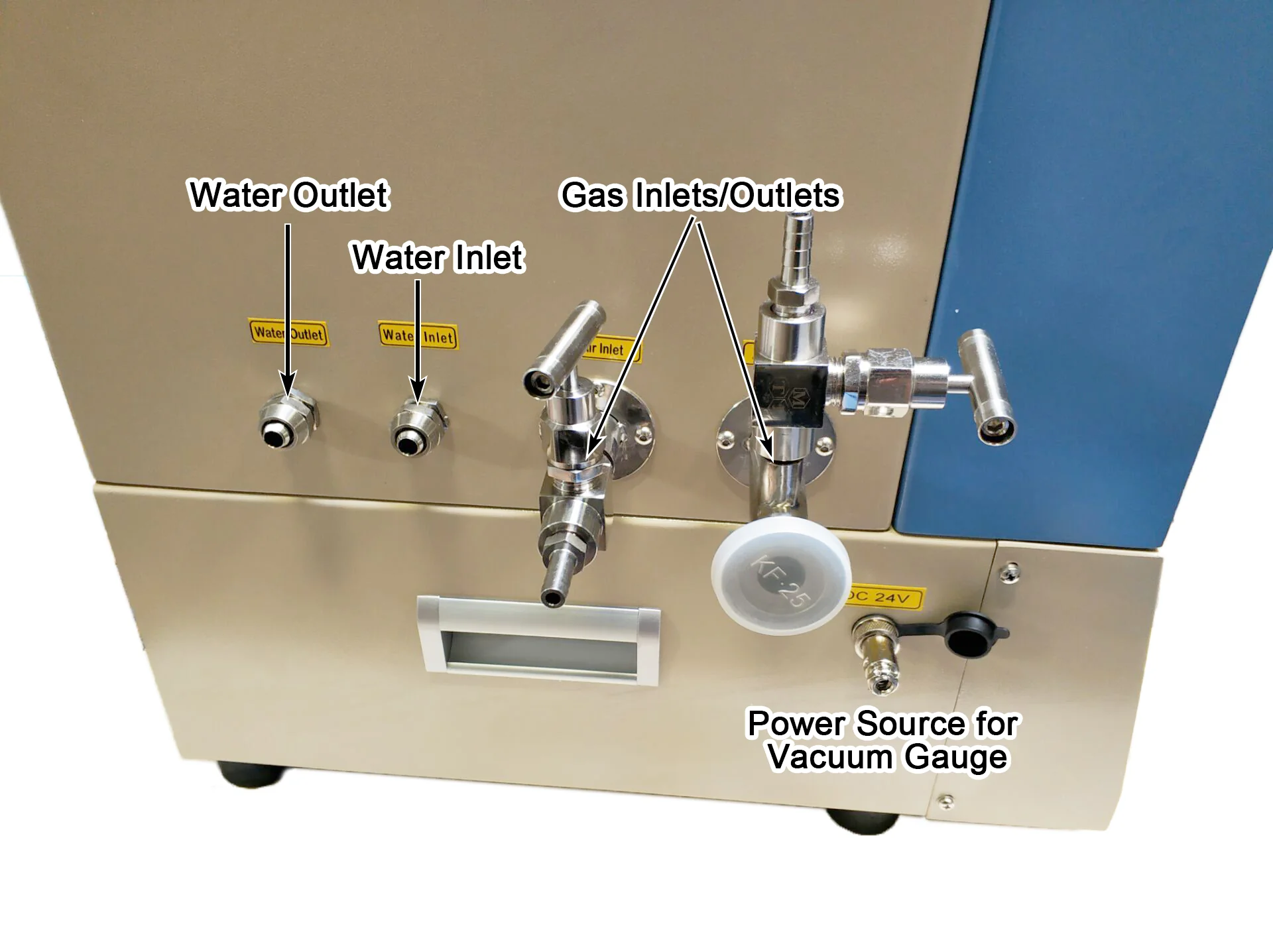

1100°C Max 8" OD 7.6 L Quartz Chamber Furnace - VBF1200XH8 - Image 3

1100°C Max 8" OD 7.6 L Quartz Chamber Furnace - VBF1200XH8

VBF-1200X-H8 is a chamber furnace with a Ø7.5" ID x 13.4"L horizontal quartz chamber. The hermetic chamber allows heat treatment under a controlled atmosphere and vacuum conditions, up to 1100°C.

SPECIFICATIONS

Power	208 - 240 VAC, single phase, 50/60Hz, 20 A 4.0 kVA One power cable is included without a plug.
Working Temperature	< 1100 °C, up to 30 minutes @ ambient pressure < 1000 °C continuously @ ambient pressure or vacuum
Heating Rate	< 20 °C/min <10 °C/min, recommended.
Heating Module	⌀240 * 260 mm Fe-Cr-Al wires
Processing Tube	Quartz tube: Ø203×Ø192×340 mm GE214 grade quartz tube is available for operation at 1150°C
Flanges	Multifunctional stainless steel water-cooled flange assembly two 1/4" quick-connect ports with silicone o-rings
Thermal Block	One Al2O3 foam refractory block (Ø190 * 50mm)
Gas Inlet and Outlet	One gas inlet and outlet ( 8 mm barbed fitting) One KF25 port for vacuum connection
Water Chiller (Optional)	Water chiller is required but not included at T > 500 °C MTI recommend using KJ5000 water chiller Two Ø12 mm push-to-connect for water connection
Temperature Controller	Proportional–integral–derivative (PID) temperature controller Auto-tune for PID parameters 30 segments programmed with ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy The Default DB9 PC communication port is included for connecting to a PC Eurotherm Temperature Controller is available at an extra cost with +/-0.1°C accuracy.
Options	Digital Pressure Gauge with a range from 3.8x10^-5 to 1125 Torr. Quartz sample platform Quartz wafer boat Quartz Thermal Block Front Door Seals
	Sample Holder	Quartz boat for wafer	Quartz Thermal Block
Pressure	< 3 psig
Vacuum Level	<5e-2 torr with a mechanical vacuum pump
Compliance	CE Certified NRTL or CSA certification is available upon request at extra cost. Patten Number: ZL-2011-2-0102249.4 SINCE 2011-5-19
Application Note	Furnaces are designed for use under vacuum and at low-pressure < 0.2 bars

Product Information

Shipping & Returns

Description

VBF-1200X-H8 is a chamber furnace with a Ø7.5" ID x 13.4"L horizontal quartz chamber. The hermetic chamber allows heat treatment under a controlled atmosphere and vacuum conditions, up to 1100°C.

SPECIFICATIONS

Power	208 - 240 VAC, single phase, 50/60Hz, 20 A 4.0 kVA One power cable is included without a plug.
Working Temperature	< 1100 °C, up to 30 minutes @ ambient pressure < 1000 °C continuously @ ambient pressure or vacuum
Heating Rate	< 20 °C/min <10 °C/min, recommended.
Heating Module	⌀240 * 260 mm Fe-Cr-Al wires
Processing Tube	Quartz tube: Ø203×Ø192×340 mm GE214 grade quartz tube is available for operation at 1150°C
Flanges	Multifunctional stainless steel water-cooled flange assembly two 1/4" quick-connect ports with silicone o-rings
Thermal Block	One Al2O3 foam refractory block (Ø190 * 50mm)
Gas Inlet and Outlet	One gas inlet and outlet ( 8 mm barbed fitting) One KF25 port for vacuum connection
Water Chiller (Optional)	Water chiller is required but not included at T > 500 °C MTI recommend using KJ5000 water chiller Two Ø12 mm push-to-connect for water connection
Temperature Controller	Proportional–integral–derivative (PID) temperature controller Auto-tune for PID parameters 30 segments programmed with ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy The Default DB9 PC communication port is included for connecting to a PC Eurotherm Temperature Controller is available at an extra cost with +/-0.1°C accuracy.
Options	Digital Pressure Gauge with a range from 3.8x10^-5 to 1125 Torr. Quartz sample platform Quartz wafer boat Quartz Thermal Block Front Door Seals
	Sample Holder	Quartz boat for wafer	Quartz Thermal Block
Pressure	< 3 psig
Vacuum Level	<5e-2 torr with a mechanical vacuum pump
Compliance	CE Certified NRTL or CSA certification is available upon request at extra cost. Patten Number: ZL-2011-2-0102249.4 SINCE 2011-5-19
Application Note	Furnaces are designed for use under vacuum and at low-pressure < 0.2 bars
