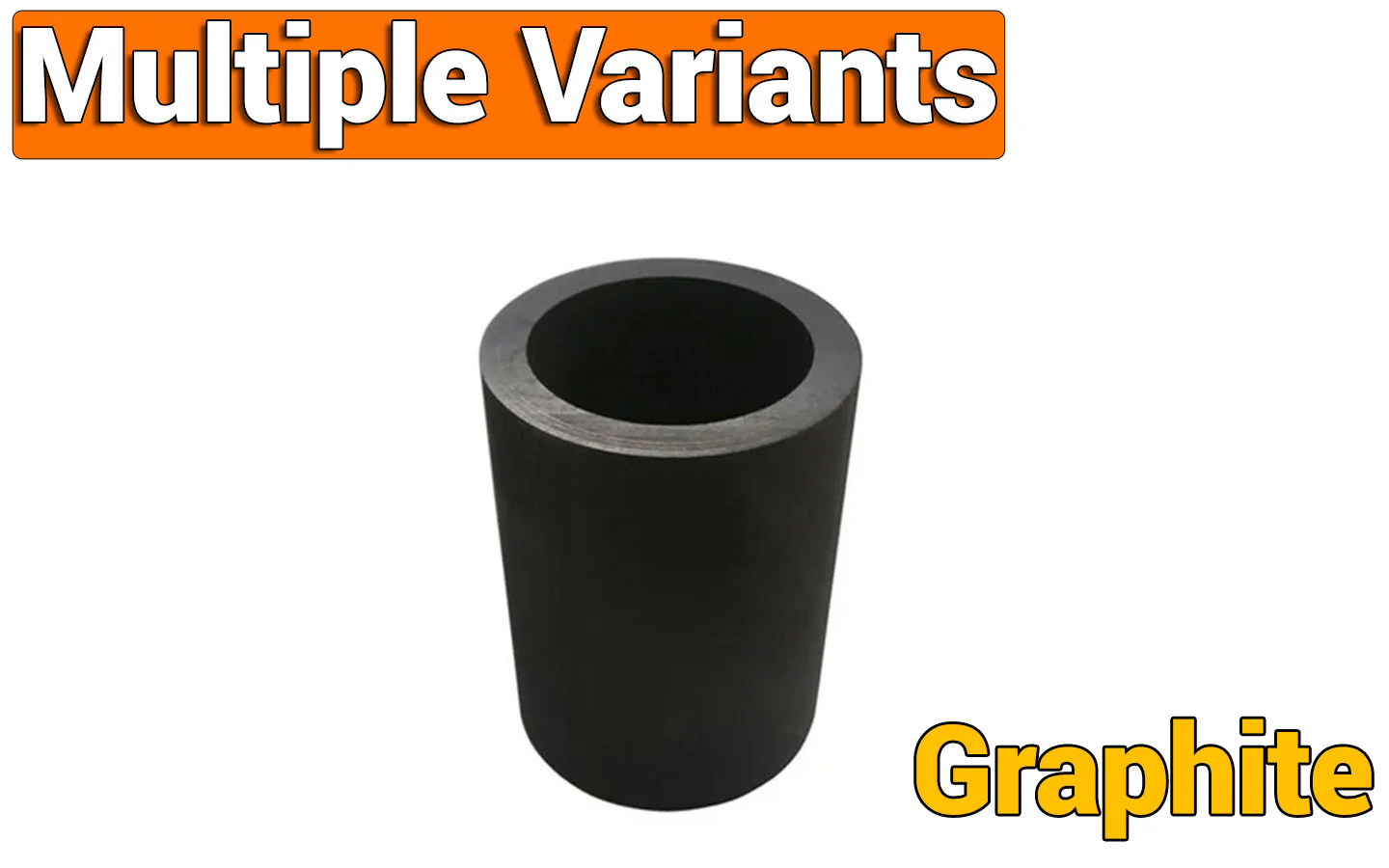

Graphite Cylindrical Crucible

High-purity graphite crucible for induction heating and metal melting, Machined graphite crucible

SPECIATIONS:

Property	US Value	Metric Value
Particle Size	0.008 in	0.02032 cm
Density	0.063 lb/in3	1.74 g/cm3
Flexural Strength	3200 psi	22.1 mpa
Compressive Strength	6200 psi	42.7 mpa
Resistivity	4.0 ohm/in x 10-4	4.0 ohm/ in x 10-4
Thermal Conductivity	110 BTU/(h.ft20F/ft)	190 W/(m2K/m)
CTE	1.3 in/ in oF x 10-6	2.4 Microns/ m Co
Temperature (Air)	750 oF	399 oC
Temperature (Inert)	5000 oF	2760 oC
Ash	0.1%	0.1%



Precise Dimensions Chart:

SKU	CG4571
Outside Diameter	60 mm (2.362")
Inside Diameter	45 mm (1.772")
Depth	71 mm (2.795")
Height	80 mm (3.150")
Capacity	93 mL



SKU	CG25100
Outside Diameter	25.4 mm (1")
Inside Diameter	14.99 mm (0.59")
Depth	95.3 mm (3.75")
Height	101.6 mm (4")



SKU	CG001015
Outside Diameter of Top Edge	73.0 mm (2.875")
Outside Diameter of Bottom	58 mm (2.28")
Inside Diameter	51.6 mm (2.03")
Depth	77.7 mm (3.06")
Height	87.3 mm (3.435")
Capacity	162 mL

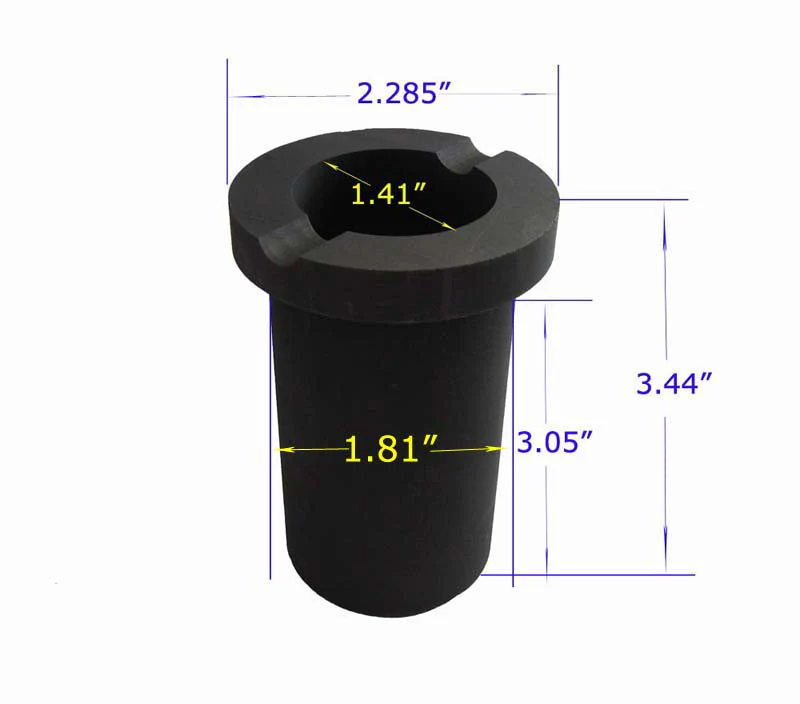

SKU	CG009
Outside Diameter of Top Edge	58 mm (2.285")
Outside Diameter of Bottom	47 mm (1.81")
Inside Diameter	35 mm (1.415")
Depth	78 mm (3.06")
Height	88 mm (3.435")
Capacity	Working Volume: ~70 mL; Max. Volume: ~79 mL



SKU	CG40
Outside Diameter	38.1 mm (1.5")
Inside Diameter	31.75 mm (1.25")
Depth	95.25 mm (3.75")
Height	100.6 mm (3.96")



SKU	CG40
Outside Diameter	38.1 mm (1.5")
Inside Diameter	31.75 mm (1.25")
Depth	95.25 mm (3.75")
Height	100.6 mm (3.96")



SKU	CG40102
Outside Diameter	51 mm (2")
Inside Diameter	40 mm (1.57")
Depth	102 mm (4")
Height	109 mm (4.3")
Capacity	127 mL



SKU	CG75D105H
Outside Diameter of Top Edge	85 mm (3.35")
Outside Diameter of Bottom	75 mm (2.95")
Inside Diameter	60 mm (2.362")
Depth	95 mm (3.7")
Height	105 mm (4.13")
Capacity	Working Volume: ~250 mL; Max. Volume: ~270mL



SKU	CG63135
Outside Diameter	73 mm (2.87")
Inside Diameter	63 mm (2.48")
Depth	135 mm (5.3")
Height	140 mm (5.5")
Capacity	420 mL



SKU	CG1292
Outside Diameter	12.5 mm (0.5")
Inside Diameter	6.5 mm (0.26")
Depth	79 mm (3.1")
Height	92 mm (3.62")





Inspect your delivery:

Please check the package for any damages before accepting delivery. If damages are detected, retain all packaging materials, document the condition with photos, and report the issue immediately to the carrier and MTI.

No Warranty:

Kindly notice that this item is a consumable part and is not covered under warranty. Please conduct a thorough inspection for any defects before use.
