Vacuum Sealing Assembly for Single End 60mm dia.with Vacuum Valves - HFR-60
HomeStore

Vacuum Sealing Assembly for Single End 60mm dia.with Vacuum Valves - HFR-60

Vacuum Sealing Assembly for Single End 60mm dia.with Vacuum Valves - HFR-60

This is a smart sealing assembly for single end 60 mm O.D. tube.

SPECIFICATIONS

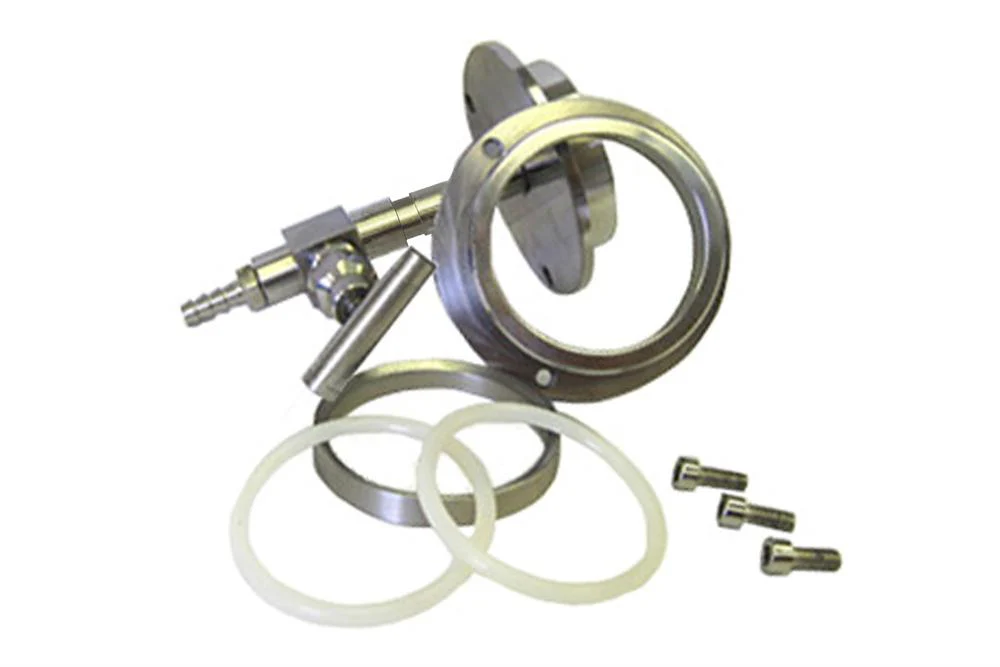

Package Included One flange with needle valve, one steel sealing rings, two high-temperature silicone O-rings ( 250°C Max.) and three screws.
Features
  • Made of Stainless Steel with double high-temperature silicon O-rings.
  • The end has a vacuum meter with valve.
  • Seal tube by tightening screws on the flange without any welding or gluing.
  • 1/4" hose connector at the end.
  • Excellent for any type of tubing: ceramic, glass, quartz and steel pipe.
  • The assembly kit will seal 58-60 mm diameter ceramic and quartz tube.
Vacuum Level 10E-5 torr by molecular pump and 10E-2 torr by mechanical pump
 Warning
  • Must put a refractory tube block into the tube( see picture below ) to avoid heat radiation melt silicone O-ring. Please order a ceramic block in related products.
  • Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.
