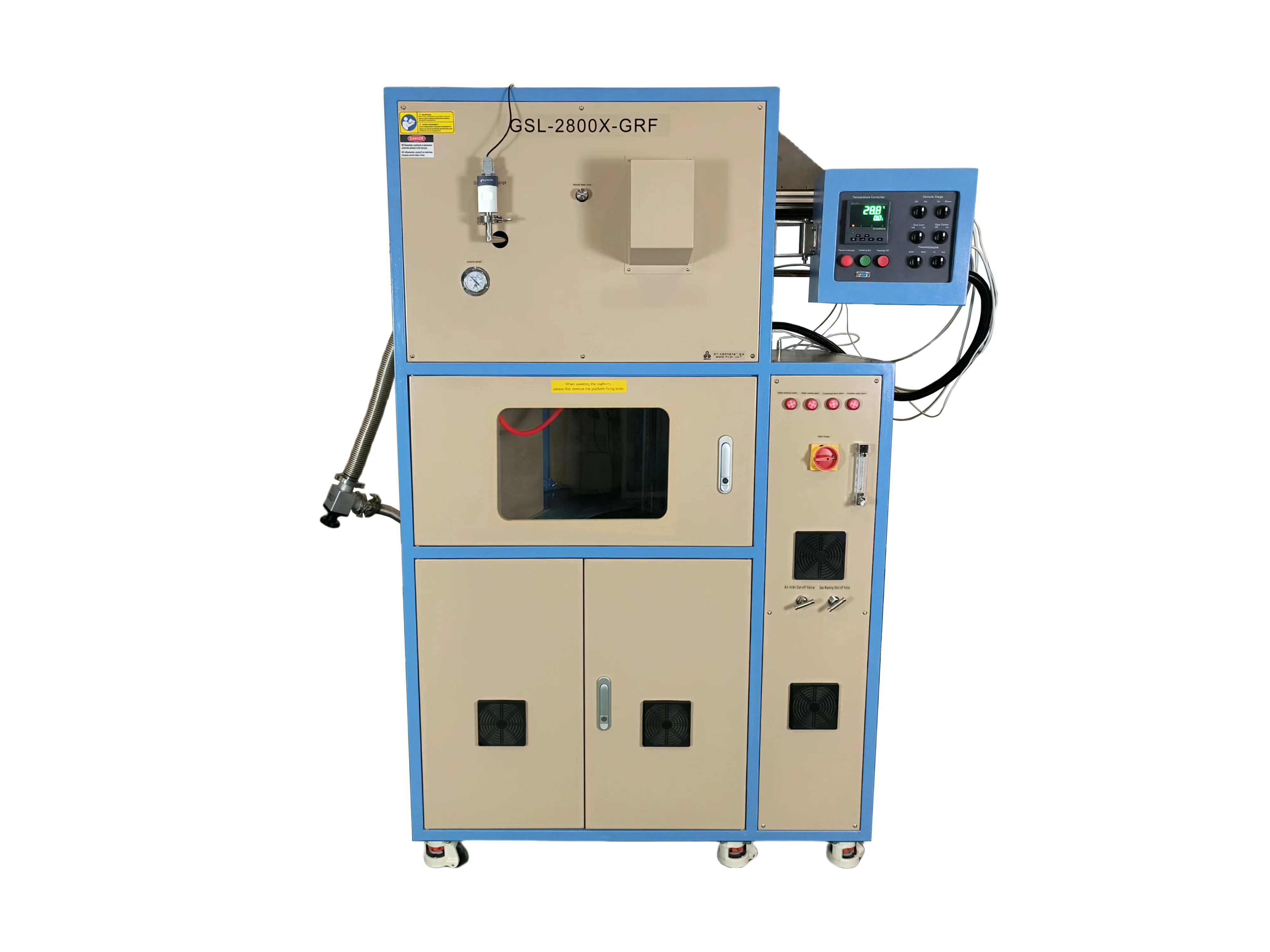

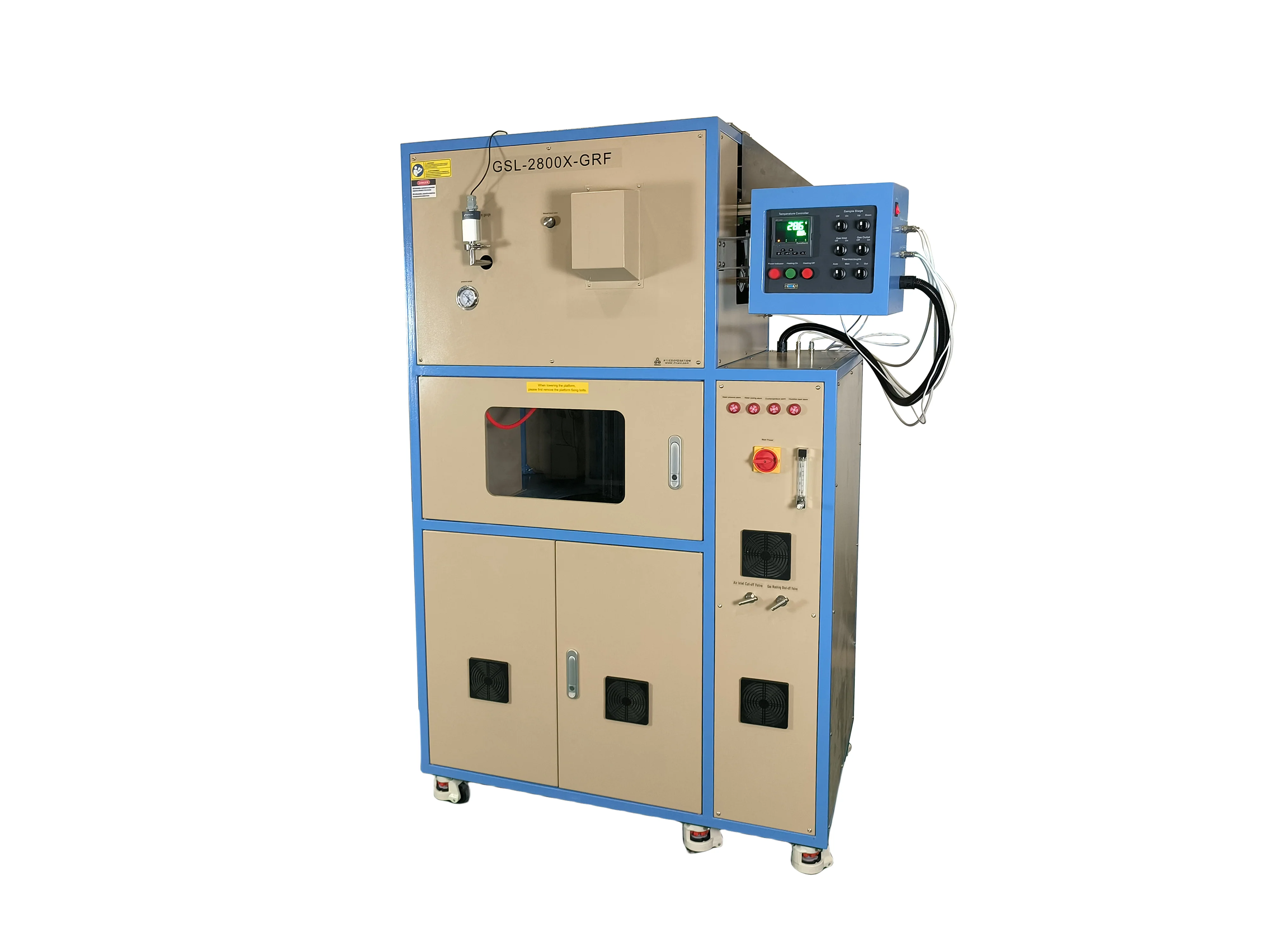

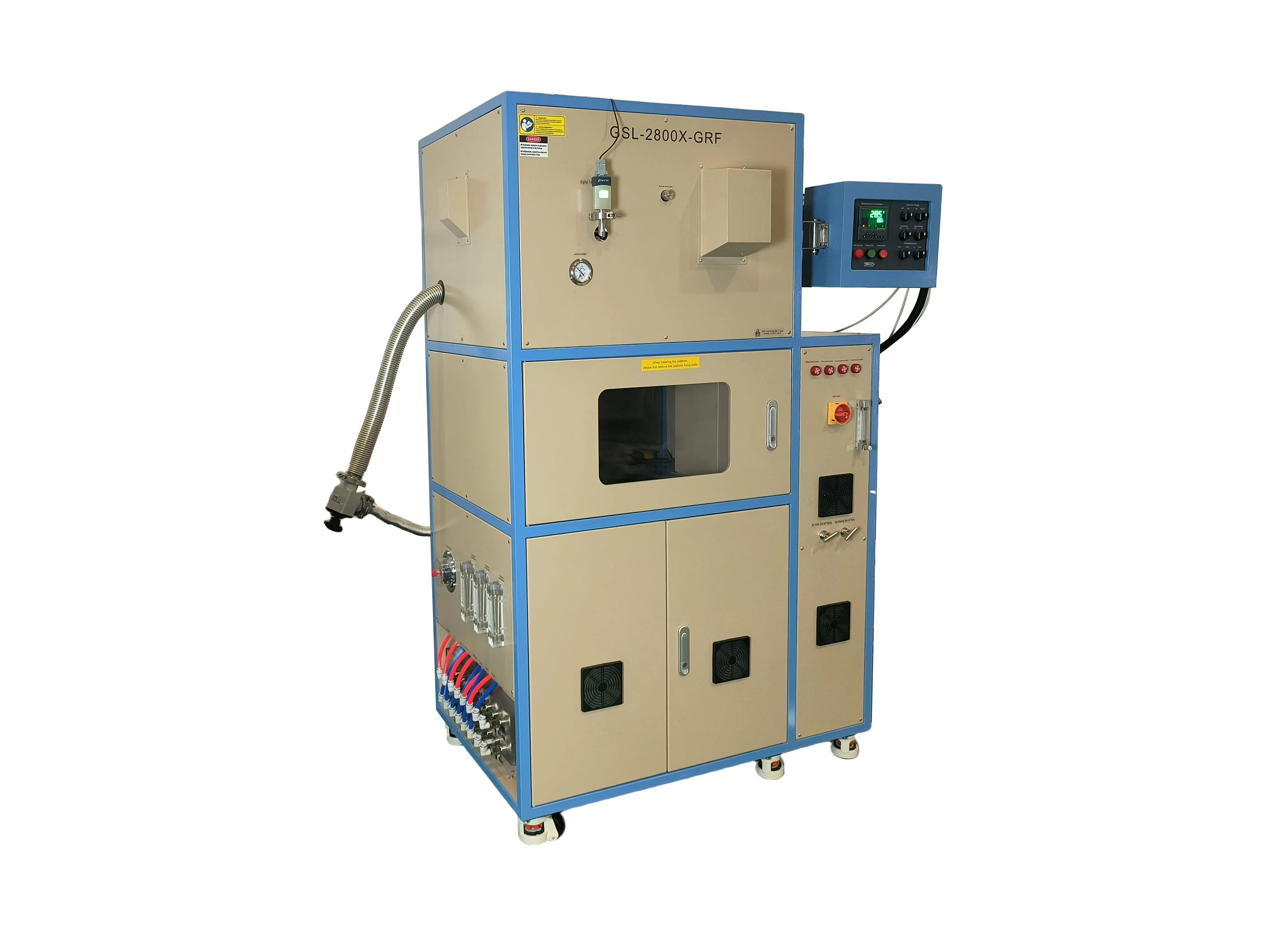

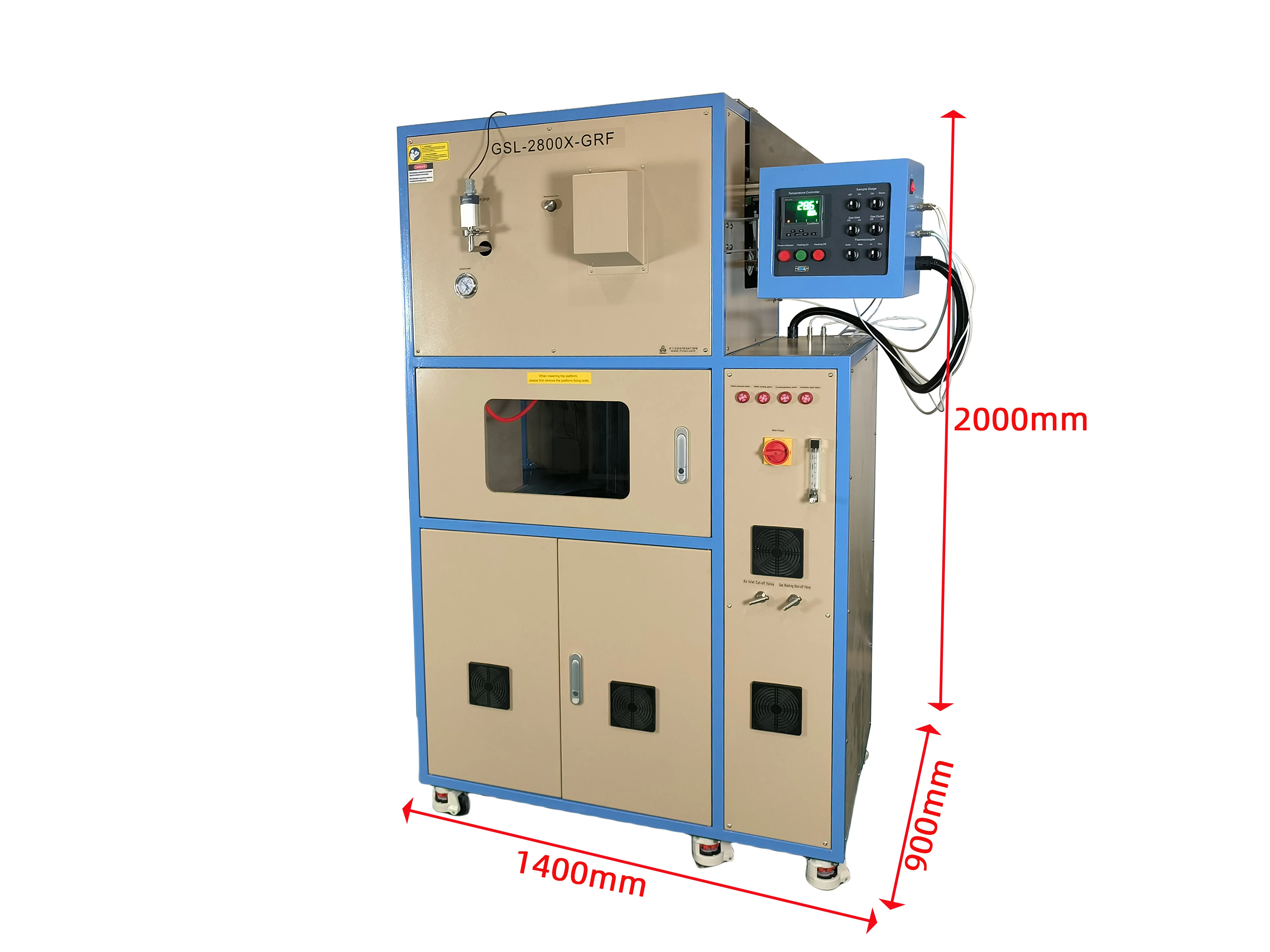

2800°C Graphitization Chamber Furnace - GSL-2800-GRF

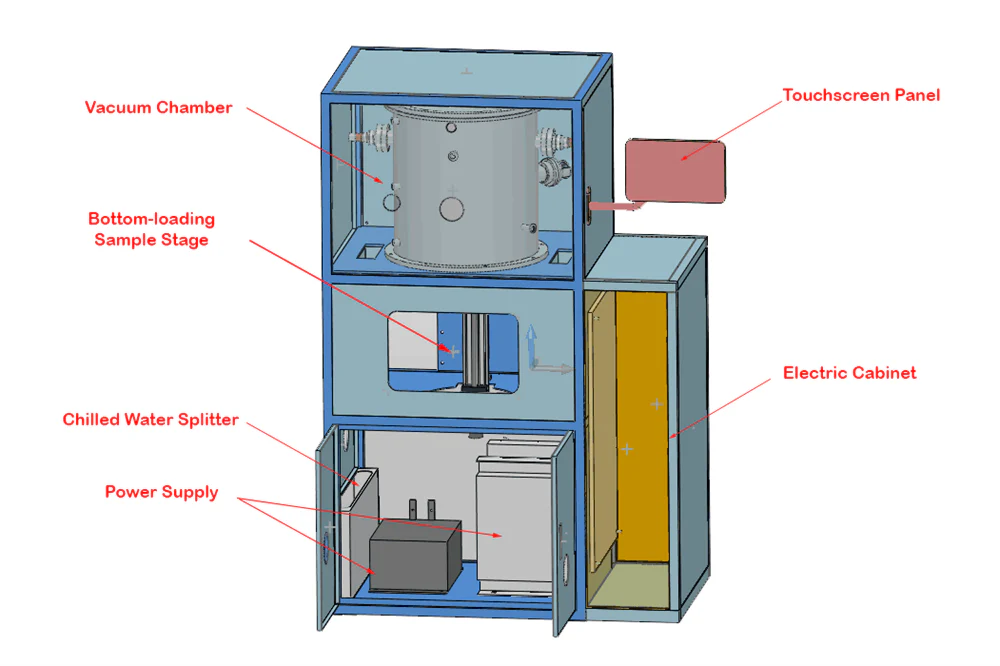

 GSL2800XGRF is a high-temperature graphitization furnace up to 2800°C using graphite heating elements. It comes with multiple layers of graphite felt thermal insulation and a water-cooled stainless steel chamber. The equipment also features a bottom-loading sample stage for easy sample loading and retrieval. The chamber has a vacuum pressure rating <5e-3 torr with a mechanical pump.

SPECIFICATIONS

Power	Standard: 460-480VAC, 3 phase, 50/60Hz, ,50 A Optional: 208-240, 380-415 VAC, 3 phase, 50/60 Hz 35 KVA

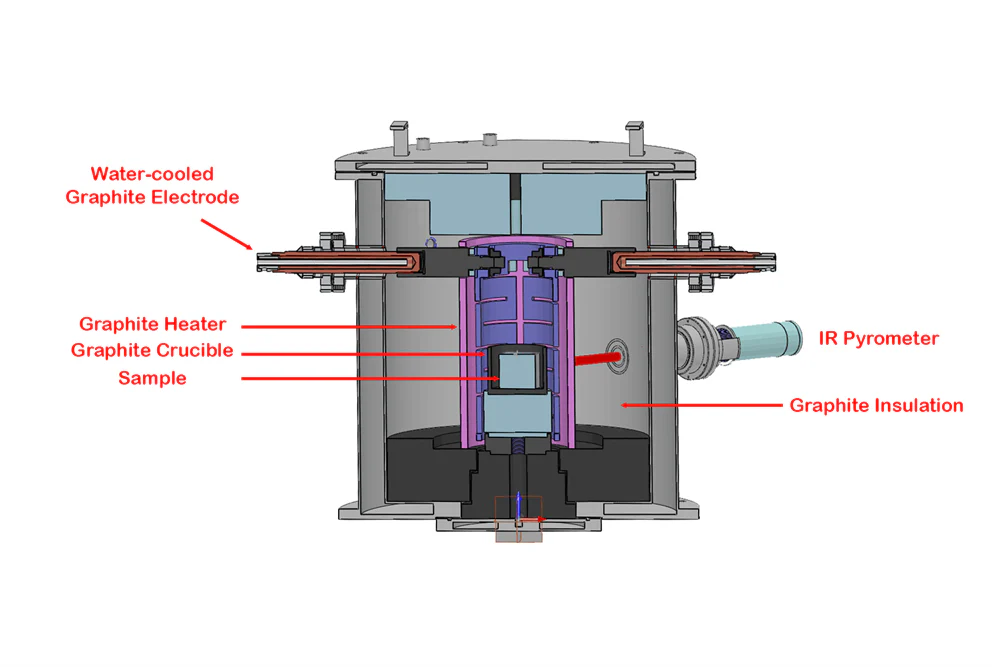

Vacuum Chamber	Water-cooled stainless steel 304 vacuum chamber. Inner dimensions: Ø360 x 480 mm Water-cooled graphite electrode feedthrough 3-5 layers of graphite felt thermal insulation Water flow, water pressure, and overtemperature interlocks
Heating Element	Effective heating area: Ø100 × 260 mm Sample size: <Ø80 × 200 mm Cylindrical graphite heater, up to 2800°C
Temperature Control	Eurotherm 3000 series temperature controller with dual inputs 28-segment programmable PID loop Dual temperature probes RT - 1300°C C-type thermocouple 1300<T<2800°C Dual color Pyrometer Estimated temperature uniformity <±8°C in Ø80×120 mm Temperature stability: <±1°C Heating Rate: RT - 300°C ≤ 5°C/min 300 - 1000°C ≤ 15°C/min 1000 - 1600°C ≤ 10°C/min 1600 - 2000°C ≤ 8°C/min 2000 - 2400°C ≤ 5°C/min 2400 - 2600°C ≤ 3°C/min 2600 - 2800°C ≤ 1°C/min  2800°C dwelling time < 60 min Cooling Rate: 2800 - 2600°C ≤ 3°C/min 2600 - 2400°C ≤ 5°C/min 2400 - 2000°C ≤ 8°C/min 2000 - 1600°C ≤ 10°C/min 1600 - 1300°C ≤ 15°C/min Passive cooling at T <1300°C Remote temperature control and monitoring via an RS485 port and iTools.
Sample Stage	Motorized bottom-loading sample stage for easy sample loading and retrieval.
Pressure Gauge	Inficon PGC554 Pirani capacitance diaphragm pressure gauge Measurement range 3.8E-5 to 1125 Torr.
Vacuum	<5e-3 torr after bakeout A vacuum pump is required but not included.  MTI recommends getting a vacuum pump along with the furnace.
Chilled Water	Water inlet and outlet: 1" barbed fitting Cooling capacity >15 kW Water pressure: 0.1 - 0.2 MPa Water flow rate > 40L/min MTI recommends getting a water chiller together with the equipment. Backup lab water supply (>7 L/min) is required if a water chiller is used.
Gas Compliance	Argon gas RT - 2800°C 3% hydrogen / 97% Ar gas, for temperature < 1500 °C 4% methane / 96% Ar gas, for temperature < 2400 °C 5% ammonia / 95% Ar gas, for temperature < 2400 °C Vacuum <100 torr, <2000°C 100<P<760 torr, <2800°C
Compliance	CE Certified NRTL certification is available upon request at an extra cost
