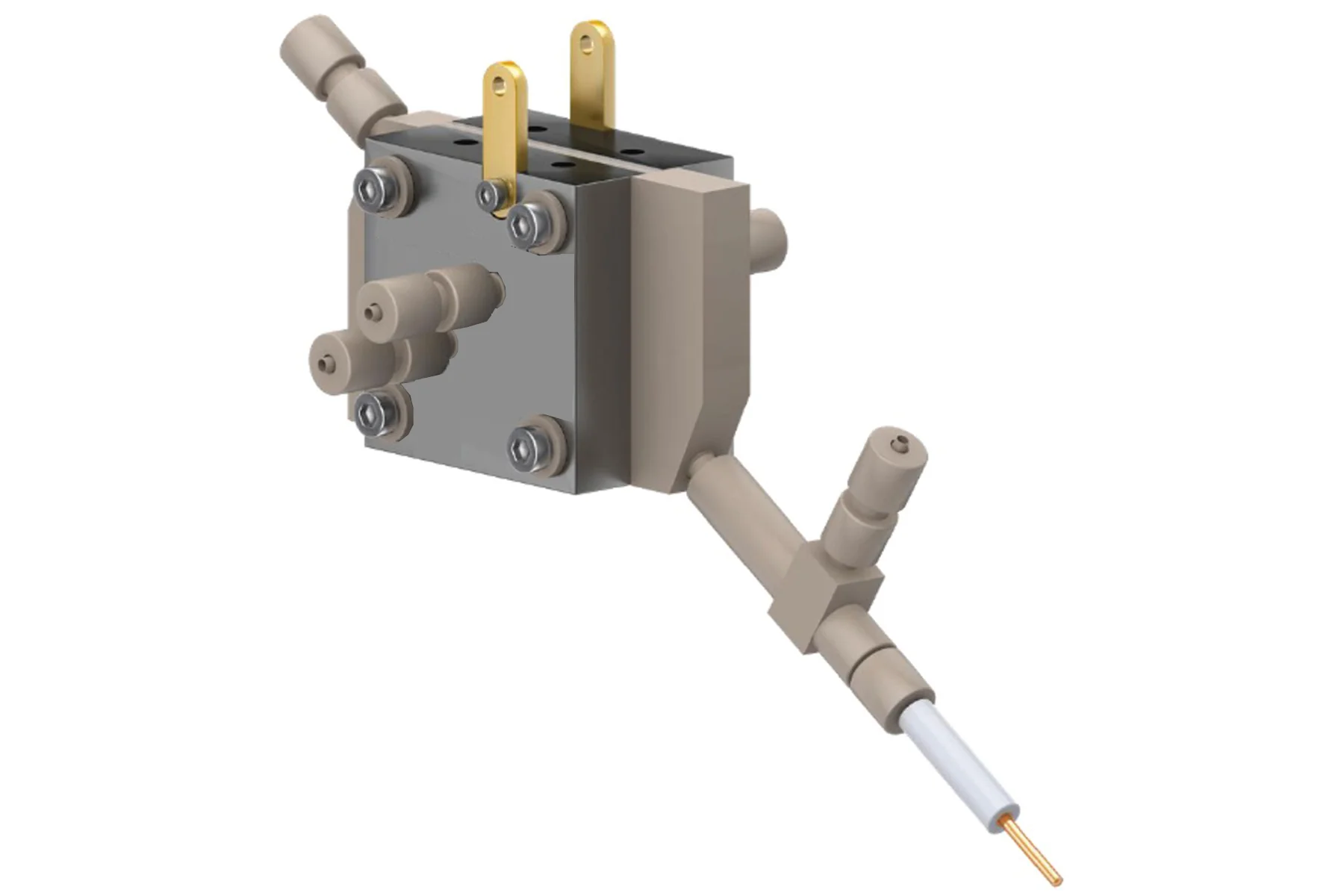

Gas-Diffusion Electrolyzer with Electrolyte Flow Chamber and Three-Electrode Configuration for CO2 Reduction Reaction - GDE-EFC-TEC

GDE-EFC-TEC is a gas-diffusion-type flow cell electrolyzer with electrolyte flow chamber and three-electrode configuration for CO2 reduction reaction. The snakelike gas channels enable the reaction efficiency for gas and cathode catalyst.

SPECIFICATIONS:

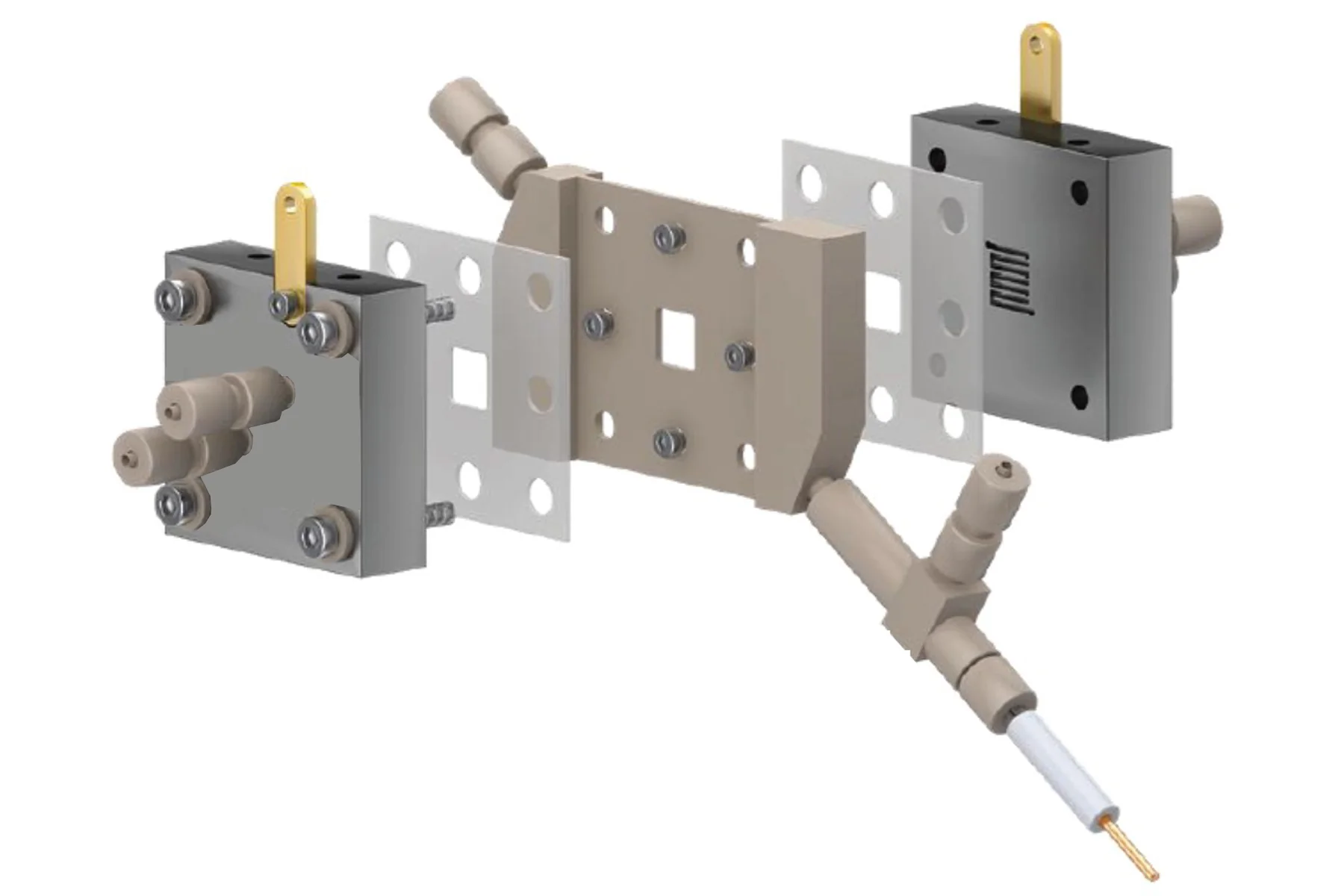

Structural Features	The bipolar plates are made of Ti metal with good corrosion resistance and the central chamber plate is made of PEEK. The central chamber with a thickness of 1.2 mm is used for electrolyte flow and a reference electrode (Ag/AgCl) is installed. PTFE gaskets with high electrochemical corrosion property Gas flow channels with snakelike shape for increasing reaction retention time. Flow channels with other shapes are also available upon request.
Cell Features	1 cm * 1 cm (other area, such as 2 cm*2 cm, 3 cm*3 cm, and 5 cm* 5cm can be customized upon request )
Valves & Fittings	3 mm PTFE Tubing for liquid/gas flow
Warranty	One -Year limited manufacture warranty with lifetime support
Operation Instructions
