Vacuum Sealing Flange with Six 1/4" Feedthroughs for 80mm O.D. Tube - FL80-6FTR

Vacuum Sealing Flange with Six 1/4" Feedthroughs for 80mm O.D. Tube - FL80-6FTR

Vacuum Sealing Flange with Six 1/4" Feedthroughs for 80mm O.D. Tube - FL80-6FTR

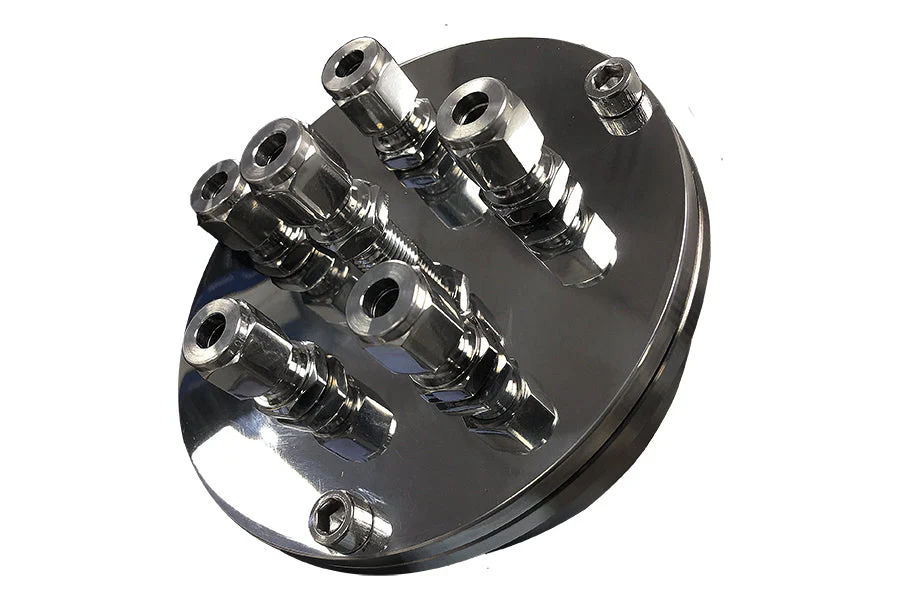

This is a single-side flange for an 80mm O.D. tube with six 1/4" tube fittings. It provides multiple feed-throughs for various gasses delivery and thermocouple insert.

Specifications:

Features	SS304 stainless steel flange with double high-temperature silicon O-rings Hex screw tube sealing with no welding or gluing needed. Ideal for any type of tubing: ceramic, glass, quartz, steel pipes, etc. Multiple feed-throughs for various gasses delivery and thermocouple insert. Designed with two configurations, please select on the options bar: Configuration 1: Six ports in a circle Configuration 2: Five ports in a circle and one in the center
Structure & Option	Flange for 80mm O.D. tube Six 1/4" feedthrough with ferrule tube fitting
Vacuum Level	10^-5 torr (molecular pump)and 10^-2 torr( mechanical pump)
Warning	A refractory tube block is required in front of the flange to avoid silicone O-ring melting. Please consider purchasing our ceramic tube block. Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs. For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gasses with our flange assemblies. Please contact us with any concerns.
Related Products	Click here to choose flange for tube from 1" to 11" Vacuum Pump & High Vacuum Station

STANDARD PACKAGE:

Part Number	Part Name	Qty
1	Inner and Outer Flange	1 pair
2	Feedthrough Nut	6
3	Ferrule Fitting	6 pairs
4	Centering Ring	1
5	Hex sealing screws	3
6	High-Temperature Silicone O-ring (White)	1

Select Port Location

From $174.30

Original: $498.00

-65%

Vacuum Sealing Flange with Six 1/4" Feedthroughs for 80mm O.D. Tube - FL80-6FTR—

$498.00

$174.30

More Images

Vacuum Sealing Flange with Six 1/4" Feedthroughs for 80mm O.D. Tube - FL80-6FTR - Image 2

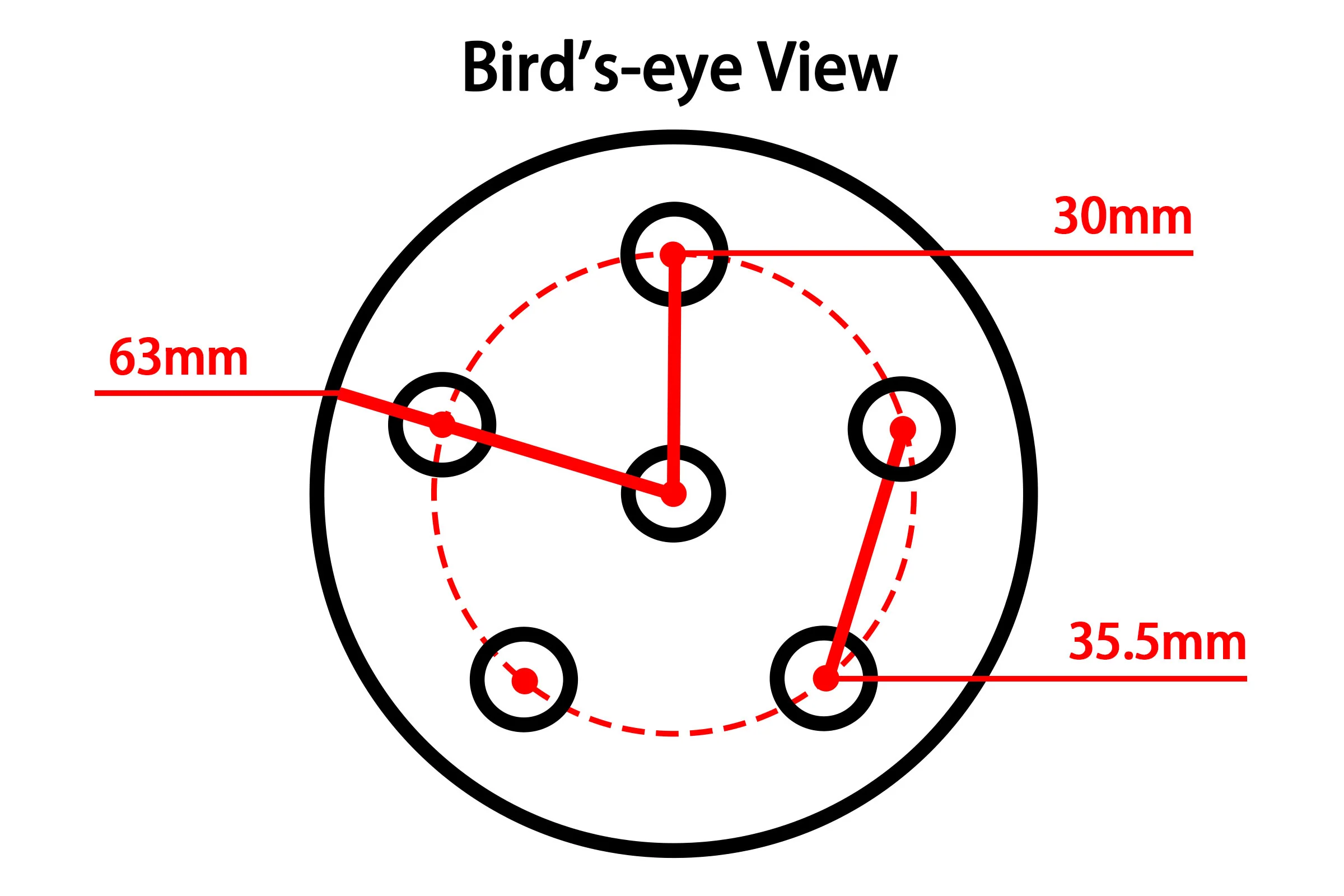

Vacuum Sealing Flange with Six 1/4" Feedthroughs for 80mm O.D. Tube - FL80-6FTR - Image 3
