Vacuum Flange With Two Feedthoughs for 76mm Tube - FL76FT2
HomeStore

Vacuum Flange With Two Feedthoughs for 76mm Tube - FL76FT2

Vacuum Flange With Two Feedthoughs for 76mm Tube - FL76FT2

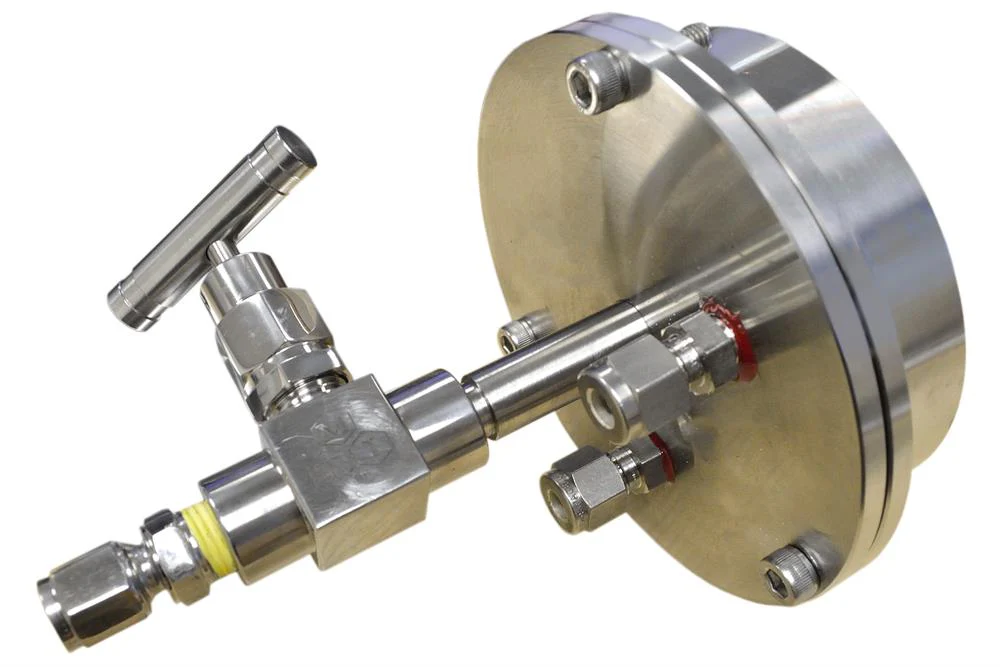

Vacuum Flange FL76FT2 is a smart vacuum sealing assembly with 2 feedthroughs for one end of 76 mm O.D processing tube. These feedthroughs can be used for 1/4" O.D thermal couple or 1/4" O.D inlet steel pipe.
Other customization is available. Please contact us for detail.

SPECIFICATIONS

Package included One flange with one steel sealing ring, two high-temperature silicone O-rings (300oC Max.), three screws and two feedthrough
Feature
  • Made of 304 Stainless Steel with double high-temperature silicone O-ring.
  • Two feedthroughs and one valve are installed on the flange.
  • The feedthrough is fit to 1/4" O.D thermal couple or 1/4" O.D inlet steel pipe.
  • 1/4" hose Nipple is connected to the valve. Or install the optional 1/4 tube fitting to make an additional gas inlet or outlet.
  • Excellent for any type of tubing: ceramic, glass, quartz, and steel pipe.
  • The assembly kit will seal 76 mm diameter alumina and quartz tube.
Warning
  • Refractory tube block must be placed in front of the flange (see picture below) to avoid heat radiation melting the silicone O-ring. Customers may order a ceramic block from related products below.
  • Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.



$173.25

Original: $495.00

-65%
Vacuum Flange With Two Feedthoughs for 76mm Tube - FL76FT2—

$495.00

$173.25

More Images

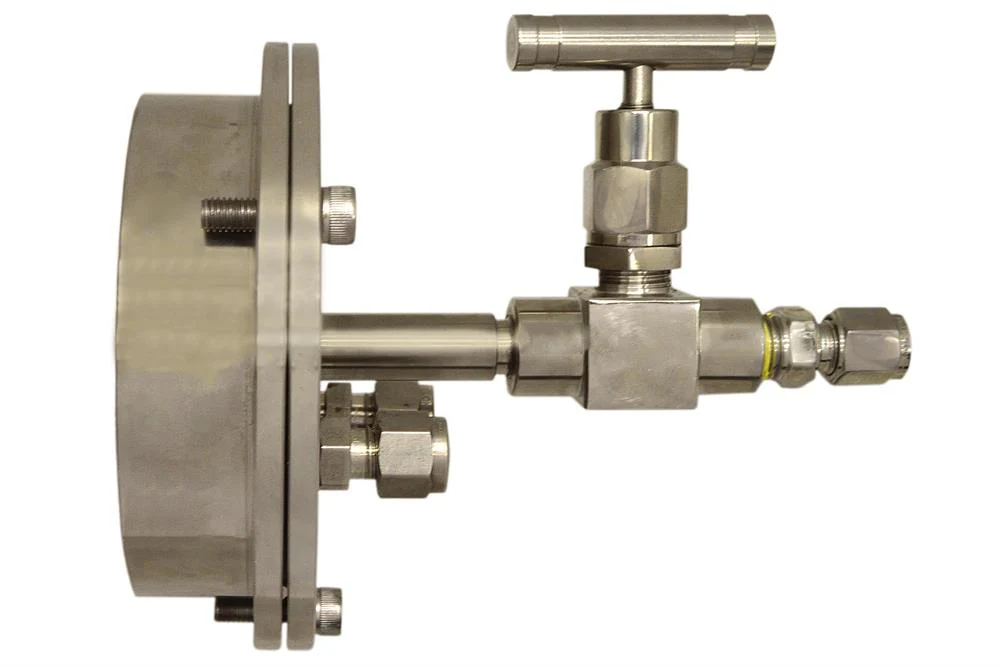

Vacuum Flange With Two Feedthoughs for 76mm Tube - FL76FT2 - Image 2

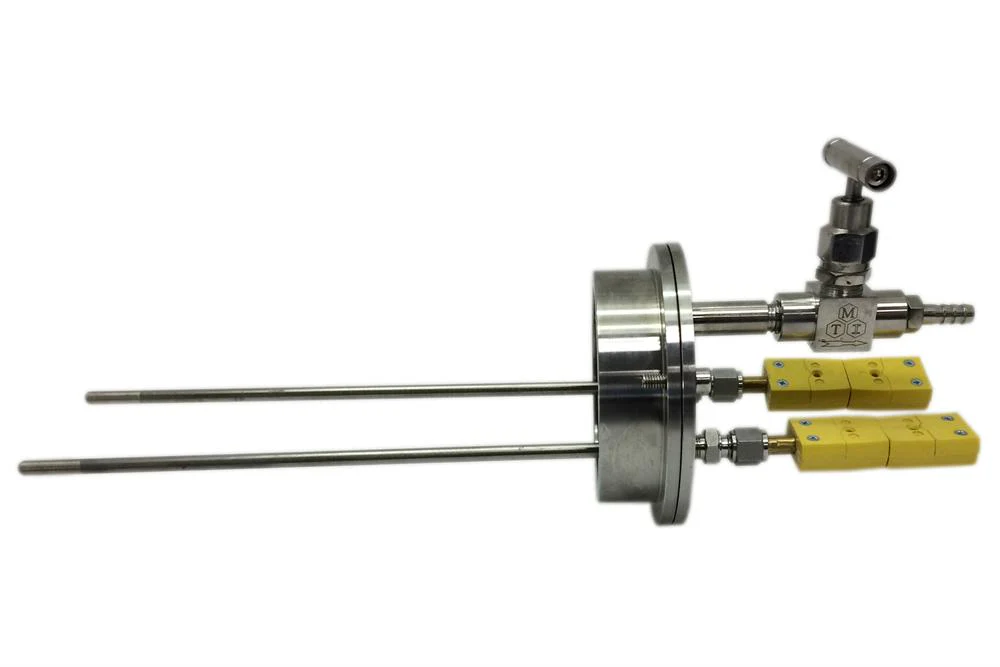

Vacuum Flange With Two Feedthoughs for 76mm Tube - FL76FT2 - Image 3

Vacuum Flange With Two Feedthoughs for 76mm Tube - FL76FT2

Vacuum Flange FL76FT2 is a smart vacuum sealing assembly with 2 feedthroughs for one end of 76 mm O.D processing tube. These feedthroughs can be used for 1/4" O.D thermal couple or 1/4" O.D inlet steel pipe.
Other customization is available. Please contact us for detail.

SPECIFICATIONS

Package included One flange with one steel sealing ring, two high-temperature silicone O-rings (300oC Max.), three screws and two feedthrough
Feature
  • Made of 304 Stainless Steel with double high-temperature silicone O-ring.
  • Two feedthroughs and one valve are installed on the flange.
  • The feedthrough is fit to 1/4" O.D thermal couple or 1/4" O.D inlet steel pipe.
  • 1/4" hose Nipple is connected to the valve. Or install the optional 1/4 tube fitting to make an additional gas inlet or outlet.
  • Excellent for any type of tubing: ceramic, glass, quartz, and steel pipe.
  • The assembly kit will seal 76 mm diameter alumina and quartz tube.
Warning
  • Refractory tube block must be placed in front of the flange (see picture below) to avoid heat radiation melting the silicone O-ring. Customers may order a ceramic block from related products below.
  • Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.
