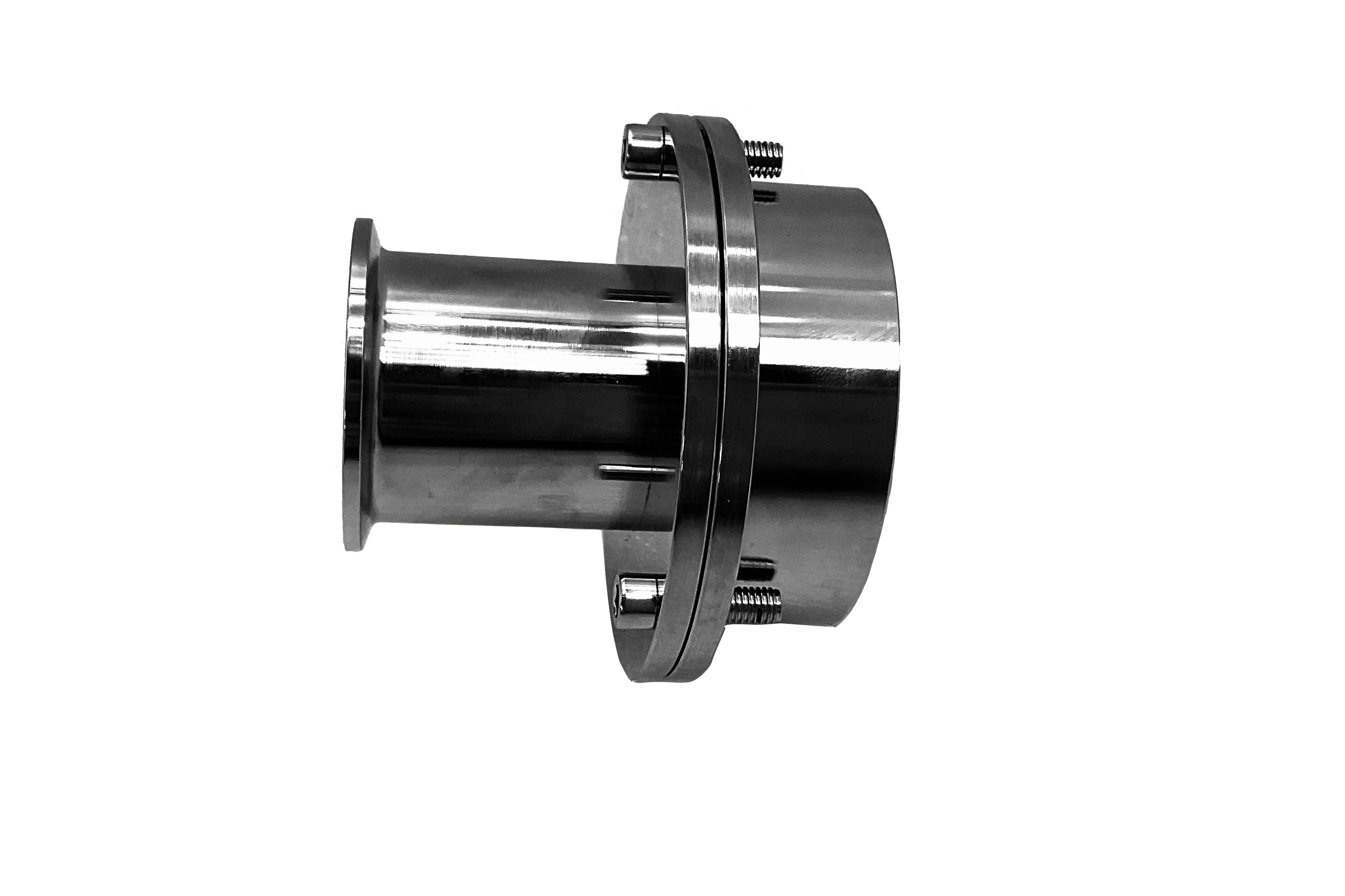

Single-side KF40 Quick Clamp Flange for Ø60 mm O.D. Tube FL60KF40
HomeStore

Single-side KF40 Quick Clamp Flange for Ø60 mm O.D. Tube FL60KF40

Single-side KF40 Quick Clamp Flange for Ø60 mm O.D. Tube FL60KF40

FL60KF40 is a KF40 quick-connect flange for Ø60 mm OD tube.

SPECIFICATIONS

Flange
  • Port 1: KF40
  • Port 2: for Ø60 mm OD alumina or quartz tube
Features
  • Vacuum level: 10E-6 torr by the molecular pump and 10E-2 torr by the mechanical pump
  • Temperature Range: -20ºC to 150ºC
  • Made of 304ss
Optional
  • Other flanges for 60 mm OD tube
  • Due to the weight of the flange and other connected parts, it is recommended to have a flange support
  • Warning: Thermal block must be placed inside the tube to prevent o-rings from overheating
$398.86
Single-side KF40 Quick Clamp Flange for Ø60 mm O.D. Tube FL60KF40—
$398.86

Single-side KF40 Quick Clamp Flange for Ø60 mm O.D. Tube FL60KF40

FL60KF40 is a KF40 quick-connect flange for Ø60 mm OD tube.

SPECIFICATIONS

Flange
  • Port 1: KF40
  • Port 2: for Ø60 mm OD alumina or quartz tube
Features
  • Vacuum level: 10E-6 torr by the molecular pump and 10E-2 torr by the mechanical pump
  • Temperature Range: -20ºC to 150ºC
  • Made of 304ss
Optional
  • Other flanges for 60 mm OD tube
  • Due to the weight of the flange and other connected parts, it is recommended to have a flange support
  • Warning: Thermal block must be placed inside the tube to prevent o-rings from overheating

Product Information

Shipping & Returns

Description

FL60KF40 is a KF40 quick-connect flange for Ø60 mm OD tube.

SPECIFICATIONS

Flange
  • Port 1: KF40
  • Port 2: for Ø60 mm OD alumina or quartz tube
Features
  • Vacuum level: 10E-6 torr by the molecular pump and 10E-2 torr by the mechanical pump
  • Temperature Range: -20ºC to 150ºC
  • Made of 304ss
Optional
  • Other flanges for 60 mm OD tube
  • Due to the weight of the flange and other connected parts, it is recommended to have a flange support
  • Warning: Thermal block must be placed inside the tube to prevent o-rings from overheating
