60 mm PTFE Sealing Flange with Valves & Fittings for Corrosive Environment. Tube - FL60-PTFE
60 mm PTFE Sealing Flange with Valves & Fittings for Corrosive Environment. Tube - FL60-PTFE

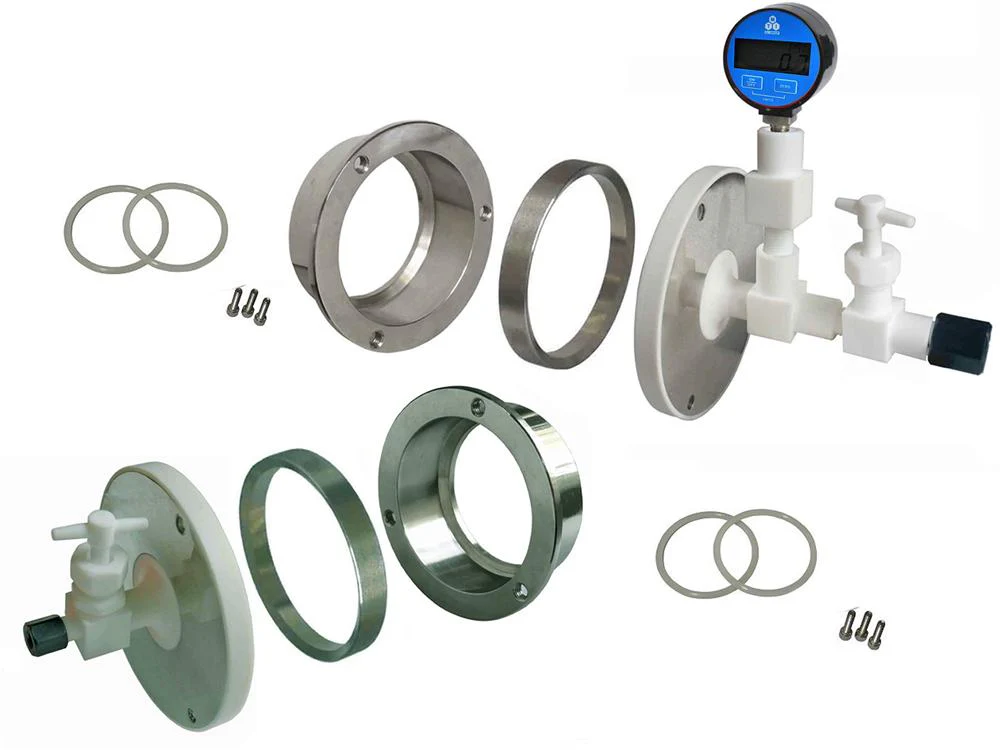

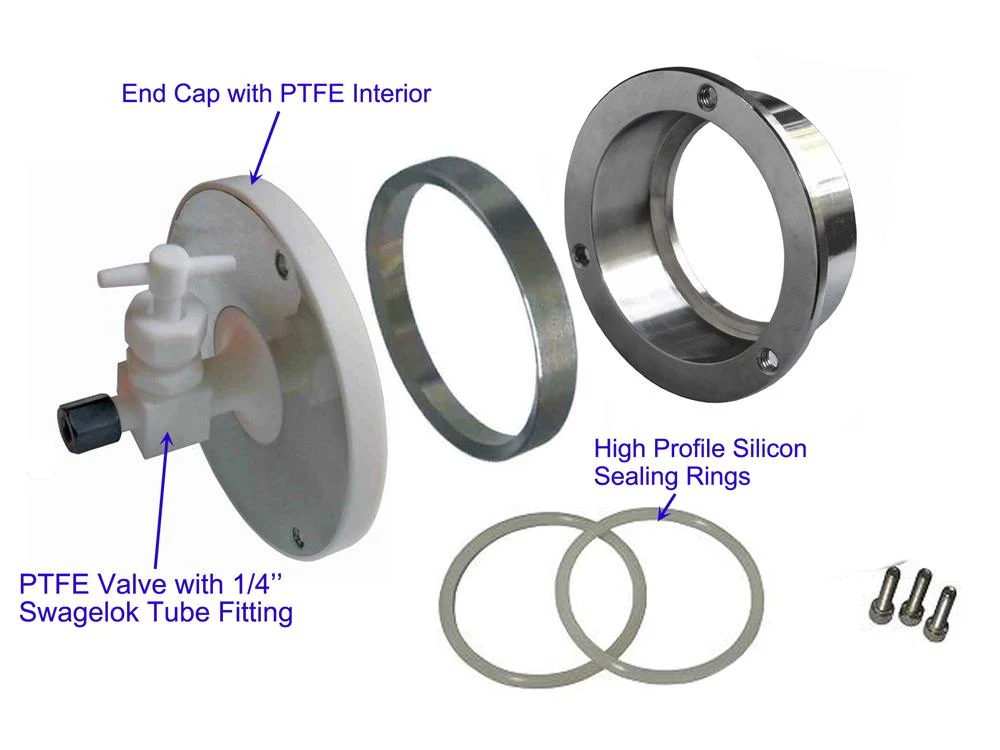

Configuration of Left Flange:
- Polyfluortetraethylene (PTFE) made flange interior (only the flange interior will expose to the reaction chamber);
-
Polyfluortetraethylene (PTFE) needle valve with 1/4" tube fitting;
- High-profile silicon O-Rings (2 pcs) can withstand temperatures up to 250°C;

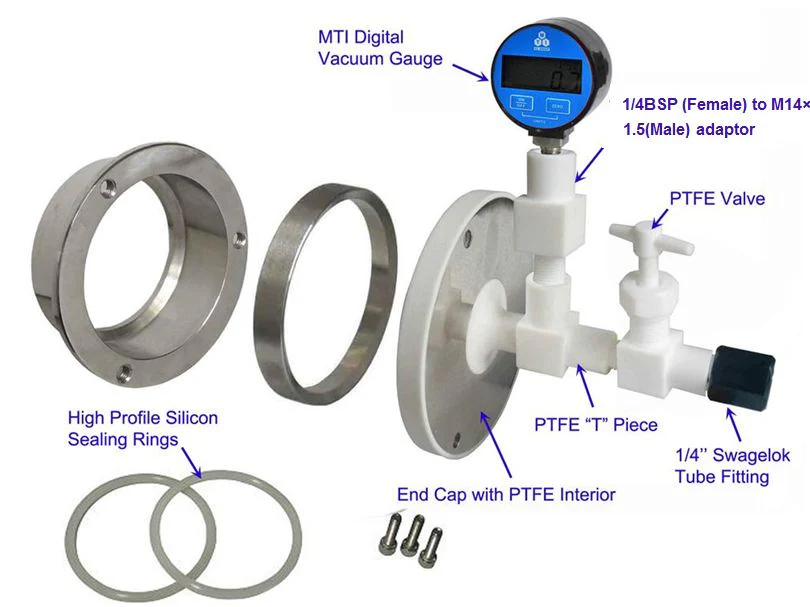

Configuration of Right Flange:
-
Polyfluortetraethylene (PTFE) made flange interior (only the flange interior will expose to the reaction chamber);
- Digital Vacuum Gauge for MTI Furnaces, DVPG
- Polyfluortetraethylene (PTFE) needle valve with 1/4" tube fitting;
- 1/4 BSP(Female) to M14x1.5(Male) adaptor;
- PTFE "T" Piece, TP1-PTFE;
- High-profile silicon O-Rings (2 pcs) can withstand temperatures upto 250°C;
- The digital pressure gauge is optional
Warning: For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.
Note: Max. The working temperature of the flange set is 250°C, you must use thermal blocks to establish a thermal barrier and reduce heat radiation. Otherwise, the PTFE flange set can be melted if the furnace temperature gets higher than 500°C.
Original: $1,998.00
-65%$1,998.00
$699.30More Images
60 mm PTFE Sealing Flange with Valves & Fittings for Corrosive Environment. Tube - FL60-PTFE
Configuration of Left Flange:
- Polyfluortetraethylene (PTFE) made flange interior (only the flange interior will expose to the reaction chamber);
-
Polyfluortetraethylene (PTFE) needle valve with 1/4" tube fitting;
- High-profile silicon O-Rings (2 pcs) can withstand temperatures up to 250°C;
Configuration of Right Flange:
-
Polyfluortetraethylene (PTFE) made flange interior (only the flange interior will expose to the reaction chamber);
- Digital Vacuum Gauge for MTI Furnaces, DVPG
- Polyfluortetraethylene (PTFE) needle valve with 1/4" tube fitting;
- 1/4 BSP(Female) to M14x1.5(Male) adaptor;
- PTFE "T" Piece, TP1-PTFE;
- High-profile silicon O-Rings (2 pcs) can withstand temperatures upto 250°C;
- The digital pressure gauge is optional
Warning: For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.
Note: Max. The working temperature of the flange set is 250°C, you must use thermal blocks to establish a thermal barrier and reduce heat radiation. Otherwise, the PTFE flange set can be melted if the furnace temperature gets higher than 500°C.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Configuration of Left Flange:
- Polyfluortetraethylene (PTFE) made flange interior (only the flange interior will expose to the reaction chamber);
-
Polyfluortetraethylene (PTFE) needle valve with 1/4" tube fitting;
- High-profile silicon O-Rings (2 pcs) can withstand temperatures up to 250°C;
Configuration of Right Flange:
-
Polyfluortetraethylene (PTFE) made flange interior (only the flange interior will expose to the reaction chamber);
- Digital Vacuum Gauge for MTI Furnaces, DVPG
- Polyfluortetraethylene (PTFE) needle valve with 1/4" tube fitting;
- 1/4 BSP(Female) to M14x1.5(Male) adaptor;
- PTFE "T" Piece, TP1-PTFE;
- High-profile silicon O-Rings (2 pcs) can withstand temperatures upto 250°C;
- The digital pressure gauge is optional
Warning: For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.
Note: Max. The working temperature of the flange set is 250°C, you must use thermal blocks to establish a thermal barrier and reduce heat radiation. Otherwise, the PTFE flange set can be melted if the furnace temperature gets higher than 500°C.
