Vacuum Sealing Flange with Four 1/4" Feedthroughs for 60mm O.D. Tube - FL60-4FTR
HomeStore

Vacuum Sealing Flange with Four 1/4" Feedthroughs for 60mm O.D. Tube - FL60-4FTR

Vacuum Sealing Flange with Four 1/4" Feedthroughs for 60mm O.D. Tube - FL60-4FTR

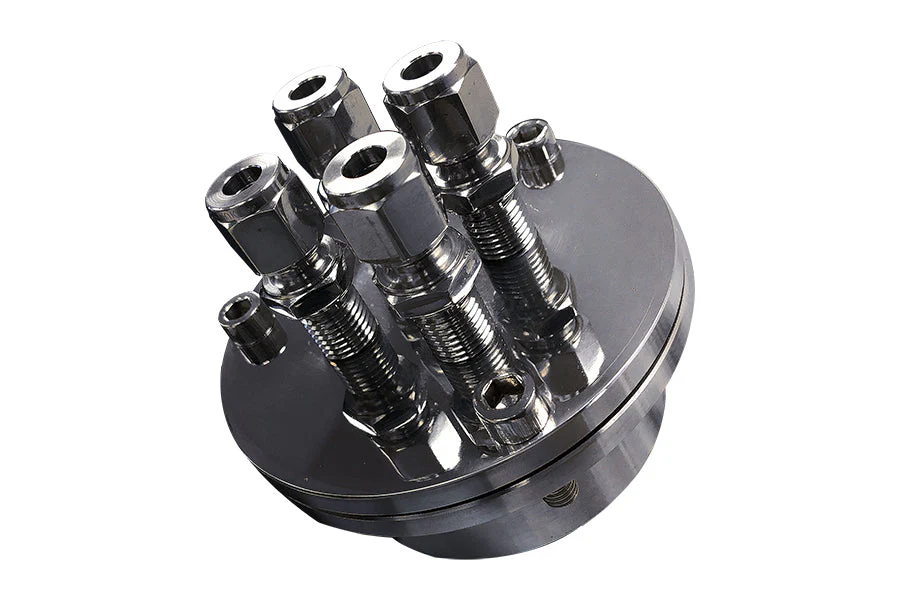

This is a single-side flange for 60mm O.D. tube with four 1/4" tube fittings. It provides multiple feedthroughs for various gasses delivery and thermocouple insert.

Specifications:

Features
  • SS304 Stainless steel flange with double high-temperature silicon O-rings
  • Hex screw tube sealing with no welding or gluing needed.
  • Ideal for any type of tubing: ceramic, glass, quartz, and steel pipes.
  • Multiple feedthrough for in-tube electrical and gas needs
Structure
  • Flange for 60mm O.D.+/- 1 mm tube
  • Four 1/4" feedthroughs with ferrule tube fitting (The following pictures show an 80mm version, which has six feedthroughs)
  •
Vacuum Level 10-5torr (molecular pump)and 10-2 torr(mechanical pump)
Warning
  • A refractory tube block is required in front of the flange to avoid silicone O-ring melting.
  • Please consider purchasing our ceramic tube block.
  • Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gasses with our flange assemblies. Please contact us with any concerns.
Related Products

 Click here to choose flange for tube from 1" to 11"                                       Vacuum Pump & High Vacuum Station

                     Stainless Steel Sealing Flange Assembly for 1"-11" Processing Tubes                                                                                         Vacuum pump and high vacuum station

STANDARD PACKAGE:

Part Number Part Name Qty
1 Inner and Outer Flange 1 pair
2 Feedthrough Nut 4
3 Ferrule Fittng 4 pairs
4 Centering Ring 1
5 Hex sealing screws 3
6 High-Temperature Silicone O-ring (White) 1



$496.00
