Quick Clamp Vacuum Sealing Assembly for 80mm dia Tube Furance with KF50 Vaccum Port - FL80QC
HomeStore

Quick Clamp Vacuum Sealing Assembly for 80mm dia Tube Furance with KF50 Vaccum Port - FL80QC

Quick Clamp Vacuum Sealing Assembly for 80mm dia Tube Furance with KF50 Vaccum Port - FL80QC

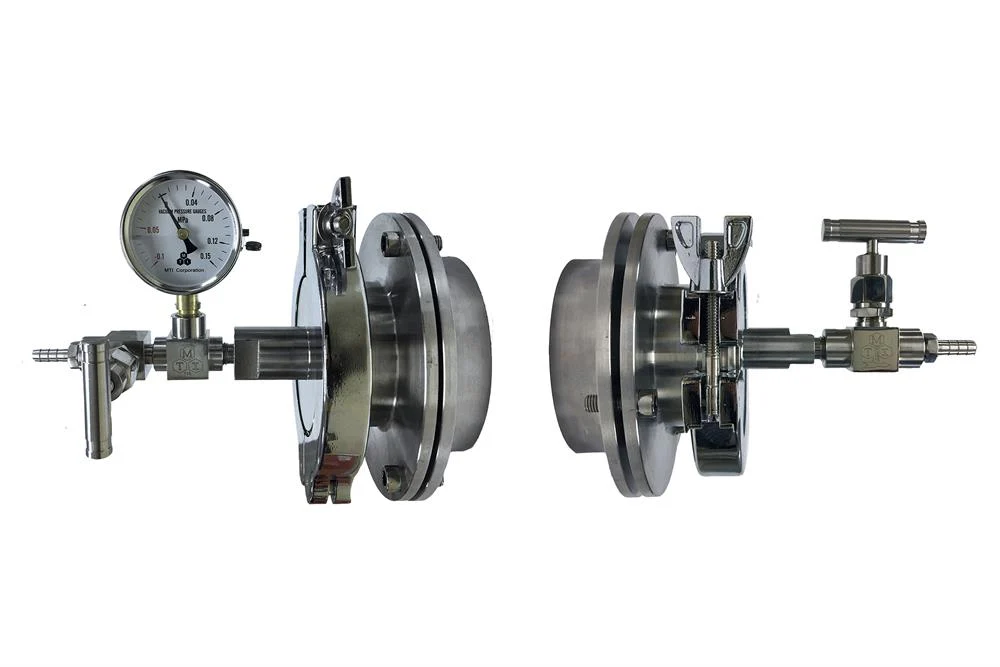

This is a quick clamp vacuum sealing assembly for tube vacuum furnace tube of OD 80 mm with no welding or gluing needed.

SPECIFICATIONS

Features
  • Stainless steel flange with double high-temperature silicon O-rings.
  • Seal tube by tightening screws on the flange with no welding and glue needed.
  • Clamp allows quick access to content inside the furnace.
  • High-temperature silicon O-ring and centering ring at flange cap.
  • 1/4" in diameter vacuum sealing assembly connects with rubber hose.
  • Ideal for any type of tubing: ceramic, glass, quartz and steel pipe.
  •
Vacuum Level
  • 10E-2 torr by a mechanical pump
  • 10E-5 torr by a small turbopump and
  • 10-6 torr by hi-speed turbopump
Optional Parts
  • For precision vacuum control up to 10-4 torr, please choose our Digital Vacuum Gauge. (Fig.1)
  • For CVD application, please choose our Anti-corrosive Vacuum Gauge. (Fig.2)
  • We provide various Fitting Ends for separate purchase. (Fig.3)
  • For advanced control over gas flow, please choose our Float-meter. (Fig.4)
  • The product requires flange support, please consider our Adjustable Tube Support. (Fig.5)


Warning
  • A refractory tube block is required in front of the flange to avoid silicone O-ring melting.
    Please consider purchasing our ceramic tube block
  • This product is heavy, flange support is required to avoid damage on the furnace tube.
  • Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.
Related Products Click here to choose flange for tube from 1" to 11"                                       Vacuum Pump & High Vacuum Station
                     Stainless Steel Sealing Flange Assembly for 1"-11" Processing Tubes                                                                                         Vacuum pump and high vacuum station





STANDARD PACKAGE:

Part Number Part Name Qty
1 Inner and Outer Flange 1 pair
2 Pressing Ring 1
3 Centering Ring 1
4 Flange cap with valve 1
5 Hexagon screws 3
6 Clamp 1
7 High-Temperature Silicone O-ring (Black) 1
8 High-Temperature Silicone O-ring (White) 2
9 Gauge (only included for purchase with left flange) 1
